86130341014355000E1LF: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE; File Size128KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

86130341014355000E1LF Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE

86130341014355000E1LF Parametric

Parameter Name	Attribute value
Objectid	1785380410
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1

2 3

4

5

6

A

B

FCIconnect.com

B

C

Copyright FCI

linear

NOTES:-

1. THE ''LF '' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR RoHS COMPATIBLE VERSION.

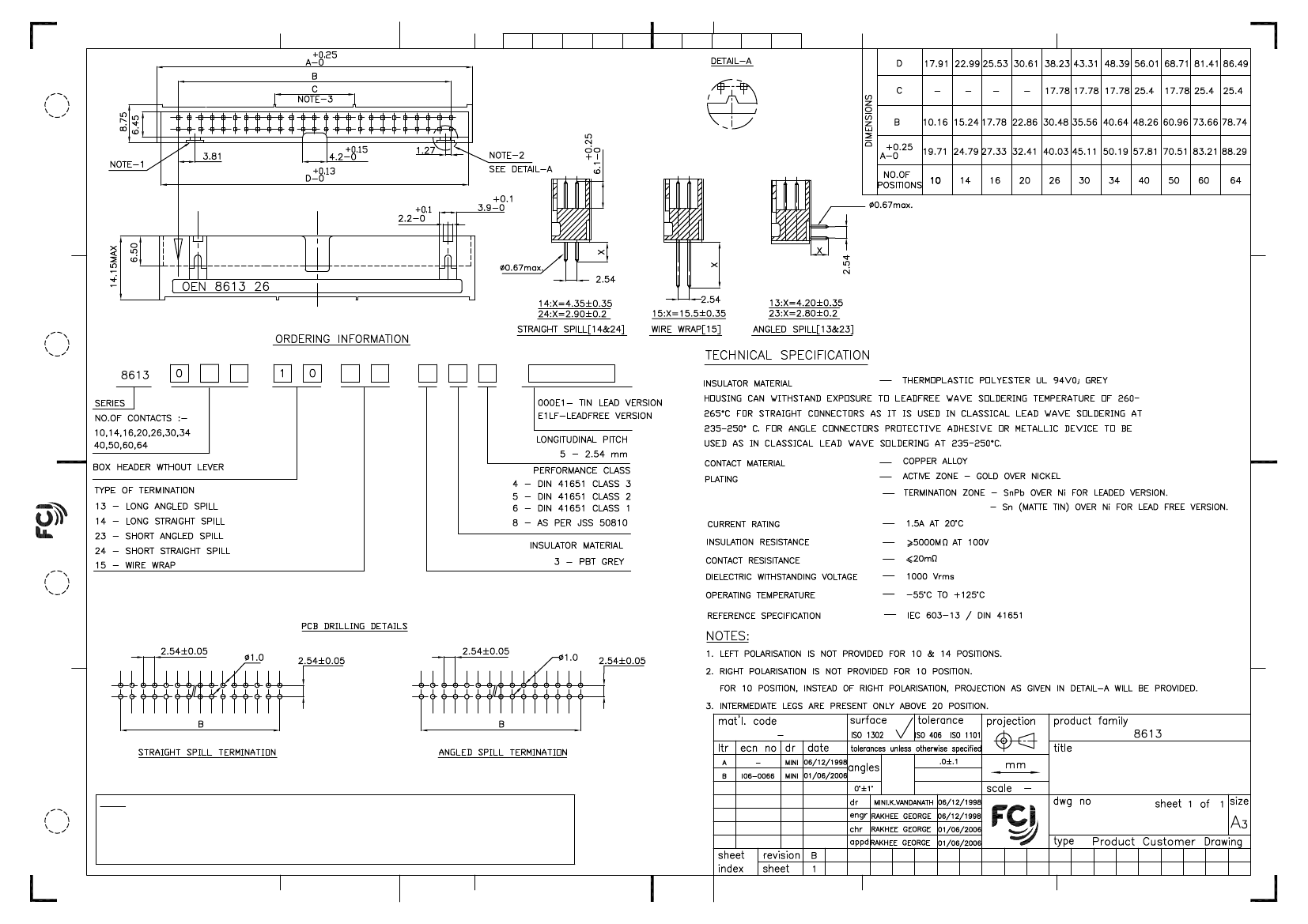

8613 BOX HEADER

C-8613-0024

D

form: A3

1

2

3

4

5

6

STATUS:

Released

Printed: Sep 24, 2010

.

PDM: Rev:B
