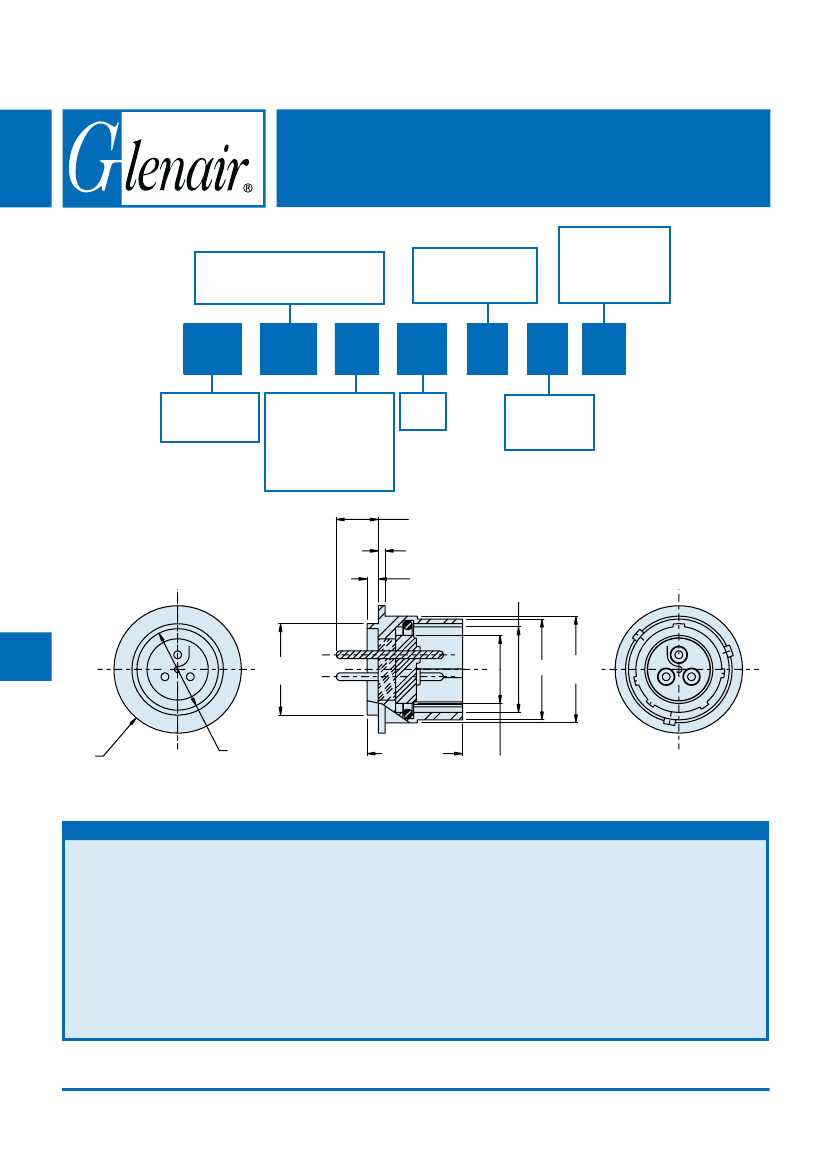

Bayonet Coupling Solder Flange Mount Receptacle
with Straight Pin Contacts
Alternate Insert
Arrangement
W, X, Y, or Z
(Omit for Normal)
230-026
MIL-DTL-83723/93 Series III Type Hermetic
MIL-DTL
83723
Connector Style
026
= Hermetic Solder Flange
Mount Receptacle
Insert
Arrangement
Per MIL-STD-1554
230
-
026
Series 230
MIL-DTL-83723
Type
FT
12
-
3
Shell
Size
P
Contact
Type
C
= Straight Pin
X
Material
Designation
FT
= Carbon Steel/
Tin Plated
Z1
= Stainless Steel/
Passivated
.360/.330
Typical
.062/.047
.108/.078
ØD
Shell I.D.
E
2
1
1
3
ØC
Max
Ø
F
ØG
Max
3
2
ØA
Ø CC
(Min I.D.)
.734 Max
Ø E Max
Resilient
Insert
APPLICATION NOTES
1.
2.
To be identified with manufacturer’s name, part number and
date code, space permitting.
Material/Finish:
Shell*:
Z1 - Stainless steel/passivated.
FT - Carbon steel/tin plated.
Contacts - 52 Nickel alloy/gold plated.
Bayonets - Stainless steel/passivated.
Seals - Silicone elastomer/N.A.
Insulation - Glass/N.A.
Glenair 230-026 will mate with any QPL MIL-DTL-83723/75
& 77 Series III bayonet coupling plug of same size, keyway,
and insert polarization.
4.
Performance:
Hermeticity <1 x 10
-7
cc He/sec @ 1 atmosphere
differential.
Dielectric withstanding voltage - Consult factory or
MIL-STD-1554.
Insulation resistance - 5000 MegOhms min @ 500VDC.
Consult factory and/or MIL-STD-1554 for arrangement,
keyway, and insert position options.
Consult factory for PC tail footprints.
Metric Dimensions (mm) are indicated in parentheses.
5.
6.
7.
3.
* Additional shell materials available, including titanium and Inconel
®
. Consult factory for ordering information.
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-10
Bayonet Coupling Solder Flange Mount Receptacle
with Straight Pin Contacts
Ø CC
Panel Cut Out
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
TABLE I: CONNECTOR AND CUT-OUT DIMENSIONS
Shell
Size
8
10
12
14
16
18
20
22
24
A Dia
.760/.720
(19.3/18.3)
.860/.820
(21.8/20.8)
1.065/1.025
(27.1/26.0)
1.110/1.070
(28.2/27.2)
1.230/1.190
(31.2/30.2)
1.360/1.320
(34.5/33.5)
1.450/1.410
(36.8/35.8)
1.610/1.570
(40.9/39.9)
1.730/1.690
(43.9/42.9)
C Dia
Max
.500 (12.7)
.562 (14.3)
.750 (19.1)
.812 (20.6)
.937 (23.8)
1.062 (27.0)
1.187 (30.1)
1.312 (33.3)
1.437 (36.5)
D Dia
Shell I.D.
.433/.428
(11.0/10.9)
.535/.530
(13.6/13.5)
.705/.700
(17.9/17.8)
.774/.796
(19.7/20.2)
.901/.896
(22.9/22.8)
1.007/1.002\
(25.6/25.5)
1.132/1.125
(28.8/28.6)
1.257/1.252
(31.9/31.8)
1.382/1.377
(35.1/35.0)
E Dia
Resilient
Insert
.312 (7.9)
.388 (9.9)
.558 (14.2)
.627 (15.9)
.772 (19.6)
.860 (21.8)
.985 (25.0)
1.110 (28.2)
1.235 (31.4)
F Dia
.536/.531
(13.6/13.5)
.659/.654
(16.7/16.6)
.829/.824
(21.1/20.9)
.898/.893
(22.8/22.7)
1.025/1.020
(26.0/25.9)
1.131/1.126
(28.7/28.6)
1.256/1.251
(31.9/31.8)
1.381/1.376
(35.1/35.0)
1.506/1.501
(38.3/38.1)
G Dia
Max
.561 (14.2)
.696 (17.7)
.875 (22.2)
.935 (23.7)
1.062 (27.0)
1.187 (30.1)
CC Dia
Min
.406 (10.3)
.443 (11.3)
.668 (17.0)
.668 (17.0)
.763 (19.4)
.862 (21.9)
Ø CC Dia
Panel
Cut-Out
.515/.505
(13.1/12.8)
.582/.572
(14.8/14.5)
.770/.760
(19.6/19.3)
.832/.822
(21.1/20.9)
.958/.948
(24.3/24.1)
1.082/1.072
(27.5/27.2)
1.202/1.192
(30.5/30.3)
1.332/1.322
(33.8/33.6)
1.452/1.442
(36.9/36.6)
1.312 (33.3) 1.108 (28.1)
1.437 (36.5) 1.204 (30.6)
1.562 (39.7) 1.388 (35.3)
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-11
MIL-DTL
230-026
MIL-DTL-83723/93 Series III Type Hermetic
E
