LP8095BH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LP8095BH

LP8095BH: DescriptionMicrocontroller, 16-Bit, 12MHz, NMOS, PDIP48, PLASTIC, DIP-48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，23 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

LP8095BH Overview

Microcontroller, 16-Bit, 12MHz, NMOS, PDIP48, PLASTIC, DIP-48

LP8095BH Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Has ADC	YES
Other features	FOUR SOFTWARE TIMERS; POWER DOWN PIN VPD 4.5-5.5V
Address bus width	16
bit size	16
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
JESD-30 code	R-PDIP-T48
length	61.79 mm
Number of I/O lines	20
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm
speed	12 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

LP8095BH Preview

REI Datasheet

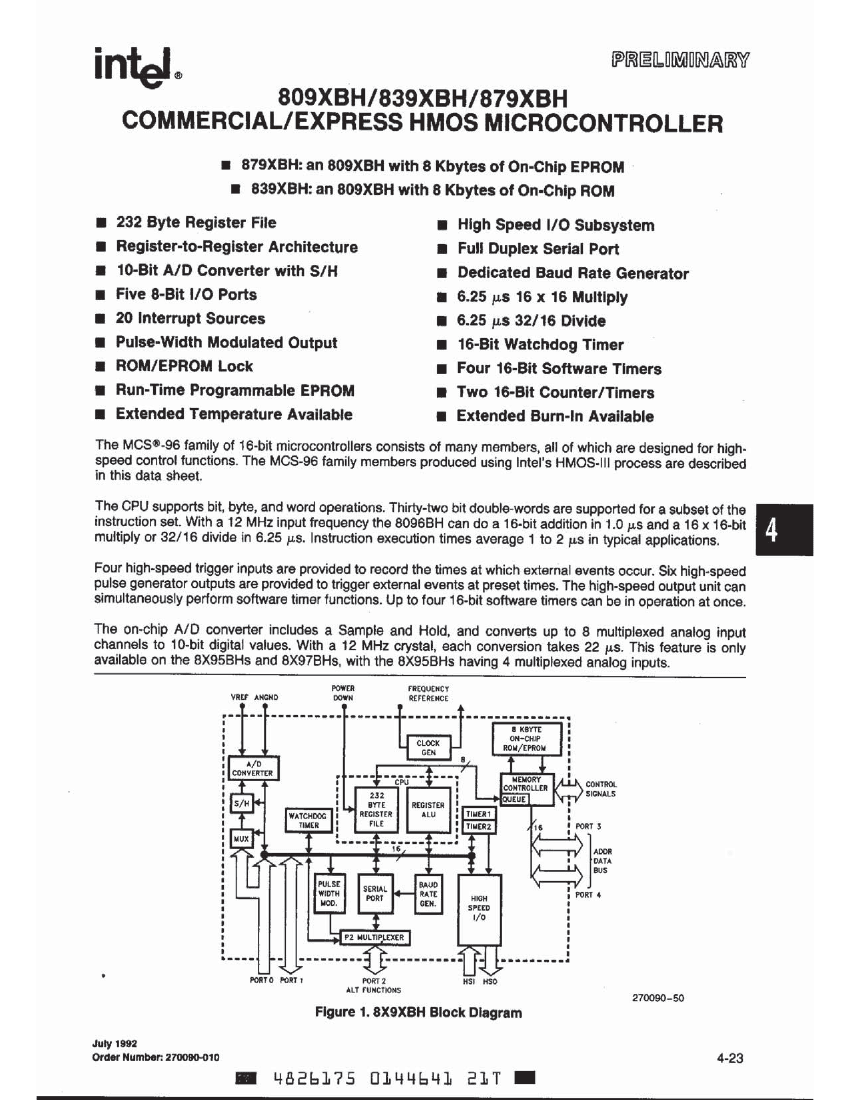

809XBH, 839XBH, 879XBH

Commercial/Express HMOS Microcontroller

The MCS-96 family of 16-bit microcontrollers consists of many members, all of which are designed

for high-speed control functions. The MCS-96 family members produced using Intel’s HMOS-III

process are described in this data sheet.

The CPU supports bit, byte, and word operations. Thirty-two bit double-words are supported for a

subset of the instruction set. With a 12 MHz input frequency the 8096BH can do a 16-bit addition in

1.0 µs and a 16 x 16-bit multiply or 32/16 divide in 6.25 µs. Instruction execution times average 1 to

2 µs in typical applications.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

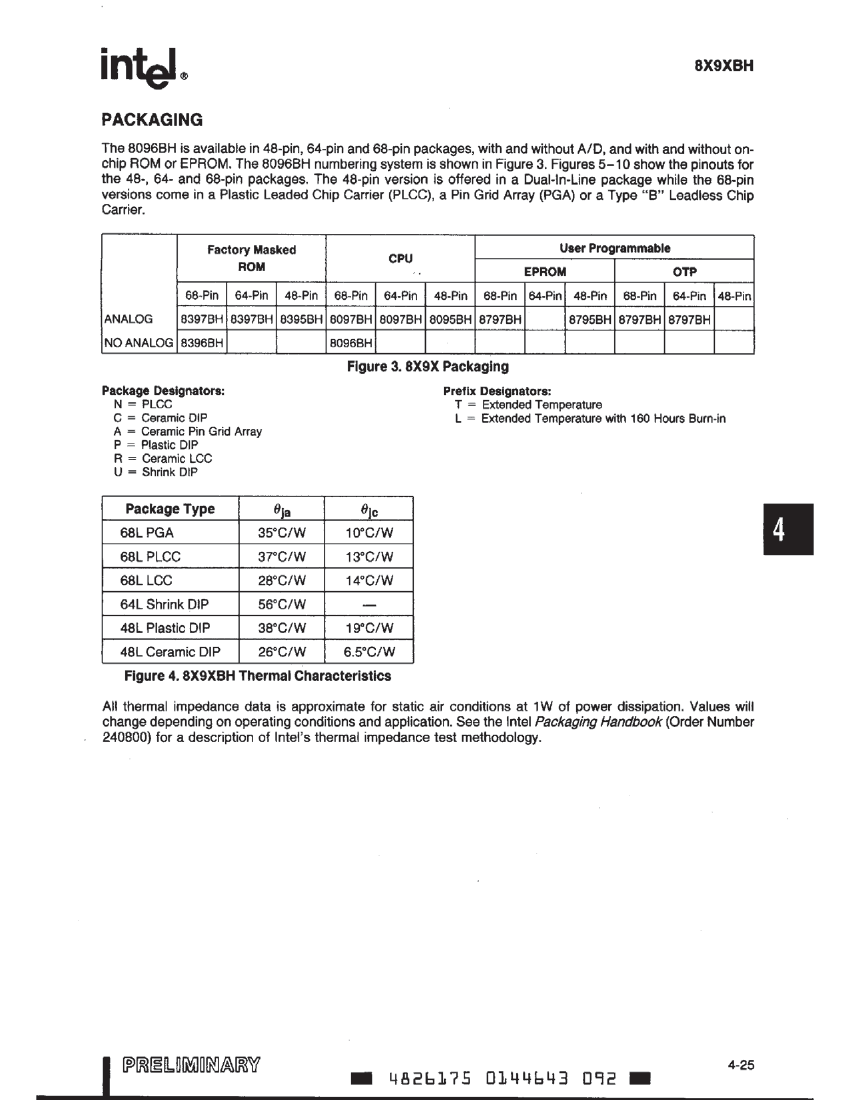

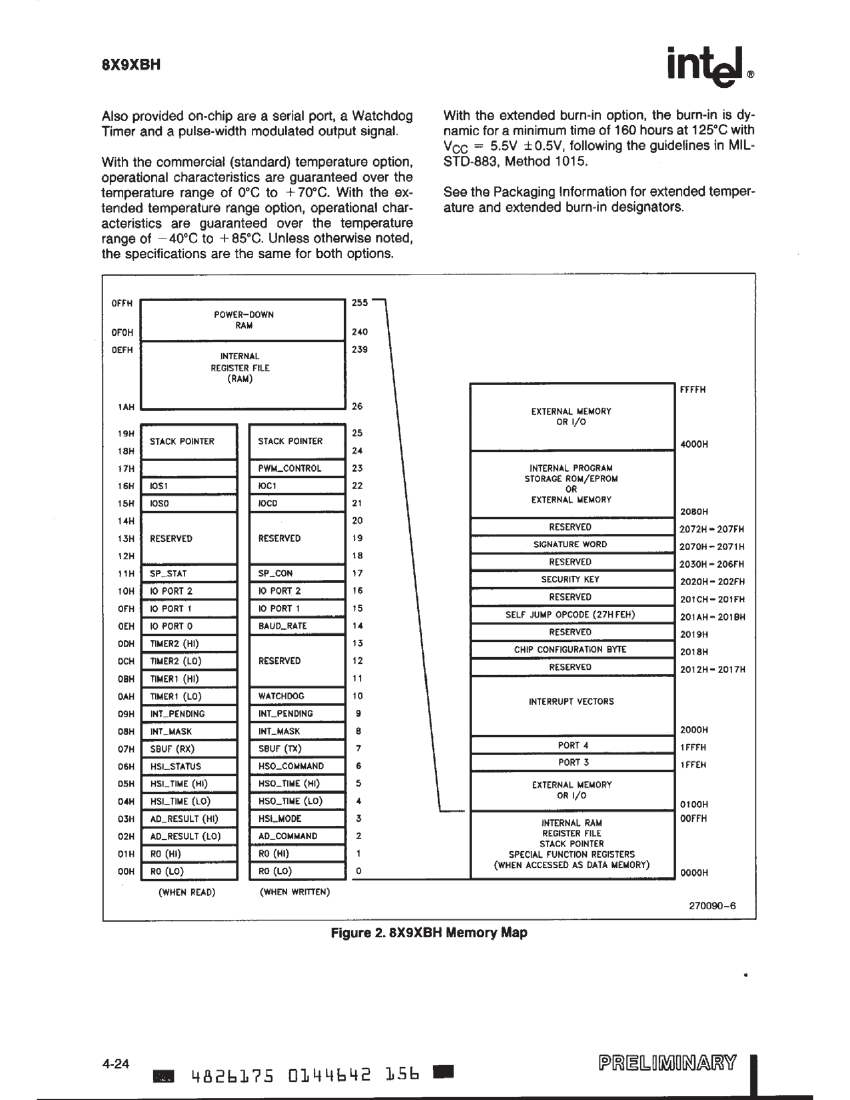

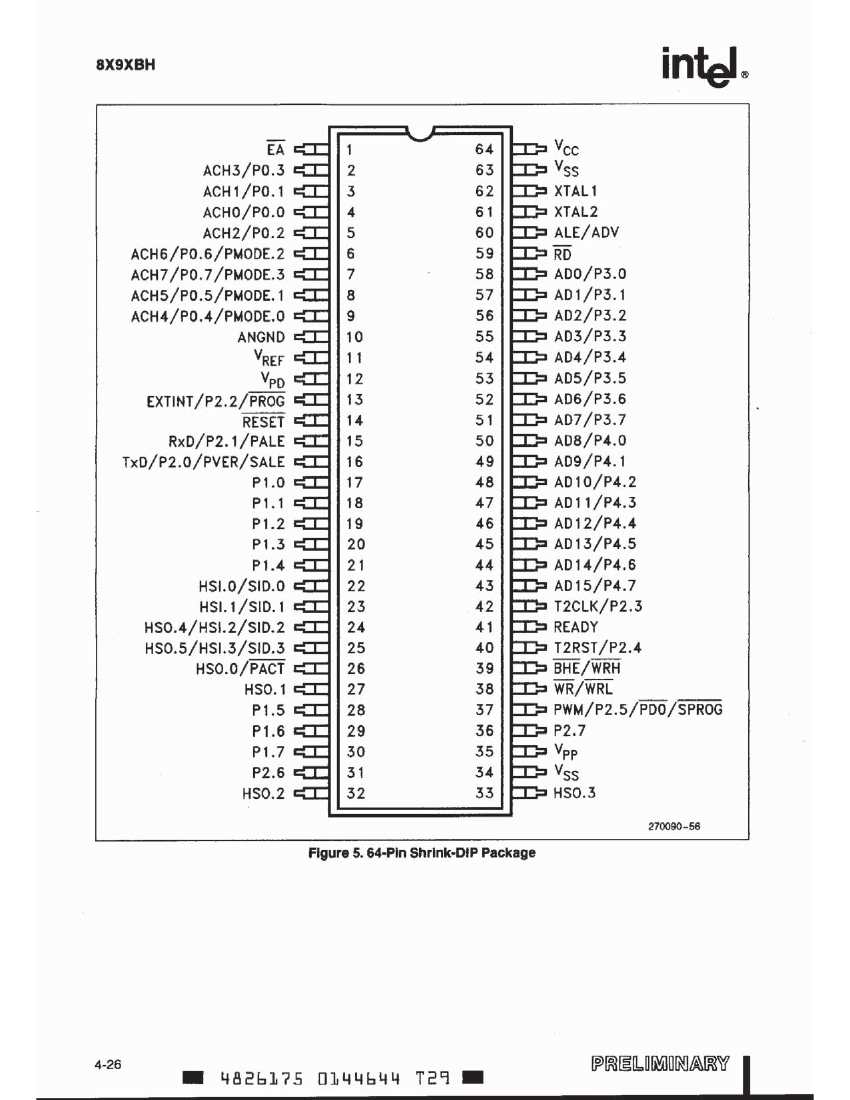

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
