RL-7505-331M

Description
General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT
CategoryPassive components    inductor
File Size868KB,2 Pages
ManufacturerRenco Electronics Inc.
Environmental Compliance
Download Datasheet Parametric View All

RL-7505-331M Overview

General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

RL-7505-331M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRenco Electronics Inc.
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance8.63 Ω
Nominal inductance(L)330 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberRL-7505
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum rated current0.07 A
self resonant frequency4.2 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceTin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.001 MHz
Tolerance20%
RL-7505
SHIELDED SMD
POWER INDUCTORS
DESCRIPTION
• Compact Shielded SMD
Power Inductors
FEATURES & APPLICATIONS
• Magnetic shielded surface mount inductor with
high current rating
• Low resistance to keep power loss at a minimum
• Excellent for power line DC-DC conversion applications used in
notebook computers and other electronic equipment
ENVIRONMENTAL DATA
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 490
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

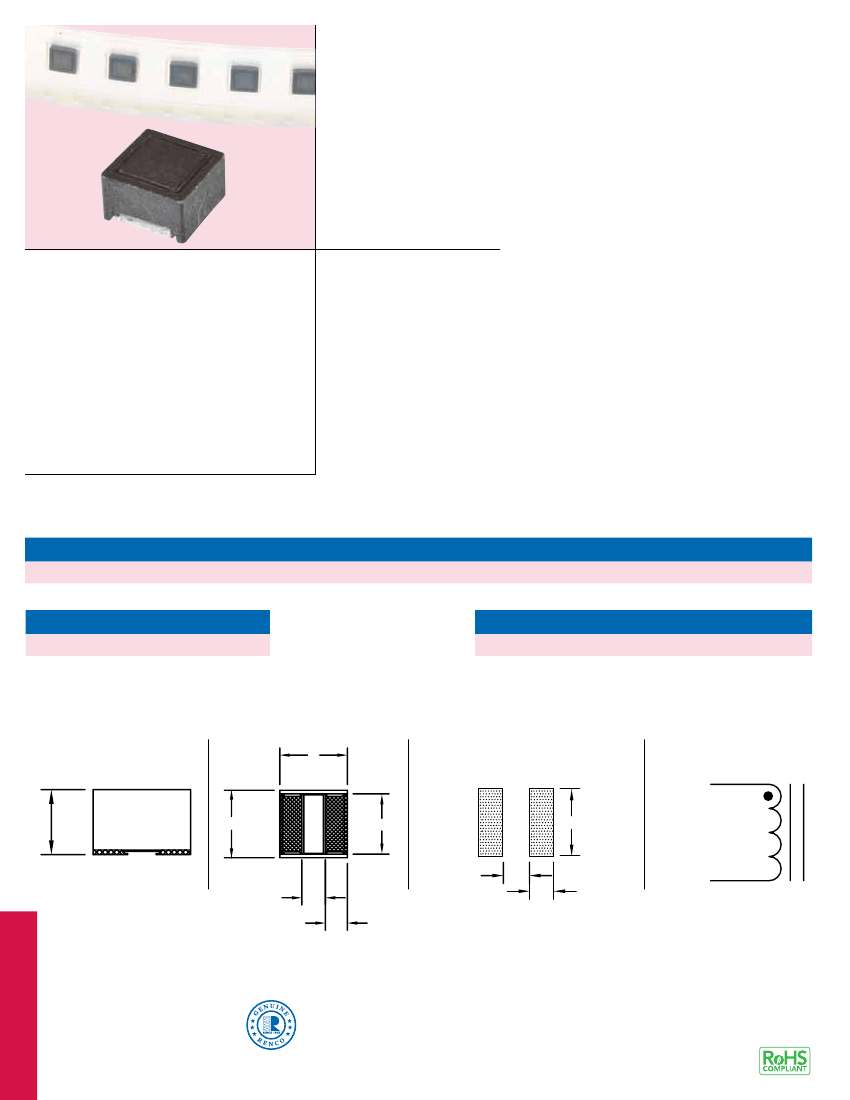

MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-7505
A (MAX.)
0.094 (2.40)
B (MAX.)
0.150 (3.80)
C (MAX.)
0.150 (3.80)
D
0.070 (1.70)
E
0.040 (0.90)
F (MAX.)
0.098 (2.50)
PART NUMBER
RL-7505
PART WEIGHT
0.15g (0.005oz)
G (REF.)
0.098 (2.50)
H (REF.)
0.070 (1.70)
I (REF.)
0.040 (0.90)
FRONT VIEW
BOTTOM VIEW
B
RECOMMENDED LAND PATTERN
SCHEMATIC
ST
A
C
F
G
H
D
E
I
FN
SURFACE MOUNTS
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
