HOA086X/087X
Transmissive Sensor

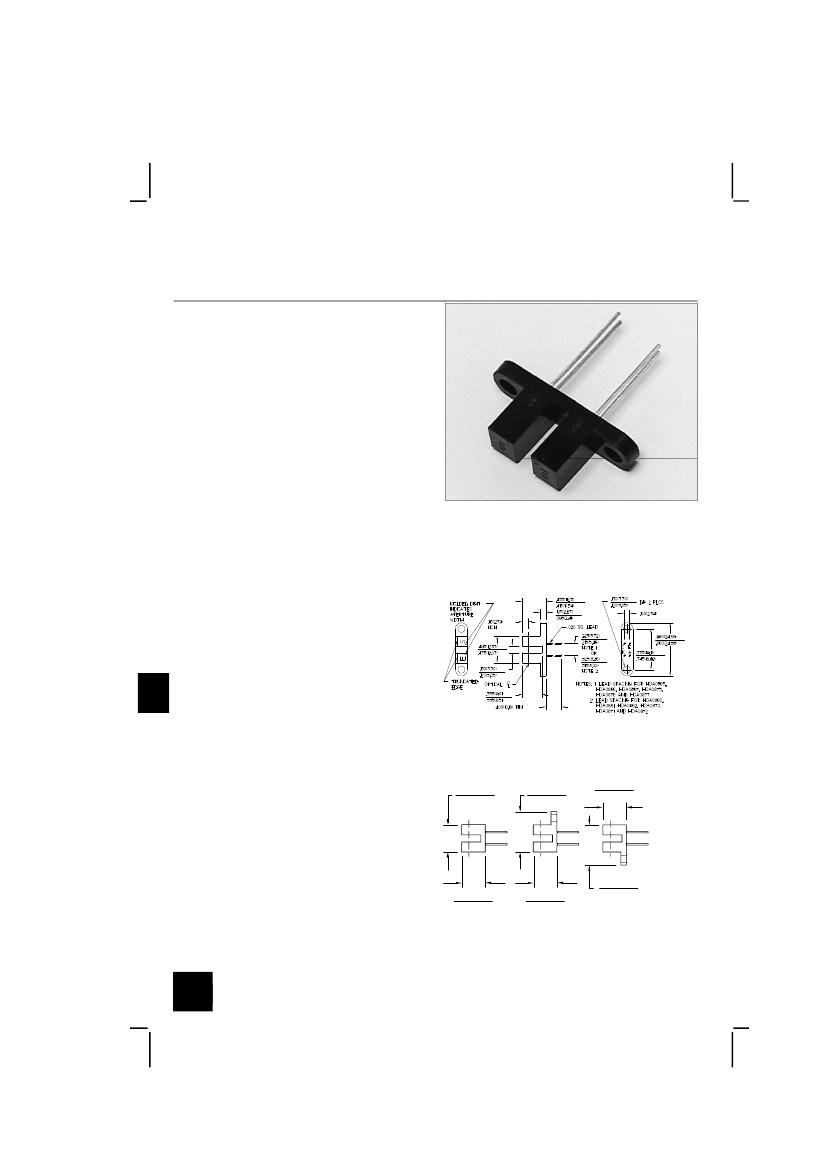

FEATURES
•
Phototransistor output
•
Accurate position sensing
•
Four mounting configurations
•
0.125 in.(3.18 mm) slot width
•
Choice of detector aperture
•
Choice of opaque or IR transmissive housings
INFRA-33.TIF
DESCRIPTION
The HOA086X/087X series consists of an infrared
emitting diode facing an NPN silicon phototransistor
encased in a black thermoplastic housing. The
phototransistor switching takes place whenever an
opaque object passes through the slot between emitter
and detector. This series allows the user to choose from
available options: (1) mounting tab configurations, (2)
lead spacing, (3) electro-optical characteristics, (4)
detector aperture size, and (5) housing materials.
The HOA086X series utilizes an IR transmissive
polysulfone housing which features smooth optical
faces without external aperture openings; this feature is
desirable when aperture blockage from airborne
contaminants is a possibility. The HOA087X series
employs an opaque polysulfone housing with aperture
openings for use in applications in which maximum
rejection of ambient light is important and in situations
where maximum position resolution is desired. The
HOA086X/087X series employs plastic molded
components. For additional component information see
SEP8506 and SDP8406.
Housing material is polysulfone. Housings are soluble in
chlorinated hydrocarbons and ketones. Recommended
cleaning agents are methanol and isopropanol.
To specify the complete product characteristics, see the
PART NUMBER GUIDE.
OUTLINE DIMENSIONS
in inches (mm)
Tolerance
3 plc decimals
±0.010(0.25)
2 plc decimals
±0.020(0.51)
Package T
DIM_041a.cdr
Packages N/P/L
PACKAGE N
.495(12.57)
.475(12.07)
PACKAGE P
.737(18.72)
.717(18.21)
PACKAGE L
.435(11.05)
.415(10.54)
.435(11.05)
.415(10.54)
DIM_41b.ds4
.435(11.05)
.415(10.54)
.737(18.72)
.717(18.21)
274
h
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
HOA086X/087X
Transmissive Sensor

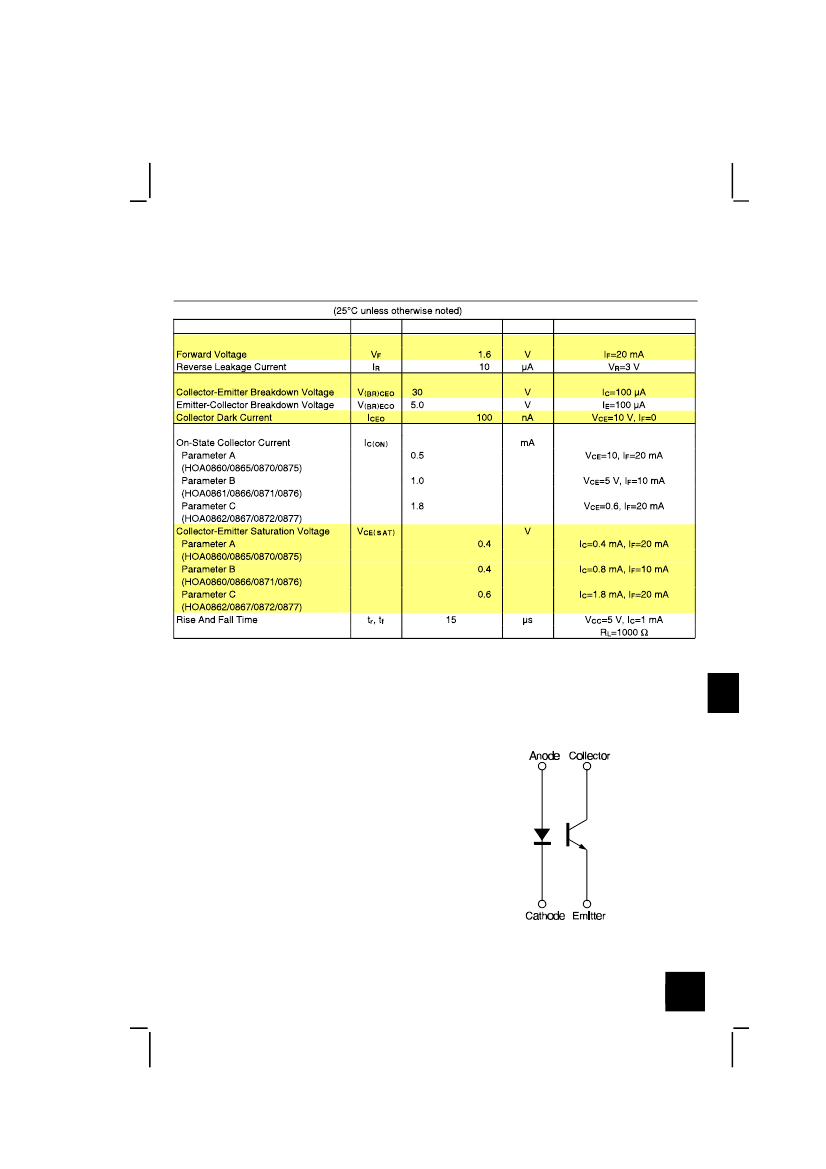

ELECTRICAL CHARACTERISTICS
PARAMETER
IR EMITTER
SYMBOL
MIN
TYP
MAX
UNITS
TEST CONDITIONS
DETECTOR
COUPLED CHARACTERISTICS
ABSOLUTE MAXIMUM RATINGS
(25¡C Free-Air Temperature unless otherwise noted)
Operating Temperature Range
Storage Temperature Range
Soldering Temperature (5 sec)
IR EMITTER
Power Dissipation
Reverse Voltage
Continuous Forward Current
DETECTOR
Collector-Emitter Voltage
Emitter-Collector Voltage
Power Dissipation
Collector DC Current
-40¡C to 85¡C
-40¡C to 85¡C
240¡C
100 mW [À]
3V
50 mA
30 V
5V
100 mW [À]
30 mA
SCHEMATIC
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
h
275
HOA086X/087X
Transmissive Sensor

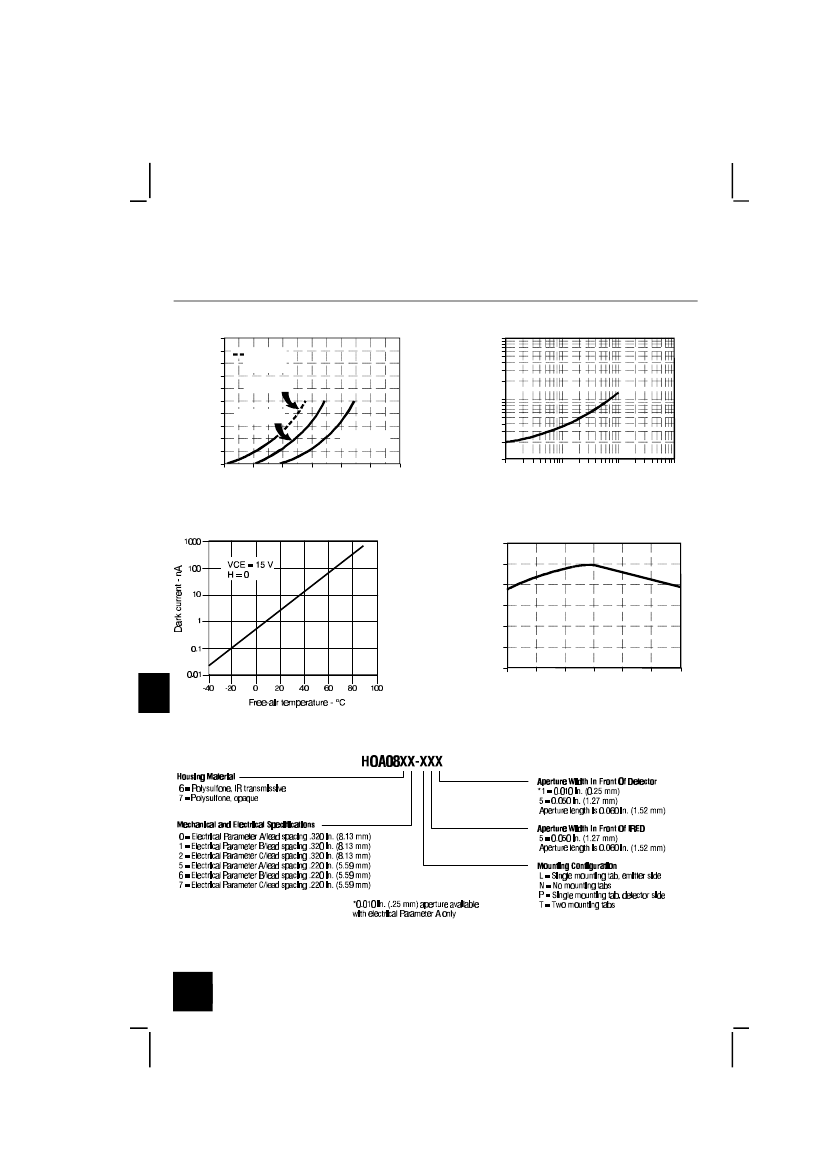

Fig. 1
IRED Forward Bias Characteristics
gra_092.ds4
Fig. 2
Non-Saturated Switching Time vs
Load Resistance
100
gra_093.ds4
100
90
80
70
60
50
40
30
20
10
0
0.8
Forward current - mA
T
A
= 80 °C
T
A
= 25 °C
T
A
= -40 °C
1.0
1.2
1.4
1.6
1.8
2.0
Response time - µs
Pulsed
condition
10
1
10
100
1000
10000
Forward voltage - V
Fig. 3
Dark Current vs
Temperature
Fig. 4
gra_301.cdr
Load resistance - Ohms
Collector Current vs
Ambient Temperature
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-50
-25
0
25
50
75
gra_095.ds4
Normalized collector current
100
Free-air temperature - °C
All Performance Curves Show Typical Values
PART NUMBER GUIDE
276
h
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
