LM101AT

Description
Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size220KB，12 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

LM101AT Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN

LM101AT Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild
Parts packaging codeBCY
package instructionTO-99, CAN8,.2
Contacts8
Reach Compliance Codeunknown
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.1 µA
Maximum bias current (IIB) at 25C0.075 µA
Nominal Common Mode Rejection Ratio96 dB
frequency compensationNO
Maximum input offset voltage3000 µV
JESD-30 codeO-MBCY-W8
JESD-609 codee0
low-dissonanceNO
Negative supply voltage upper limit-22 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialMETAL
encapsulated codeTO-99
Encapsulate equivalent codeCAN8,.2
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply+-5/+-20 V
Certification statusNot Qualified
Maximum slew rate3 mA
Supply voltage upper limit22 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
Minimum voltage gain25000

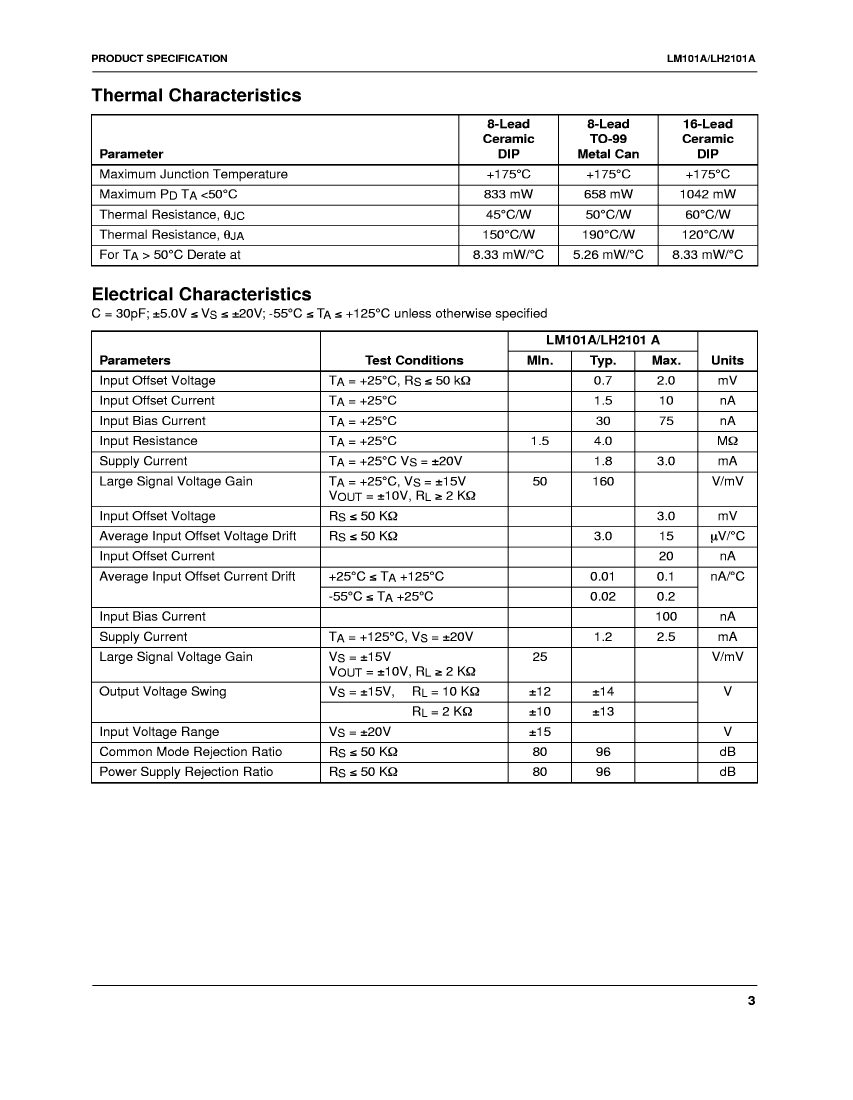

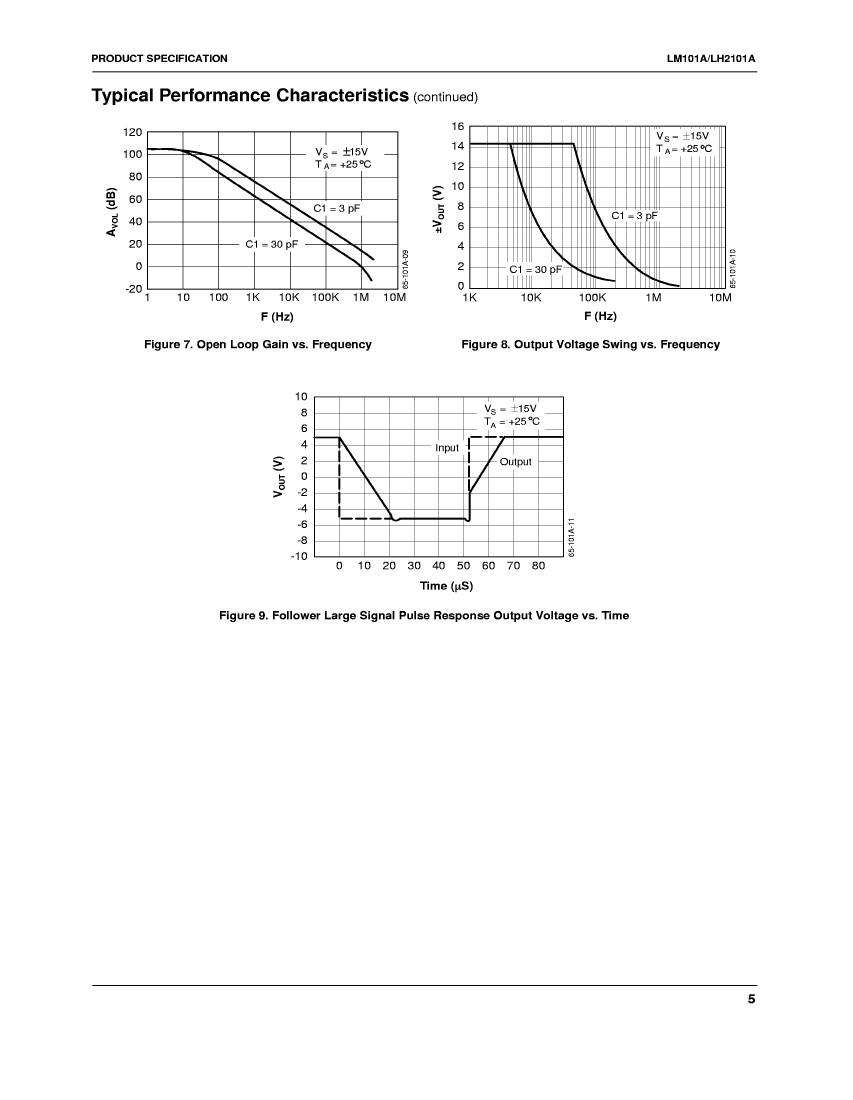

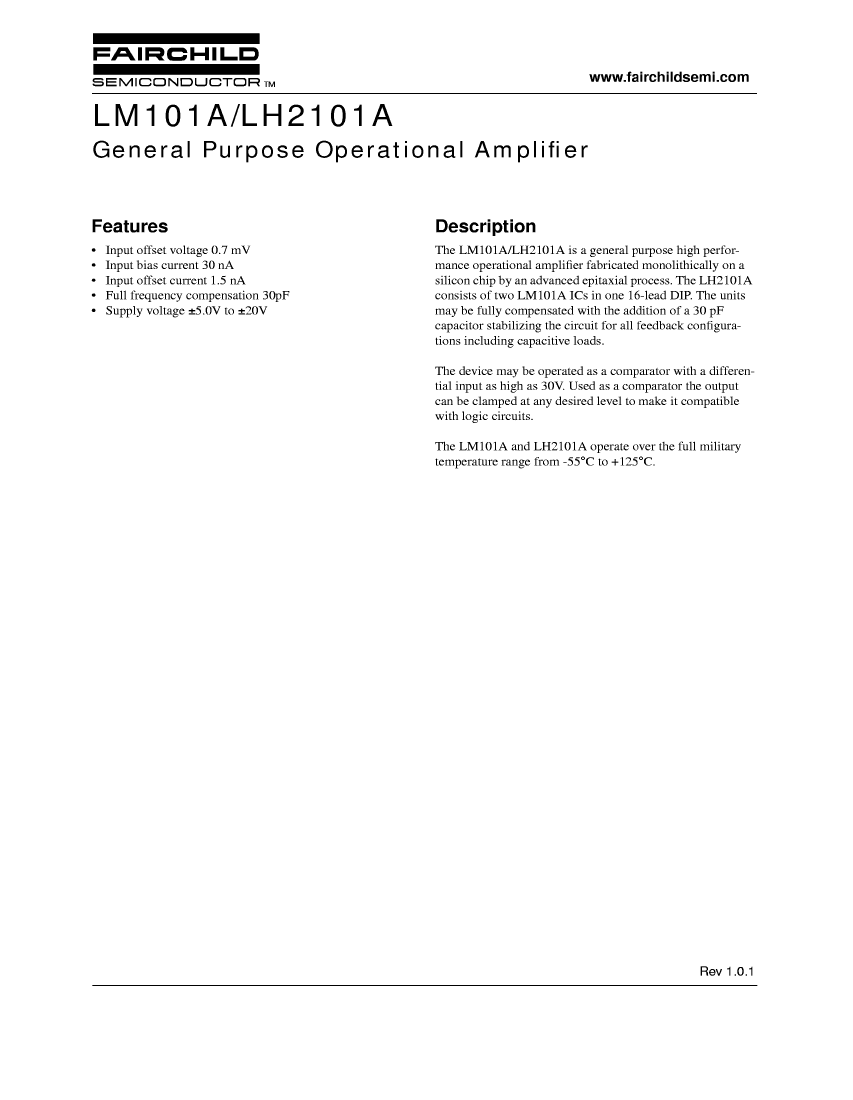

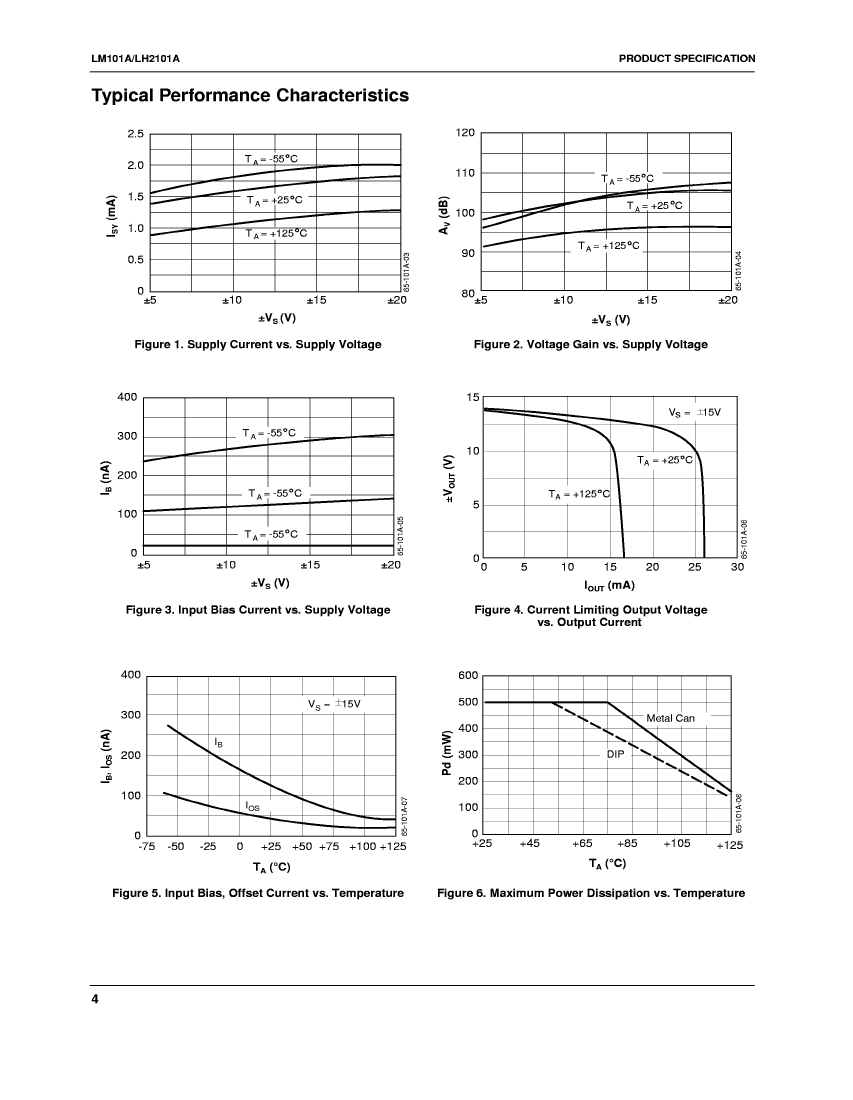

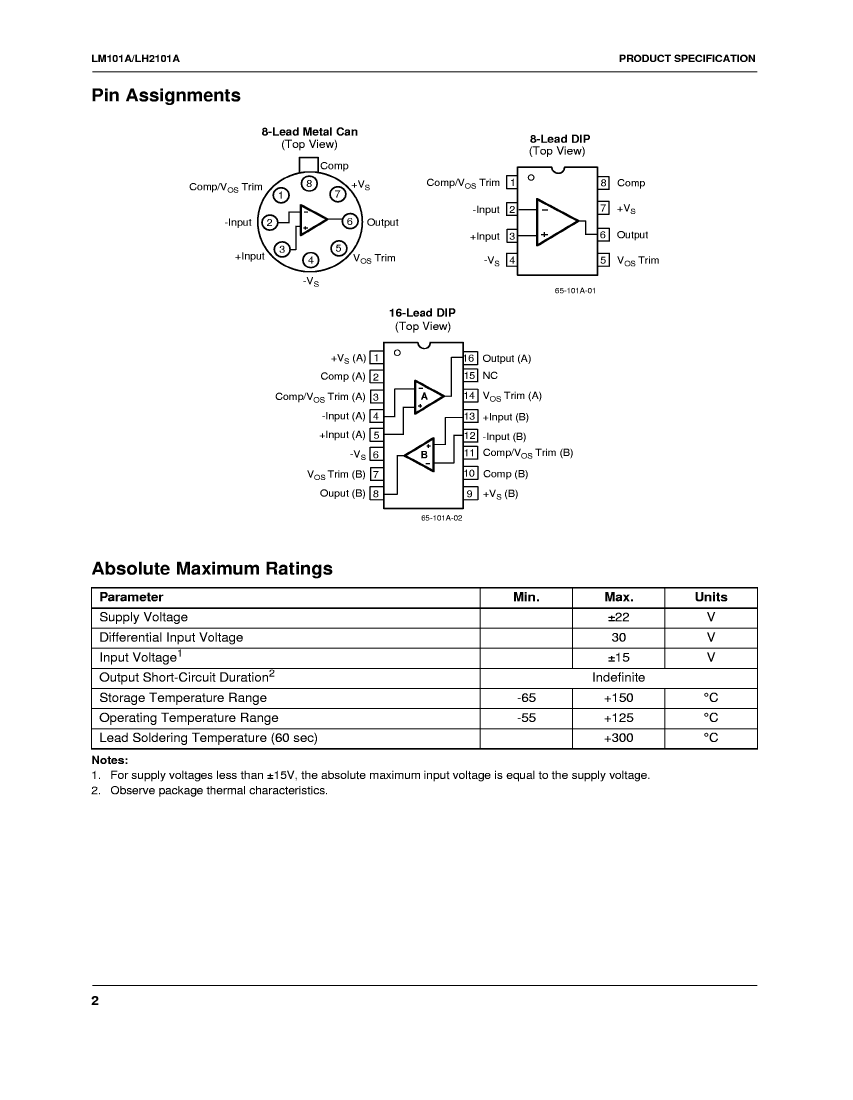

LM101AT Preview
