500-016MA: DescriptionEMI/RFI Conical-Ring Type Split Backshell; File Size75KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Compare View All

500-016MA Overview

EMI/RFI Conical-Ring Type Split Backshell

Preview

Download Datasheet

View All

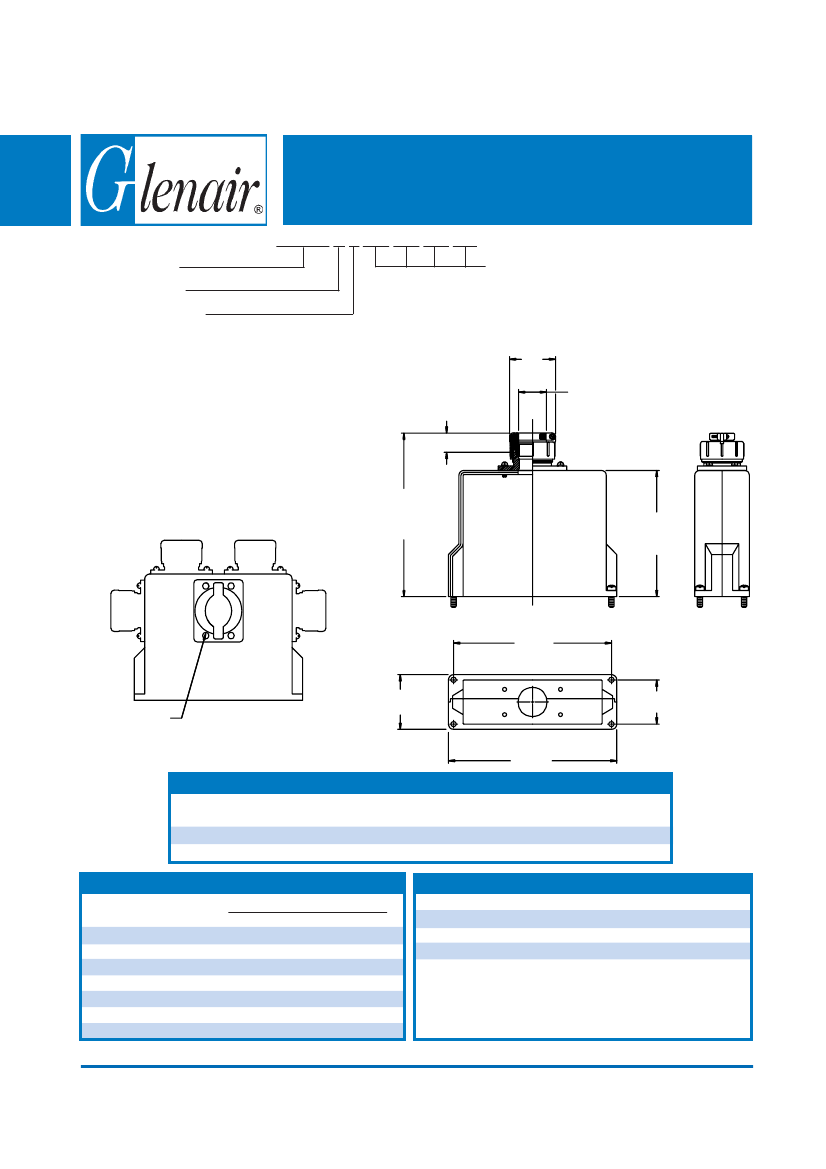

501-001

EMI/RFI Conical-Ring Type Split Backshell

for MIL-C-83733 Connectors

501-001 M B A06 B03 E05 F04

Basic Part No.

Finish (Table III)

Shell Size (Table I)

1. Metric dimensions (mm) are indicated in

parentheses.

2. When entry options “C” and/or “D” are se-

lected, entry option “B” cannot be selected.

When “C” and “D” are selected on shell size A,

the maximum dash number available is 02.

3. Material/Finish:

Backshell, Adapter, Clamp,

Ferrule = Al Alloy/See Table III

Hardware = SST/Passivate

“C” Entry

“D” Entry

Entry Location (A, B, C, D, E, F)

and Dash No. (Table II) - See Note 2

MIL-C-83733

Backshells

M

Cable Range

.42 (10.7) Max

“B” Entry

3.00

(76.2)

Max

2.00

(50.8)

“A” Entry

“E” Entry

C

B

“F” Entry

A

D

TABLE I: DIMENSIONS

Shell

Size

A

B

A

Dim

2.095 (53.2)

3.395 (86.2)

B

C

Dim

± .005

(.1)

1.000 (25.4) 1.895 (48.1)

1.000 (25.4) 3.195 (81.2)

D

± .005

(.1)

.815 (20.7)

Max

Entry

.875 (22.2)

TABLE II: CABLE ENTRY

Dash

No.

01

02

03

04

05

06

07

M

Max

.781 (19.8)

.968 (24.6)

1.046 (26.6)

1.156 (29.4)

1.218 (30.9)

1.343 (34.1)

1.468 (37.3)

Cable Range

Min

Max

.062 (1.6)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.312 (7.9)

.500 (12.7)

.437 (11.1)

.625 (15.9)

.562 (14.3)

.750 (19.1)

.687 (17.4)

.875 (22.2)

Symbol

B

M

N

NF

TABLE III: FINISH OPTIONS

Finish

Cadmium Plate, Olive Drab

Electroless Nickel

Cadmium Plate, Olive Drab, Over Nickel

Cadmium Plate, Olive Drab, Over Electroless

Nickel (500 Hour Salt Spray)

CONSULT FACTORY FOR

OTHER AVAILABLE FINISHES

Printed in U.S.A.

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

E-2
