SBCHE111K5K Overview

RESISTOR, WIRE WOUND, 11W, 10%, 200ppm, 1500ohm, THROUGH HOLE MOUNT

SBCHE111K5K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Rectangular
Lead diameter	0.8 mm
Lead length	30 mm
Manufacturer's serial number	SBCHE
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package height	50 mm
Package length	10 mm
Package shape	RECTANGULAR PACKAGE
Package form	Axial
Package width	9 mm
Rated power dissipation(P)	11 W
Rated temperature	25 °C
resistance	1500 Ω
Resistor type	FIXED RESISTOR
series	SBC
size code	3935
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	200 ppm/°C
Terminal shape	WIRE
Tolerance	10%

Preview

Download Datasheet

View All

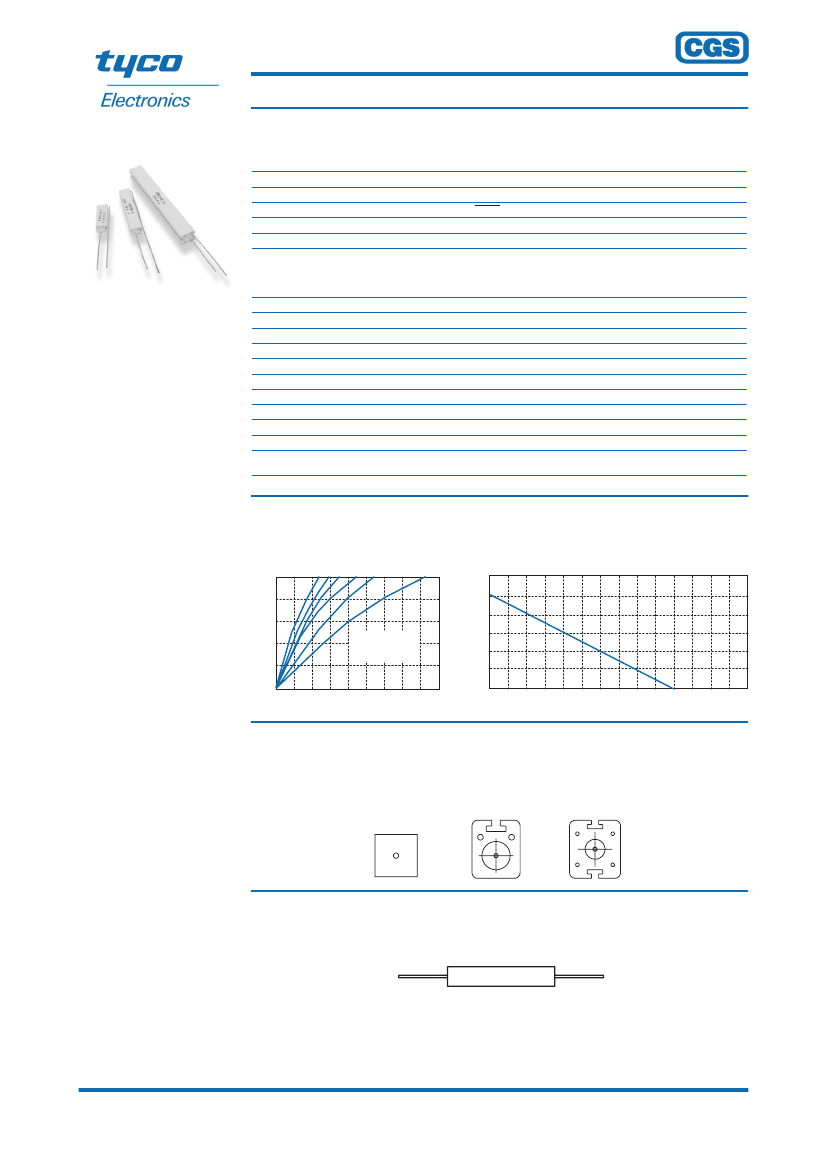

High Power Resistor

Type SBC (Square Ceramic) Series

Type SBC (Square Ceramic)

Series

Characteristics -

Electrical

Resistance Values:

Resistance Tolerance:

Maximum Continuous Voltage:

Load Life:

Power Rating:

Series E24 5% E12 10% (see tables for value limits per style)

±5% ±10%

√P

x R

∆R

<±3% 1000 hours at 70°C

See Surface Temperature Curve (below)

Characteristics -

Environmental and Mechanical

This range of Power Wirewound

Resistors are wound on continuous

glass fibre elements or have a ceramic

core depending on resistance value.

The element is housed in a ceramic

case and sealed with an inorganic

silica filler. Their construction gives a

resistor with high insulation resistance

and low surface temperature, capable

of withstanding high overload currents.

These resistors are ideally suited to a

variety of applications within industrial

and commercial environments, where

performance and reliability are of prime

importance. Applications include fan

force ovens, cooker hoods, power sup-

plies and triac based speed controls.

Custom Design Variants in value and

style are welcomed.

Surface Temperature

200

% of Power

150

100

8 10 12

Power in Watts

NB - SBC Series will

run 15°C hotter than

described here

Temperature Coefficient of Resistance:

Resistance to Solder Heat:

Voltage Coefficient of Resistance:

Temperature Range:

Load Stability:

Long Term Damp Heat:

Shelf Life:

Insulation Resistance:

Dielectric Strength:

Lead Material:

Marking:

200ppm/°C (400ppm/°C below 18R)

∆R

< 0.2% (350°C for 2.5 seconds)

Negligible

0°C to 70°C

∆R

< 5% (full load at 70°C for 1000 hours)

∆R

< 0.2% (21 days at 40°C for 93% humidity)

∆R

< 1.0% (per 12 months)

> 10000M

2000V RMS

Steel - Solder coat

Legend mark, Manufacturer name, type, ohmic value

and tolerance.

Surface Temperature

Rise Curve

SCBH2

SBCH4/5

SBCH6/7

SBCH11

SBCH15

SBCH8

Derating Curve

250

125

100

125

175

225

Ambient Temperature

275

325

375

Key Features

Up to 17 Watts

Fusible Styles

Vertical or Axial

Non Flammable

Special Solvent Resistance

Customer Specials Invited

Widely Available from

Distribution

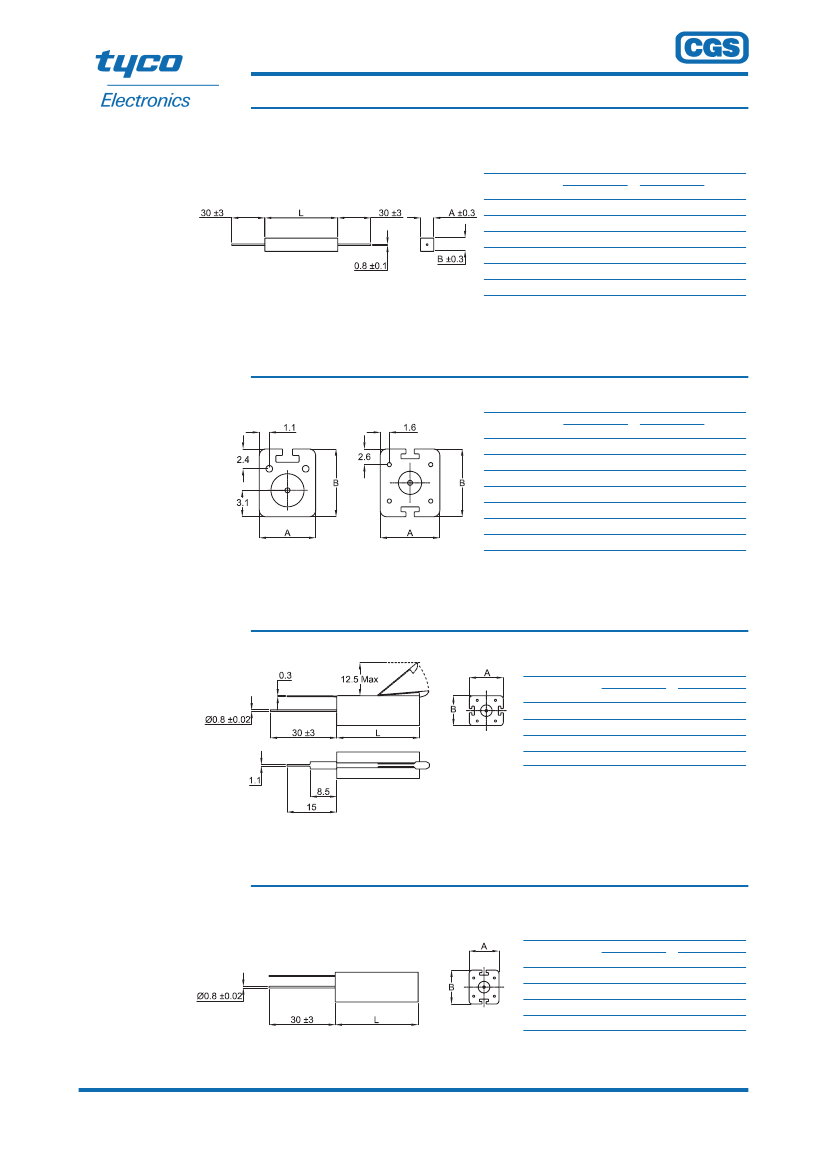

Type SBC - SBCH (Axial Power Resistor)

We offer three ceramic profiles for the main wattage sizes.

These are for additional heat dissipation and vertical mounting of resistors.

The suffix for each style is as follows:-

SBC Standard

SBCH 4/5/6/7

SBCH 8/11/15

Type SBCHE (For Vertical Mounting)

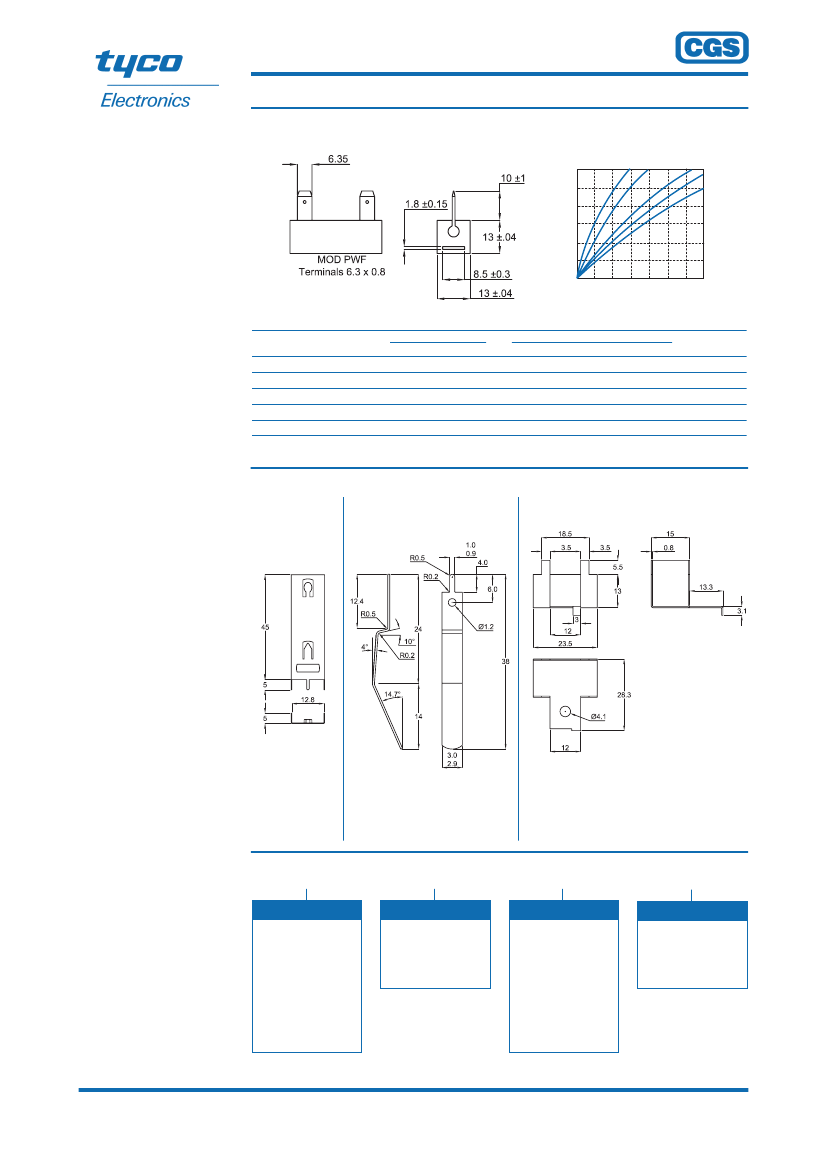

We offer SBCHE Styles with one lengthened lead for vertical mounting. See additional hardware on last page.

One Lead Length 20mm longer than case length. Supplied with one longer lead wrapped back in flute in ceramic.

Literature No. 1773278

Issued: 08-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
