NSTLW332M350V51X148P2F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NSTLW332M350V51X148P2F

NSTLW332M350V51X148P2F: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 3300uF, Chassis Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size90KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NSTLW332M350V51X148P2F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 3300uF, Chassis Mount, ROHS COMPLIANT

NSTLW332M350V51X148P2F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	51 mm
dielectric materials	ALUMINUM (WET)
leakage current	3.224 mA
length	148 mm
Manufacturer's serial number	NSTLW
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	8410 mA
series	NSTLW
surface mount	NO
Delta tangent	0.2
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

Screw Terminal Aluminum Electrolytic Capacitors

NSTLW Series

FEATURES

• LONG LIFE AT 105°C (5,000 HOURS)

• HIGH RIPPLE CURRENT

• HIGH VOLTAGE (UP TO 450VDC)

SPECIFICATIONS

Operating Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Max. Leakage Current (µA)

After 5 minutes (20°C)

W.V. (Vdc)

Max. Tan

0.20

at 120Hz/20°C

0.25

W.V. (Vdc)

Surge Voltage

S.V. (Vdc)

W.V. (Vdc)

Low Temperature

Impedance Ratio at 120Hz

Z-25°C/Z+25°C

Capacitance Change

Load Life Test

Tan

5,000 hours at +105°C

Leakage Current

Capacitance Change

Shelf Life Test

96 hours at +105°C

Tan

(no load)

Leakage Current

Capacitance Change

Surge Voltage Test

1000 Cycles of 30 seconds duration

Tan

every 6 minutes at 15°~35°C

Leakage Current

-25 ~ +105°C

350 ~ 450Vdc

1,000 ~ 10,000µF

±20% (M)

C(µF)V

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

350

400

450

< 2700µF

< 2200µF

< 1800µF

~ 10000µF

~ 8200µF

~ 6800µF

350

400

450

400

450

500

350

400

450

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±10% of initial measured value

Less than 120% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±15% of initial measured value

Less than speciﬁed maximum value

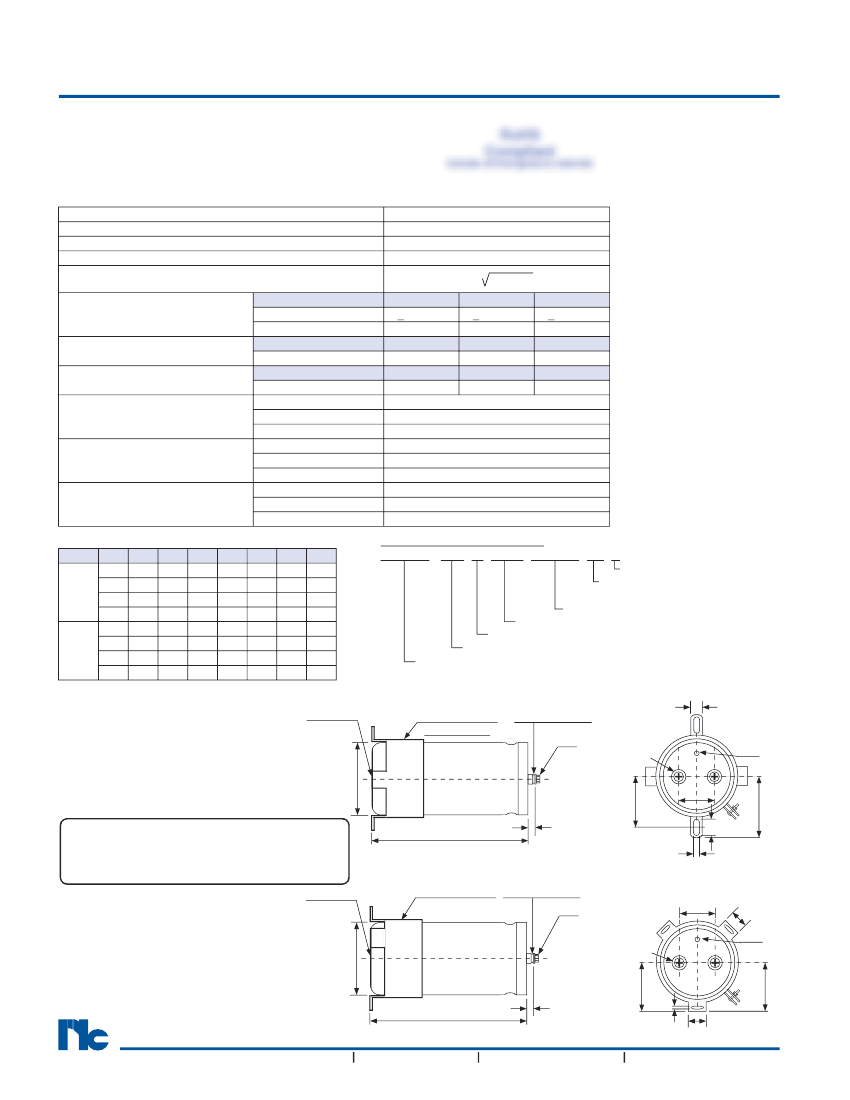

CASE AND CLAMP DIMENSIONS (mm)

W1 W2 W3 W4 W5

51 21.8 34.0 40.0 3.5 6.0 12

2 Point 64 28.2 40.0 45.0 4.5 7.0 12

Clamp 77 31.4 47.0 53.0 4.5 6.0 12

90 31.4 54.0 60.0 4.5 6.0 14

51 21.8 32.5 37.5 4.5 6.0 12

3 Point 64 28.2 38.0 43.0 4.5 8.0 14

Clamp 77 31.4 43.5 49.0 4.5 7.0 14

90 31.4 50.8 56.0 4.5 8.0 16

See Standard Values Table for "L" dimensions

6.0

6.5

5.5

6.0

6.5

5.5

PART NUMBER SYSTEM

NSTLW 103 M 350V 90X141 P2 F

RoHS compliant

P2 or P3 (2 point or 3 point clamp)

or blank for no hardware

Case Size (mm)

Voltage Rating

Tolerance Code

Capacitance Code

Series

2 Point Clamp

PVC Plate

Mounting Clamp

(Zinc Plating)

Screw Terminal

Bolt

D ± 2mm

M5 P=0.8

Vent

W1±1

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

W6 ± 1

L ± 3.0mm

3 Point Clamp

Mounting Clamp Screw Terminal

(Zinc Plating)

Bolt

M5 P=0.8

W1±1

W2±1

P±1mm

PVC Plate

D ± 2mm

Vent

W6 ± 1

L ± 3.0mm

178

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

W2±1

P±1mm
