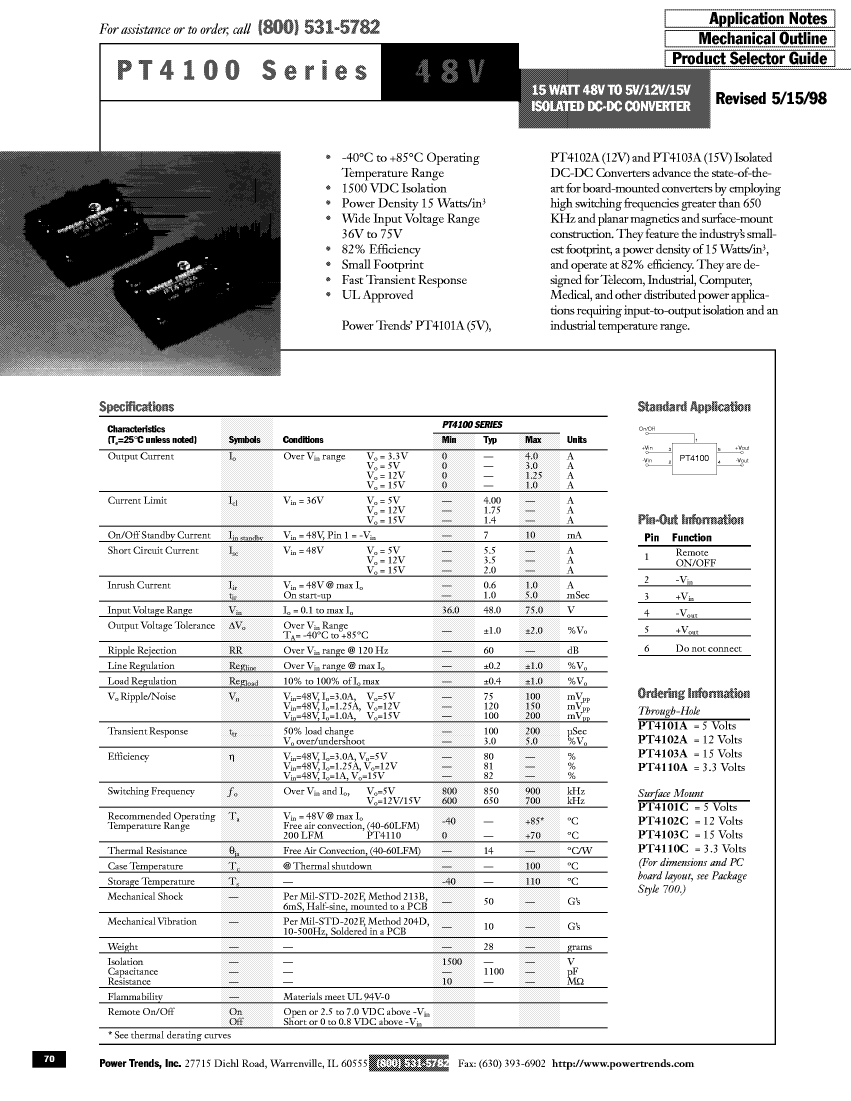

DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, THROUGH-HOLE PACK, 6 PIN
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Power Trends Inc |
| package instruction | THROUGH-HOLE PACK, 6 PIN |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | DC-DC REGULATED POWER SUPPLY MODULE |
| Certification | UL |
| Efficiency (main output) | 80% |
| Maximum input voltage | 72 V |
| Minimum input voltage | 36 V |
| Nominal input voltage | 48 V |
| JESD-30 code | R-XDIP-T6 |
| JESD-609 code | e0 |
| Maximum grid adjustment rate | 1% |
| Maximum load regulation | 1% |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 6 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 3 A |
| Nominal output voltage | 5 V |
| Package body material | UNSPECIFIED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP22,1.5 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Protect | THERMAL |
| Certification status | Not Qualified |
| surface mount | NO |
| technology | HYBRID |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum total power output | 15 W |
| Fine-tuning/adjustable output | NO |
| PT4101A | PT4102C | PT4102A | PT4103C | PT4103A | PT4110A | PT4110C | PT4101C | |
|---|---|---|---|---|---|---|---|---|
| Description | DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, THROUGH-HOLE PACK, 6 PIN | DC-DC Regulated Power Supply Module, 1 Output, 15W, SURFACE MOUNT PACKAGE-6 | DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, THROUGH-HOLE PACK, 6 PIN | DC-DC Regulated Power Supply Module, 1 Output, 15W, SURFACE MOUNT PACKAGE-6 | DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, THROUGH-HOLE PACK, 6 PIN | DC-DC Regulated Power Supply Module, 1 Output, 15W, THROUGH-HOLE PACK, 6 PIN | DC-DC Regulated Power Supply Module, 1 Output, 15W, SURFACE MOUNT PACKAGE-6 | DC-DC Regulated Power Supply Module, 1 Output, 15W, SURFACE MOUNT PACKAGE-6 |
| package instruction | THROUGH-HOLE PACK, 6 PIN | SURFACE MOUNT PACKAGE-6 | THROUGH-HOLE PACK, 6 PIN | SURFACE MOUNT PACKAGE-6 | THROUGH-HOLE PACK, 6 PIN | THROUGH-HOLE PACK, 6 PIN | SURFACE MOUNT PACKAGE-6 | SURFACE MOUNT PACKAGE-6 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE |
| Maximum input voltage | 72 V | 75 V | 72 V | 75 V | 72 V | 75 V | 75 V | 75 V |
| Minimum input voltage | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Nominal input voltage | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V |
| JESD-30 code | R-XDIP-T6 | R-PDMA-G6 | R-XDIP-T6 | R-PDMA-G6 | R-XDIP-T6 | R-XDIP-T6 | R-PDMA-G6 | R-PDMA-G6 |
| Maximum load regulation | 1% | 1% | 1% | 1% | 1% | 1% | 1% | 1% |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 70 °C | 70 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | - | - | -40 °C |
| Nominal output voltage | 5 V | 12 V | 12 V | 15 V | 15 V | 3.3 V | 3.3 V | 5 V |
| Package body material | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED | UNSPECIFIED | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | MICROELECTRONIC ASSEMBLY | IN-LINE | MICROELECTRONIC ASSEMBLY | IN-LINE | IN-LINE | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | NO | YES | NO | NO | YES | YES |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum total power output | 15 W | 15 W | 15 W | 15 W | 15 W | 15 W | 15 W | 15 W |
| Fine-tuning/adjustable output | NO | NO | NO | NO | NO | NO | NO | NO |
| Maker | Power Trends Inc | - | - | Power Trends Inc | Power Trends Inc | Power Trends Inc | Power Trends Inc | Power Trends Inc |
| Maximum output voltage | - | 12.24 V | - | 15.3 V | - | 3.23 V | 3.23 V | 5.1 V |
| Minimum output voltage | - | 11.76 V | - | 14.7 V | - | 3.37 V | 3.37 V | 4.9 V |
