HM2P08PKE1T5GC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P08PKE1T5GC

HM2P08PKE1T5GC: DescriptionBoard Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal,; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PKE1T5GC Overview

Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal,

HM2P08PKE1T5GC Parametric

Parameter Name	Attribute value
Objectid	1785381526
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Other features	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	175
UL Flammability Code	94V-0

HM2P08PKE1T5GC Preview

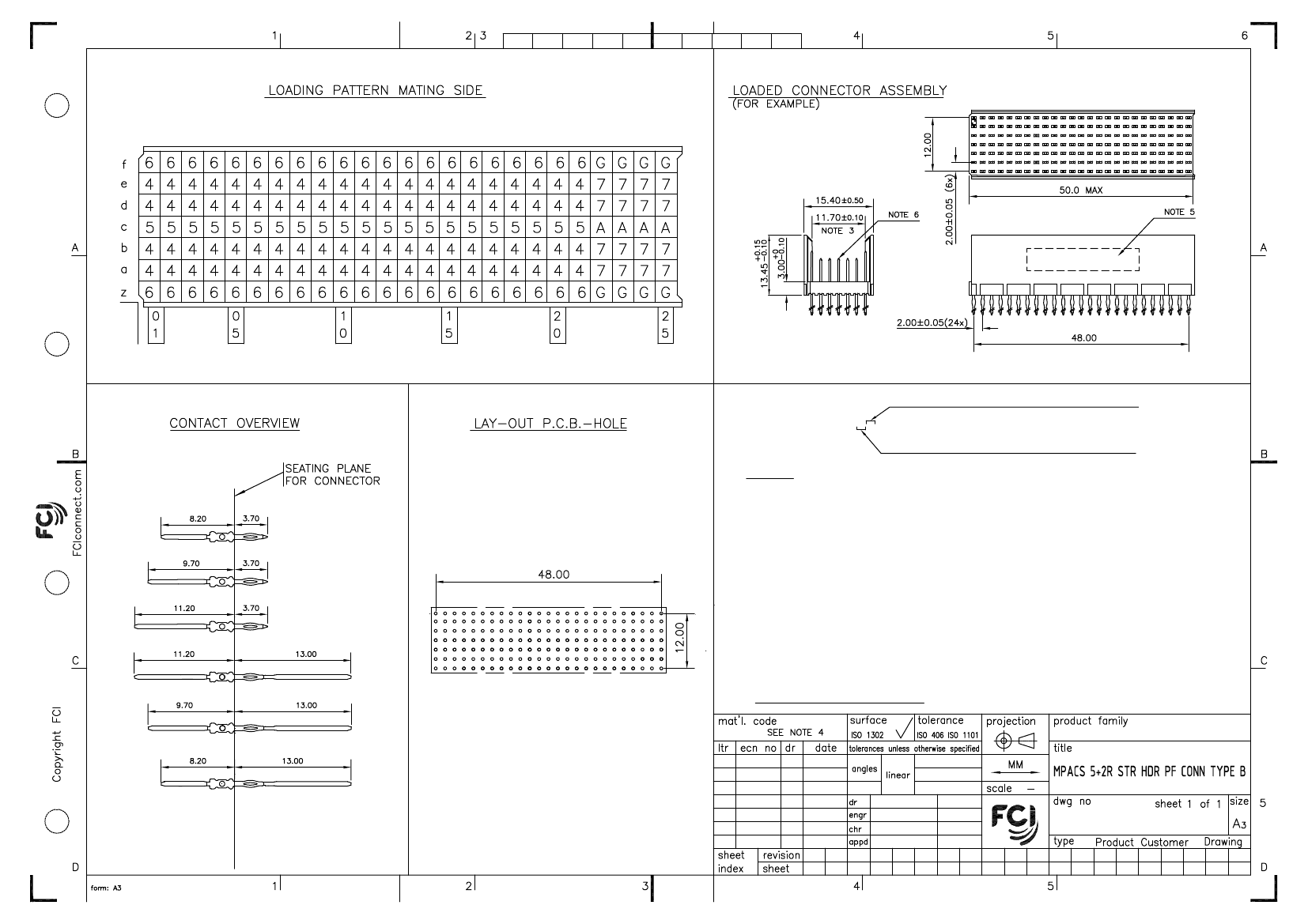

1 e

HM2P08PKE1T5----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P08PKE1T5----

I05-0207

I06-0122

MINI

2005-10-27

2006-07-21

0°±1°

MINI K VANDANATH 2005-10-27

BIJU K PAUL

2005-10-27

2006-07-21

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028,316

PDM: Rev:B

STATUS:

Released

Printed: Dec 03, 2007

2 5

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HM2P08PKE1T5GC Related Products

	HM2P08PKE1T5GC	HM2P08PKE1T5GCLF	HM2P08PKE1T5GFLF	HM2P08PKE1T5GF	HM2P08PKE1T5GLLF	HM2P08PKE1T5GL
Description	Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal,	Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal, LF	Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal, LF	Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal, LF	Board Connector, 175 Contact(s), 7 Row(s), Male, Right Angle, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW	50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROW
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e3	e3	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	175	175	175	175	175	175
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
