VVC4
Voltage Controlled Crystal Oscillator

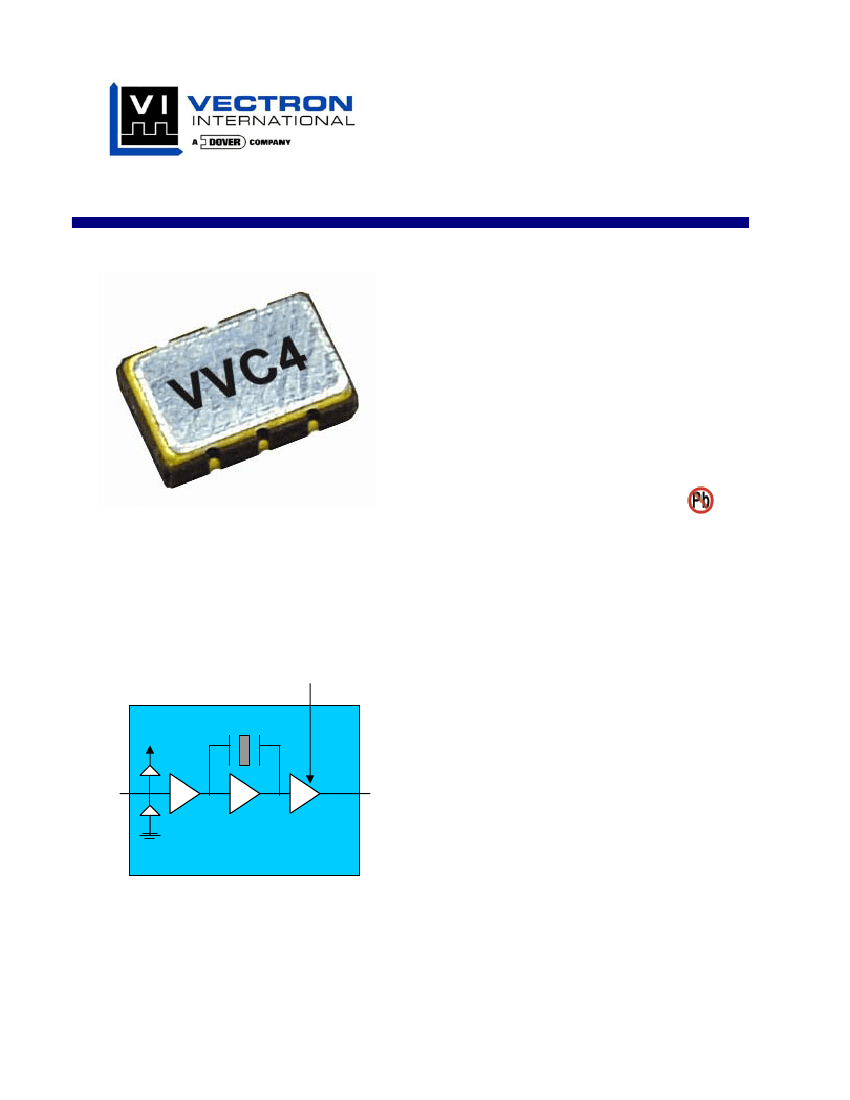

Features
•
Vectron’s Smallest VCXO, 5.0 X 3.2 X 1.2 mm
•
High Frequencies to 77.760 MHz
•
5.0 or 3.3 V operation
•
Linearity
≤
10%
•
Tri-State Output for testing
•
Low jitter < 1ps RMS 12 KHz to 20 MHz
•
CMOS output
•
0/70 or –40/85
°C
temperature range
•
Hermetically sealed ceramic SMD package
Product is compliant to RoHS directive
and fully compatible with lead free assembly
The VVC4 Voltage Controlled Crystal Oscillator
Applications
•
Home Gateway
•
WIMAX
•
xDSL/PCMCIA cards
•
Digital Video
ESD Diodes
Description
Vectron’s VVC4 Voltage Controlled Crystal
Oscillator (VCXO) is a quartz stabilized square
wave generator with a CMOS output and is
tested at CMOS and TTL (5.0 volt operation)
logic levels.
The VVC4 is the smallest available VCXO
making it ideally suitable for applications where
size is limited but performance is required.
Vc
Input
Buffer
Output
Buffer /
Tri-state
f
O
Vectron International 267 Lowell Road, Hudson NH 03051
Tel:1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC4 Voltage Controlled Crystal Oscillator
Performance Characteristics
Table 1. Electrical Performance
Parameter
Frequency
Supply Voltage
1
(+3.3 V)
(+5.0 V)
Supply Current
Output Logic Levels
Output Logic High
2
Output Logic Low
2
Rise and Fall Time
2
<24 MHz
>24 MHz
Tristate
Output Enabled
Output Disabled
Symmetry or Duty Cycle
3
(ordering option)
Operating temperature (ordering
option)
Test Conditions for APR (+5V option)
Test Conditions for APR (+3.3V option)
Absolute Pull Range (ordering
option)
Symbol
f
O
V
DD
I
DD
V
OH
V
OL
t
R /
t
F
Min
3.2500
2.97
4.5
Typical
3.3
5.0
8
Maximum
77.7600
3.63
5.5
15
Units
MHz
V
mA
V
V
ns
ns
V
V
%
°C
V
V
ppm
0.9*V
DD
0.1V
DD
10
6
V
IN
V
IL
SYM
2.5
40
50
0/70 or –40/85
0.7
60
V
C
V
C
APR
0.5
0.3
±50
±80
±100
Positive
160
4.5
3.0
Gain Transfer
Input Impedance
Control Voltage Bandwidth (-3dB)
Phase Noise
10 Hz Offset
100 Hz Offset
1 KHz Offset
10 KHz Offset
100 KHz Offset
1 MHz Offset
Package Size
BW
10
-65
-95
-125
-140
-145
-150
5.0 x 3.2 x 1.2
ppm/V
KOhm
kHz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
mm
1. A 0.01uF and a 0.1uF capacitor should be located as close to the supply as possible (to ground) is recommended.
2. Figure 1 defines these parameters. Figure 2 illustrates the equivalent five gate TTL load and operating conditions under which
these parameters are tested and specified.
3. Symmetry is defined as (ON TIME/PERIOD with Vs= 1.4 V for TTL and Vs=2.5 V for CMOS, 5 volt operation, and Vs=1.65V
for 3.3 Volt operation.
t
R
80
%
t
F
I
DD
6
V
DD
+
-
2
5
3
650Ω
Vs
20
%
On Time
Period
.
1µF
.01µF
I
C
V
C
1
+
-
4
15pF
1.8k
Figure 1. Output Waveform
Figure 2. Typical Output Test Conditions (25±5°C)
Vectron International 267 Lowell Road, Hudson NH 03051
Tel:1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC4 Voltage Controlled Crystal Oscillator

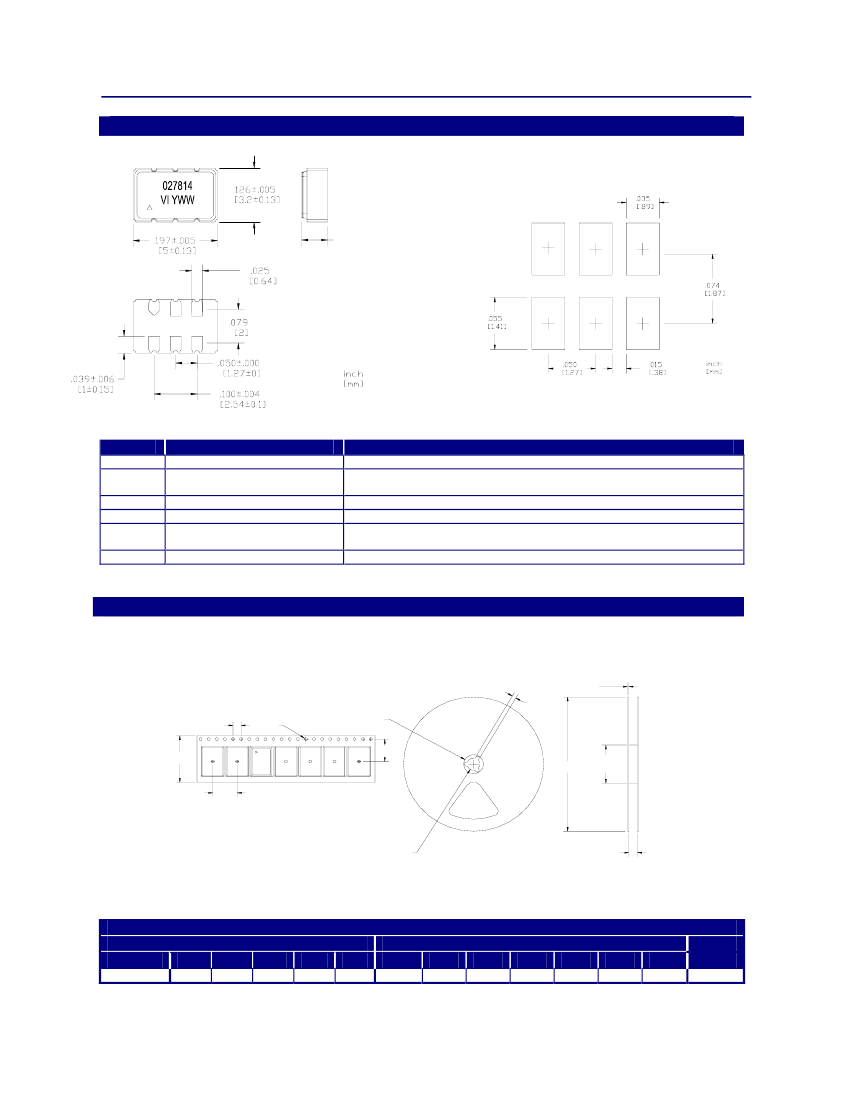

Outline Diagram, Pad Layout and Pin Out
6
5
4
1
2
3
1.2 Max
Pin #
1
2
3
4
5
6
Symbol
V
C
Tri-state
GND
f
O
CMOS/TTL
V
DD
Function
Control Voltage
Logic low disables output
Logic high or no connection enables output waveform
Ground
Output Frequency
Logic low for CMOS optimized symmetry
Logic high or no connection for TTL optimized symmetry
Supply Voltage
Tape and Reel
J
F
D
A
E
C
G
B
L
I
H
K
Tape and Reel Dimensions (mm)
Tape Dimensions
Product
A
B
C
D
E
VVC4
12
5.5
1.5
4
8
Reel Dimensions
F
G
H
1.78
20.6
13
I
55
J
6
K
12.4
L
178
# Per
Reel
500
Vectron International 267 Lowell Road, Hudson NH 03051
Tel:1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC4 Voltage Controlled Crystal Oscillator
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can permanently damage the device. Functional
operation is not implied at these or any other conditions in excess of conditions represented in the
operational sections of this data sheet. Exposure to absolute maximum ratings for extended periods may
adversely affect device reliability.
Table 2. Absolute Maximum Ratings
Parameter
Symbol
Power Supply
V
DD
Storage Temperature
Tstorage
Voltage Control Range
V
C
Ratings
6
-55/125
0 to V
DD
Unit
Vdc
°C
V
Reliability
The VVC4 is capable of meeting the following qualification tests.
Table 3. Environmental Compliance
Parameter
Mechanical Shock
Mechanical Vibration
Solderability
Gross and Fine Leak
Resistance to Solvents
Moisture Sensitivity Level
MIL-STD-883
MIL-STD-883
MIL-STD-883
MIL-STD-883
MIL-STD-883
1
Conditions
Method 2002
Method 2007
Method 2003
Method 1014
Method 2016
Handling Precautions
Although ESD protection circuitry has been designed into the the VVC4, proper precautions should be
taken when handling and mounting. VI employs a Human Body Model and a Charged-Device Model
(CDM) for ESD susceptibility testing and design protection evaluation. ESD thresholds are dependent on
the circuit parameters used to define the model. Although no industry wide standard has been adopted
for the CDM, a standard HBM of resistance = 1.5kohms and capacitance = 100pF is widely used and
therefore can be used for comparison purposes.
Table 4. ESD Ratings
Model
Human Body Model
Charged Device Model
Minimum
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
The VVC4 is qualified to meet the JEDEC standard for Pb-Free assembly. The temperatures and time
intervals listed are based on the Pb-Free small body requirements and parameters are listed in the table
below. The contact pads are gold over nickel so lower IR reflow temperatures such as 220°C can be
used (device is backwards compatible with a lead solder assembly).
The VVC4 is hermetically sealed so an aqueous wash is not an issue.

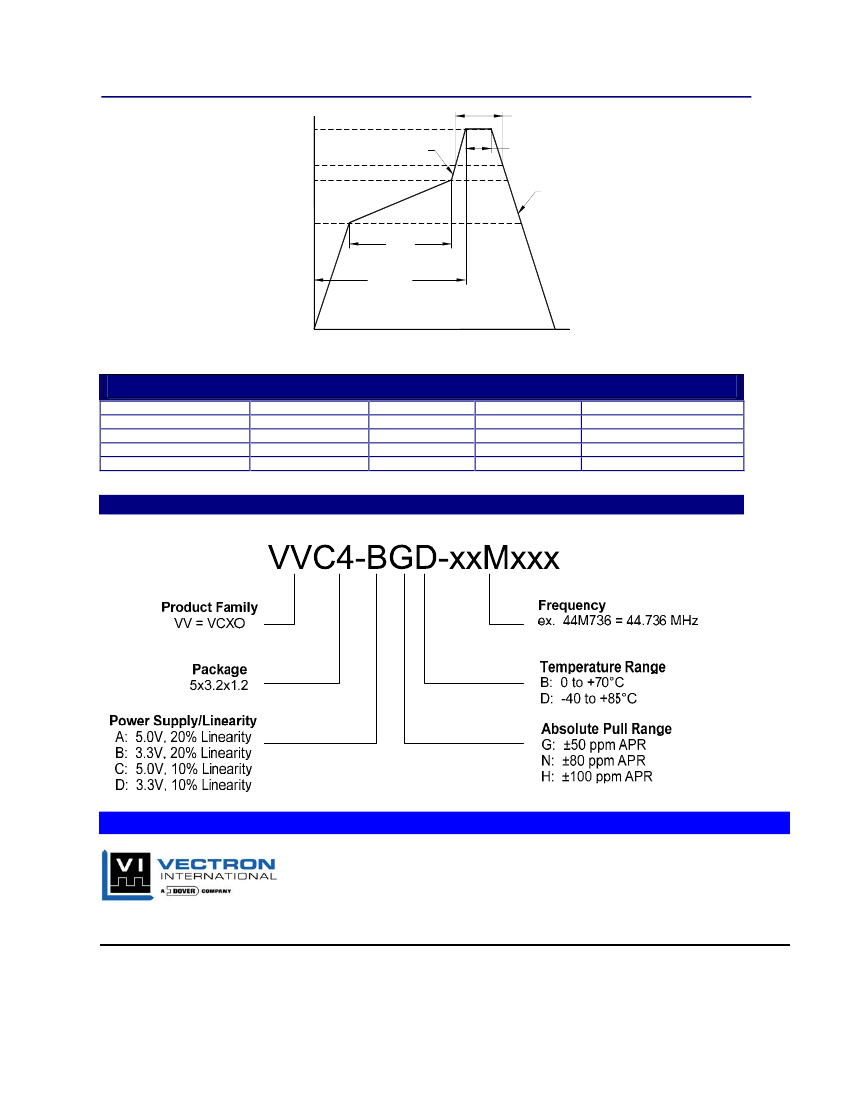

Table 5. Reflow Profile (IPC/JEDEC J-STD-020)
Parameter
Symbol
PreHeat Time
Ramp Up
Time Above 217 C
Time To Peak Temperature
Time At 260 C
Ramp Down
o
o
Value
60 sec Min, 180 sec Max
3 C/sec Max
60 sec Min, 150 sec Max
480 sec Max
20 sec Min, 40 sec Max
6 C/sec Max
o
o
t
S
R
UP
t
L
t
AMB-P
t
P
R
DN
Vectron International 267 Lowell Road, Hudson NH 03051
Tel:1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC4 Voltage Controlled Crystal Oscillator
260
t
L
R
UP
t
P
R
DN
Temperature (DegC)
217
200
150
t
S
t
AMB-P
25
Time (sec)
Standard Frequencies (MHz)
3.600
13.500
32.768
74.1758
4.096
16.384
34.560
74.250
8.192
19.440
38.785
77.760
10.000
27.000
44.736
12.960
28.375
51.840
Other frequencies may be available upon request
Ordering Information
For Additional Information, Please Contact:
USA:
Vectron International, 267 Lowell Rd, Hudson, NH 03051 . . . . . . .
EUROPE:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASIA:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tel: 1-88-VECTRON-1
Tel: 49 (0) 7268 8010
Tel: 86 21 5048 0777
Fax: 1-888-FAX-VECTRON
Fax: 49 (0) 7268 801281
Fax: 86 21 5048 1881
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice.
No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Vectron International 267 Lowell Road, Hudson NH 03051
Tel:1-88-VECTRON-1
e-mail: vectron@vectron.com
