SURFACE MOUNT CHIP LED LAMPS

Top View With Full Color LEDs

Part Number: 67-23SURSUGSUBC

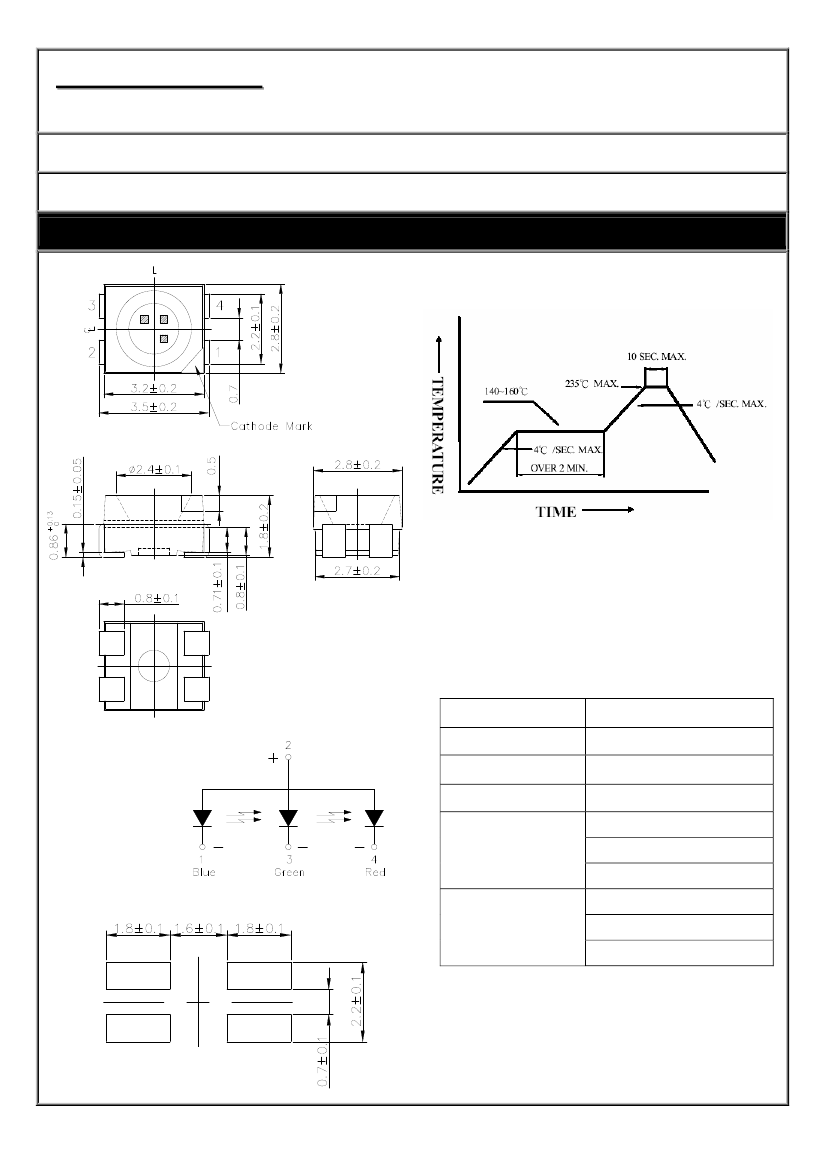

Package outlines & Re-flow Profile

Reflow Temp/Time

Soldering iron

Basic spec is 5sec when 260℃. If temperature is

higher, time should be shorter (+10℃ -1sec ).Power

dissipation of iron should be smaller than 15W, and

temperatures should be controllable .Surface temperature

of the device should be under 230℃ .

ITEM

Resin (mold)

Lens color

Printed circuit board

Dice

For Reflow Soldering

Emitted color

MATERIALS

Epoxy

Water Clear

AlGaInP

InGaN/SiC

Super Red

Super Blue

Super Green

NOTES:

1. All dimensions are in millimeters (inches).

2. Tolerances are

±0.1mm

(0.004inch) unless

otherwise noted.

3. Polarity referring onto the cathode mark is reversed

on the red.

2009/2/20
