A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Top View LEDs
Part Number: 67-21SURC

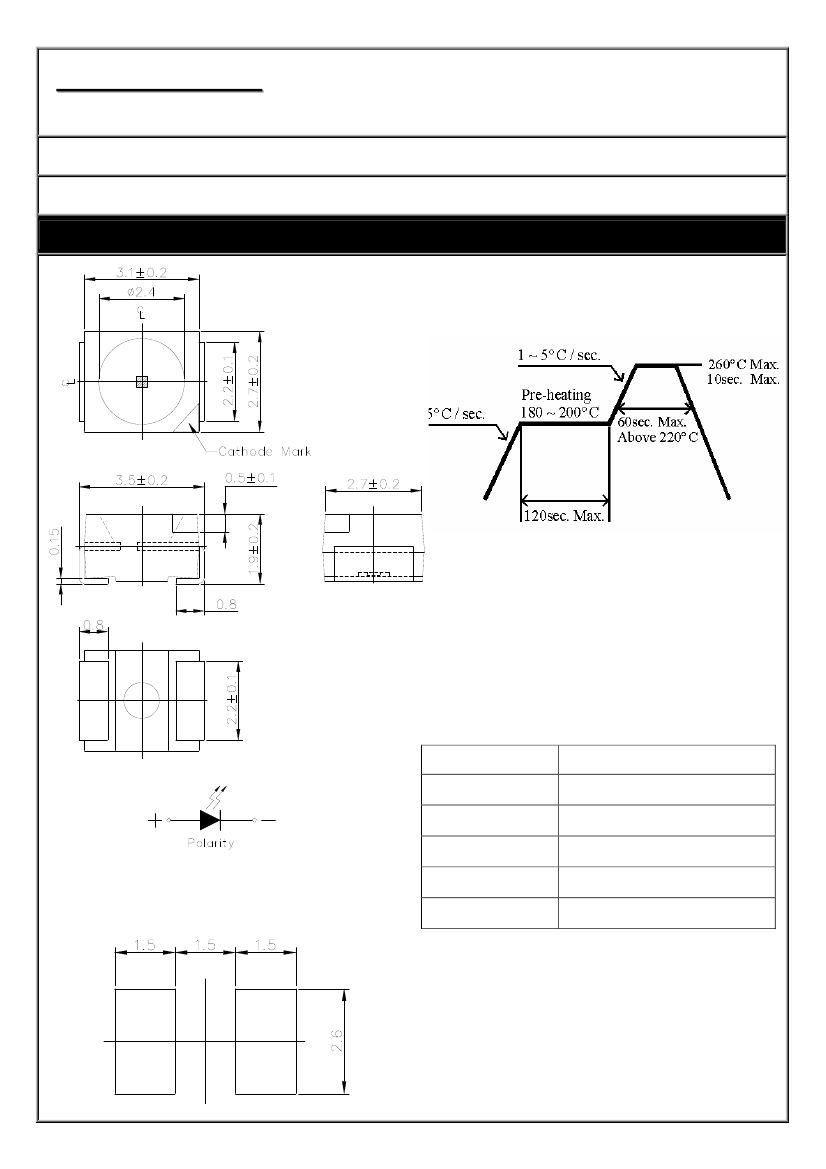

Package outlines & Re-flow Profile
Reflow Temp/Time
Soldering iron
Basic spec is 5sec when 260℃. If temperature is higher,
time should be shorter (+10℃ -1sec ).Power dissipation of
iron should be smaller than 15W, and temperatures should
be controllable .Surface temperature of the device should be
under 230℃ .
ITEM
Resin (mold)
Lens color
Printed circuit board
For Reflow Soldering
Material
Emitted color
MATERIALS
Epoxy
Water Clear
BT
AlGaInP
Hyper Red
NOTES:
1. All dimensions are in millimeters (inches).
2. Tolerances are
±0.1mm
(0.004inch) unless otherwise
noted.
3. Polarity referring onto the cathode mark is reversed on
the red.
2009/2/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Part Number: 67-21SURC
ELECTRO-OPTICAL CHARACTERISTICS
Parameter
(T
A
=25℃)
Unit
Value
Test
Symbol
Condition
MIN. TYP. MAX.
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
2θ1/2
V
F
I
V
λp
λd
△λ
I
R
ESD
−
−
−
−
−
120
2.0
95
630
625
20
10
2000
2.4
−
−
−
−
Viewing angle at 50% I
V
Forward voltage
Luminous intensity
Peak Wavelength
Dominant Wavelength
Spectral Line Half-Width
Reverse current
Electrostatic Discharge
Deg
V
mcd
nm
nm
nm
μA
mA
Absolute maximum ratings
Parameter
Forward current
Symbol
I
F
I
FP
P
D
V
R
Top
Tstg
Value
25
60
60
5
(T
A
=25℃)
Unit
mA
mA
mW
V
℃
℃
Peak pulsing current (1/10 duty f=1kHz)
Power Dissipation
Reverse voltage
Operating temperature range
Storage temperature range
-40 ~+85
-40 ~+100
2009/2/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Part Number: 67-21SURC
Test items and results of reliability
NO
1
Item
Reflow
Test Conditions
TEMP：240±5℃
Min. 5sec.
H：+100
℃
15min
∫
5min
L：-40
℃
15min
H：+100
℃
5min
∫
10set
L：-10
℃
5min
TEMP：100℃
Test
Sample Size Ac/Re
Hours/Cycle
6 MIN.
22 PCS
0/1
2
Temperature Cycle
300 CYCLES
22 PCS
0/1
3
Thermal Shock
300 CYCLES
22 PCS
0/1
4
High Temperature
Storage
Low Temperature Storage
1000 HRS
22 PCS
0/1
5
TEMP：-55℃
1000 HRS
22 PCS
0/1
6
DC Operating Life
High Temperature /
High Humidity
I
F
=20mA
1000 HRS
22 PCS
0/1
7
85
℃
/ 85%RH
1000 HRS
22 PCS
0/1
＊Refer
to reliability test standard specification for in this line.
2009/2/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Part Number: 67-21SURC

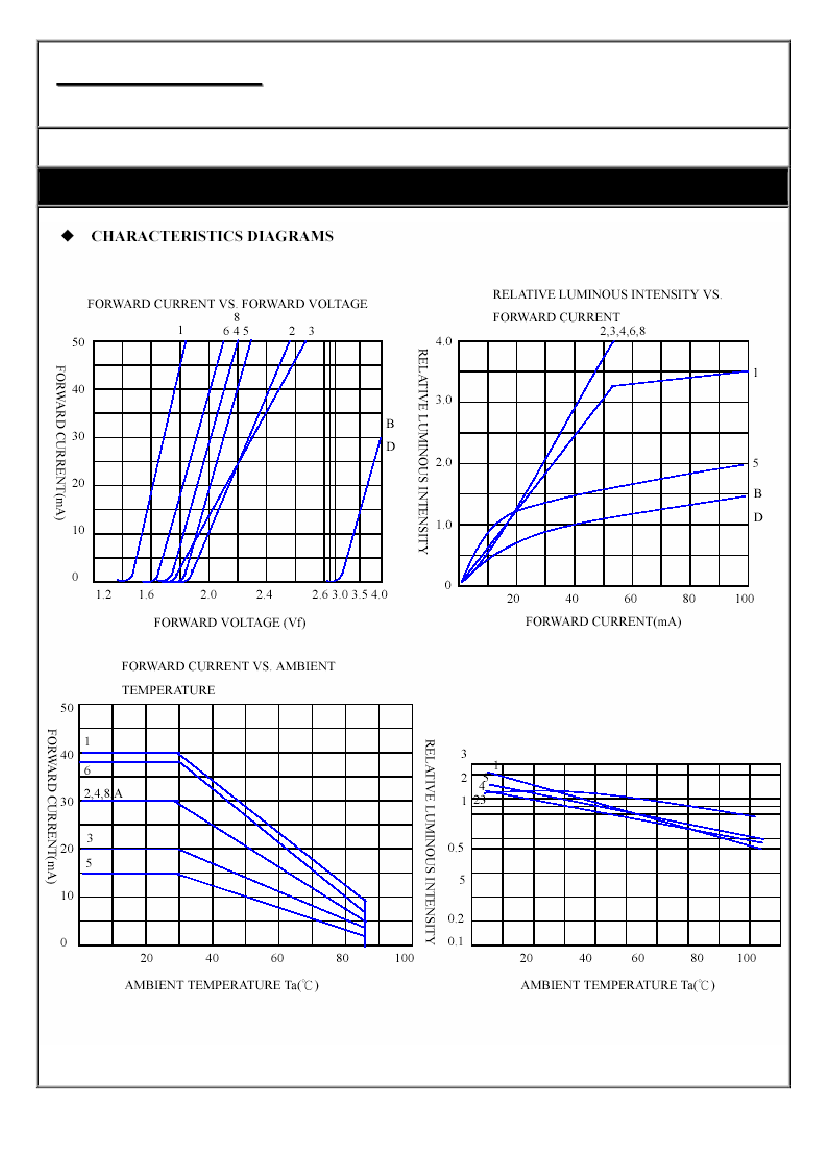

Typical Electro-Optical Characteristics
2009/2/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Part Number: 67-21SURC

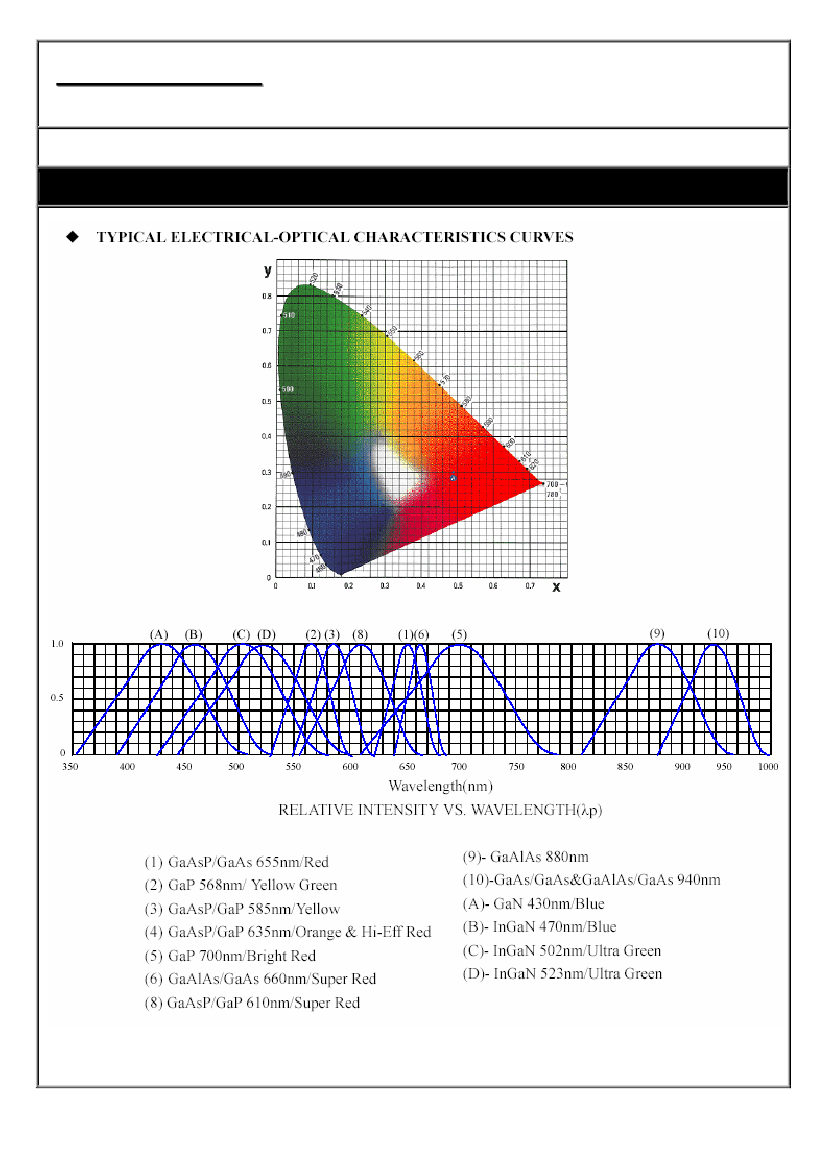

Typical Electro-Optical Characteristics
2009/2/20
