Standard Duty Electrical Socket Contact
D38999
Series II
M39029/57
850-003
A
AS39029
M24308
M55302
M83733
Mating End
Size
22
20
16
12
ØF
ØP
ØB
N°
.010
.004 Typ
.041
Ø.036
.040
.030
.129
.122
60°
Typ
-22-354 Only
© 2011 Glenair, Inc.

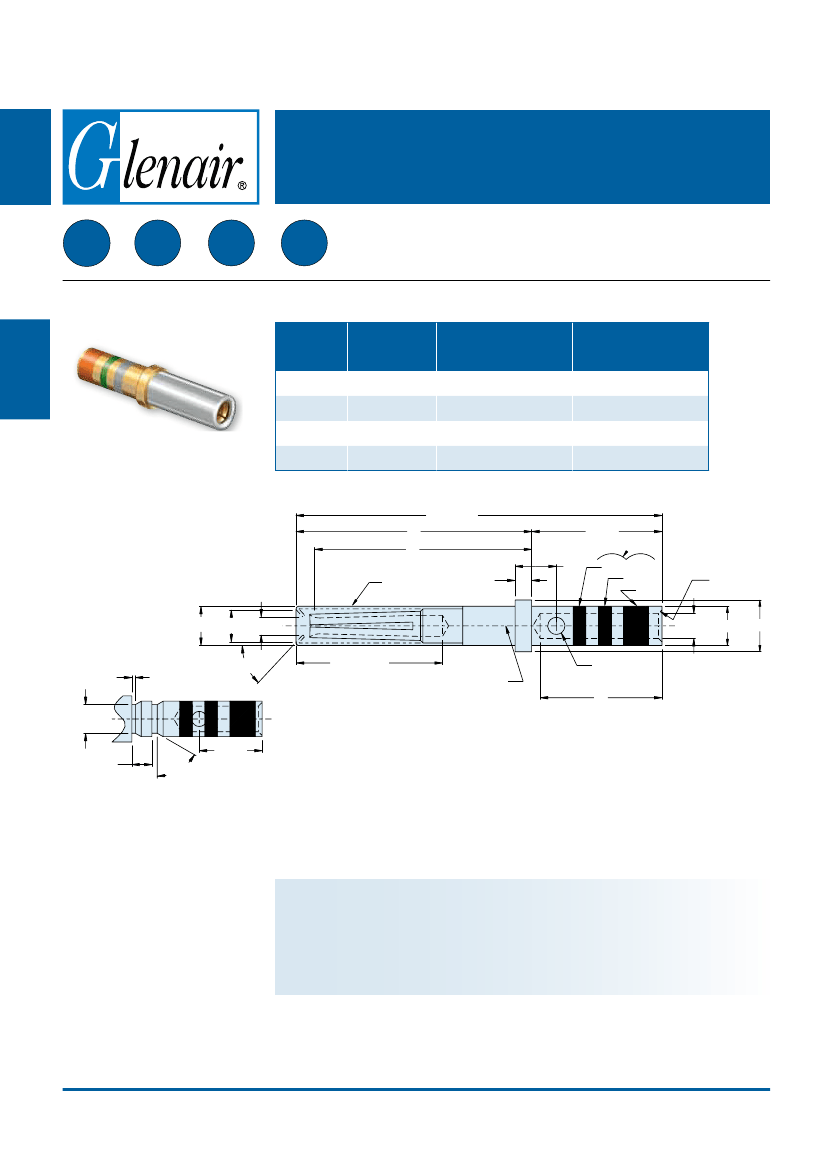

Standard Socket Crimp Contact for MIL-DTL-38999 Series II Connectors
Wire
Accomodation
22-28 AWG
20-24 AWG
16-20 AWG
12-14 AWG
Military Part Number
M39029/57-354
M39029/57-357
M39029/57-358
M39029/57-359
Glenair Part Number
850-003-22-354
850-003-20-357
850-003-16-358
850-003-12-359
A (Ref)
J
L
Hood
.033
.029
M
.237
.231
3rd
Color Bands
2nd
1st
ØE
H x 45°
ØG
ØC
.166 Min
Manufacturer Symbol
Ø D Thru
One Side Only
K
Material and Finish*
Pin Contact: Copper Alloy/Gold Plated
Socket Contact: Copper Alloy/Gold Plated
Socket Contact Hood: Passivated Stainless Steel
* See pages A-4 and A-5 for detailed material specifications
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-8
Standard Duty Electrical Socket Contact
M39029/57
850-003
TABLE I: CONTACT DIMENSIONS
Size
22
20
16
12
Part Number
850-003-22-354
850-003-20-357
850-003-16-358
850-003-12-359
Military Number
M39029/57-354
M39029/57-357
M39029/57-358
M39029/57-359
A (ref)
.518
.518
.518
.518
ø B Min.
.031
.0415
.064
.0955
øC
.062
.060
.094
.091
.130
.127
.182
.179
øD
.022
.018
.032
.026
.042
.036
.042
.036
øE
.0355
.0335
.048
.046
.068
.066
.102
.098
øF
Max.
.062
.078
.113
.161
øG
.048
.046
.070
.068
.103
.101
.151
.148
H
.005
.003
.010
.005
.010
.005
.016
.005
J
.289
.279
.289
.279
.289
.279
.289
.279
A
TABLE I (Continued): CONTACT DIMENSIONS
Size
22
20
16
12
Part Number
850-003-22-354
850-003-20-357
850-003-16-358
850-003-12-359
Military Number
M39029/57-354
M39029/57-357
M39029/57-358
M39029/57-359
K
Min.
.141
.209
.209
.209
L
Min.
.248
.248
.248
.248
M
–
.078
.072
.088
.082
.088
.082
N°
50
44
47
28
47
28
47
28
ØP
Min.
.047
.053
.084
.118
1st
Orange
Orange
Orange
Orange
Color Bands
2nd
Green
Green
Green
Green
3rd
Yellow
Violet
Gray
White
TABLE II: TOOL COMPATIBILITY
Size
22
Part Number
850-003-22-354
Military Number
M39029/57-354
AWG
Handling
22, 24, 26, 28
Crimp Tool
M22520/2-01
M22520/7-01
M22520/7-01
M22520/2-01
M22520/1-01
M22520/1-01
M22520/7-01
M22520/1-01
Positioner
M22520/2-06
M22520//7-06
M22520/7-08
M22520/2-10
M22520/1-04
(Red)
M22520/1-04 (Blue)
M22520/7-04
M22520/1-04
(Yellow)
Insertion Tool
M81969/14-01
M81969/8-01
M81969/8-05
M81969/14-02
Extraction Tool
M81969/14-01
M81969/8-02
M81969/8-06
M81969/14-02
20
850-003-20-357
M39029/57-357
20, 22, 24
16
12
850-003-16-358
850-003-12-359
M39029/57-358
M39029/57-359
16, 18, 20
12, 14
M81969/8-07
M81969/14-03
M81969/8-09
M81969/14-04
M81969/8-08
M81969/14-03
M81969/8-10
M81969/14-04
© 2011 Glenair, Inc.
www.glenair.com
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
A-9
