850-005: DescriptionStandard Duty Electrical Socket Contact; File Size264KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

850-005 Overview

Standard Duty Electrical Socket Contact

Preview

Download Datasheet

View All

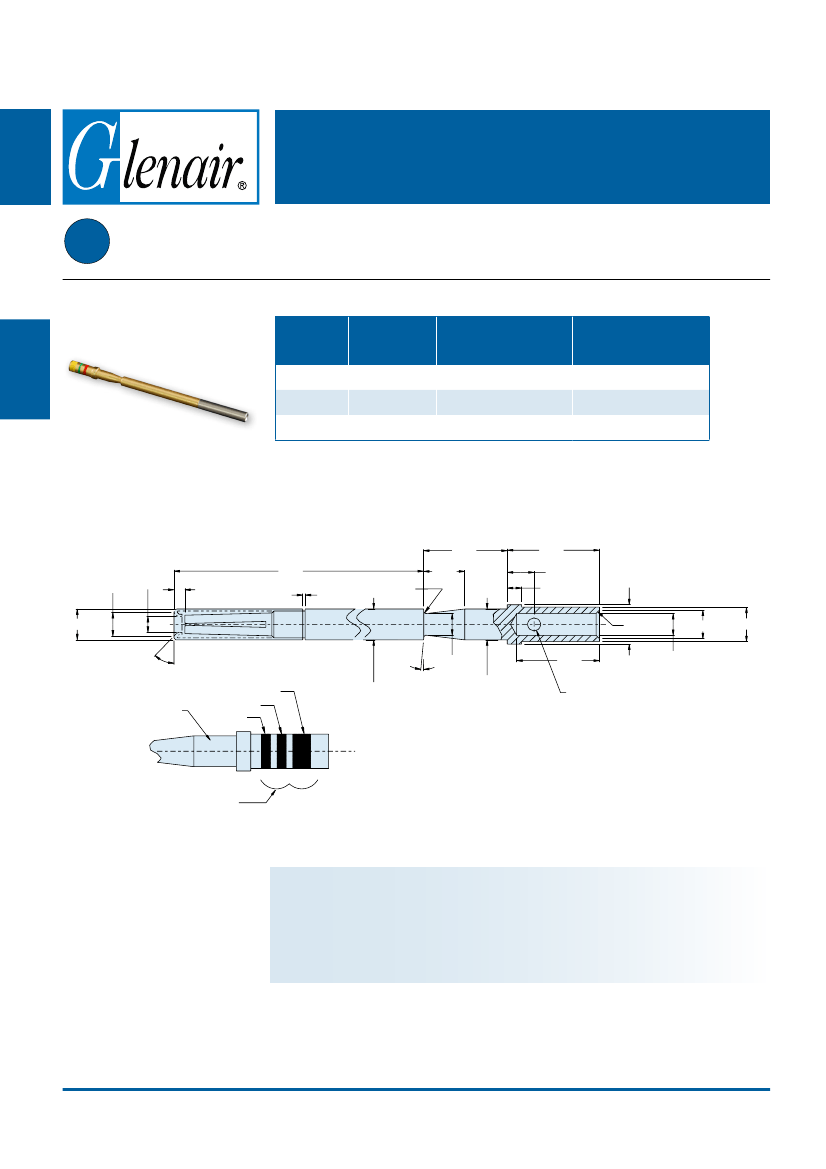

Standard Duty Electrical Socket Contact

M39029/84

850-005

A

Color Bands

G

AS39029

M28840

Mating End

Size

20

Ø .043

Ø .053 ± .001

Ø .069 ± .001

45°

±1°

1st

Manufacturer

Symbol

2nd

3rd

.060 Max

To Spring

Ø .899

± .005

.000-.006

Standard Socket Crimp Contact for MIL-DTL-28840 Connectors

Wire

Accomodation

28-32 AWG

22-26 AWG

20-24 AWG

Military Part Number

M39029/84-453

M39029/84-452

M39029/84-509

Glenair Part Number

850-005-20-453

850-005-20-452

850-005-20-509

R .006

.003

.187

± .002

.092

± .003

.206

± .002

.060 ± .003

.033/.029

Ø .088

± .001

45°

±2°

Ø .064 ± .003 .077 ± .001

Ø “B”

5°

0°

Ø .069

± .001

Ø .047

± .002

Ø .069

± .001

.180

±.010

Ø “C” Thru One Side Only

Material and Finish*

Pin Contact: Copper Alloy/Gold Plated

Socket Contact: Copper Alloy/Gold Plated

Socket Contact Hood: Passivated Stainless Steel

* See pages A-4 and A-5 for detailed material specifications

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
