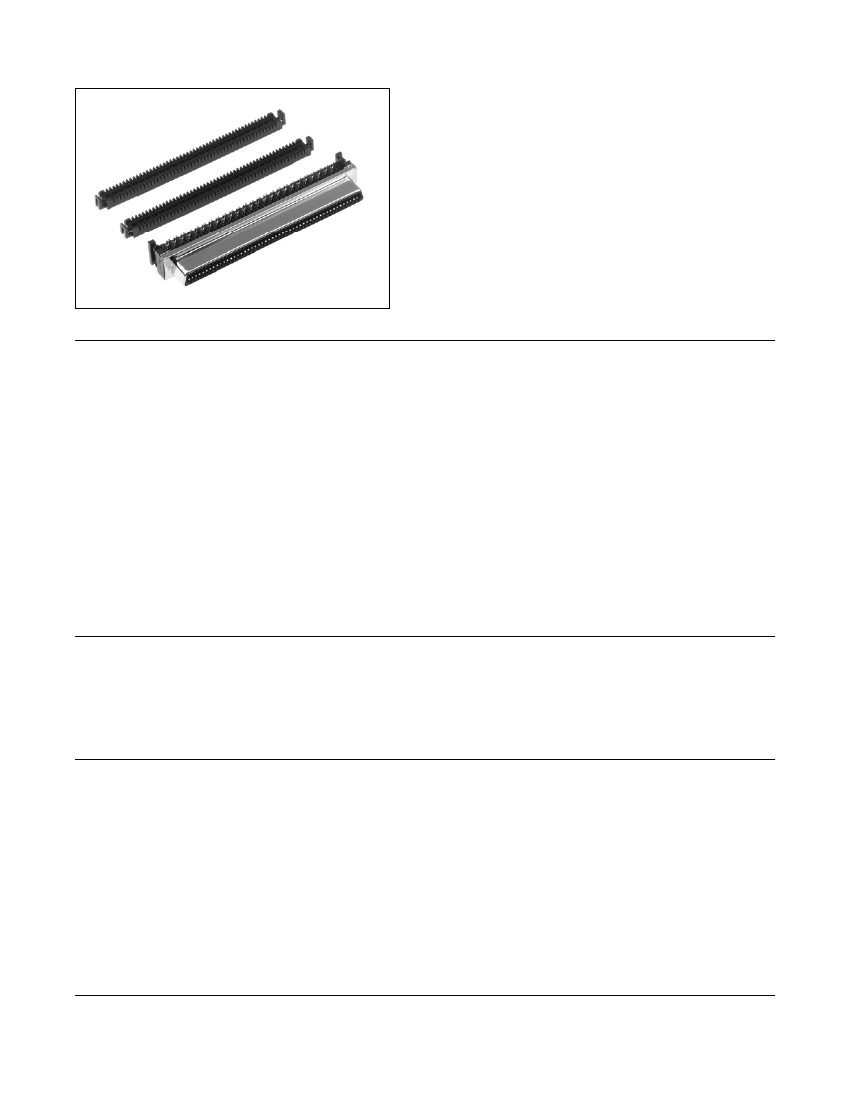

3M
™
Pak 50 I/O Socket
.050" Straight and Right Angle, Cable Mount
P50 Series
•
Supports 28 or 30 AWG discrete or laminated wire
cables
•
Fully EMI shielded
•
20 to 100 position
•
Mates to P50 series panel mount plug
•
See Regulatory Information Appendix (RIA) for
chemical compliance information. RIA E1 and
C1 apply.
Date Modified: April 10, 2008
TS-1154-B
Sheet 1 of 3
Physical
Insulation:
Material: Glass filled Nylon
Flammability: UL 94V-0
Color: Black
Contact:
Material: Copper Alloy
Plating:
Underplating: Nickel
Wiping Area: 10 µ" [0.25 µm] minimum Gold
Termination Area: 10 µ" [0.25 µm] minimum Gold
Wire Accomodation: 28 or 30 AWG Stranded Cable
Electrical
Current Rating:
0.5 A
Insulation Resistance:
10
3
MΩ min. at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +85°C
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Socket
.050" Straight and Right Angle, Cable Mount
Straight Cable Exit
P50 Series

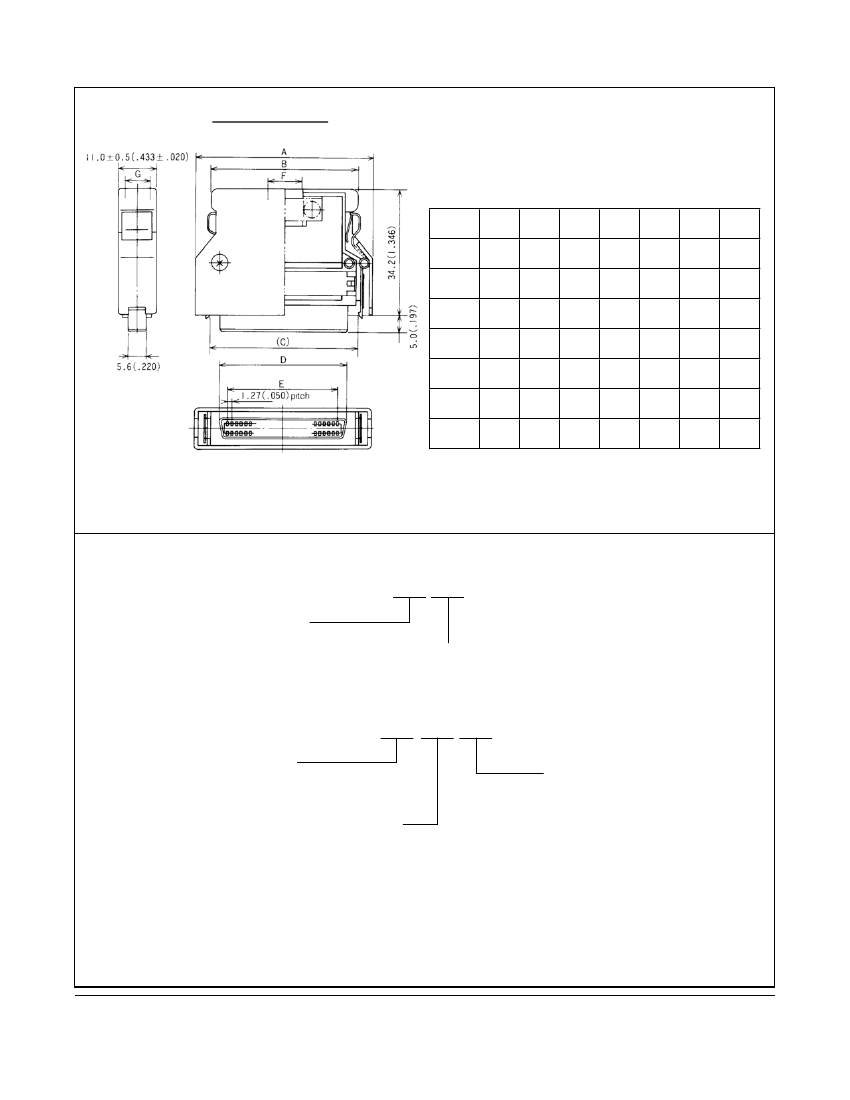

Product Table / Dimensions for Straight Cable Exit
Contact
Quantity
20
28
34
50
60
68
80
A
30.00
[1.181]
35.08
[1.381]
38.89
[1.531]
49.05
[1.931]
55.40
[2.181]
60.48
[2.381]
68.10
[2.681]
B
22.30
[0.878]
27.38
[1.078]
31.19
[1.228]
41.35
[1.628]
47.70
[1.878]
52.78
[2.078]
60.40
[2.378]
C
21.30
[0.839]
26.40
[1.039]
30.20
[1.189]
40.40
[1.591]
46.70
[1.839]
51.80
[2.039]
59.40
[2.339]
D
16.48
[0.649]
21.56
[0.849]
25.37
[0.999]
35.53
[1.399]
41.88
[1.649]
46.96
[1.849]
54.58
[2.149]
E
11.43
[0.450]
16.51
[0.650]
20.32
[0.800]
30.48
[1.200]
36.83
[1.450]
41.91
[1.650]
49.53
[1.950]
F
6.70
[0.264]
7.50
[0.295]
8.70
[0.343]
10.00
[0.394]
11.00
[0.433]
12.00
[0.472]
13.00
[0.512]
G
6.70
[0.264]
7.50
[0.295]
8.70
[0.343]
8.50
[0.335]
8.50
[0.335]
8.50
[0.335]
8.50
[0.335]
Ordering Information
Connector Order Code
P50-XXX-XXX-EA
Contact Quantity
See Table
DDS = 28 AWG discrete wire
MDS = 28 AWG laminated wire
DDSC = 30 AWG discrete wire
MDSD = 30 AWG laminated wire
Backshell Order Code
P50-XXX-XXX-XXXX
Contact Quantity
See Table
STR = Straight Exit
HOZ = Right Angle Exit
Available only for 20 & 50 position
BSK = Straight Exit for 20--80 position
BSK1 = 20 pos.Right Angle Backshell
w/cable clamp for .193" diameter
BSK3 = 20 pos. Right Angle Backshell
W/cable clamp for .217–.228" diameter
BSK2 = 50 pos. Right Angle Backshell
W/cable clamp for .260" diameter
BSK4 = 50 pos. Right Angle Backshell
W/cable clamp for .283" diameter
BSK5 = 50 pos. Right Angle Backshell
W/cable clamp for .311" diameter
BSK1 = 100 pos. Straight Exit Backshell
Without Backpanel
BSK2 = 100 pos. Straight Exit Backshell to
Accommodate .039" Panel Thickness
BSK3 = 100 pos. Straight Exit Backshell to
Accommodate .063" Panel Thickness
TS-1154-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Socket
.050" Straight and Right Angle, Cable Mount
Straight
Cable Exit for
100
Pins
P50 Series

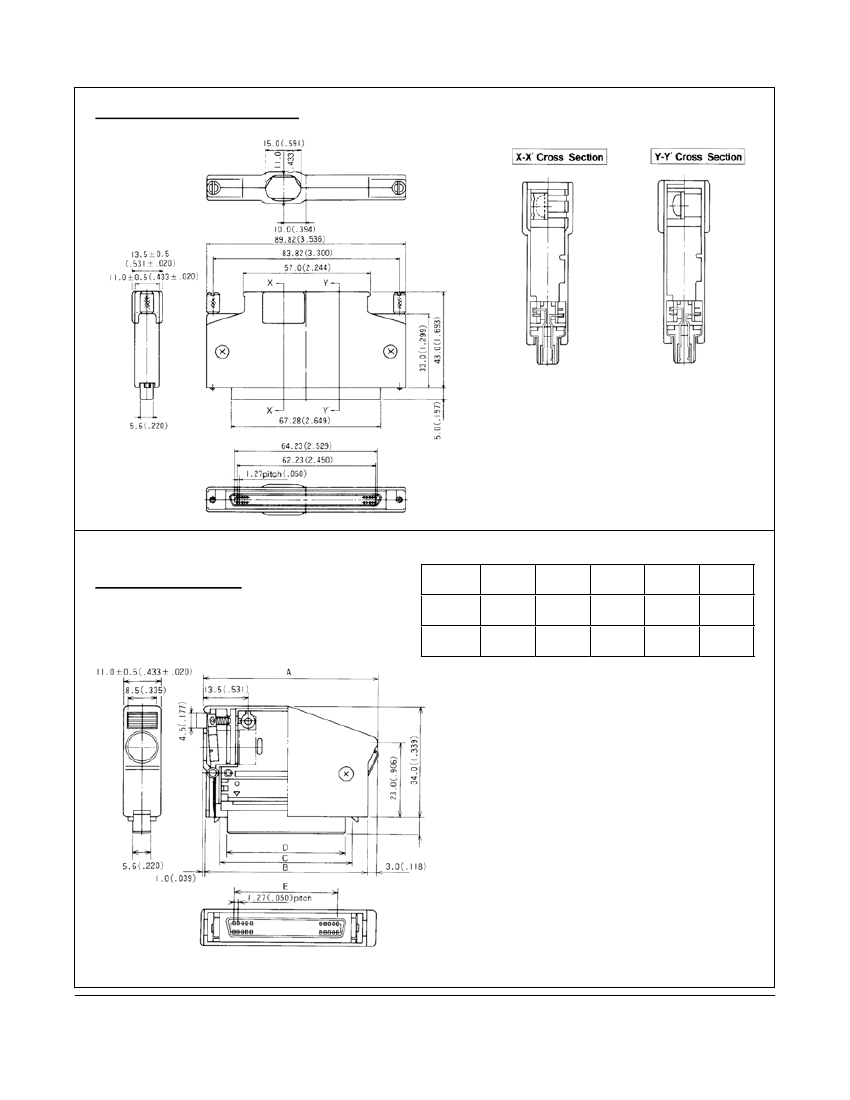

Product Table / Dimensions for Right Angle Cable Exit
Right
Angle
Cable Exit
Available
only for
20 & 50 Contacts
Contact
Quantity
20
50
A
34.00
[1.339]
53.05
[2.089]
B
30.00
[1.181]
49.00
[1.929]
C
21.30
[0.839]
40.35
[1.589]
D
16.48
[0.649]
35.53
[1.399]
E
11.43
[0.450]
30.48
[1.200]
TS-1154-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/717/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-D
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means
that the product or part
does not
contain any of the following substances in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that
the product or part
does
contain a substance, as detailed in the chart below, in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with
3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the
product Warranty stated below.
RIA-2217B-D
