S426IE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> S426IE

S426IE: DescriptionRectifier Diode, 1 Phase, 2 Element, 4A, 1000V V(RRM), Silicon, 426, 3 PIN; CategoryDiscrete semiconductor diode; File Size192KB，1 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

S426IE Overview

Rectifier Diode, 1 Phase, 2 Element, 4A, 1000V V(RRM), Silicon, 426, 3 PIN

S426IE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
package instruction	S-XSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	FAST RECOVERY
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	S-XSFM-P3
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	25 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	4 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.3 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

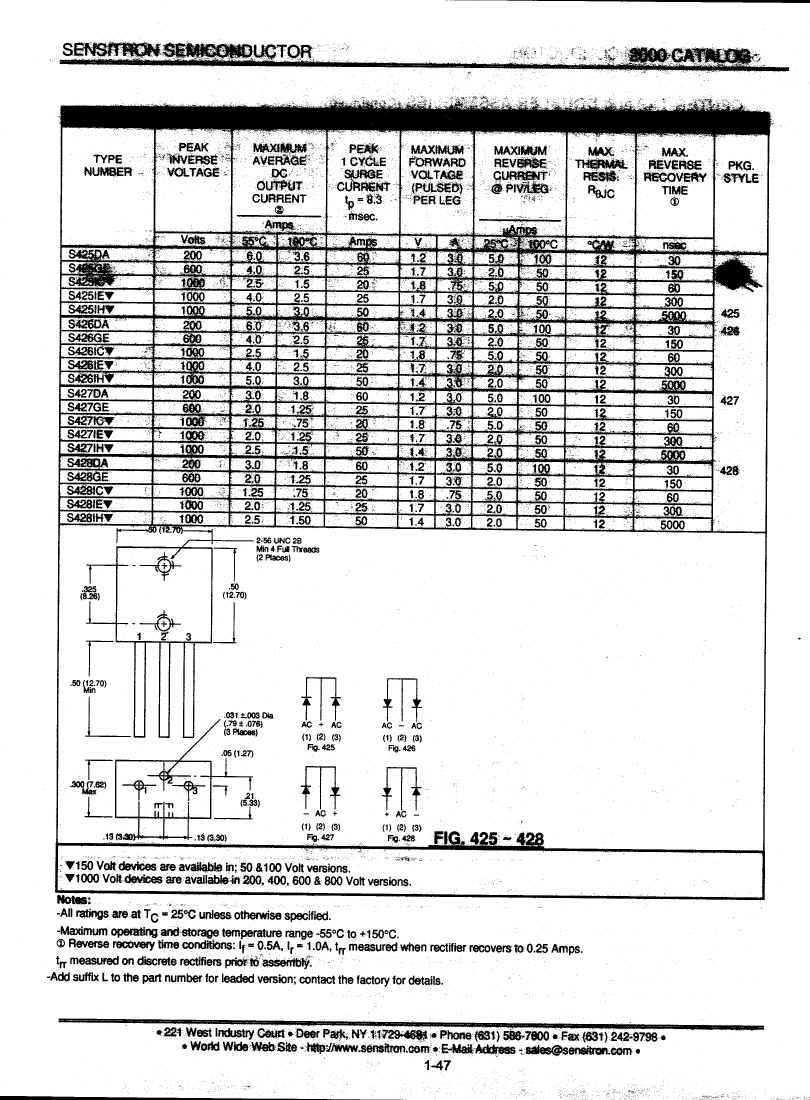

Preview

Download Datasheet

View All

S426IE Related Products

	S426IE	S426IH	S426GE
Description	Rectifier Diode, 1 Phase, 2 Element, 4A, 1000V V(RRM), Silicon, 426, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 5A, 1000V V(RRM), Silicon, 426, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 4A, 600V V(RRM), Silicon, 426, 3 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	S-XSFM-P3	426, 3 PIN	S-XSFM-P3
Contacts	3	3	3
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
application	FAST RECOVERY	GENERAL PURPOSE	FAST RECOVERY
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1.4 V	1.7 V
JESD-30 code	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3
JESD-609 code	e0	e0	e0
Humidity sensitivity level	1	1	1
Maximum non-repetitive peak forward current	25 A	50 A	25 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	4 A	5 A	4 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	1000 V	600 V
Maximum reverse recovery time	0.3 µs	5 µs	0.15 µs
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	SENSITRON	-	SENSITRON
