S431IH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> S431IH

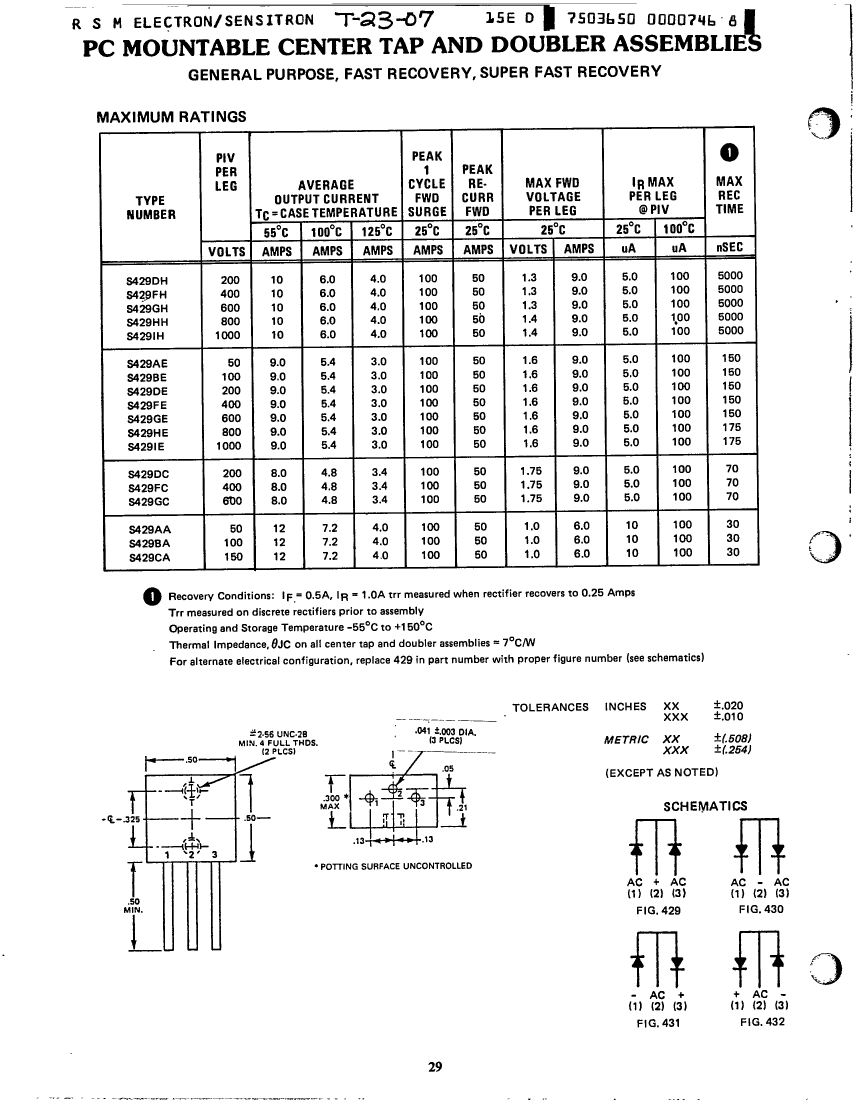

S431IH: DescriptionRectifier Diode, 1 Phase, 2 Element, 5A, 1000V V(RRM), Silicon, 431, 3 PIN; CategoryDiscrete semiconductor diode; File Size46KB，1 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

S431IH Overview

Rectifier Diode, 1 Phase, 2 Element, 5A, 1000V V(RRM), Silicon, 431, 3 PIN

S431IH Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
package instruction	S-XSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	S-XSFM-P3
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	100 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	5 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	5 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

S431IH Related Products

	S431IH	S432GE	S432GC	S432IE	S431CA	S430CA	S432IH
Description	Rectifier Diode, 1 Phase, 2 Element, 5A, 1000V V(RRM), Silicon, 431, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 4.5A, 600V V(RRM), Silicon, 432, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 4A, 600V V(RRM), Silicon, 432, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 4.5A, 1000V V(RRM), Silicon, 432, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 6A, 150V V(RRM), Silicon, 431, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 12A, 150V V(RRM), Silicon, 430, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 5A, 1000V V(RRM), Silicon, 432, 3 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON
package instruction	S-XSFM-P3	432, 3 PIN	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	FAST RECOVERY	SUPER FAST RECOVERY	FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	GENERAL PURPOSE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.6 V	1.7 V	1.6 V	1 V	1 V	1.4 V
JESD-30 code	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Humidity sensitivity level	1	1	1	1	1	1	1
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	5 A	4.5 A	4 A	4.5 A	6 A	12 A	5 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	600 V	600 V	1000 V	150 V	150 V	1000 V
Maximum reverse recovery time	5 µs	0.15 µs	0.07 µs	0.175 µs	0.03 µs	0.03 µs	5 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
