KV7050W155.520P30D00 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KV7050W155.520P30D00

KV7050W155.520P30D00: DescriptionVCXO, Clock, VCXO, CLOCK, 155.52 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size146KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

KV7050W155.520P30D00 Overview

VCXO, Clock, VCXO, CLOCK, 155.52 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

KV7050W155.520P30D00 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	0.6 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

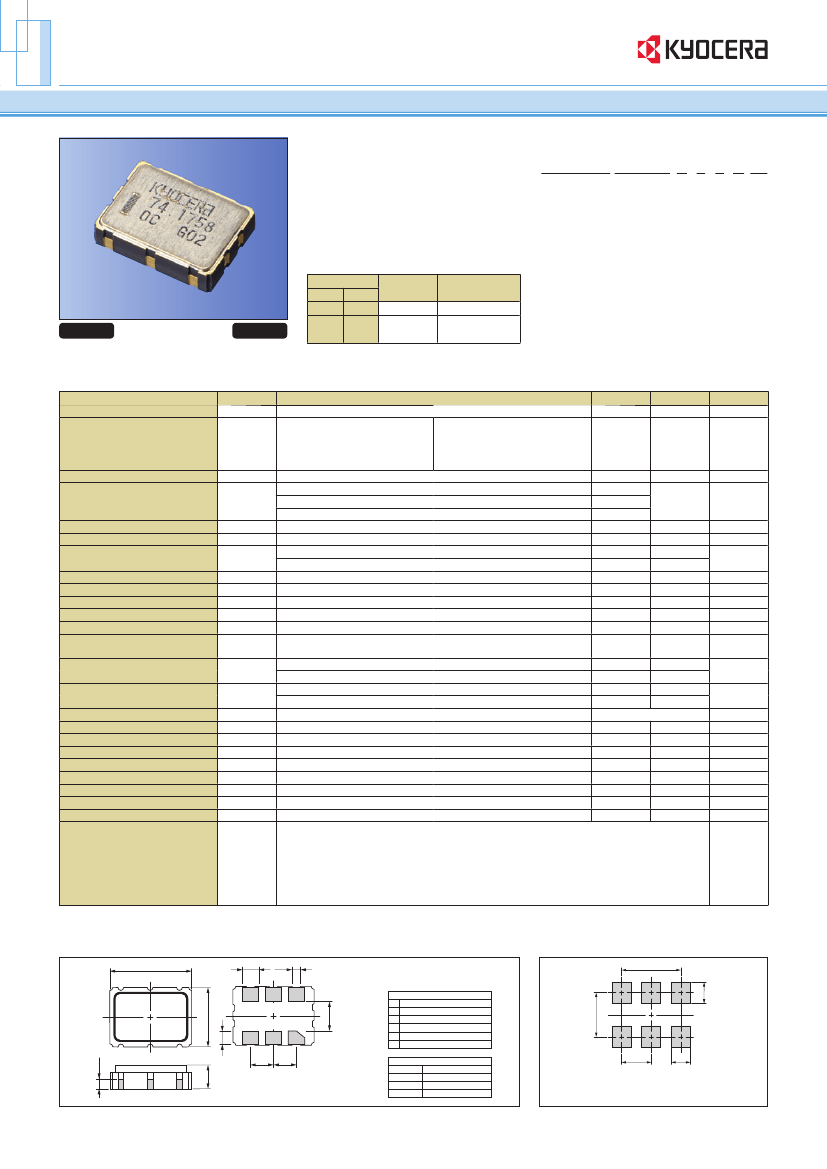

Voltage Controlled Crystal Oscillators (VCXO)

Surface Mount Type KV7050W-P3 Series (K50V-3P Series)

LV-PECL/ 3.3V/ 7.0×5.0mm

This product is NOT recommended for new designs.

Features

• Miniature ceramic package

• Highly reliable with vacuum welding

• LV-PECL output

• Supply voltage V

=3.3V

• With built-in by-pass capacitor

• Low jitter

How to Order

KV7050W 155.520 P 3 0 D 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD VCXO)

②

Output Frequency

③

Output Type (LV-PECL)

④

Supply Voltage (3.3V)

⑤

Frequency Tolerance (See Table 1)

⑥

ymmetry/ Enable Function

(45/ 55%, Disable)

⑦

ustomer Special Model Suffix

(STD Specification is “00”)

Packaging (Tape & Reel 1000 pcs./ reel)

Table 1

Freq. Tol.

Code

-6

±50

Operating

Temperature

Range (°C)

Note

Pb Free

RoHS Compliant

±50

Standard specifications

With only certain

-40

+85

frequencies

0 to

+70

Specifications

Item

Output Frequency Range

Frequency Tolerance

Aging

Absolute Pull Range

Control Voltage

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Disable Current

Symmetry

Rise/ Fall Time

(20% to 80% Output Level)

Low Level Output Voltage

High Level Output Voltage

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Input Resistance

Phase Jitter

Symbol

_tol

Aging

APR

_stg

_use

—

_dis

SYM

tr/ tf

_dis

_ena

_str

—

Phase

Conditions

Initial tolerance, Operating tem-

perature range, Rated power supply

Op. Temp.: 0 to

+70°C/ -40

+85°C

voltage change, Load change, Aging

(1 year @25°C), Shock and vibration

@25°C 20 years

70≤fo≤120

120<fo≤180

fo=155.52MHz

Standard Specifications

Extend (Option)

50 ohm

50 ohm @50% Output Swing

50 ohm

Op. Temp.: 0 to

+85°C/

Typ. 1.600V

Op. Temp.:

-40

to 0°C/ Typ. 1.605V

Op. Temp.: 0 to

+85°C/

Typ. 2.350V

Op. Temp.:

-40

to 0°C/ Typ. 2.295V

LV-PECL

Min.

-50

—

±20

±50

±100

-55

-40

-0.5

2.97

—

Max.

180

+50

±15

—

3.3

+90

+70

+85

3.63

0.6

Units

MHz

×10

-6

×10

-6

×10

-6

°C

ohm

@Minimum operation voltage to be 0 sec.

12kHz to 20MHz @155.52MHz

60 (@10Hz offset)

90 (@100Hz offset)

-120

(@1kHz offset)

-140

(@10kHz offset)

-147

(@100kHz offset)

-147

(@1MHz offset)

-147

(@10Hz offset)

-1.810

-1.620

-1.830

-1.555

-1.025

-0.880

-1.085

-0.900

—

30% V

70% V

—

200

—

200

—

150k

—

Phase Noise

@155.52MHz

—

dBc/ Hz

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Dimensions

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

④

③

⑤

②

⑥

①

②

③

④

⑤

⑥

KV7050W155.520P30D00 Related Products

	KV7050W155.520P30D00	KV7050WFREQ1P3GD00	KV7050WFREQ2P3GD00	KV7050W120.000P3GD00	KV7050W180.000P3GD00	KV7050W120.000P30D00	KV7050W180.000P30D00	KV7050W70.000P30D00
Description	VCXO, Clock, VCXO, CLOCK, 155.52 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 70 MHz - 120 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 120 MHz - 180 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 120 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 180 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	VCXO, Clock, VCXO, CLOCK, 120 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	LVPECL Output Clock Oscillator, 180MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	LVPECL Output Clock Oscillator, 70MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN
Maker	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
maximum descent time	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	100 ppm	20 ppm	50 ppm	20 ppm	50 ppm	20 ppm	50 ppm	20 ppm
frequency stability	50%	50%	50%	50%	50%	50%	50%	50%
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C
Oscillator type	LVPECL	LVPECL	LVPECL	LVPECL	LVPECL	LVPECL	LVPECL	LVPECL
Output load	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM
physical size	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm
longest rise time	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)	Gold (Au)	Gold (Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)
Nominal operating frequency	155.52 MHz	-	-	120 MHz	180 MHz	120 MHz	180 MHz	70 MHz
