LO3386-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LO3386-N

LO3386-N: DescriptionT-1 SINGLE COLOR LED, ORANGE, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size110KB，10 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric Compare View All

LO3386-N Overview

T-1 SINGLE COLOR LED, ORANGE, 3 mm

LO3386-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Osram Opto Semiconductor
Reach Compliance Code	unknown
color	ORANGE
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.6 V
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	36.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	BULK
peak wavelength	610 nm
Maximum reverse voltage	3 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	100 deg

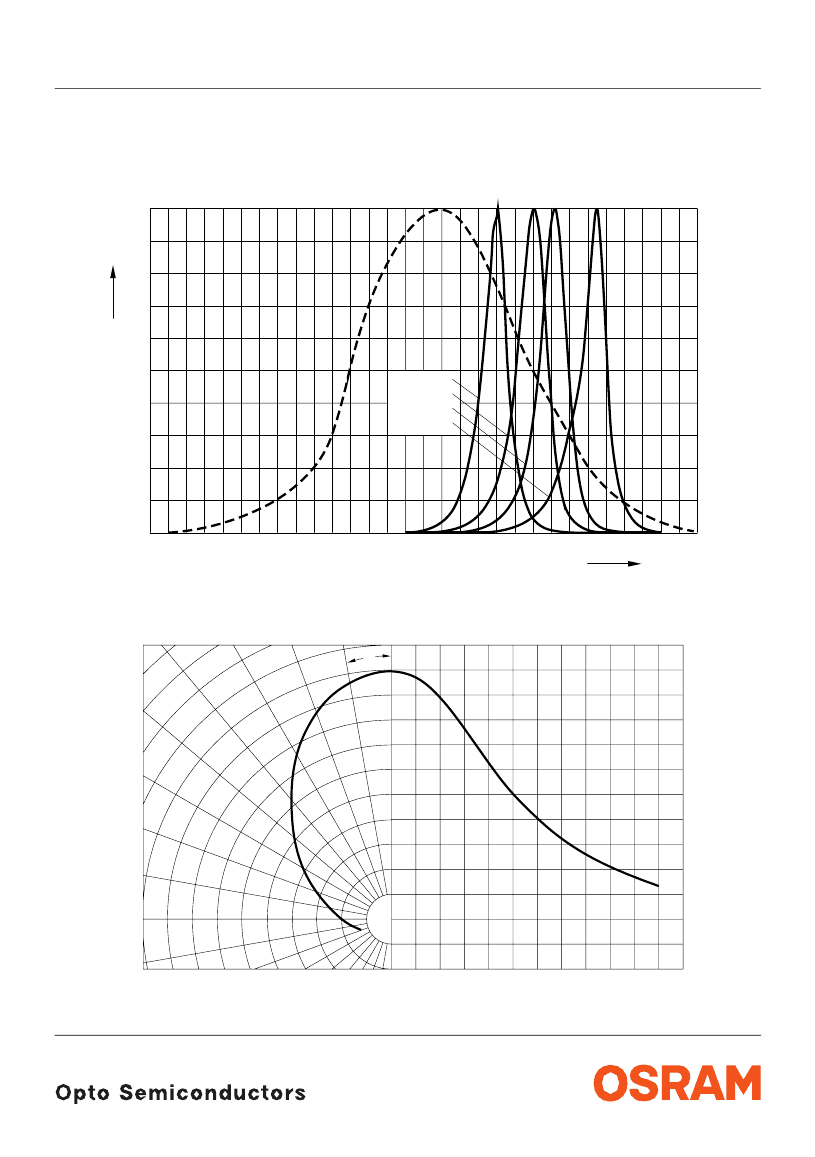

Preview

Download Datasheet

View All

Hyper 3 mm (T1) LED, Diffused

Hyper-Bright, Wide-Angle LED

LS 3386, LA 3386, LO 3386, LY 3386

Besondere Merkmale

•

Gehäusetyp:

eingefärbtes, diffuses 3 mm (T1)

Gehäuse

•

Besonderheit des Bauteils:

Lötspieße mit

Aufsetzebene

•

Wellenlänge:

633 nm (super-rot),

615 nm (amber), 606 nm (orange),

587 nm (gelb)

•

Abstrahlwinkel:

100°

•

Technologie:

InGaAlP

•

optischer Wirkungsgrad:

11 lm/W (gelb,

orange, amber), 7 lm/W (super-rot)

•

Gruppierungsparameter:

Lichtstärke

•

Lötmethode:

Wellenlöten (TTW)

•

Vorbehandlung:

nach JEDEC Level 2

•

Verpackung:

Schüttgut, gegurtet lieferbar

Anwendungen

• optischer Indikator

• Hinterleuchtung (Tasten, Displays,

Werbebeleuchtung, Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Tastenbeleuchtung, u.ä.)

• Markierungsbeleuchtung (z.B. Stufen,

Fluchtwege, u.ä.)

• Signal- und Symbolleuchten

Features

•

package:

colored, diffused 3 mm (T1) package

•

feature of the device:

solder leads with

stand-off

•

wavelength:

633 nm (super-red),

615 (amber), 606 nm (orange),

587 nm (yellow)

•

viewing angle:

100°

•

technology:

InGaAlP

•

optical efficiency:

11 lm/W (yellow, orange,

amber), 7 lm/W (super-red)

•

grouping parameter:

luminous intensity

•

soldering methods:

TTW soldering

•

preconditioning:

acc. to JEDEC Level 2

•

packing:

bulk, available taped on reel

Applications

• coupling into light guides

• backlighting (keys, displays, illuminated

advertising, general lighting)

• interior automotive lighting

(e.g. key backlighting, etc.)

• marker lights (e.g. steps, exit ways, etc.)

• signal and symbol luminaire

2002-03-14

LO3386-N Related Products

	LO3386-N	LS3386-LP	LO3386-P	LO3386-MQ	LA3386-NR	LA3386-Q
Description	T-1 SINGLE COLOR LED, ORANGE, 3 mm	T-1 SINGLE COLOR LED, SUPER RED, 3 mm	T-1 SINGLE COLOR LED, ORANGE, 3 mm	T-1 SINGLE COLOR LED, ORANGE, 3 mm	T-1 SINGLE COLOR LED, AMBER, 3 mm	T-1 SINGLE COLOR LED, AMBER, 3 mm
Maker	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	ORANGE	SUPER RED	ORANGE	ORANGE	AMBER	AMBER
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED RED	DIFFUSED	DIFFUSED	DIFFUSED ORANGE	DIFFUSED ORANGE
Nominal luminous intensity	36.5 mcd	41.1 mcd	58.0 mcd	65.0 mcd	104.0 mcd	91.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	610 nm	645 nm	610 nm	610 nm	622 nm	622 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	100 deg	100 deg	100 deg	100 deg	100 deg	100 deg
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible
color@wavelength	Amber	-	Amber	Amber	Amber	Amber
Maximum forward voltage	2.6 V	-	2.6 V	2.6 V	2.6 V	2.6 V
JESD-609 code	e0	-	e0	e0	e0	e0
Maximum reverse voltage	3 V	-	3 V	3 V	3 V	3 V
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
