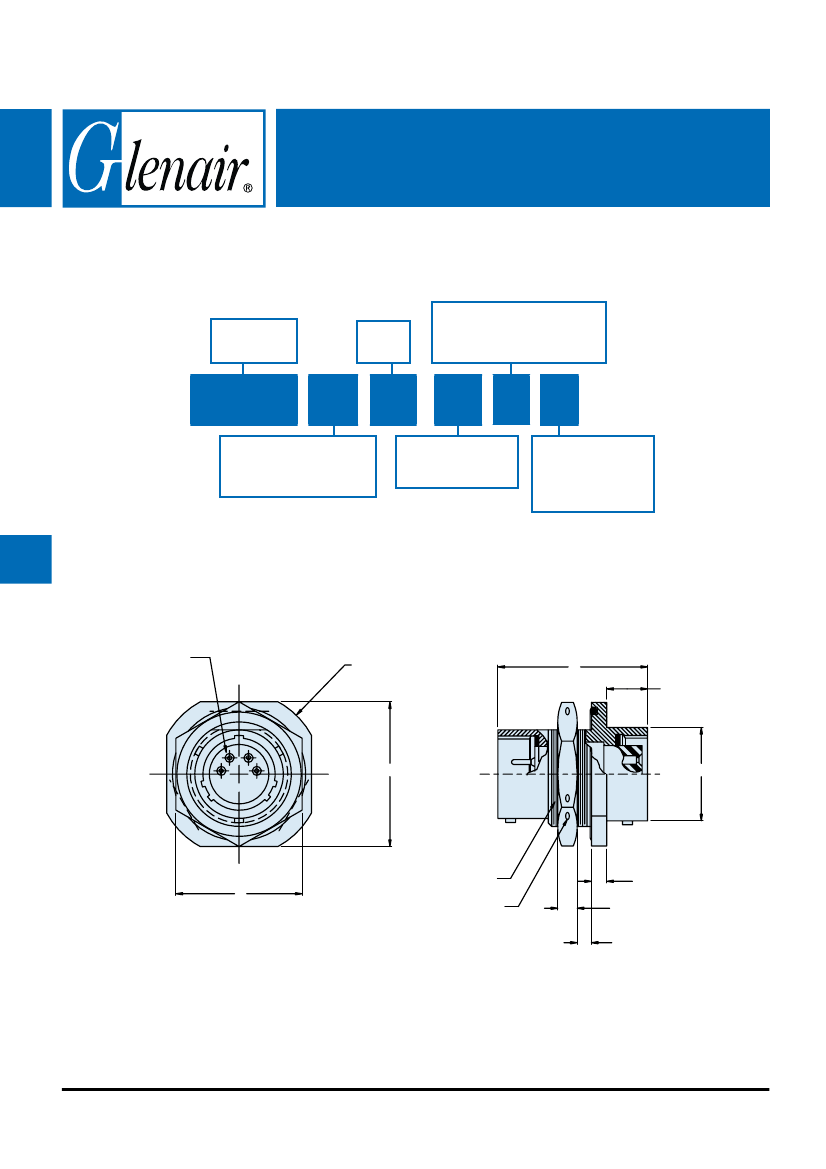

Bayonet Coupling Jam Nut Mount
Pin-Socket Bulkhead Feedthrough Receptacle
947-292
MIL-DTL-26482 Series II Type Hermetic
MIL-DTL
26482
Type
Basic Part
Number
Shell
Size
Pin/Socket Designator
P
= Pin on Jam Nut Side
S
= Socket on Jam Nut Side
947-292
ZL
22
-
55
P
X
Alternate Insert
Arrangement
W, X, Y or Z
(Omit for Normal)
Material/Finish
Z1
= CRES Passivate
ZL
= CRES Nickel Plate
Insert
Arrangement
Per MIL-STD-1669
D
SEE MIL-STD-1669
FOR
SEE M L- STD- 1669
FOR
I
I NSERT ARRANGEM
ENTS
INSERT ARRANGEMENTS
Ø
H
G
( . 588) SI ZE 8- 18
( . 650) SI ZE 20- 24
D
B
A THREAD
C
HOLE FOR . 031 DI A
SAFETY
HOLE FOR .031 DIA
SAFETY
W RE, EQUALLY SPACED
I
WIRE, EQUALLY SPACED
. 125
( . 105) SI ZE 8- 18
( . 138) SI ZE 20- 24
. 125/ . 062 PANEL SI ZE 8- 18
. 250/ . 062 PANEL SI ZE 20- 24
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
D-32
Bayonet Coupling Jam Nut Mount
Pin-Socket Bulkhead Feedthrough Receptacle
ode
Ø
E
E
ES
HERMETIC LEAK RATE MOD CODES
e
F
Designator
–585A
–585B
–585C
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
cond
ond
ond
Panel Cut Out
S
TABLE I: CONNECTOR AND CUT-OUT DIMENSIONS
Shell
Size
8
10
12
14
16
18
20
22
24
A Thread
Class 2A
9/16-24 UNEF
11/16-24 UNEF
7/8-20 UNEF
1-20 UNEF
1 1/8-18 UNEF
1 1/4-18 UNEF
1 3/8-18 UNEF
1 1/2-18 UNEF
1 5/8-18 UNEF
B Dia
Max
.474 (12.0)
.591 (15.0)
.751 (19.1)
.876 (22.3)
1.001 (25.4)
1.126 (28.6)
1.251 (31.8)
1.376 (35.0)
1.501 (38.1)
C
Hex
.750 (19.1)
.875 (22.2)
1.062 (27.0)
1.188 (30.2)
1.312 (33.3)
1.438 (37.0)
1.562 (39.7)
1.688 (42.9)
1.812 (46.0)
D
Flats
.954 (24.2)
1.078 (27.4)
1.266 (32.2)
1.391 (35.3)
1.516 (38.5)
1.641 (41.7)
1.828 (46.4)
1.954 (49.6)
2.087 (53.0)
E Dia
+.010 -.005
(+0.3 -0.1)
.572 (14.5)
.697 (17.7)
.895 (22.7)
1.010 (25.7)
1.135 (28.8)
1.260 (32.0)
1.385 (35.2)
1.510 (13.0)
1.635 (41.5)
F Dim
+.010 -.005
(+0.3 -0.1)
.536 (13.6)
.661 (16.8)
.824 (20.9)
.948 (24.1)
1.072 (27.2)
1.197 (30.4)
1.322 (33.6)
1.447 (36.8)
1.572 (39.9)
G
Max
1.420 (36.1)
1.420 (36.1)
1.420 (36.1)
1.420 (36.1)
1.420 (36.1)
1.420 (36.1)
1.580 (40.1)
1.580 (40.1)
1.620 (41.1)
H Dia
± .016 (0.4)
1.062 (27.0)
1.187 (30.1)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1.938 (49.2)
2.062 (52.4)
2.187 (55.5)
sing
cuum
ng
° C.
C
A
M
APPLICATION NOTES
1.
2.
3.
To be identified with manufacturer’s name, part number and
date code, space permitting.
Hermeticity: <1x10
-7
cc/sec @ 1 ATM differential
Material/Finish:
Shell and jam-nut: Z1 - CRES/nickel plated.
Titanium and Inconel
®
available. Consult factory.
4.
Contacts - Alloy 52/gold plate.
Bayonets - CRES/passivated.
Insulator - Vitreous glass seal
Seals - Fluorosilicone/N.A.
Spacer - High grade rigid dielectric/N.A.
Metric Dimensions (mm) are indicated in parentheses.
