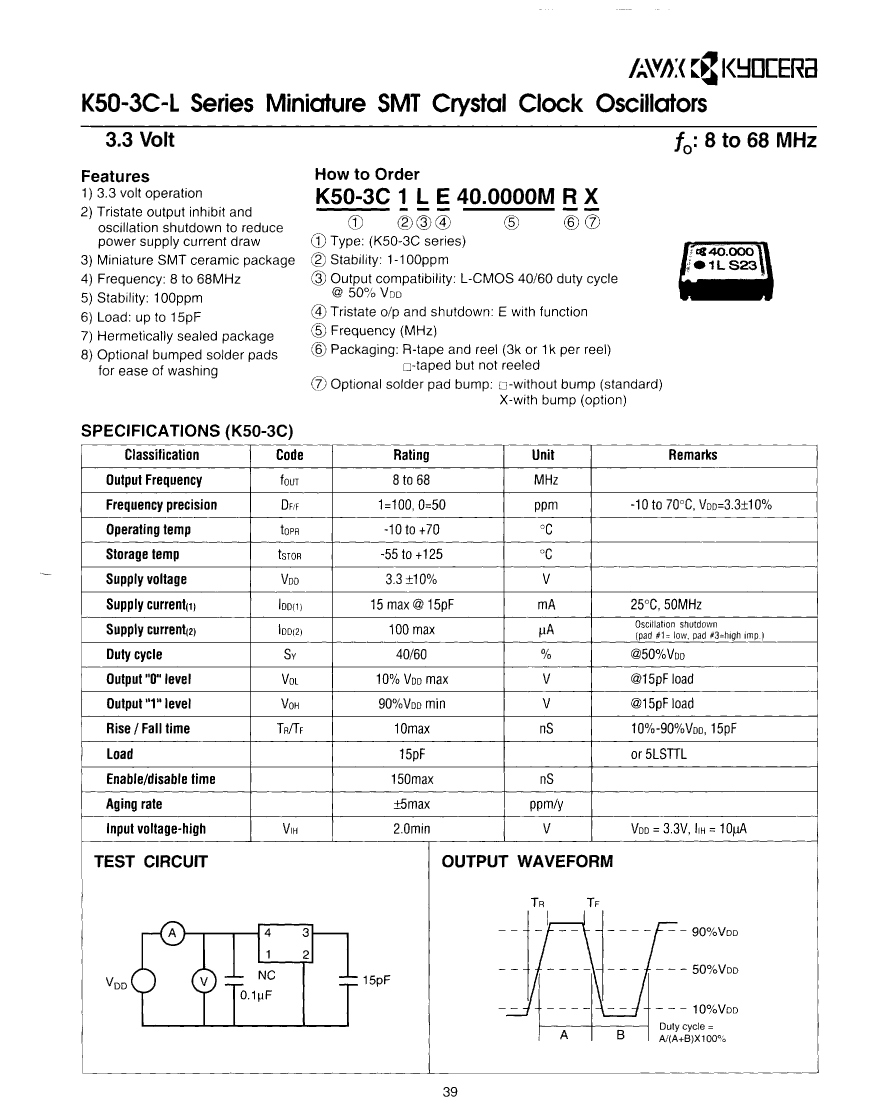

Preview

K50-3C1LEFREQRX: DescriptionCMOS Output Clock Oscillator, 8MHz Min, 68MHz Max; CategoryPassive components oscillator; File Size43KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

K50-3C1LEFREQRX Overview

CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max

K50-3C1LEFREQRX Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Maximum operating frequency	68 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	5 LS TTL, 15 pF
physical size	7.02mm x 5mm x 1.6mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

K50-3C1LEFREQRX Related Products

	K50-3C1LEFREQRX	K50-3C0LEFREQR	K50-3C0LEFREQRX	K50-3C0LEFREQ	K50-3C1LEFREQX	K50-3C0LEFREQX	K50-3C1LEFREQR	K50-3C1LEFREQ
Description	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max	CMOS Output Clock Oscillator, 8MHz Min, 68MHz Max
Maker	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
maximum descent time	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	100%	50%	50%	50%	100%	50%	100%	100%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	68 MHz	68 MHz	68 MHz	68 MHz	68 MHz	68 MHz	68 MHz	68 MHz
Minimum operating frequency	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	5 LS TTL, 15 pF	5 LS TTL, 15 pF	5 LS TTL, 15 pF	5 LS TTL, 15 pF	5 LS TTL, 15 pF	5 LS TTL, 15 pF	5 LS TTL, 15 pF	5 LS TTL, 15 pF
physical size	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm	7.02mm x 5mm x 1.6mm
longest rise time	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %
