M8805/96-015 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> M8805/96-015

M8805/96-015: DescriptionPushbutton Switch, SPST, Momentary, 5A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS AND REACH COMPLIANT; CategoryMechanical and electronic products switch; File Size289KB，1 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com

Download Datasheet Parametric View All

M8805/96-015 Overview

Pushbutton Switch, SPST, Momentary, 5A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS AND REACH COMPLIANT

M8805/96-015 Parametric

Parameter Name	Attribute value
Maker	OTTO
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	BUTTON TYPE
body height	15.95 mm
Body length or diameter	8.97 mm
Contact (AC) maximum rated R load	5A@115VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	25000 Cycle(s)
Manufacturer's serial number	M8805/96
Installation features	PANEL MOUNT-THREADED
Maximum operating force	10.01 N
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
seal	DUST PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

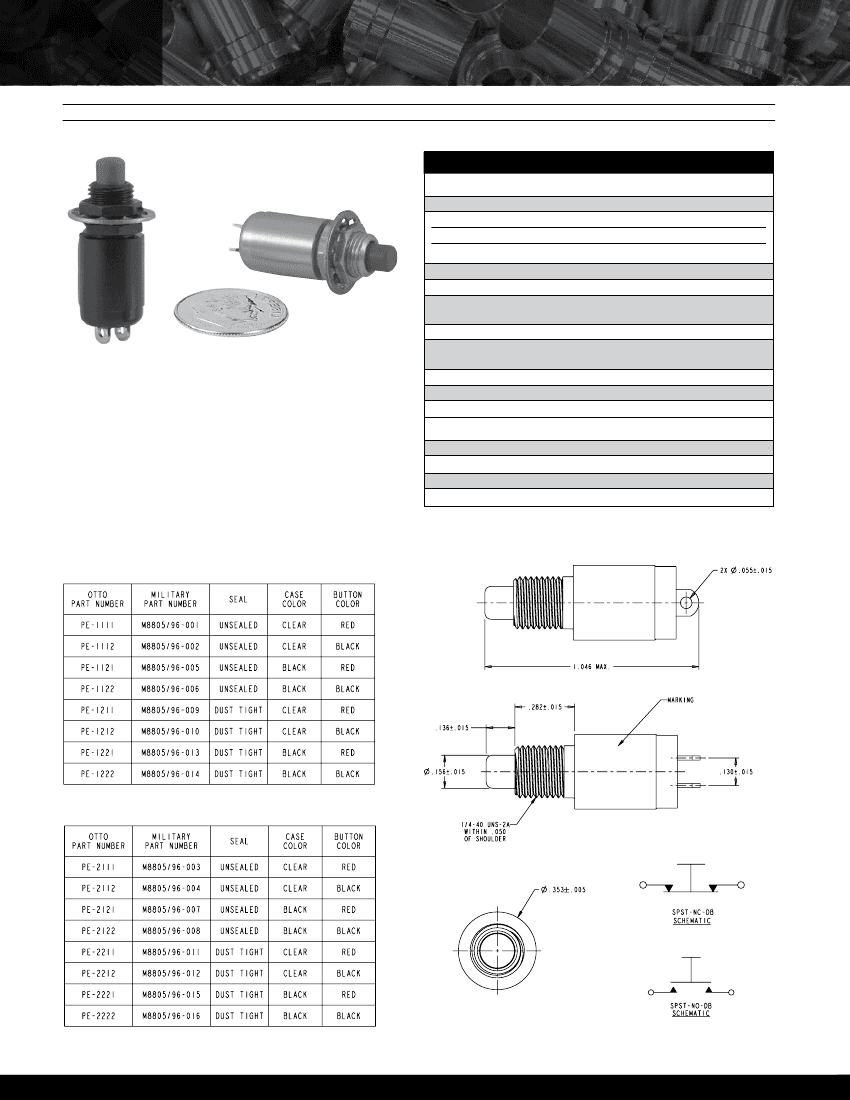

Preview

Download Datasheet

View All

pushbuttons

pushbuttons pEr mil-prF-8805/96

momEntary action normally opEn or normally closEd

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

DWV

Electrical Life:

Mechanical Life:

Seal:

Sea Level @ 28VDC or 115VAC, 60/400Hz

1000Vrms

25,000 cycles

50,000 cycles

Unsealed per MIL-PRF-8805 Design 1

or Dusttight per MIL-PRF-8805 Design 2

1.5 lbs. +/- 0.5 lb. (unsealed)

1.75 lbs. +/- 0.5 lb. (dusttight)

0.095 inches +/- 0.015 inches

0.010 inches min

Operating Temp Range:

-55°C to +85°C

Operating Force:

Features:

•

MIL-PRF-8805/96 approved

Momentary snap-action

Sealed or unsealed

Compact, space-saving design

Black or red button colors available

Clear or black case colors available

RoHS/WEEE/Reach compliant

Total Travel:

Overtravel:

Pretravel:

MATERIALS:

Case:

Button:

Terminals:

Mounting Hardware:

Anodized aluminum alloy, clear or black

Thermoplastic

Silver alloy

Hex nut and lockwasher

Momentary, Normally Open

Momentary, Normally Closed

137

otto Full line catalog

specifications subject to change Without notice
