3823_07 Overview

Standard Characteristics

3823 Group Standard Characteristics
M3823AGF-XXXFP/HP,M38239GC-XXXFP/HP,M38238G8-XXXFP/HP,M38235G6-XXXFP/HP,M38234G4-XXXFP/HP
M3823AGFFP/HP,M38239GCFP/HP,M38238G8FP/HP,M38235G6FP/HP,M38234G4FP/HP
Standard Characteristics Example
Standard characteristics described below are just examples of the 3823 Group's characteristics and are not guaranteed.
For rated values, refer to "3823 Group Data sheet".
(1) Power Source Current Standard Characteristics Example (Vcc-Icc)
When system is operating in frequency/2 mode (ceramic oscillation, Ta = 25 °C, output transistor is in the cut-off state)
A/D conversion not executed
7
f(XIN) = 10 MHz
6
f(XIN) = 8 MHz
f(XIN) = 4 MHz
5
f(XIN) = 2 MHz
Power Source Current Icc [mA]
4
3
2
1
0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Power Source Voltage Vcc [V]

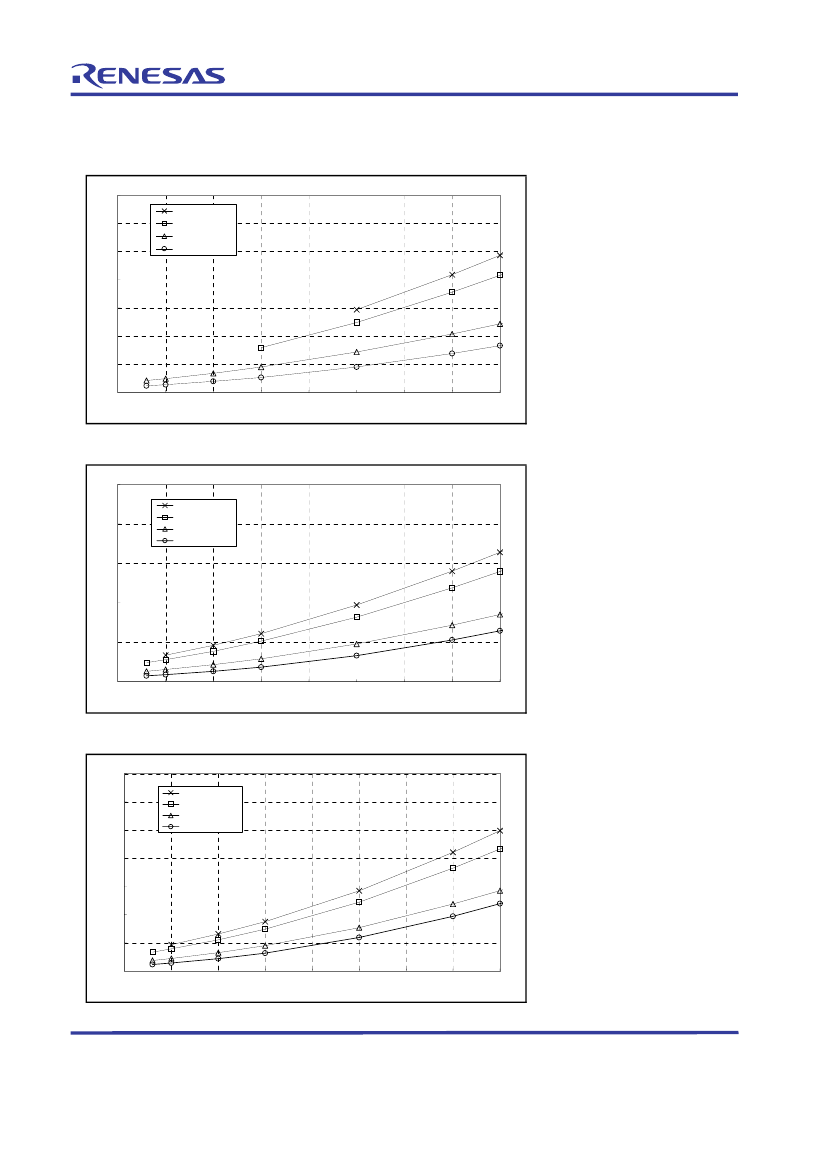

Fig. 1. Vcc-Icc (frequency/2 mode)
When system is operating in frequency/4 mode (ceramic oscillation, Ta = 25 °C, output transistor is in the cut-off state)
A/D conversion not executed
5
f(XIN) = 10 MHz
Power Source Current Icc [mA]
4
f(XIN) = 8 MHz
f(XIN) = 4 MHz
f(XIN) = 2 MHz
3
2
1
0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Power Source Voltage Vcc [V]
Fig. 2. Vcc-Icc (frequency/4 mode)
When system is operating in frequency/8 mode (ceramic oscillation, Ta = 25 °C, output transistor is in the cut-off state)
A/D conversion not executed
3.5
f(XIN)
f(XIN)
f(XIN)
f(XIN)
= 10 MHz
= 8 MHz
= 4 MHz
= 2 MHz
3.0
Power Source Current Icc [mA]
2.5
2.0
1.5
1.0
0.5
0.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Power Source Voltage Vcc [V]
Fig. 3. Vcc-Icc (frequency/8)
REJ99B1143-0101
©2007. Renesas Technology Corp., All rights reserved.
2007.04
Page 1 of 24
