MAX731-MAX752: Description1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16; Categorysemiconductor Analog mixed-signal IC; File Size451KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX731-MAX752 Overview

1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16

MAX731-MAX752 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	16
Maximum limit input voltage	9.3 V
Minimum limit input voltage	4 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Processing package description	SO-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
control mode	PEAK CURRENT
Control Technology	PULSE WIDTH MODULATION
Maximum output current	1.5 A
Analog IC other types	SWITCHING REGULATOR
Rated regulated voltage	12 V
Switch configuration	BOOST
Maximum switching frequency	170 kHz

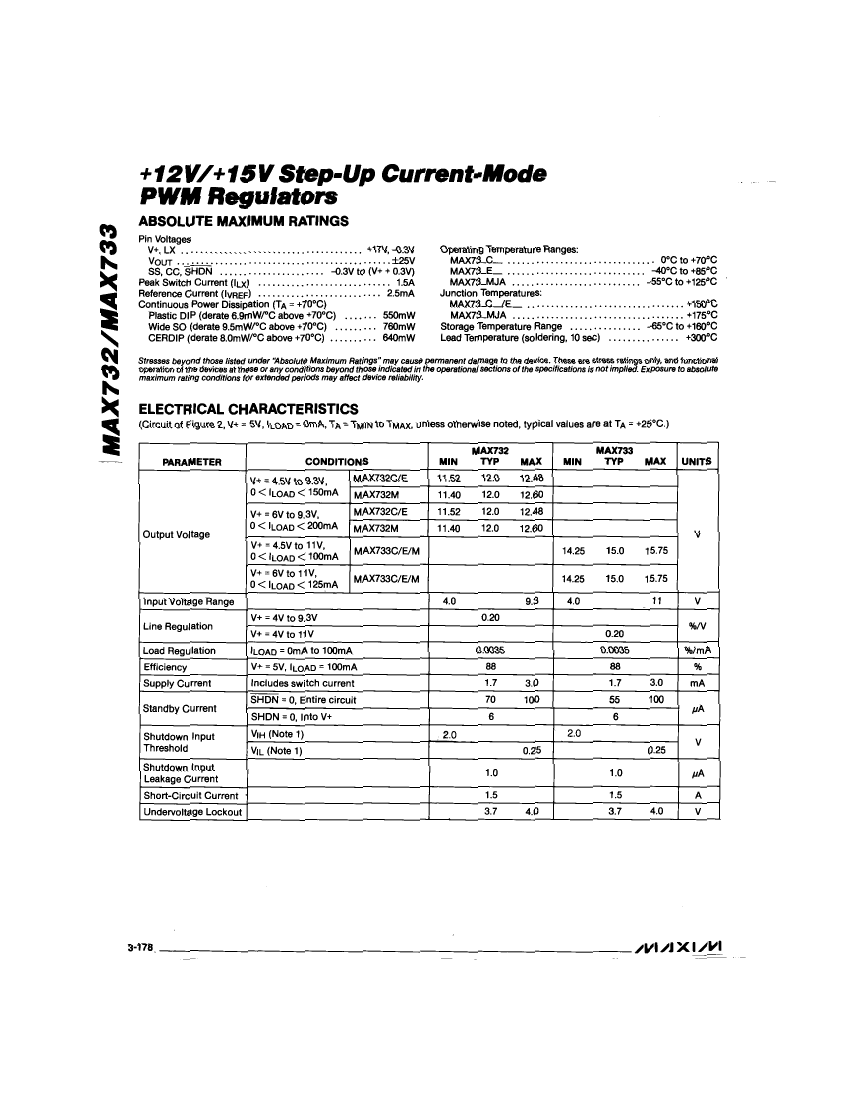

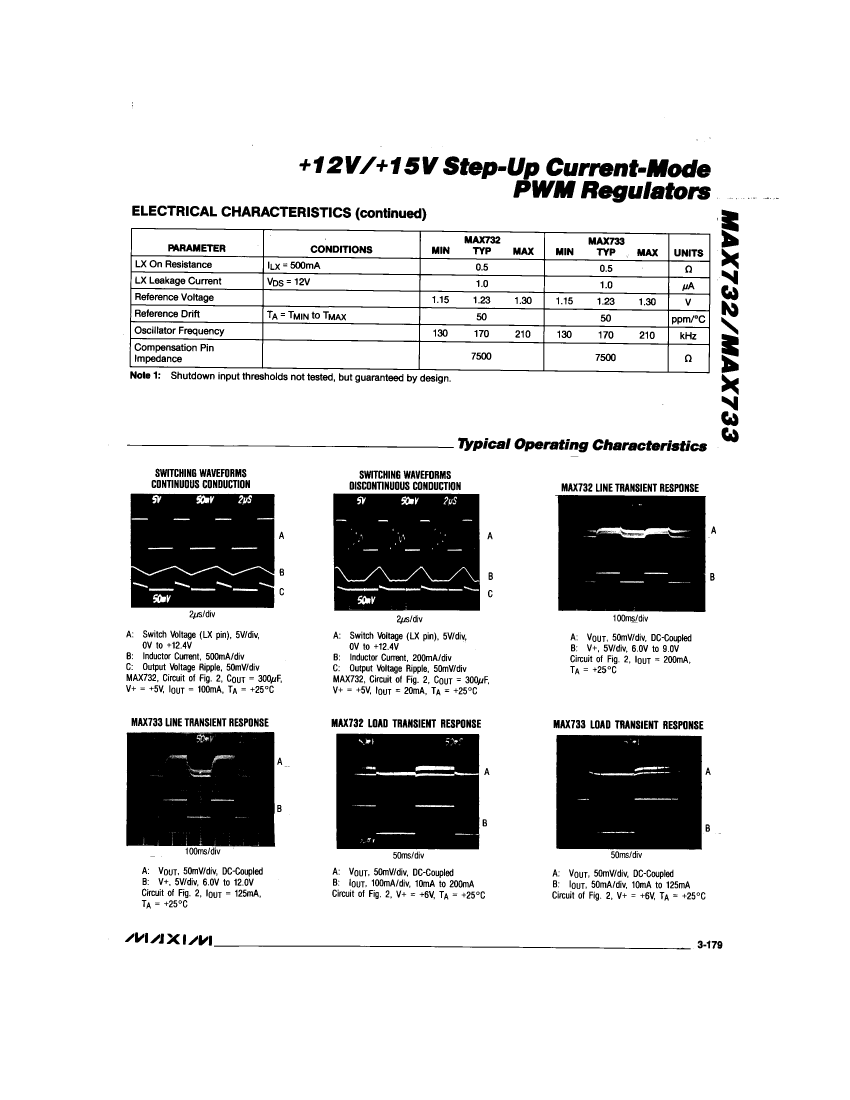

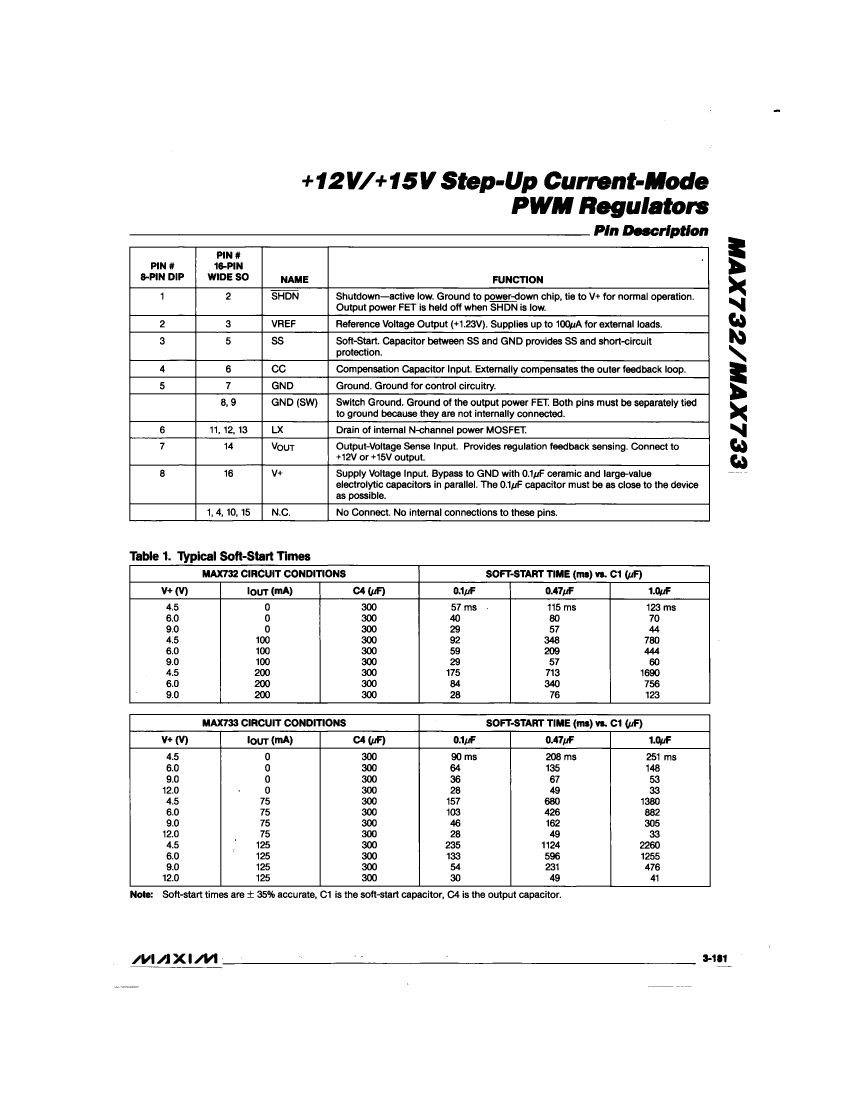

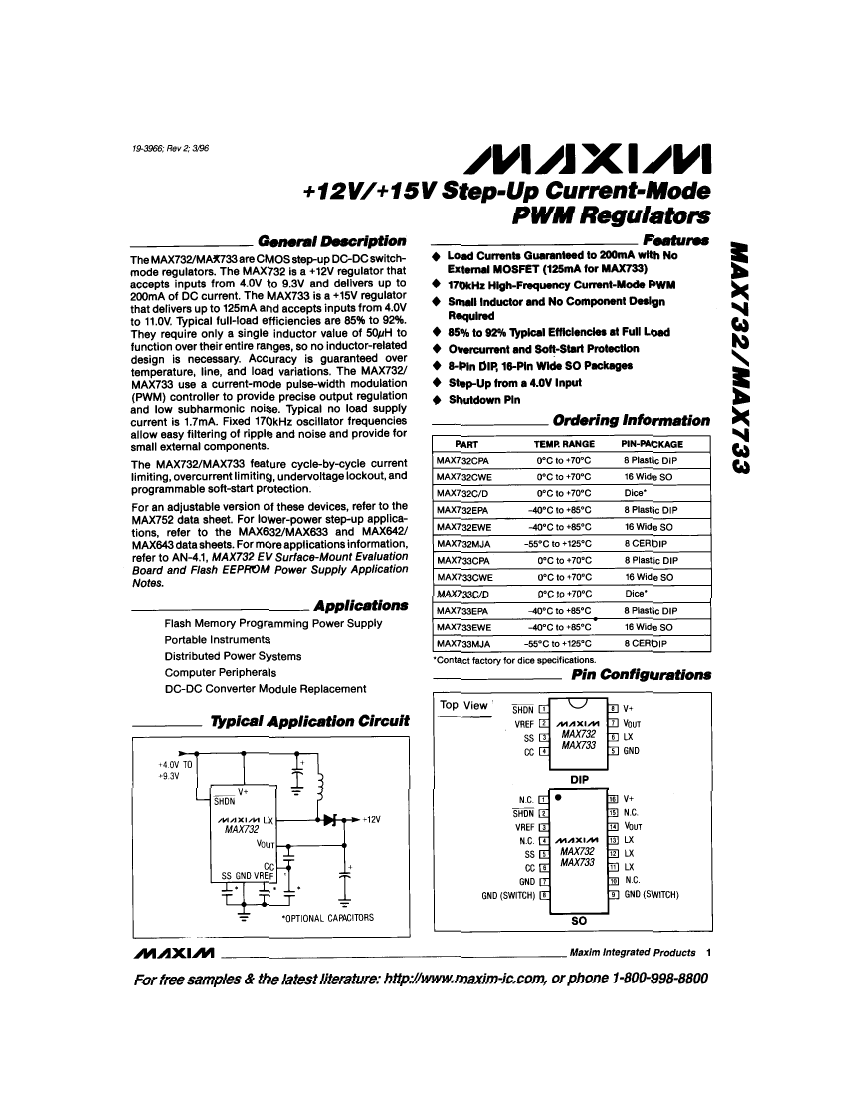

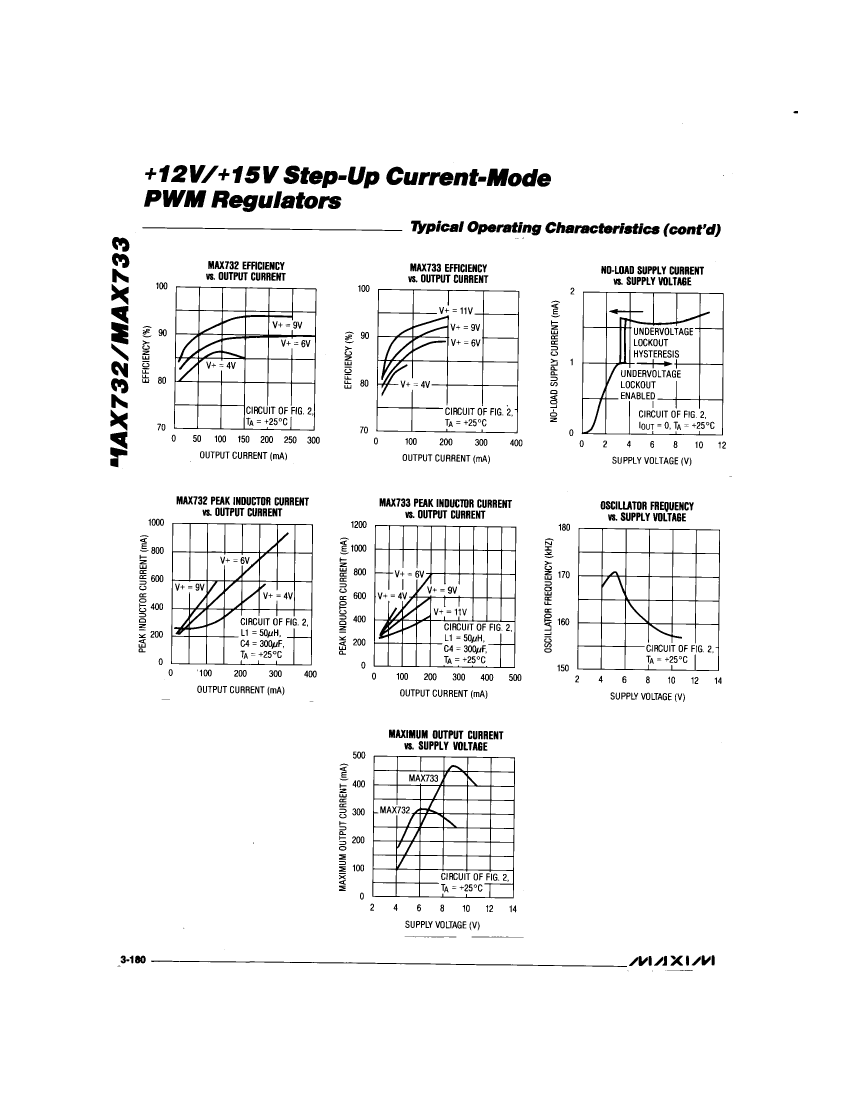

Preview

Download Datasheet

View All

MAX731-MAX752 Related Products

	MAX731-MAX752	MAX732CWA	MAX732C/D	MAX731CWA	MAX731C/D	MAX731	5962-9462102MPA	MAX732EWE+
Description	1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16	1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16	1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16	1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16	1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16	1.5 A SWITCHING REGULATOR, 170 kHz SWITCHING FREQ-MAX, PDSO16	Switching Regulator, Current-mode, 0.2A, 210kHz Switching Freq-Max, CMOS, CDIP8, CERAMIC, DIP-8	IC REG BOOST 12V 0.2A 16SOIC
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	8	16
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	125 °C	85 °C
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-55 °C	-40 °C
surface mount	Yes	Yes	Yes	Yes	Yes	Yes	NO	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL
control mode	PEAK CURRENT	PEAK CURRENT	PEAK CURRENT	PEAK CURRENT	PEAK CURRENT	PEAK CURRENT	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	0.2 A	1.5 A
Switch configuration	BOOST	BOOST	BOOST	BOOST	BOOST	BOOST	BOOST	BOOST
Maximum switching frequency	170 kHz	170 kHz	170 kHz	170 kHz	170 kHz	170 kHz	210 kHz	170 kHz
Maximum limit input voltage	9.3 V	9.3 V	9.3 V	9.3 V	9.3 V	9.3 V	-	-
Minimum limit input voltage	4 V	4 V	4 V	4 V	4 V	4 V	-	-
Processing package description	SO-16	SO-16	SO-16	SO-16	SO-16	SO-16	-	-
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	-	-
Craftsmanship	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-	-
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	-
Terminal spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	-
terminal coating	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	-
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-
Analog IC other types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	-	-
Rated regulated voltage	12 V	12 V	12 V	12 V	12 V	12 V	-	-
