RMB2S
THRU
RMB6S
Technical Data
Data Sheet N1961, Rev. A
RMB2S-RMB6S Miniature Glass
Passivated Fast Recovery Surface Mount Bridge Rectifiers
Features
Ideal for printed circuit board
Reliable low cost construction utilizing molded
plastic technique
High temperature soldering guaranteed:260°C/
10 seconds at 5 lbs., (2.3kg) tension
Small size, simple installation
High surge current capability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
MB-S
Circuit Diagram
Mechanical Data
Case: Molded plastic body
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
Polarity: Polarity symbols marked on case
Mounting Position: Any
Weight: 0.0044 ounce, 0.126 grams
Maximum Ratings
@T
A
=25°C unless otherwise specified
Type number
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Maximum average forward current
60Hz sine save resistance load
On glass-epoxy P.C.B.
On aluminum substrate
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load (JEDEC
Method)
Symbol
V
RRM
V
RMS
I
F(AV)
RMB2S
200
140
RMB4S
400
280
0.5
0.8
30
RMB6S
600
420
Units
V
V
A
I
FSM
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
RMB2S
THRU
RMB6S
Technical Data
Data Sheet N1961, Rev. A
Electrical Characteristics:
Type number
Maximum instantaneous forward voltage drop
(Note 1)@ I
F
= 0.4A
Maximum DC reverse current
T
A
= 25°C
at rated DC blocking voltage
T
A
= 125°C
Maximum reverse recovery time(Note 2)
Typical junction capacitance (per leg)
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F
I
R
trr
Cj
RMB2S
RMB4S
1.0
5
100
150
13
RMB6S
Units
V
µA
nS
pF
Thermal-Mechanical Specifications:
Type number
Typical thermal resistance
Operating junction and storage temperature
range
Symbol
R
θJA
T
J
,T
STG
RMB2S
RMB4S
85
-55 to +150
RMB6S
Units
°C/W
°C
Note: 1. Mounted on glass epoxy PC board with 1.3mm
2
solder pad..
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
3. Thermal Resistance From Junction to Ambient

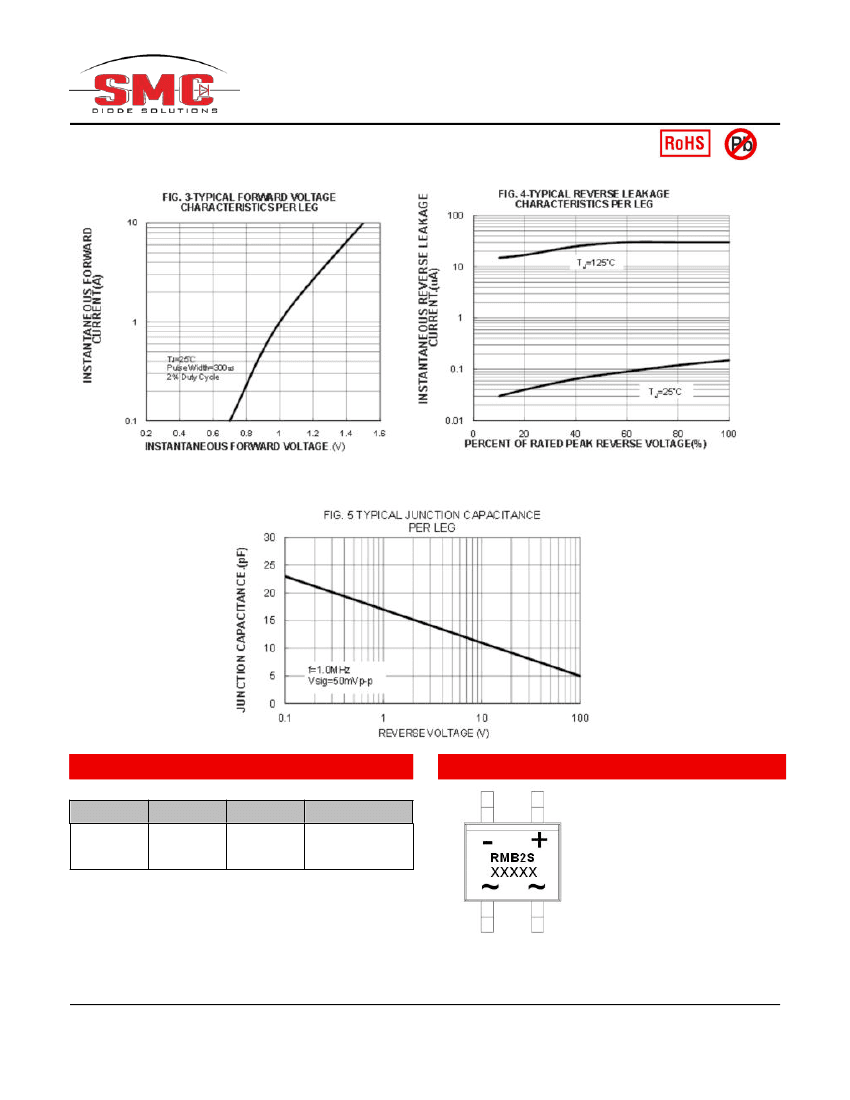

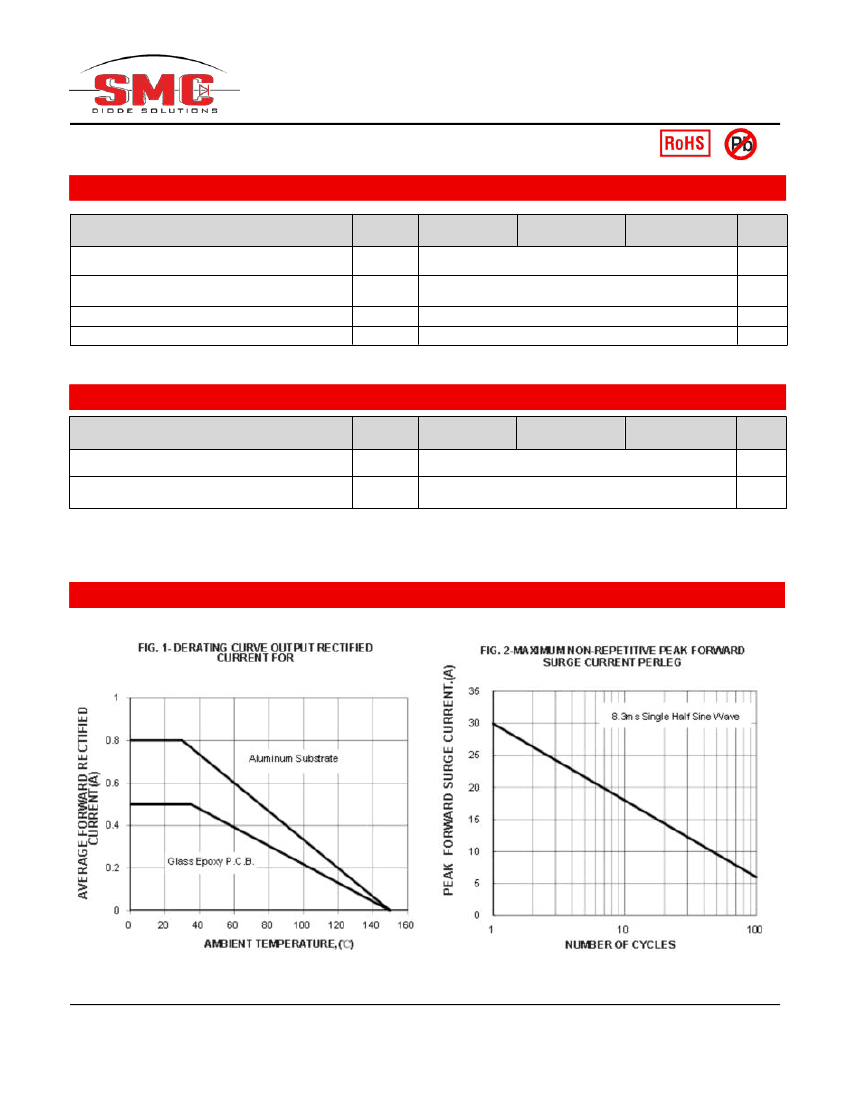

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
RMB2S
THRU
RMB6S
Technical Data
Data Sheet N1961, Rev. A
Ordering Information
Device
RMB2S
THRU
RMB6S
Marking Diagram
Shipping
3000pcs / reel
Where XXXXX is YYWWL
RMB2S
YY
WW
L
= Type Number
= Year
= Week
= Lot Number
Package
MB-S
(Pb-Free)
Plating
Pure Sn
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
RMB2S
THRU
RMB6S
Technical Data
Data Sheet N1961, Rev. A

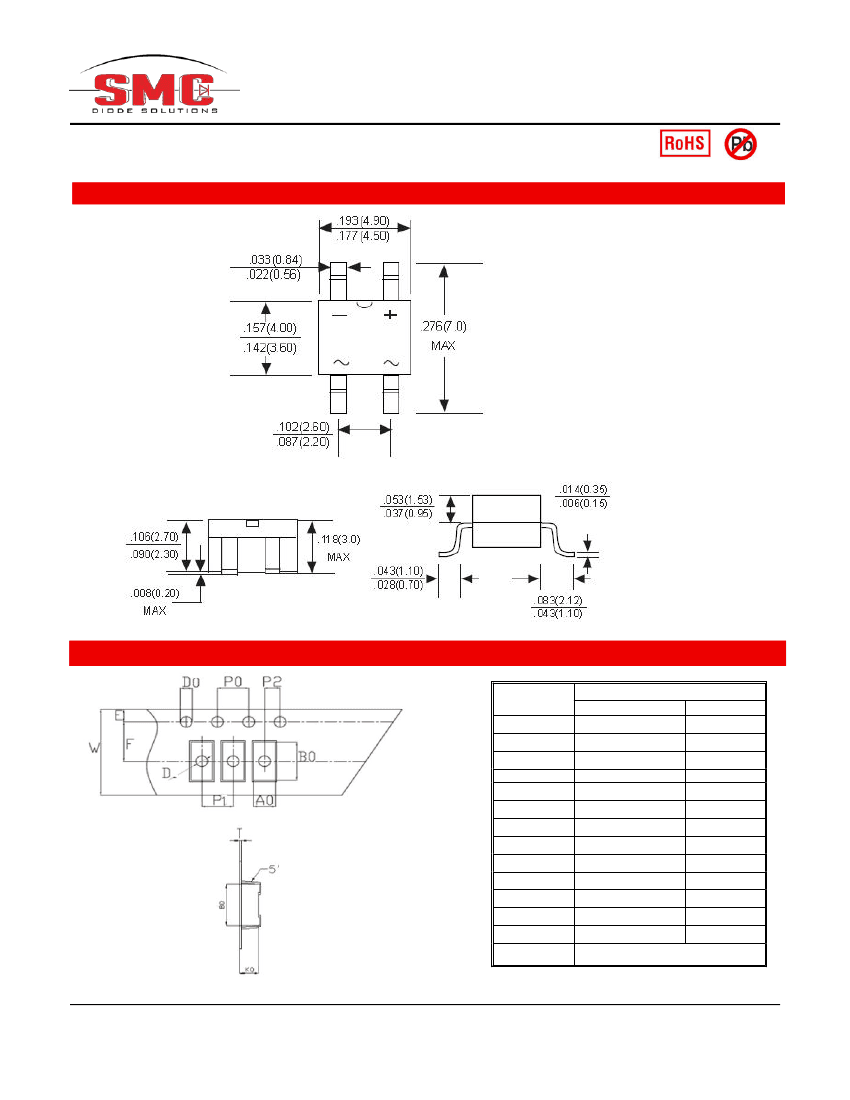

Mechanical Dimensions MB-S(Inches/Millimeters)
Carrier Tape Specification MB-S
SYMBOL
A0
B0
D0
D1
P0
P1
P2
E
K0
F
W
T
10P0
抗拉拉力
Millimeters
Min.
Max.
5.12
4.92
7.32
7.12
1.60
1.50
1.60
1.40
4.10
3.90
8.10
7.90
2.05
1.95
1.85
1.65
2.78
5.45
11.90
0.24
39.80
≥3KG
2.98
5.55
12.10
0.30
40.20
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
RMB2S
THRU
RMB6S
Technical Data
Data Sheet N1961, Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
