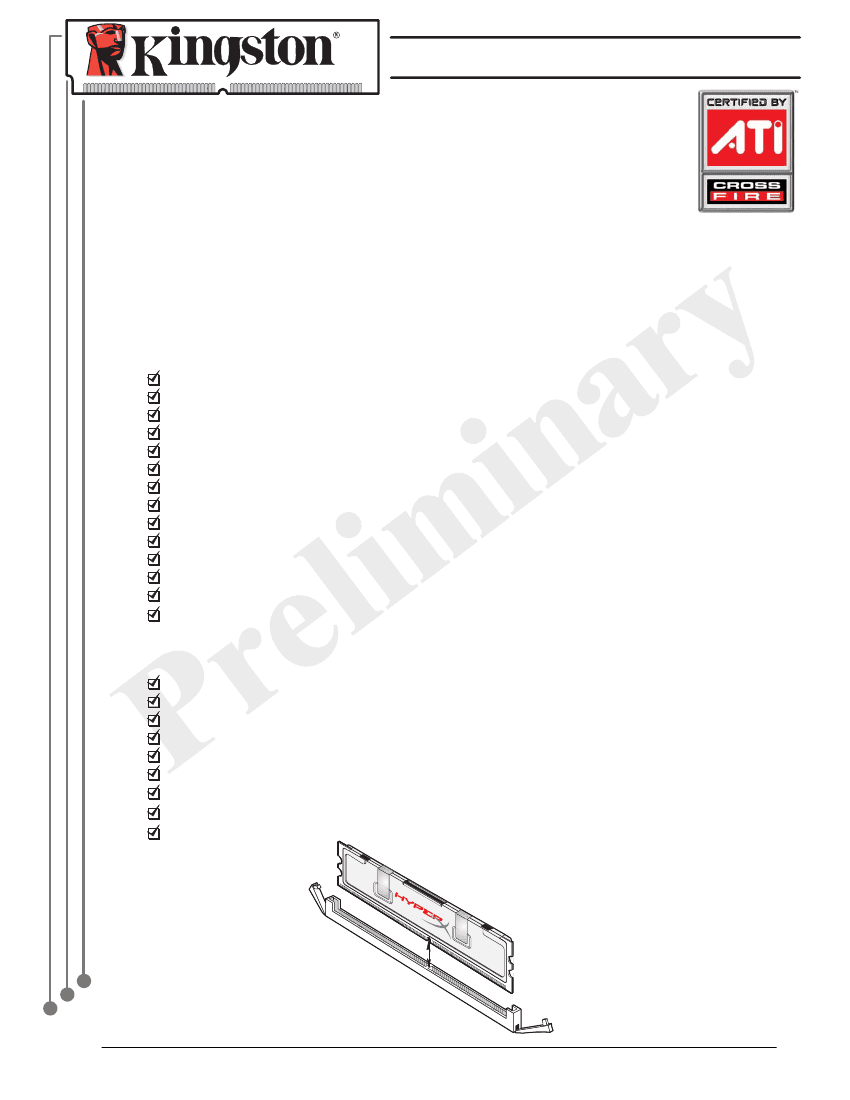

T E C H N O L O G Y

Memory Module Specification

KHX5400D2/512

512MB 64M x 64-Bit PC2-5400

CL4 240-Pin DIMM

DESCRIPTION:

This document describes Kingston's 64M x 64-bit (512MB) DDR2-675 CL4 SDRAM (Synchronous

DRAM) memory module, based on eight 64M x 8-bit DDR2 FBGA components. This module has

been tested to run at DDR2 675MHz at low latency timing of 4-4-4-10 at 1.85V. The SPD is

programmed to JEDEC standard latency timing of 4-4-4-12 at 1.8V. This 240-pin DIMM uses gold

contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:

FEATURES:

Power supply : Vdd: 1.8V ± 0.1V, Vddq: 1.8V ± 0.1V

Double-data-rate architecture; two data transfers per clock cycle

Bidirectional data strobe(DQS)

Differential clock inputs(CK and CK)

DLL aligns DQ and DQS transition with CK transition

Programmable Read latency 4 (clock)

Burst Length: 4, 8 (Interleave/nibble sequential)

Programmable Burst type (sequential & interleave)

Timing Reference: 4-4-4-10 at +1.85V

Edge aligned data output, center aligned data input

Auto & Self refresh, 7.8us refresh interval (8K/64ms refresh)

Serial presence detect with EEPROM

High Performance Heat Spreader

PCB : Height 1.180” (30.00mm), single sided component

PERFORMANCE:

Clock Cycle Time (tCK) CL=4

Row Cycle Time (tRC)

Refresh to Active/Refresh Command Time (tRFC)

Row Active Time (tRAS)

Single Power Supply of

Power

UL Rating

Operating Temperature

Storage Temperature

3.75ns (min.) / 8ns (max.)

60ns (min.)

105ns

45ns (min.) / 70,000ns (max.)

+1.8V (+/- .1V)

1.512 W (operating)

94 V - 0

C to 55

-55

C to +125

Document No. 4804025-001.B00

06/14/06

Page 1

Kingston Technology

MODULE DIMENSIONS:

133.35

131.35

128.95

Units : Millimeters

(2X)4.00

10.00

SPD

30.00

2.30

(2)

2.50

63.00

55.00

2.7

1.270

0.10

3.00

0.80±0.05

5.00

4.00

3.80

2.50±0.20

0.20

4.00

2.50

1.50±0.10

1.00

Detail A

Detail B

For more information, go to www.kingston.com

All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not

operate at the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to

run their computers faster than the published speed. Overclocking or modifying your system timing may result in damage to

computer components.

Document No. 4804025-001.A00

17.80

Page 2
