MIC863
Micrel
MIC863
Dual Ultra Low Power Op Amp in SOT23-8
Final Information
General Description
The MIC863 is a dual low power operational amplifier in
SOT23-8 package. It is designed to operate in the 2V to 5V
range, rail-to-rail output, with input common-mode to ground.
The MIC863 provides 450kHz gain-bandwidth product while
consuming only a 4.2µA supply current.
With low supply voltage and SOT23-8 packaging, MIC863
provides two channels as general-purpose amplifiers for
portable and battery-powered applications. Its package pro-
vides the maximum performance available while maintaining
an extremely slim form factor. The minimal power consump-
tion of this IC maximizes the battery life potential.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
SOT23-8 packaging
450kHz gain-bandwidth product
800kHz, –3dB bandwidth
4.2µA supply current/channel
Rail-to-rail output
Ground sensing at input (common mode to GND)
Drives large capactive loads (0.02µF)
Unity gain stable
Portable equipment
Medical instrument
PDAs
Pagers
Cordless phones
Consumer electronics
Applications
Ordering Information
Part Number
Standard
MIC863BM8
Marking
A35
Pb-Free
MIC863YM8
Marking
A35
Ambient Temp. Range
–40°C to +85°C
Package
SOT23-8
Typical Application
V+
10µF
0.1µF
510Ω
1
/ MIC863
2
1
/ MIC863
2
V
OUT
RF
50Ω
100pF
Peak Detector Circuit for AM Radio
Micrel, Inc. • 1849 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 944-0970 • http://www.micrel.com
January 2005
1
MIC863
MIC863
Micrel
Pin Configuration
OUTA 1
INA– 2
INA+ 3
V– 4
8 V+
7 OUTB
6 INB–
5 INB+
SOT23-8 (M8)
Pin Description
Pin Number
1
2
3
4
5
6
7
8
Pin Name
OUTA
INA–
INA+
V–
INB+
INB–
OUTB
V+
Pin Function
Output: Amplifier A Output
Amplifier A Inverting (Input)
Amplifier A Non-Inverting (Input)
Negative Supply
Amplifier B Non-Inverting (Input)
Amplifier B Inverting (Input)
Output: Amplifier B Output
Positive Supply
MIC863
2
January 2005
MIC863
Micrel
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
V+
– V–) ......................................... +6.0V
Differential Input Voltage (V
IN+
– V
IN–
),
Note 4 ...... +6.0V
Input Voltage (V
IN+
– V
IN–
) .................. V
+
+ 0.3V, V
–
–0.3V
Lead Temperature (soldering, 5 sec.) ....................... 260°C
Output Short Circuit Current Duration .................. Indefinite
Storage Temperature (T
S
) ........................................ 150°C
ESD Rating,
Note 3
Operating Ratings
(Note 2)
Supply Voltage (V+ – V–) .......................... +2.0V to +5.25V
Ambient Temperature Range ..................... –40°C to +85°C
Package Thermal Resistance
θ
JA
(Using 4 layer PCB) ................................. 100°C/W
θ
CA
(Using 4 layer PCB) ................................... 70°C/W
Electrical Characteristics
V+ = +2V, V– = 0V, V
CM
= V+/2; R
L
= 500kΩ to V+/2; T
A
= 25°C, unless otherwise noted.
Bold
values indicate –40°C≤ T
A
≤
+85°C.
Symbol
Parameter
Condition
Min
Typ
Max
Units
V
OS
Input Offset Voltage
Differential Offset Voltage
Input Offset Voltage Temp Coefficient
I
B
I
OS
V
CM
CMRR
PSRR
A
VOL
V
OUT
V
OUT
GBW
PM
BW
SR
I
SC
I
S
Input Bias Current
Input Offset Current
Input Voltage Range
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
CMRR > 50dB
0 < V
CM
< 1V
Supply voltage change of 2V to 2.7V
R
L
= 100kΩ, V
OUT
1.4V
PP
R
L
= 500kΩ, V
OUT
1.4V
PP
Maximum Output Voltage Swing
Minimum Output Voltage Swing
Gain-Bandwidth Product
Phase Margin
–3dB Bandwidth
Slew Rate
Short-Circuit Output Current
R
L
= 500kΩ
R
L
= 500kΩ
R
L
= 200kΩ, C
L
= 2pF, Av = 11
R
L
= 200kΩ, C
L
= 2pF, Av = 11
A
V
= 1, C
L
= 2pF, R
L
= 1MΩ
A
V
= 1, C
L
= 2pF, R
L
= 1MΩ,
Positive Slew Rate = 0.17V/µs
Source
Sink
Supply Current (per Op Amp)
Channel to Channel Crosstalk
No Load
Note 5
1.8
1.5
0.5
45
50
66
73
–6
–5
0.1
0.5
6
10
5
1
75
85
81
90
6
5
mV
mV
µV/°C
pA
pA
V
dB
dB
dB
dB
V
V
kHz
°
kHz
V/µs
mA
mA
7
µA
dB
V+–3mV
V+–1.4mV
V–+0.5mV
V–+ 3mV
320
69
600
0.33
2.6
2.2
3.5
-100
V+ = +2.7V, V– = 0V, V
CM
= V+/2; R
L
= 500kΩ to V+/2; T
A
= 25°C, unless otherwise noted.
Bold
values indicate –40°C≤ T
A
≤
+85°C.
V
OS
Input Offset Voltage
–6
0.1
6
mV
–5
5
Differential Offset Voltage
Input Offset Voltage Temp Coefficient
I
B
I
OS
V
CM
CMRR
PSRR
A
VOL
Input Bias Current
Input Offset Current
Input Voltage Range
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
CMRR > 60dB
0 < V
CM
< 1.35V
Supply voltage change from 2.7V to 3V
R
L
= 100k, V
OUT
2V
PP
R
L
= 500k, V
OUT
2V
PP
1
60
55
70
78
0.5
6
10
5
1.8
83
85
83
91
mV
µV/°C
pA
pA
V
dB
dB
dB
dB
January 2005
3
MIC863
MIC863
Symbol
GBW
PM
BW
SR
I
SC
I
S
Parameter
Gain-Bandwidth Product
Phase Margin
–3dB Bandwidth
Slew Rate
Short-Circuit Output Current
Condition
R
L
= 200kΩ, C
L
= 2pF, Av = 11
R
L
= 200kΩ, C
L
= 2pF, Av = 11
A
V
= 1, C
L
= 2pF, R
L
= 1MΩ
A
V
= 1, C
L
= 2pF, R
L
= 1MΩ
Positive Slew Rate = 0.17V/µs
Source
Sink
Supply Current (per Op Amp)
Channel to Channel Crosstalk
No Load
Note 5
4.5
4.5
Min
Typ
350
65
600
0.35
6.3
6.2
3.6
–120
7
Max
Micrel
Units
kHz
°
kHz
V/µs
mA
mA
µA
dB
V+= +5V, V–= 0V, V
CM
= V+/2; R
L
= 500kΩ to V+/2; T
A
= 25°C, unless otherwise noted.
Bold
values indicate –40°C≤ T
A
≤
+85°C.
V
OS
Input Offset Voltage
Differential Offset Voltage
Input Offset Voltage Temp Coefficient
I
B
I
OS
V
CM
CMRR
PSRR
A
VOL
V
OUT
V
OUT
GBW
PM
BW
SR
I
SC
I
S
Input Bias Current
Input Offset Current
Input Voltage Range (from V–)
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
CMRR > 60dB
0 < V
CM
< 3.5V
Supply voltage change from 3V to 5V
R
L
= 100kΩ, V
OUT
4.0V
PP
R
L
= 500kΩ, V
OUT
4.0V
PP
Maximum Output Voltage Swing
Minimum Output Voltage Swing
Gain-Bandwidth Product
Phase Margin
–3dB Bandwidth
Slew Rate
Short-Circuit Output Current
A
V
= 1, C
L
= 2pF, R
L
= 1MΩ
A
V
= 1, C
L
= 2pF, R
L
= 1MΩ
Positive Slew Rate = 0.2V/µs
Source
Sink
Supply Current (per Op Amp)
Channel to Channel Crosstalk
Note 1.
Note 2.
Note 3.
Note 4.
Note 5.
–6
–5
0.1
0.5
6
10
5
6
5
mV
mV
µV/°C
pA
pA
V
dB
dB
dB
dB
V
V
kHz
°
kHz
V/µs
mA
mA
3.5
60
60
73
78
4.1
85
86
81
88
R
L
= 500kΩ
R
L
= 500kΩ
R
L
= 200kΩ, C
L
= 2pF, Av = 11
V+–3mV
V+–1.3mV
V–+0.7mV
V–+3mV
450
63
800
0.35
17
18
23
27
4.2
–120
8
No Load
Note 5
µA
dB
Exceeding the absolute maximum rating may damage the device.
The device is not guaranteed to function outside its operating rating.
Devices are ESD sensitive. Handling precautions recommended. Human body model, 1.5k in series with 100pF. Pin 4 is ESD sensitive
Exceeding the maximum differential input voltage will damage the input stage and degrade performance (in particular, input bias current is
likely to increase.
DC signal referenced to input. Refer to Typical Characteristics graphs for AC performance.
MIC863
4
January 2005
MIC863
Micrel

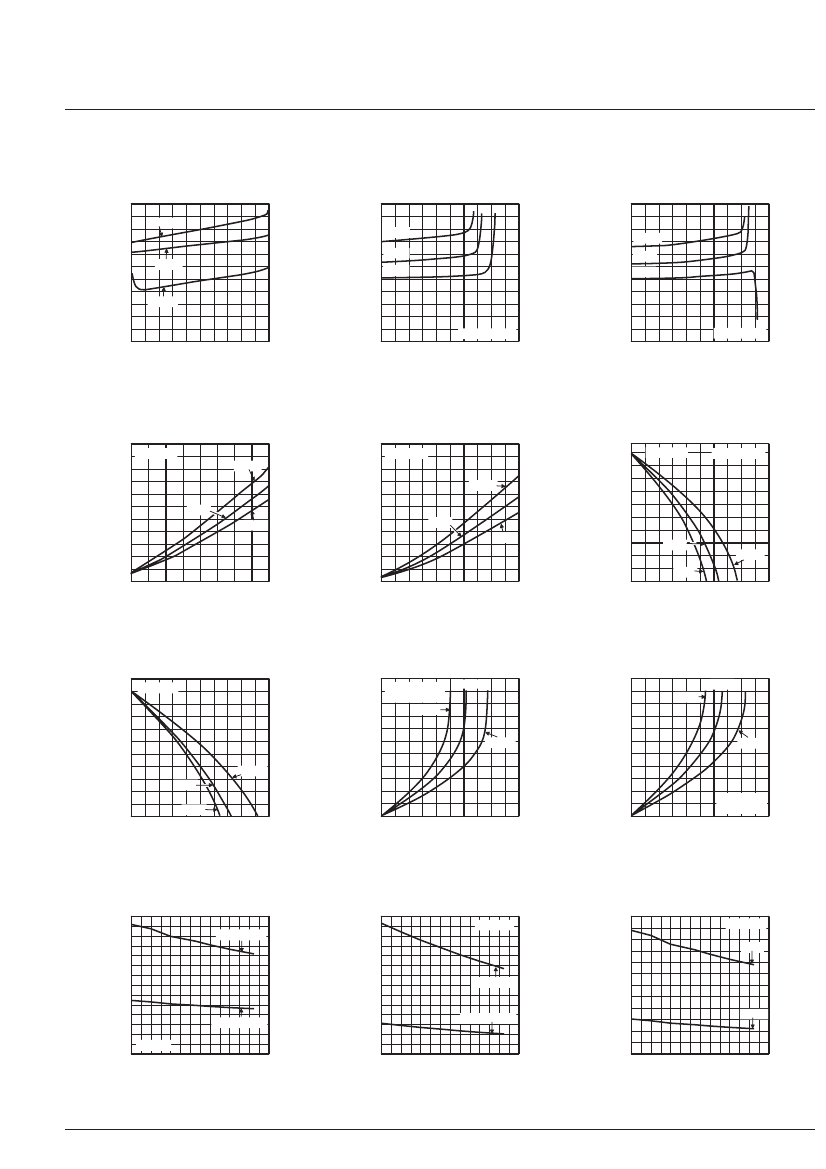

DC Performance Characteristics
Supply Current
vs. Supply Voltage
5.4
5.0
4.6
4.2
3.8
3.4
3.0
2.6
2.2
1.8
1.4
1.0
OFFSET VOLTAGE (mV)
Offset Voltage
vs. Common-Mode Voltage
1.2
1.0
0.8 -40°C
0.6
0.4 25°C
0.2 85°C
0
-0.2
-0.4
-0.6
-0.8
-1.0
-1.35
-1.08
OFFSET VOLTAGE (mV)
Offset Voltage
vs. Common-Mode Voltage
1.2
1.0
0.8
0.6 -40°C
0.4 25°C
0.2
85°C
0
-0.2
-0.4
-0.6
-0.8
V± =
±2.5V
-1.0
-2.5 -2 -1.5 -1 -0.5 0 0.5 1 1.5 2 2.5
COMMON-MODE VOLTAGE (V)
SUPPLY CURRENT (µA)
85°C
25°C
-45°C
V± =
±1.35V
0.27
0.54
0.81
1.08
-0.54
-0.27
1.35
0
0.90
1.06
1.22
1.38
1.54
1.70
1.86
2.02
2.18
2.34
2.50
SUPPLY VOLTAGE (V)
COMMON-MODE VOLTAGE (V)
Short Circuit Current
vs. Supply Voltage
33
30 Sourcing
-40°C
27
24
21
18
25°C
15
85°C
12
9
6
3
0
0.9 1.1 1.3 1.5 1.7 1.9 2.1 2.3 2.5
SUPPPLY VOLTAGE (V)
SHORT-CIRCUIT CURRENT (mA)
SHORT-CIRCUIT CURRENT (mA)
Short Circuit Current vs.
Supply Voltage
44
40 Sinking
36
32
28
24
20
16
12
8
4
0
1.06
1.22
0.9
-0.81
Output Voltage
vs. Output Current
1.35
Sourcing
V± =
±1.35V
1.215
1.08
0.945
0.81
0.675
0.54
0.405
25°C
-40°C
0.27
0.135
85°C
0
0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10
OUTPUT CURRENT (mA)
-40°C
25°C
85°C
1.38
1.54
1.86
2.02
2.18
2.34
1.7
SUPPLY VOLTAGE (±V)
Output Voltage
vs. Output Current
2.75
2.50 Sourcing
2.25
2.00
1.75
1.50
1.25
1.00
–40°C
0.75
25°C
0.50
0.25
85°C
0
0 -3 -6 -9 -12-15-18-21-24-27-30
OUTPUT CURRENT (mA)
OUTPUT VOLTAGE (V)
Output Voltage
vs. Output Current
0.135
25°C
0 Sinking
V± =
±1.35V
-0.135
85°C
-0.270
-0.405
-0.540
–40°C
-0.675
-0.810
-0.945
-1.080
-1.215
-1.350
0 1 2 3 4 5 6 7 8 9 10
OUTPTU CURRENT (mA)
OUTPUT VOLTAGE (V)
2.5
OUTPUT VOLTAGE (V)
Output Voltage
vs. Output Current
0.25
25°C
0
85°C
-0.25
-0.5
-0.75
-1
–40°C
-1.25
-1.5
-1.75
-2
Sinking
-2.25
V± =
±2.5V
-2.5
0 4 8 12 16 20 24 28 32 36 40
OUTPUT CURRENT (mA)
OUTPUT VOLTAGE (V)
Short Circuit Current
vs. Temperature
SHORT-CIRCUIT CURRENT (mA)
SHORT CIRCUIT CURRENT (mA)
29
24
19
14
9
4
V± =
±1.35V
-1
Sinking
-6
-40 -20 0 20 40 60 80 100
TEMPERATURE (°C)
V± =
±2.5V
35
30
25
20
15
10
5
Short Circuit Current
vs. Temperature
SHORT CIRCUIT CURRENT (mA)
30
25
Sinking
Short Circuit Current
vs. Temperature
Sourcing
2.5V
20
15
10
5
0
-40 -20 0 20 40 60 80 100
TEMPERATURE (°C)
1.35V
V± = 2.5V
V± =
±1.35V
0
-40 -20 0 20 40 60 80 100
TEMPERATURE (°C)
January 2005
5
MIC863
京公网安备 11010802033920号
EEWORLD
