EMSL23D2J-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> EMSL23D2J-FREQ

EMSL23D2J-FREQ: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1 MHz - 220 MHz, HSCL OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size102KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EMSL23D2J-FREQ Overview

CRYSTAL OSCILLATOR, CLOCK, 1 MHz - 220 MHz, HSCL OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN

EMSL23D2J-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	STANDBY; COMPLEMENTARY OUTPUT; BULK
maximum descent time	0.35 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	EMSL23
Installation features	SURFACE MOUNT
Maximum operating frequency	220 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCSL
Output load	50 OHM
physical size	5.0mm x 3.2mm x 0.75mm
longest rise time	0.35 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)

Preview

Download Datasheet

View All

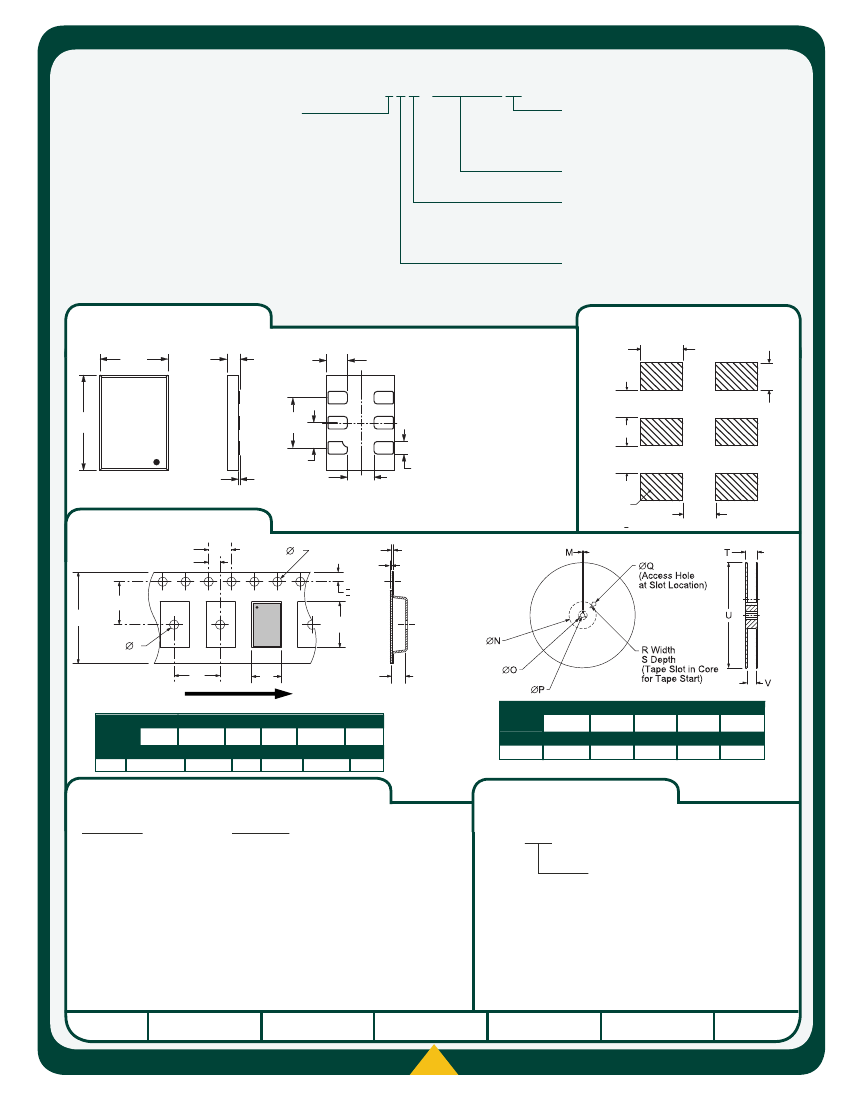

EMSL23

Series

• MEMS Clock Oscillator

• HCSL Output

• +3.3V Supply Voltage

• Complementary Output

• Output Enable and Standby Options

• 6 Pad Plastic SMD Package

• 30,000 G Shock Resistance

• RoHS Compliant (Pb-free)

EMSL23

0.75

5.0

3.2

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

Some frequencies within this range may

not be available

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Excluding Load Termination Current

Frequency Tolerance / Stability

Inclusive of All Conditions: Calibration Tolerance at 25°C, Fre-

Some tolerance stability options

quency Stability over the Operating Temperature Range, Supply

may not be available

Voltage Change, Output Load Change, 1st Year Aging at 25°C,

Reflow, Shock, and Vibration

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

20% to 80% of waveform

Duty Cycle

at 50% of waveform

Load Drive Capability

Output and Complementary Output

Logic Control / Additional Output

Output Control Input Voltage

of 70% of V

Minimum

No Connection

of 30% of V

Maximum

Without Load

First Year at 25°C

Deterministic

Random

RMS

pk-pk

Cycle to Cycle

1.000MHz to 100.000MHz

100.001MHz to 156.250MHz

156.251MHz to 220.000MHz

1.000MHz to 100.000MHz

100.001MHz to 156.250MHz

156.251MHz to 220.000MHz

1.000MHz to 100.000MHz

100.001MHz to 156.250MHz

156.251MHz to 220.000MHz

SERIES

PACKAGE

VOLTAGE

1.000MHz to 220.000MHz

0°C to +70°C, -20°C to +70°C, or -40°C to +85°C

-55°C to +125°C

+3.3V

±0.3V

70mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum

Output Enable Current

Standby Current

Aging

Start Up Time

Period Jitter

RMS Phase Jitter (Random)

Fj=637kHz to 10MHz

RMS Phase Jitter (Random)

Fj=1.5MHz to 22MHz

RMS Phase Jitter (Random)

Fj=1.875MHz to 20MHz

750mV

Typical, 600mV

Minimum

25mV

Typical, 50mV

Maximum

300pSec Typical, 350pSec Maximum

50 ±5(%)

50 Ohms to ground

Output Enable and Complementary Output,

or Standby and Complementary Output

Enables Outputs

Disables Outputs: High Impedance

65mA Maximum (OE)

30µA Maximum (ST)

±1ppm Maximum

10mSeconds Maximum

0.2pSec Typical

2.0pSec Typical

1.5pSec Typical, 3.0pSec Maximum

20pSec Typical, 25pSec Maximum

10pSec Typical

1.7pSec Typical

1.6pSec Typical

0.8pSec Typical

0.6pSec Typical

0.4pSec Typical

0.7pSec Typical

0.5pSec Typical

0.4pSec Typical

CLASS

REV

DATE

MANUFACTURER
