HS9576S/B datasheet, PDF - EEWORLD Datasheet

HS9576S/B: DescriptionADC, Successive Approximation, 16-Bit, 1 Func, Serial, Parallel, Word Access; CategoryAnalog mixed-signal IC converter; File Size362KB，6 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

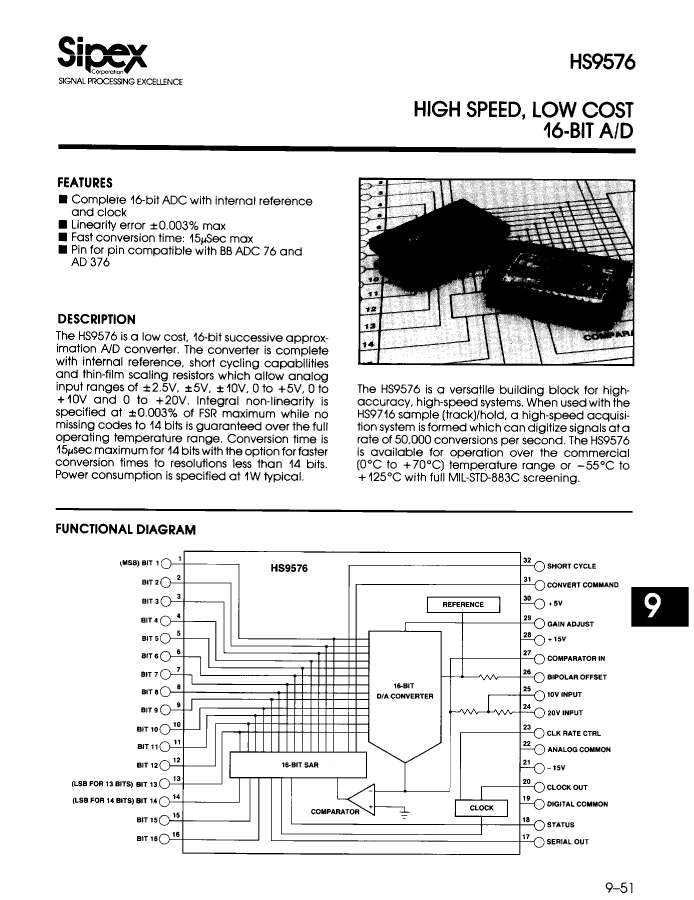

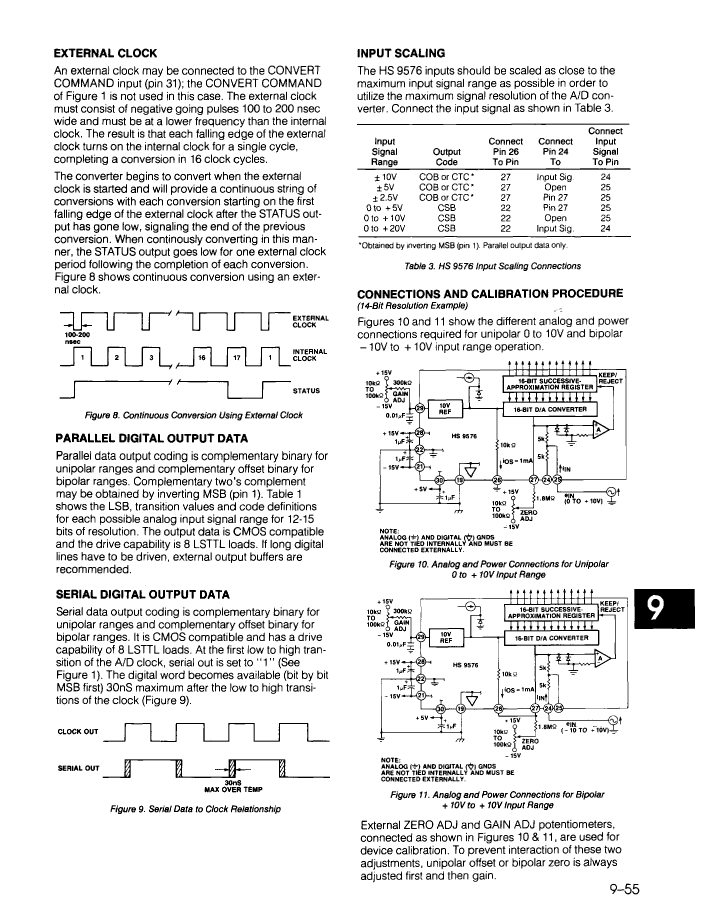

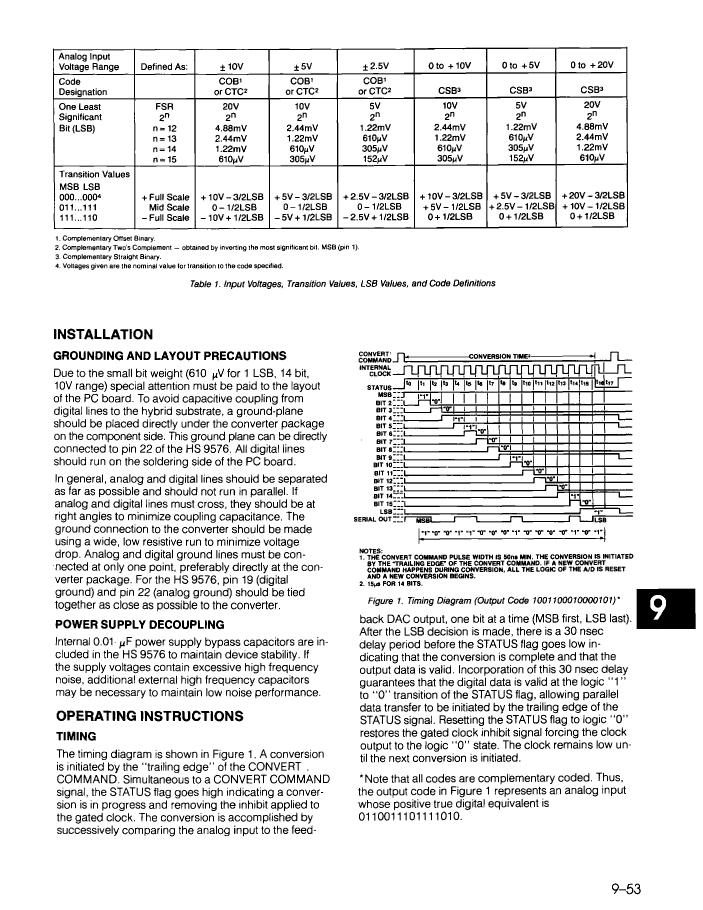

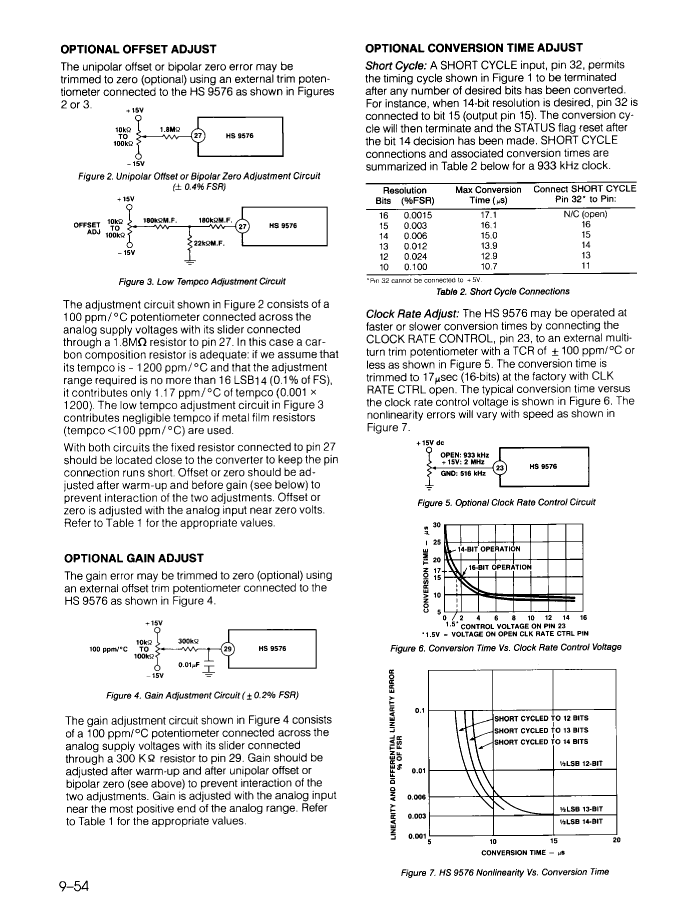

HS9576S/B Overview

ADC, Successive Approximation, 16-Bit, 1 Func, Serial, Parallel, Word Access

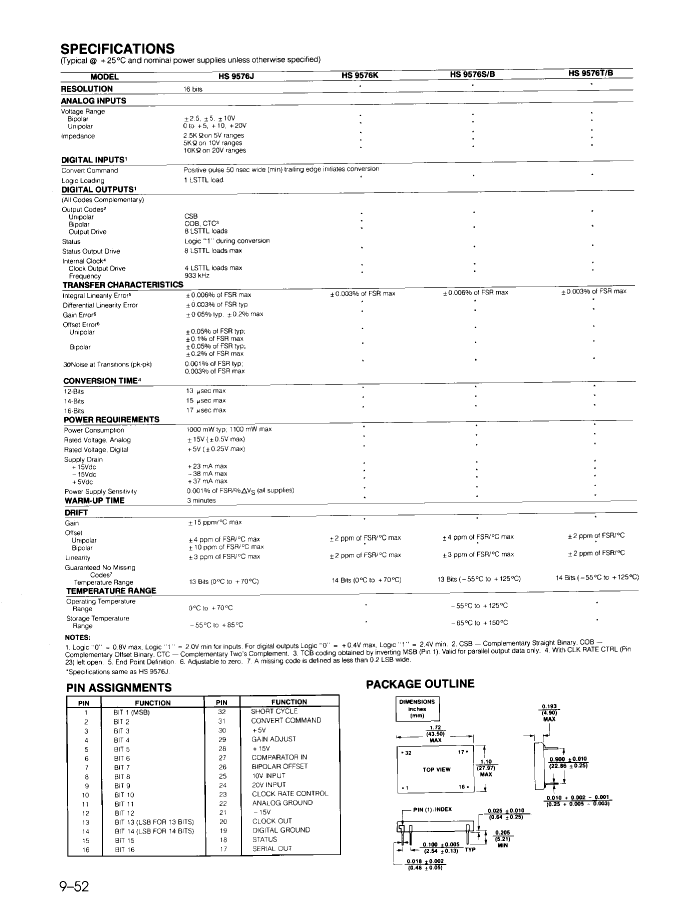

Parameter Name	Attribute value
Maker	Spectrum Microwave
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	17 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-XDIP-T32
Maximum linear error (EL)	0.006%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.79 mm
Nominal supply voltage	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	22.86 mm
