MIC5013AJB datasheet, PDF - EEWORLD Datasheet

MIC5013AJB: DescriptionBuffer/Inverter Based MOSFET Driver, BICMOS, CDIP8, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size542KB，14 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

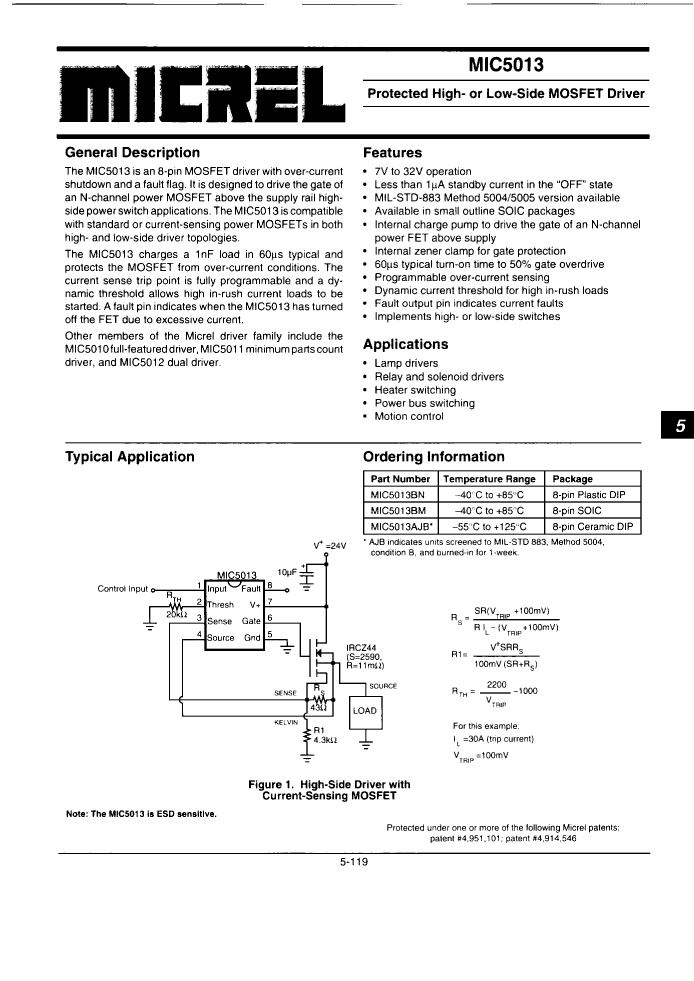

MIC5013AJB Overview

Buffer/Inverter Based MOSFET Driver, BICMOS, CDIP8, CERAMIC, DIP-8

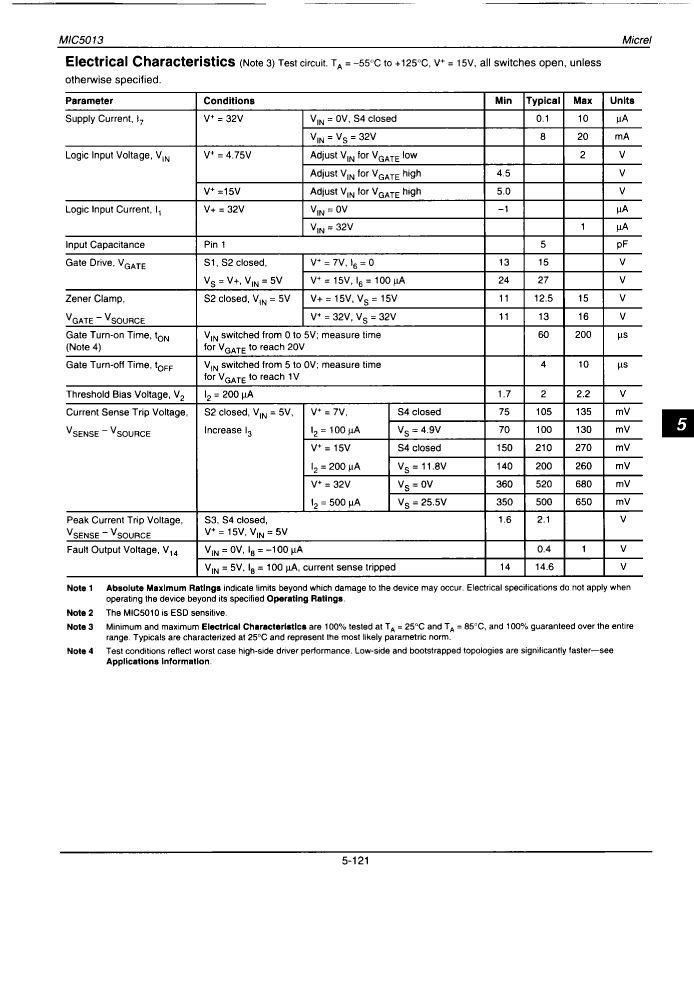

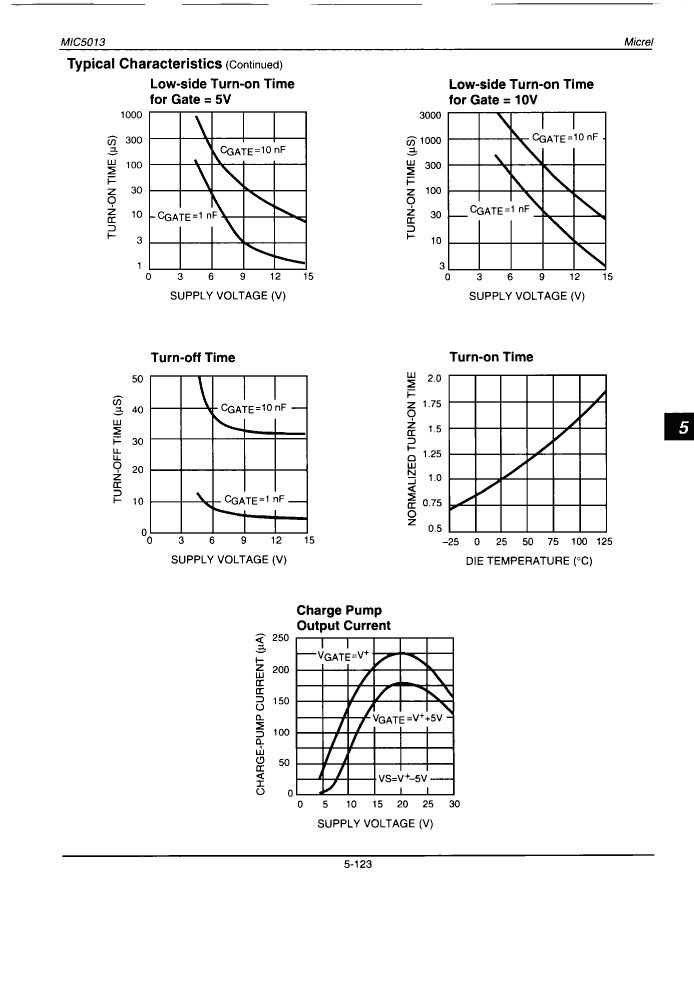

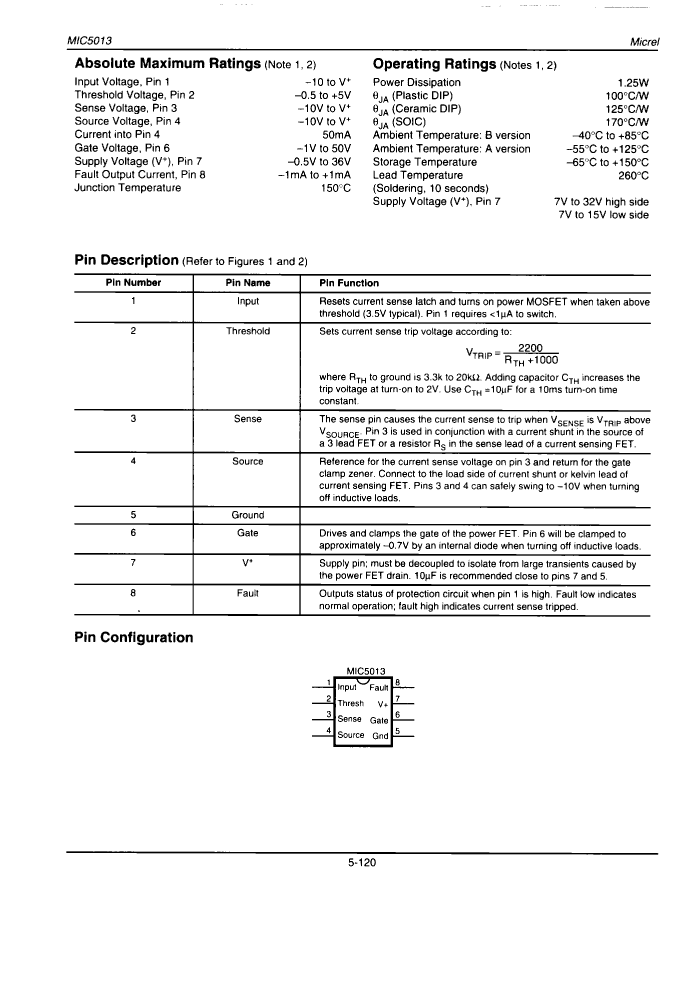

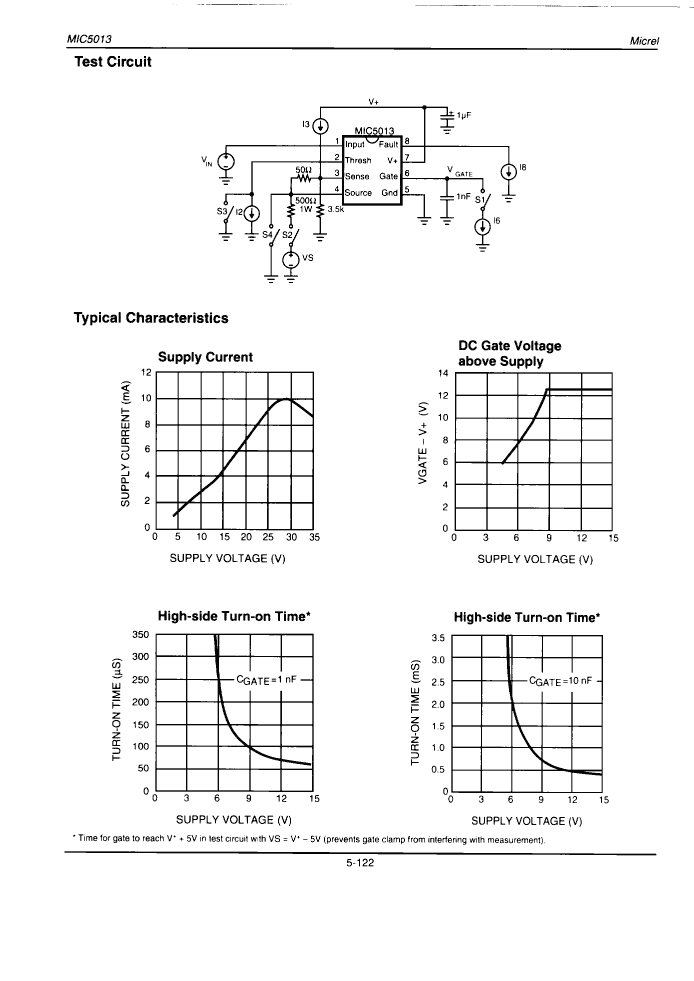

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
high side driver	YES
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.652 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	20 mA
Maximum supply voltage	32 V
Minimum supply voltage	7 V
Nominal supply voltage	15 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	10 µs
connection time	200 µs
width	7.62 mm

	MIC5013AJB
Description	Buffer/Inverter Based MOSFET Driver, BICMOS, CDIP8, CERAMIC, DIP-8
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
high side driver	YES
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.652 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	20 mA
Maximum supply voltage	32 V
Minimum supply voltage	7 V
Nominal supply voltage	15 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	10 µs
connection time	200 µs
width	7.62 mm
