BL-HA0B433-TRB: DescriptionDual Color LED, Amber/super Blue, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size244KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HA0B433-TRB Overview

Dual Color LED, Amber/super Blue, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2

BL-HA0B433-TRB Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
color	AMBER/SUPER BLUE
Configuration	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	8.0/40.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	610/470 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	120 deg

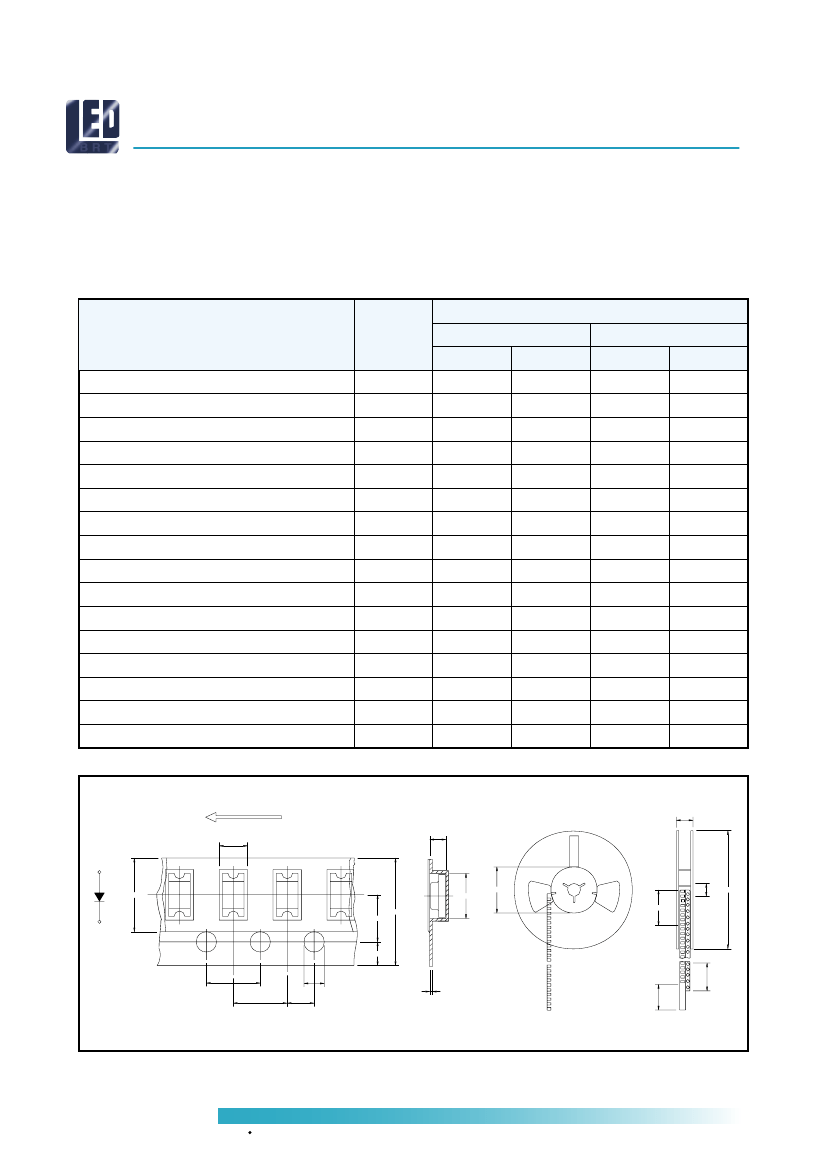

Preview

Download Datasheet

View All

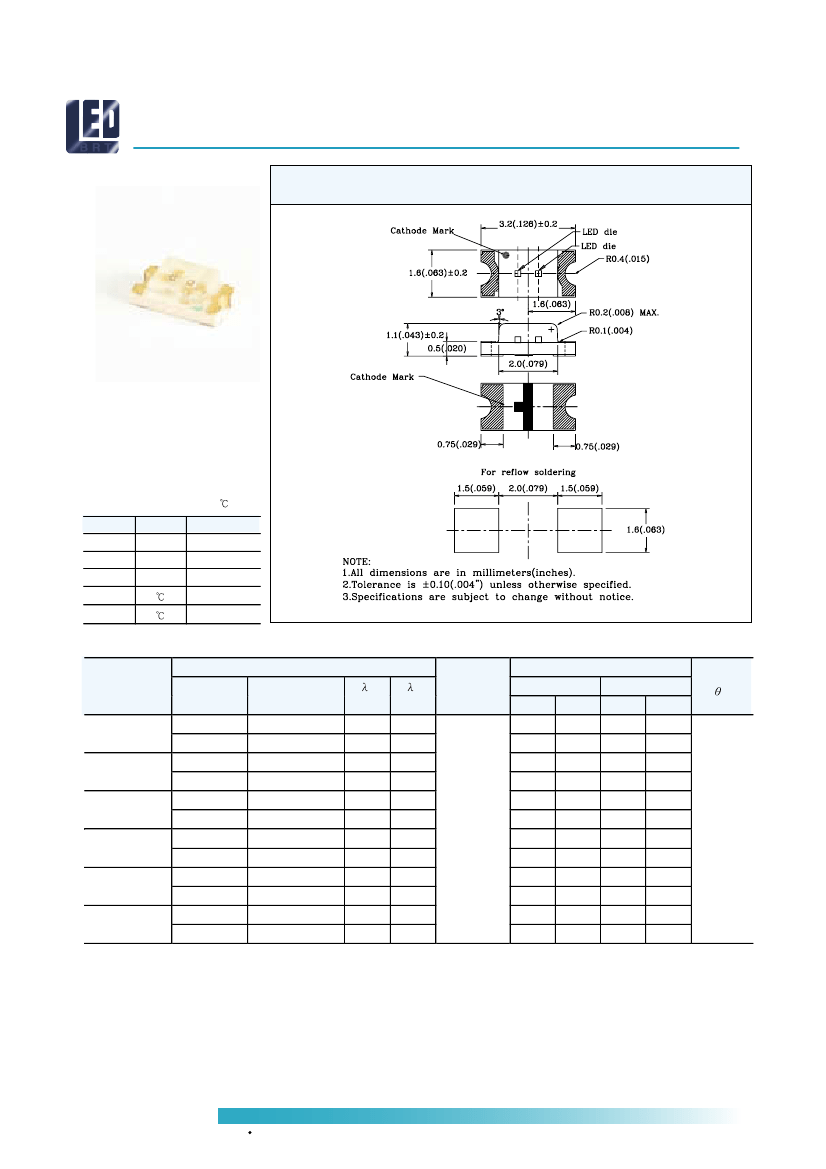

Surface Mount Dual Color LED Lamps

1206 Bi-Color BL-Hxxxx33 Series

Absolute Maximum Ratings(Ta=25 )

UNIT

IFp

Topr

Tstg

SPEC.

100

-25~+80

-30~+85

Chip

Part No.

Material

GaAlAs/GaAs

GaP/GaP

GaAsP/GaP

GaP/GaP

GaAsP/GaP

GaP/GaP

GaAsP/GaP

InGaN

GaP/GaP

GaAsP/GaP

Emitted Color

Super Red

Hi-Eff Green

Hi-Eff Red

Green

Hi-Eff Red

Yellow

Hi-Eff Red

Pure Green

Amber

Super Blue

Green

Yellow

(nm)

660

568

640

568

640

583

640

557

610

470

568

583

(nm)

643

570

628

571

628

585

628

563

606

470

571

585

Lens

Appearance

Electro-optical Data (At 20mA)

Vf(V)

Typ.

1.8

2.2

2.0

2.2

2.0

2.1

2.0

2.2

2.1

3.5

2.2

2.1

Max.

2.6

4.0

2.6

Iv(mcd)

Min.

12.3

5.5

2.4

5.5

2.4

5.5

0.5

2.4

28.0

2.4

Typ.

25.0

12.0

10.0

12.0

10.0

12.0

3.0

8.0

40.0

10.0

Viewing

Angle

2 1/2

(deg)

BL-HD1X133

BL-HE1G033

BL-HE1Y033

BL-HE1W033

BL-HA0B433

BL-HG0Y033

Water Clear

120

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

w w w . a m e r ica n b r ig h tle d . co m

SMT-13

BL-HA0B433-TRB Related Products

	BL-HA0B433-TRB	BL-HE1W033-TRB
Description	Dual Color LED, Amber/super Blue, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Dual Color LED, High Efficiency Red/pure Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2
Maker	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY
color	AMBER/SUPER BLUE	HIGH EFFICIENCY RED/PURE GREEN
Configuration	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	8.0/40.0 mcd	12.0/3.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED
total height	1.1 mm	1.1 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	610/470 nm	640/557 nm
shape	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm
surface mount	YES	YES
Terminal pitch	3.5 mm	3.5 mm
perspective	120 deg	120 deg
