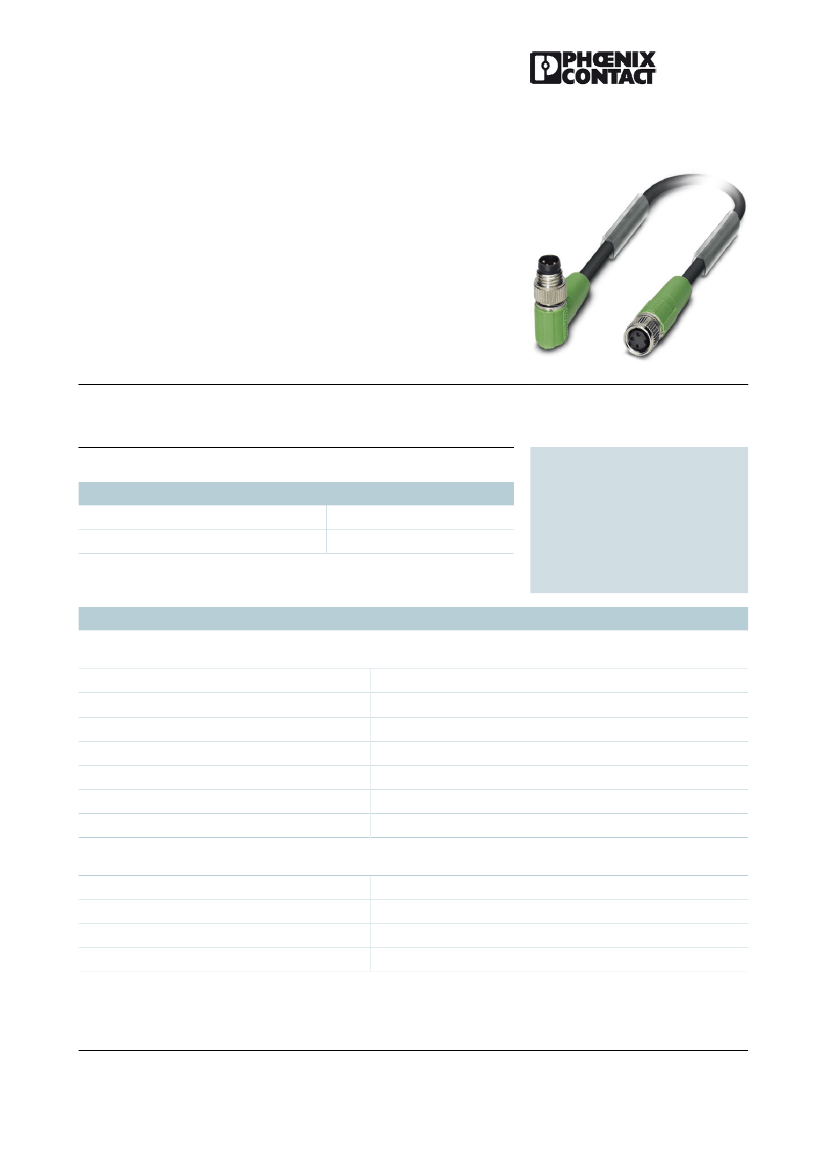

SAC-3P-M 8MR-M 8FS SH/.../...
Order No.: 1552078
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1552078
Sensor/actuator cable, 3-pos., variable cable, shielded, angled M8
plug, on straight M8 socket, cable length: 0.2 m ... 40 m
Commercial data
Pack
Customs tariff
1 pcs.
85444290
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Nominal current I
N
Nominal voltage U
N
Number of positions
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
General characteristics
Coding
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
A - standard
HB
II
3
4A
60 V
3
≤ 5 mΩ
≥ 100 MΩ
Free input (0.2 ... 40.0 m)
-25 °C ... 90 °C (plug/socket)
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 4
Jul 6, 2009
SAC-3P-M 8MR-M 8FS SH/.../...
Order No.: 1552078
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1552078
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Status display
Line characteristics
Note
IP65/IP67/IP69K
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
NBR
No
This order comprises a cable with a freely selectable cable type.
As a result, technical data about the cable types available for
selection is not displayed here.This information is available on
request.

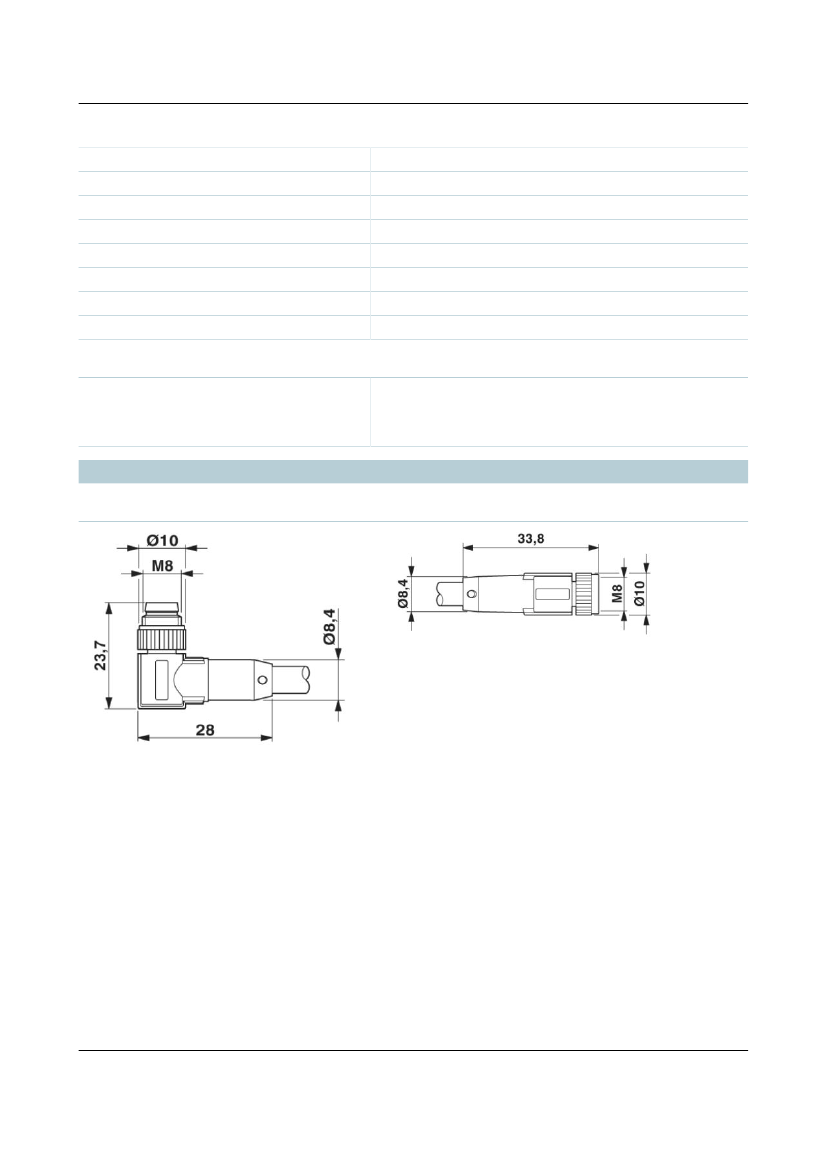

Drawings
Dimensioned drawing
Socket M8 x 1, straight, shielded
Plug M8 x 1, angled, shielded
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 4
Jul 6, 2009
SAC-3P-M 8MR-M 8FS SH/.../...
Order No.: 1552078
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1552078

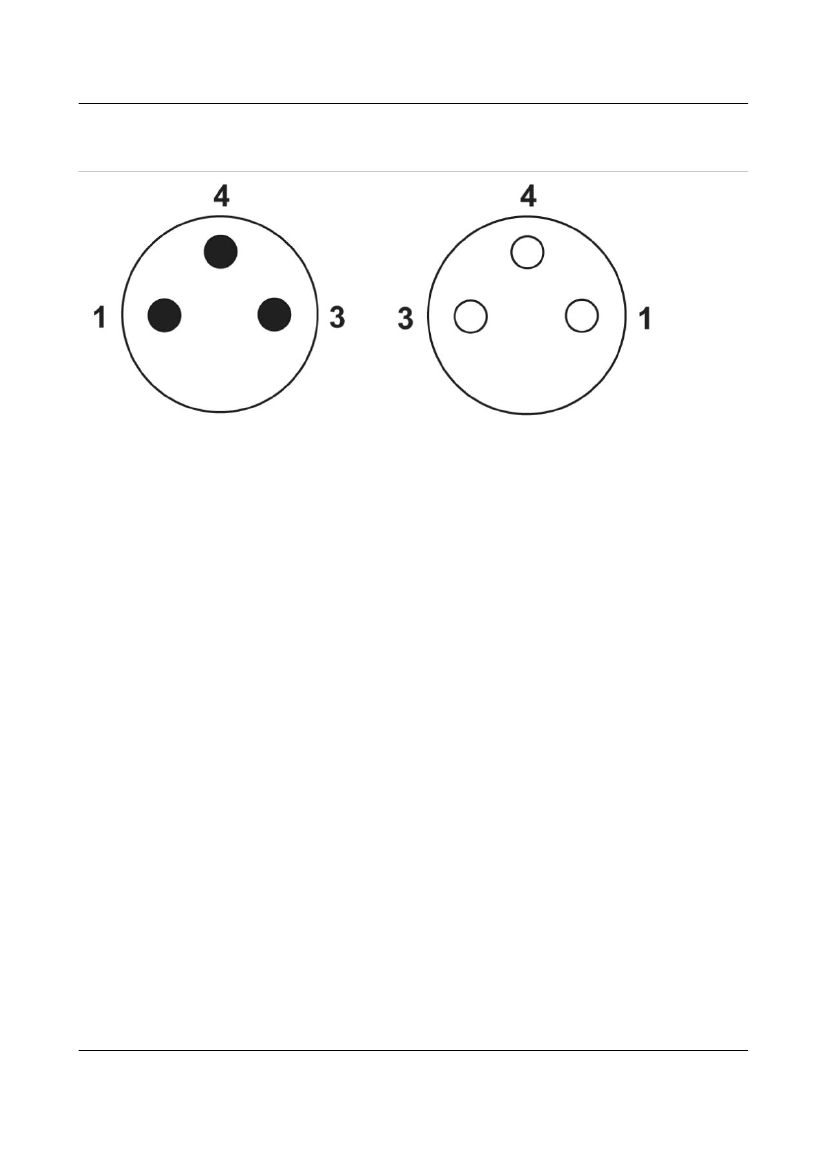

Schematic diagram
