APC20-821K-RC

Description
1 ELEMENT, 820 uH, GENERAL PURPOSE INDUCTOR
CategoryPassive components    inductor
File Size521KB，2 Pages
ManufacturerALLIED [Allied Electronics]
Environmental Compliance
Related ProductsFound1parts with similar functions to APC20-821K-RC
Download Datasheet Parametric View All

APC20-821K-RC Overview

1 ELEMENT, 820 uH, GENERAL PURPOSE INDUCTOR

APC20-821K-RC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerALLIED [Allied Electronics]
Reach Compliance Codecompli
ECCN codeEAR99
DC Resistance1.96 Ω
Nominal inductance(L)820 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum rated current0.2 A
Shape/Size DescriptionTUBULAR PACKAGE
shieldNO
surface mountNO
Terminal locationAXIAL
Terminal shapeWIRE
Test frequency0.001 MHz
Tolerance10%

Preview

Download Datasheet
RoHS

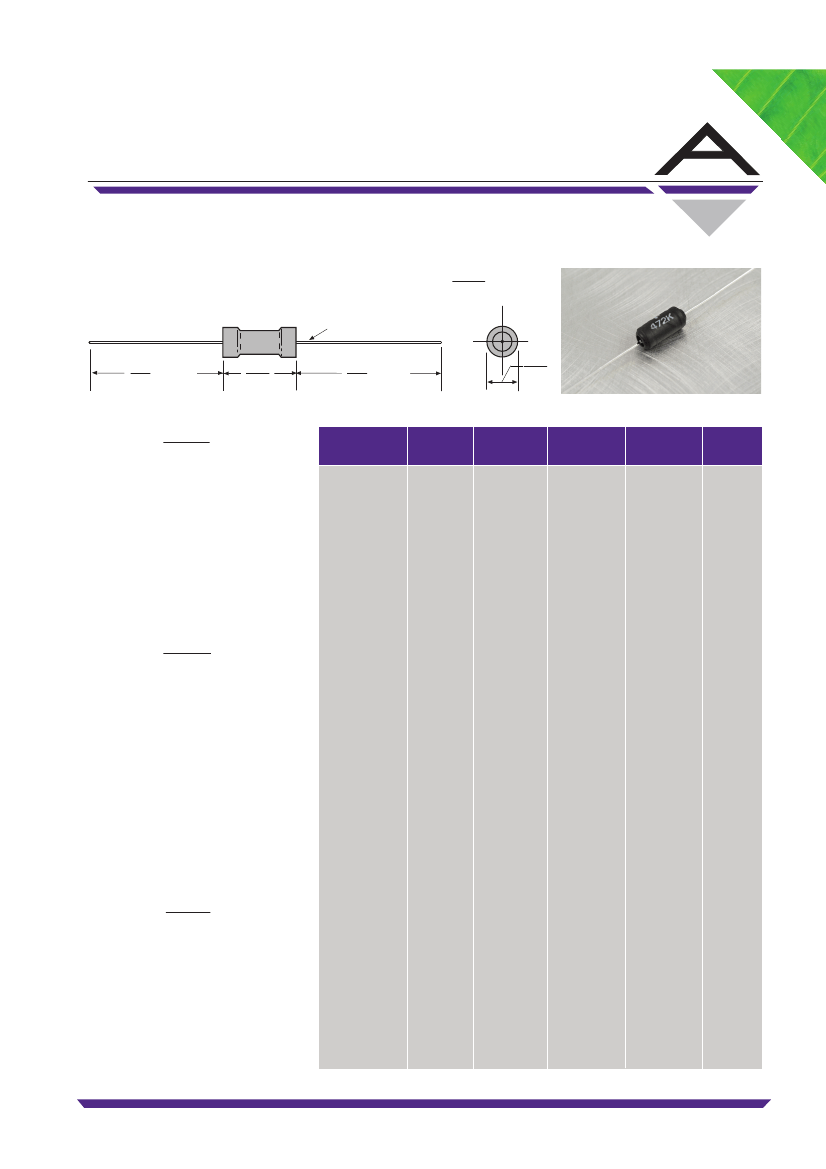

APC20
Axial Power Chokes
Dimensions:
Inches
(mm)
20 AWG
1.15
NOMINAL
(29)
0.60
(15.24)
1.15
NOMINAL
(29)
0.29
(7.36)
Features
• Axial pre-tinned leads.
• Protected with UL shrink tubing.
• Non standard values and tolerances
available.
• High saturation core material used for
high inductance and low DCR.
Allied
Part
Number
Inductance
(µh)
Tolerance
(%)
DCR
Max.
(Ω)
Saturation
Current
(A)
Rated
Current
(A)
Electrical
Inductance:
Measured at 1KHz with no
DC current.
Tolerance:
10% over entire inductance
range. Available in tighter tolerances.
Current Rating:
Based on Inductance drop
of < 10% of Initial value.
Operating Temp:
-55ºC to +125ºC
Test Procedures:
L measured on CH-100
@ 1KHz DCR measured on CH-301.
Physical
Packaging:
200 pieces per bag.
500 pieces per tape & reel
Marking:
EIA Inductance Code.
For Tape and Reel packaging please
add ”-TR” to the part number.
APC20-3R9K-RC
APC20-4R7K-RC
APC20-5R6K-RC
APC20-6R8K-RC
APC20-8R2K-RC
APC20-100K-RC
APC20-120K-RC
APC20-150K-RC
APC20-180K-RC
APC20-220K-RC
APC20-270K-RC
APC20-330K-RC
APC20-390K-RC
APC20-470K-RC
APC20-560K-RC
APC20-680K-RC
APC20-820K-RC
APC20-101K-RC
APC20-121K-RC
APC20-151K-RC
APC20-181K-RC
APC20-221K-RC
APC20-271K-RC
APC20-331K-RC
APC20-391K-RC
APC20-471K-RC
APC20-561K-RC
APC20-681K-RC
APC20-821K-RC
APC20-102K-RC
APC20-122K-RC
APC20-152K-RC
APC20-182K-RC
APC20-222K-RC
APC20-272K-RC
APC20-332K-RC
APC20-392K-RC
APC20-472K-RC
APC20-562K-RC
APC20-682K-RC
APC20-822K-RC
APC20-103K-RC
APC20-123K-RC
APC20-153K-RC
APC20-183K-RC
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
0.019
0.022
0.024
0.026
0.028
0.033
0.037
0.040
0.044
0.050
0.056
0.076
0.094
0.109
0.140
0.131
0.152
0.208
0.283
0.340
0.362
0.430
0.557
0.665
0.772
1.15
1.27
1.61
1.96
2.30
2.65
3.45
4.03
4.48
5.40
6.56
8.63
9.66
13.9
16.3
20.8
26.4
29.9
42.5
48.3
7.30
6.30
5.60
5.30
4.50
4.10
3.60
3.30
3.00
2.70
2.50
2.20
2.00
1.80
1.70
1.50
1.40
1.20
1.10
1.00
0.95
0.86
0.77
0.70
0.64
0.59
0.54
0.49
0.44
0.40
0.35
0.33
0.29
0.27
0.24
0.22
0.20
0.18
0.166
0.151
0.136
0.125
0.110
0.098
0.091
1.280
1.280
1.280
1.280
1.280
1.280
1.280
1.280
1.280
1.280
1.280
1.008
0.804
0.804
0.804
0.804
0.804
0.632
0.508
0.508
0.508
0.508
0.400
0.400
0.400
0.315
0.315
0.250
0.200
0.200
0.200
0.158
0.158
0.158
0.125
0.125
0.100
0.100
0.082
0.082
0.065
0.050
0.050
0.039
0.039
All specifications subject to change without notice.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 09/23/10
www.alliedcomponents.com
