AS40-823K-RC

Description
1 ELEMENT, 82000 uH, GENERAL PURPOSE INDUCTOR
CategoryPassive components    inductor
File Size504KB，2 Pages
ManufacturerALLIED [Allied Electronics]
Environmental Compliance
Related ProductsFound2parts with similar functions to AS40-823K-RC
Download Datasheet Parametric View All

AS40-823K-RC Overview

1 ELEMENT, 82000 uH, GENERAL PURPOSE INDUCTOR

AS40-823K-RC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerALLIED [Allied Electronics]
Reach Compliance Codecompli
ECCN codeEAR99
DC Resistance618 Ω
Nominal inductance(L)82000 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Minimum quality factor (at nominal inductance)21
Maximum rated current0.011 A
self resonant frequency0.12 MHz
Shape/Size DescriptionTUBULAR PACKAGE
shieldYES
surface mountNO
Terminal locationAXIAL
Terminal shapeWIRE
Test frequency0.079 MHz
Tolerance10%

Preview

Download Datasheet
RoHS

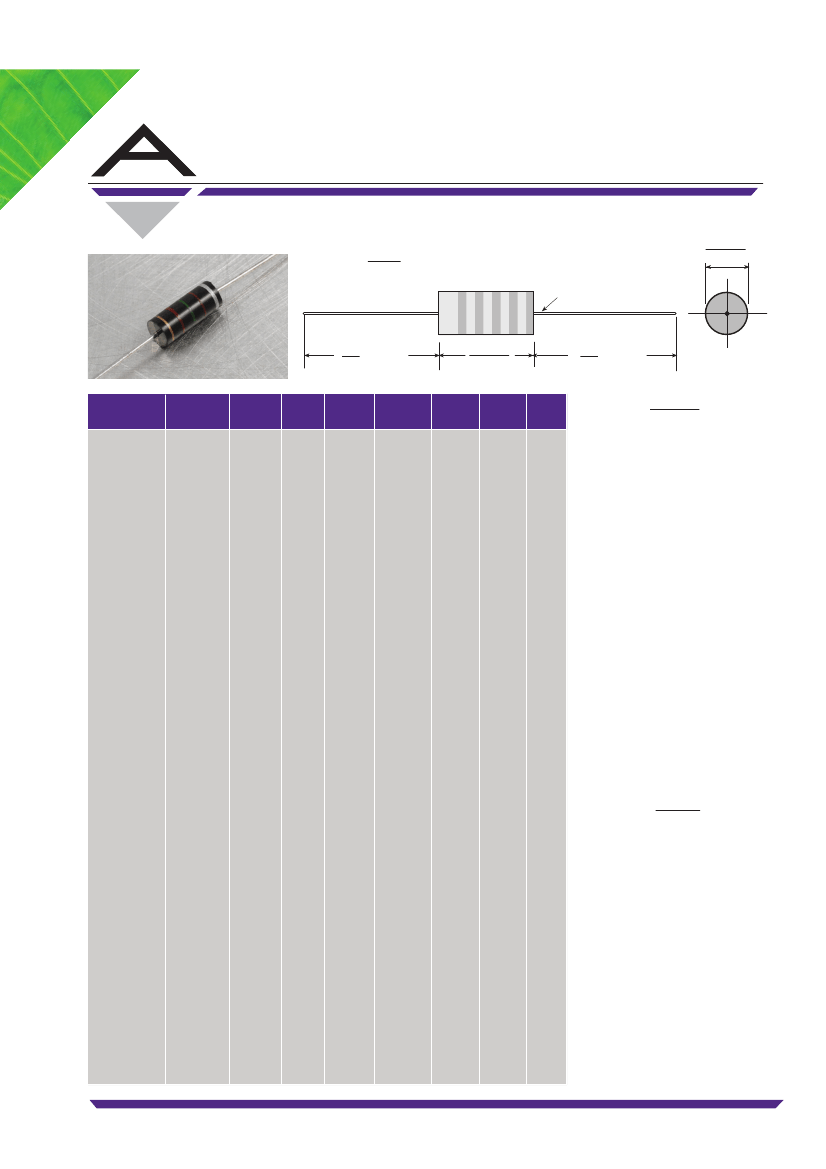

Axial Shielded Inductors
Inches
Dimensions:
(mm)
22AWG
AS40
0.162±0.01
(4.11±0.25)
1.15
NOMINAL
(29)
0.410±0.02
(10.41±0.51)
1.15
NOMINAL
(29)
Allied
Part
Number
AS40-R10K-RC
AS40-R12K-RC
AS40-R15K-RC
AS40-R18K-RC
AS40-R22K-RC
AS40-R27K-RC
AS40-R33K-RC
AS40-R39K-RC
AS40-R47K-RC
AS40-R56K-RC
AS40-R68K-RC
AS40-R82K-RC
AS40-1R0K-RC
AS40-1R2K-RC
AS40-1R5K-RC
AS40-1R8K-RC
AS40-2R2K-RC
AS40-2R7K-RC
AS40-3R3K-RC
AS40-3R9K-RC
AS40-4R7K-RC
AS40-5R6K-RC
AS40-6R8K-RC
AS40-8R2K-RC
AS40-100K-RC
AS40-120K-RC
AS40-150K-RC
AS40-180K-RC
AS40-220K-RC
AS40-270K-RC
AS40-330K-RC
AS40-390K-RC
AS40-470K-RC
AS40-560K-RC
AS40-680K-RC
AS40-820K-RC
AS40-101K-RC
AS40-121K-RC
AS40-151K-RC
AS40-181K-RC
AS40-221K-RC
AS40-271K-RC
AS40-331K-RC
AS40-391K-RC
AS40-471K-RC
AS40-561K-RC
AS40-681K-RC
AS40-821K-RC
AS40-102K-RC
AS40-122K-RC
AS40-152K-RC
AS40-182K-RC
AS40-222K-RC
AS40-272K-RC
AS40-332K-RC
AS40-392K-RC
AS40-472K-RC
AS40-562K-RC
AS40-682K-RC
AS40-822K-RC
AS40-103K-RC
AS40-123K-RC
AS40-153K-RC
AS40-183K-RC
AS40-223K-RC
AS40-273K-RC
AS40-333K-RC
AS40-393K-RC
AS40-473K-RC
AS40-563K-RC
AS40-683K-RC
AS40-823K-RC
AS40-104K-RC
Inductance
(µh)
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
Tolerance
(%)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Q
Min.
50
51
51
50
49
47
46
44
44
43
42
40
44
44
44
44
44
44
44
44
44
44
50
50
50
55
45
45
45
45
45
50
50
40
50
50
50
55
55
55
55
55
55
60
60
60
60
57
65
45
45
45
45
45
45
45
45
44
40
40
40
30
30
30
27
27
27
27
23
23
23
21
18
Test
Freq.
(MHz)
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
7.90
7.90
7.90
7.90
7.90
7.90
7.90
7.90
7.90
7.90
7.90
7.90
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
.790
.790
.790
.790
.790
.790
.790
.790
.790
.790
.790
.790
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
.079
.079
.079
.079
.079
.079
.079
.079
.079
.079
.079
.079
SRF
Min.
(MHz)
250
250
250
250
250
250
250
250
235
210
190
180
140
130
115
105
100
92
85
75
70
65
55
50
46
44
49
45
41
38
34
29
27
25
21
10.5
10.0
9.7
8.5
8.0
7.5
7.0
6.5
6.2
5.7
4.7
4.5
4.2
3.8
1.5
1.2
1.0
.97
.92
.84
.80
.74
.73
.66
.54
.47
.33
.29
.28
.25
.21
.19
.17
.16
.14
.13
.12
.11
DCR
Max.
(Ω)
.025
.034
.037
.047
.067
0.11
0.13
0.18
0.25
0.33
0.45
0.59
0.07
0.10
0.12
0.14
0.19
0.28
0.35
0.40
0.55
0.72
1.02
1.32
1.62
2.00
0.80
0.89
0.96
1.19
1.37
1.93
2.11
2.23
2.70
2.44
3.12
3.60
4.10
4.40
5.00
5.80
6.40
7.40
9.50
10.5
11.8
13.0
17.5
22.1
26.5
29.9
33.8
47.3
53.0
73.8
81.6
98.9
111
119
137
143
157
175
274
308
343
376
473
512
580
618
678
Rated
Current
(mA)
1790
1530
1470
1300
1100
855
780
670
565
490
420
370
1070
895
815
775
650
535
480
450
380
335
280
250
220
200
315
300
290
260
240
205
195
190
170
180
160
150
140
135
125
115
110
105
92
90
80
80
70
60
55
50
50
40
40
35
31
28
27
26
24
23
22
21
17
16
15
15
13
13
12
11
11
Incr.
Current
(mA)
1790
1530
1470
1300
1100
855
780
670
565
490
420
370
1070
895
815
775
650
535
480
450
380
335
280
250
220
200
250
235
220
200
190
180
175
160
150
140
120
95
90
85
80
70
65
60
58
55
50
45
40
35
33
30
27
25
22
20
19
17
16
15
14
13
12
10
9
8
7.5
6
5.5
5
4
3.5
3
Electrical
Inductance Range:
100,000µh
Tolerance:
10% over entire range.
Tighter tolerances available.
Shielding:
< 5% coupling with 2
inductors side by side at 1KHz.
Rated Current:
Inductance will drop
< 10% at rated current.
Test Procedures:
L & Q Measured with
HP4342A Q-Meter at specified
Frequency. DCR Measured on CH-301
SRF Measured on HP-4191A, HP4291B.
Dielectric Strength:
1000 Volts
R.M.S.
Operating Temp.:
-55°C to +125°C.
Physical
Marking (on part):
5 Band Color Code
per MIL-C-15305.
Marking (on reel):
Manufacturers
Name, Part Number, Customers
Part Number, Invoice Number, Lot
or Data Code.
Packaging (bulk):
500 pieces per
bag.
Packaging (reel):
3000 pieces per
reel.
For Tape and Reel packaging please
add ”-TR” to the part number.
.10µh to
All specifications subject to change without notice.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 10/01/10
www.alliedcomponents.com
