NSR145-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> NSR145-C

NSR145-C: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size253KB，12 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

NSR145-C Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10

NSR145-C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
color	RED
Configuration	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT
Display height	9.77 mm
Maximum forward current	0.03 A
Number of functions	0.5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

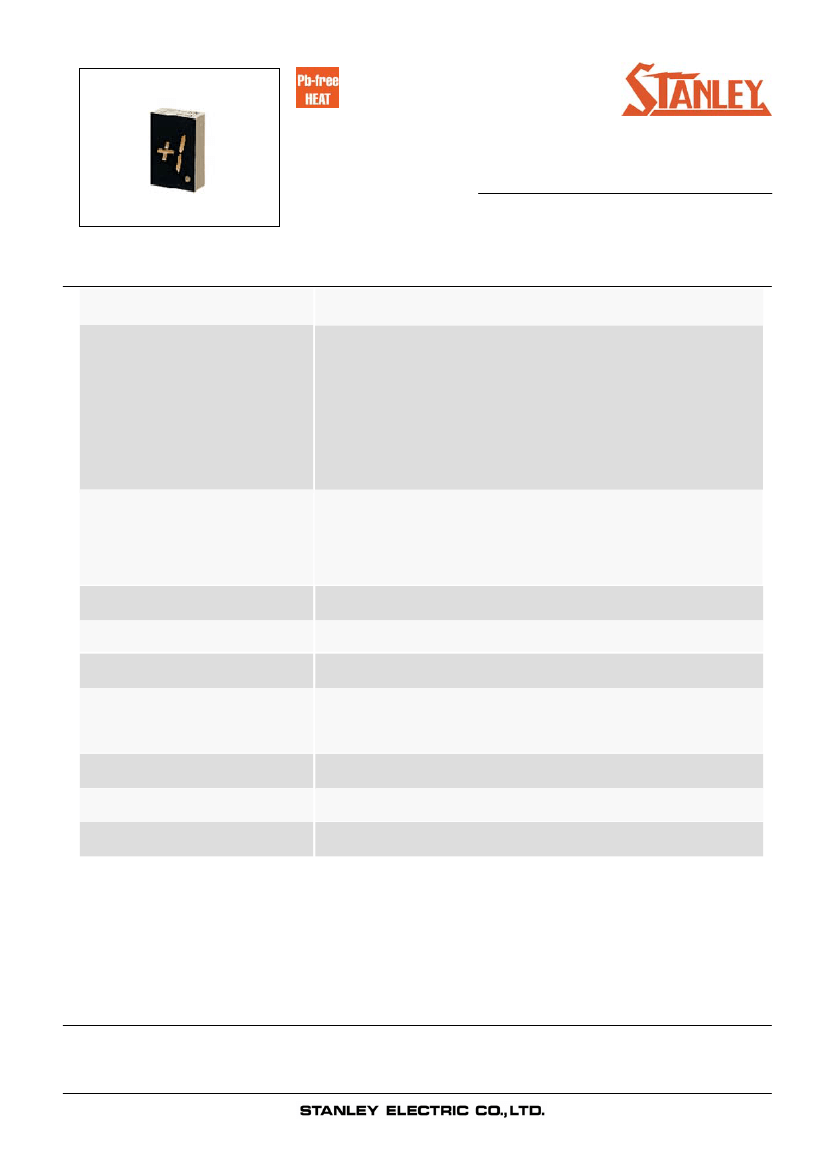

NS□145/147 Series

Numeric Display/Case Size 12.5 x 19.0 mm

Features

Case Size

Product features

12.5 x 19.0 mm (W x H)

・A

black case and a gray case are available.

・Lead–free

soldering compatible

・RoHS

compliant

Peak wavelength

Green

Orange

Red

: 565nm

: 605nm

: 660nm

Number of Digit

Segment Shape

Character Height

Die materials

1 Digit

Arrow Feather Type

9.77 mm

Green

Orange

Red

: GaP

: GaAsP

: GaAlAs

Soldering methods

ESD

Packing

TTW (Through The Wave) soldering and manual soldering

More than 2kV(HBM)

Tray

Recommended Applications

Amusement Equipment, Electric Household Appliances, Other General Applications

2006.7.31

Page 1

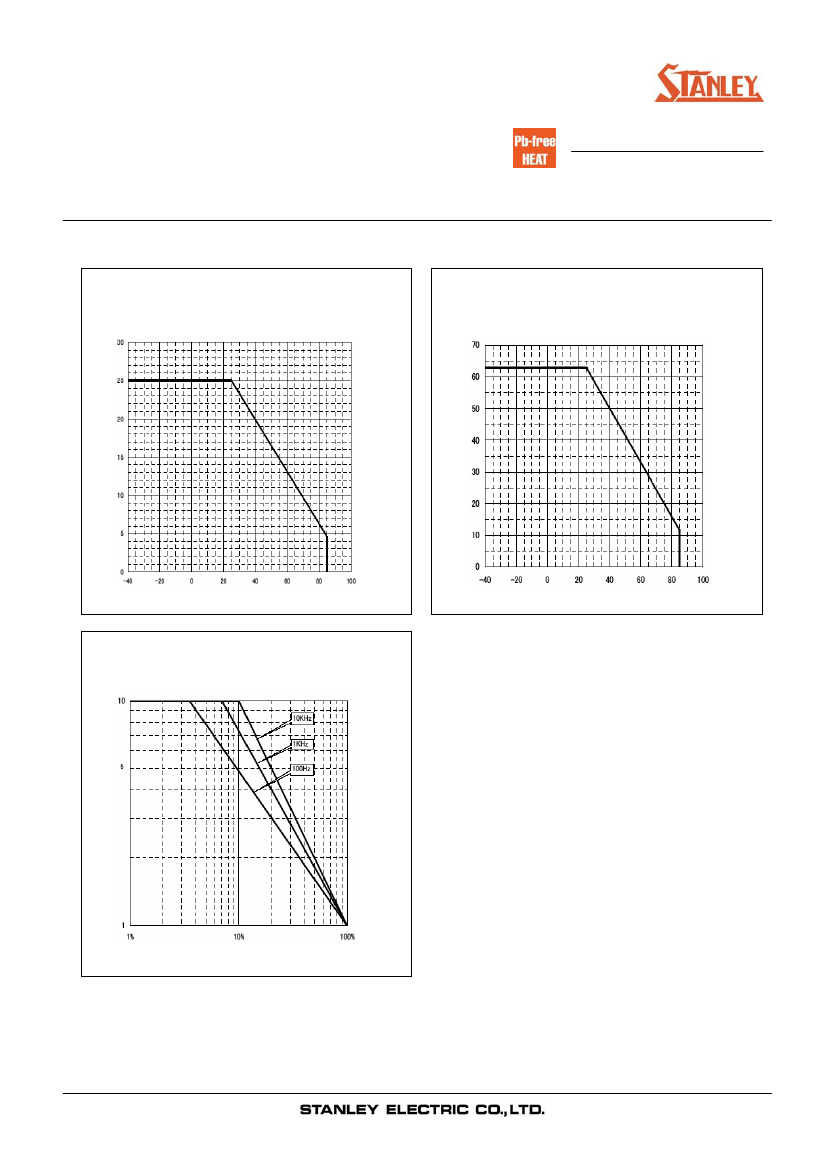

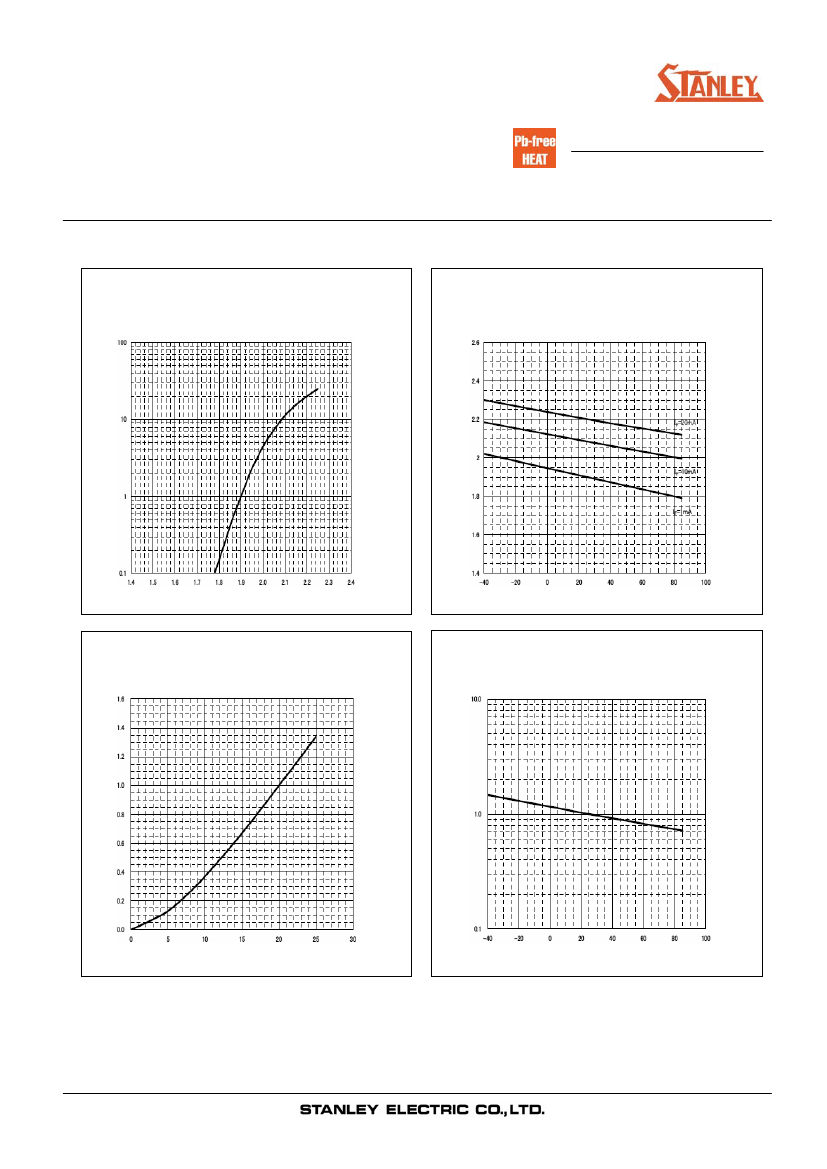

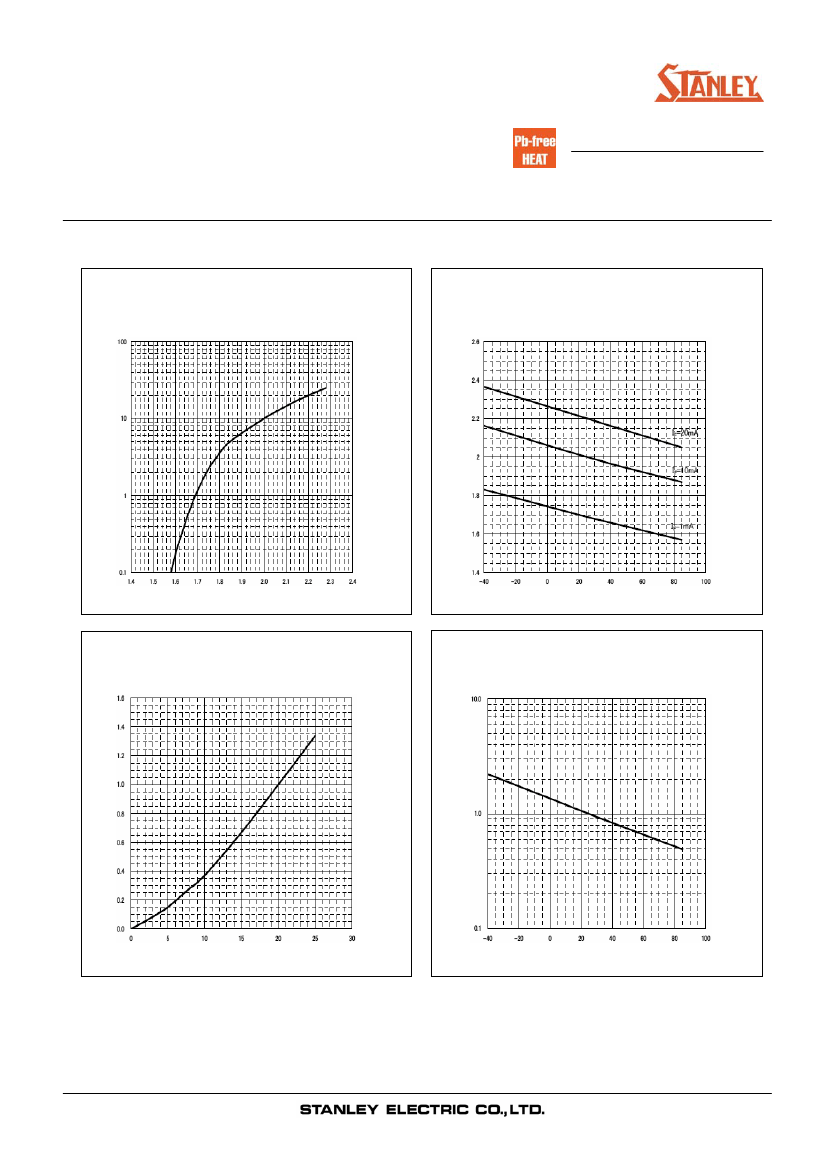

NSR145-C Related Products

	NSR145-C	NSR145-B	NSG145P-B	NSG147P-C	NSR147-B	NSA147-B
Description	Smart/Normal 7 Seg Numeric LED Display, Red, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, Red, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, Green, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, Green, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, Red, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, Orange, 9.77mm, 12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10
package instruction	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10	12.50X19.0 MM, ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	compliant
color	RED	RED	GREEN	GREEN	RED	ORANGE
Configuration	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT
Display height	9.77 mm	9.77 mm	9.77 mm	9.77 mm	9.77 mm	9.77 mm
Maximum forward current	0.03 A	0.03 A	0.025 A	0.025 A	0.03 A	0.025 A
Number of functions	0.5	0.5	0.5	0.5	0.5	0.5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to
Maker	Stanley Electric Co	-	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
