ELJFA8R2JF Overview

General Purpose Inductor, 8.2uH, 5%, 1 Element, Ferrite-Core, SMD, 1210, CHIP, 1210, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	1210
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1210
structure	Rectangular
core material	Wirewound
DC Resistance	2 Ω
Nominal inductance(L)	8.2 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Package height	2.2 mm
Package length	3.2 mm
Package form	SMT
Package width	2.5 mm
method of packing	TR, Embossed, 7 Inch
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.14 A
self resonant frequency	40 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	7.96 MHz
Tolerance	5%

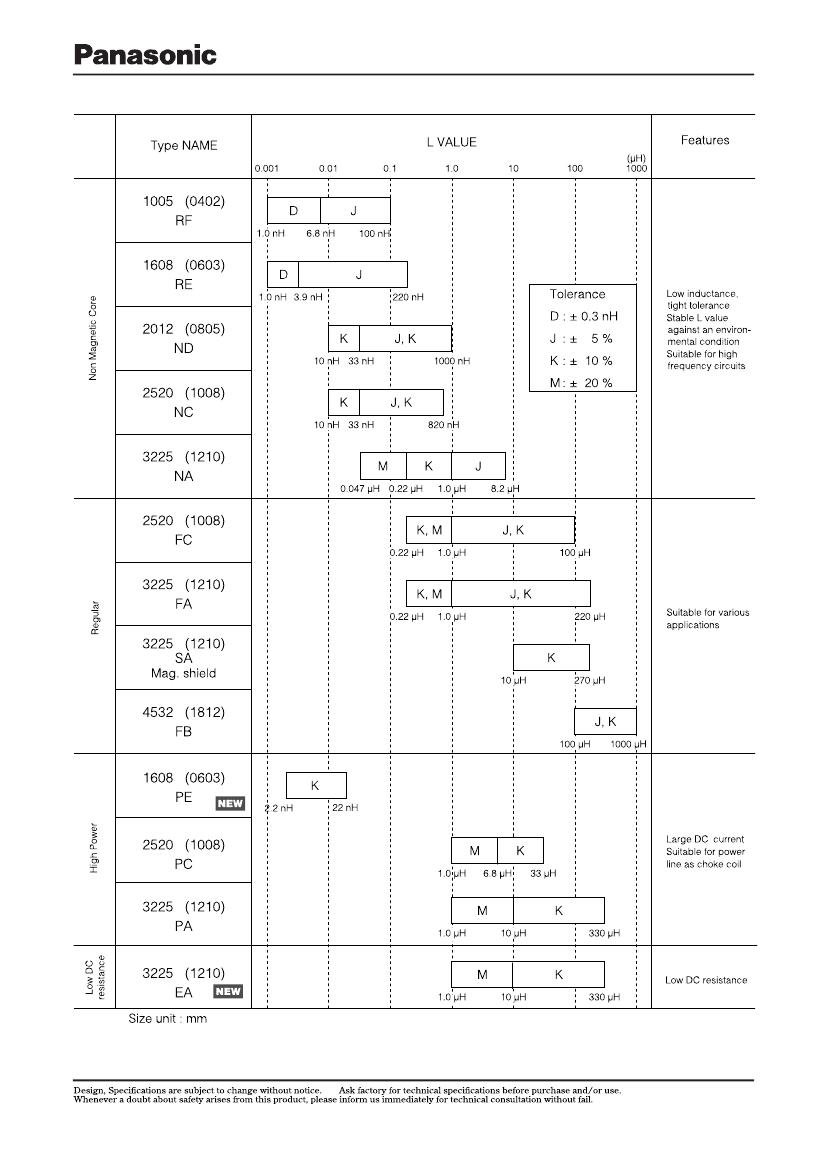

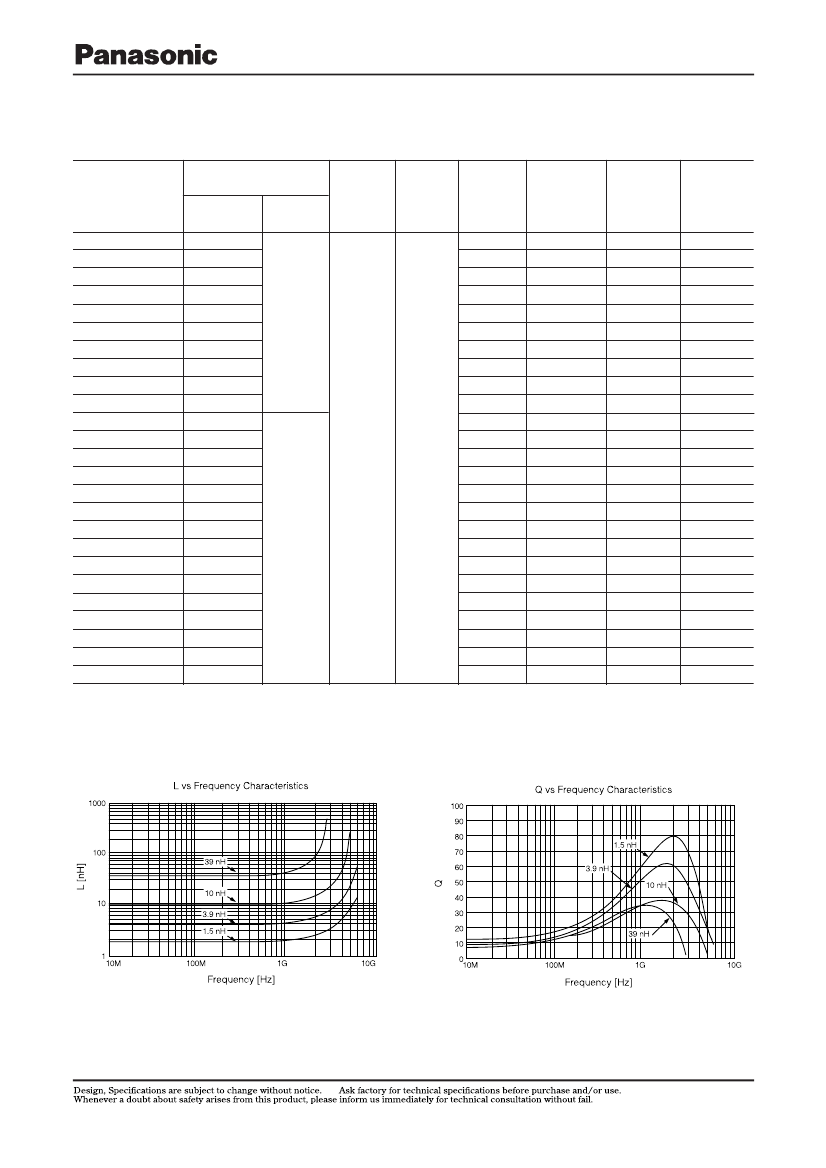

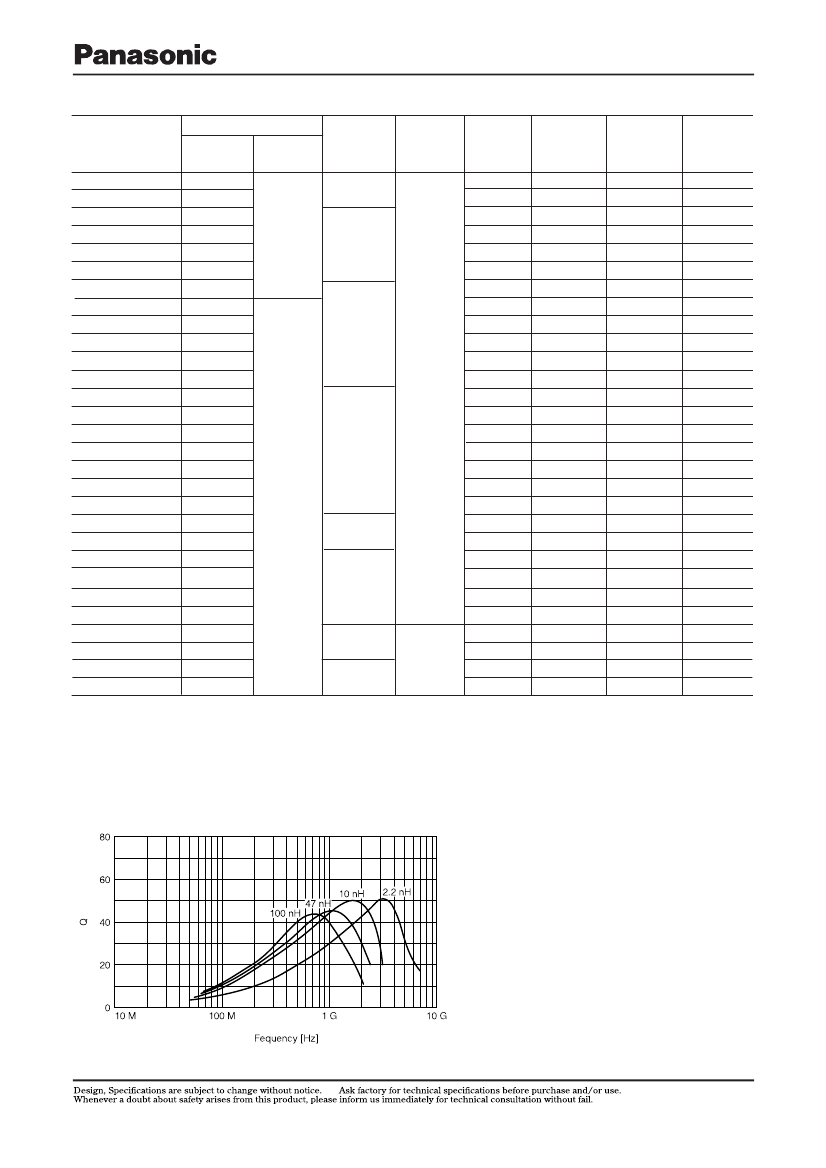

Chip Inductors

Series:

Type:

Japan

Chip

RF, RE, ND,

NC, NA, FC,

FA, FB, SA,

PE, PC, PA,

(Size 1005)

(Size 1608)

(Size 2012)

(Size 2520)

(Size 3225)

(Size 4532)

Non winding (RF,

1E)

and wire wound type chip inductors for automatic mounting and high-density mounting

Industrial Property: Patents 6 (incl. pending)

Features

High Q

Good for mounting

Wide allowable range (1.0 nH to 1000 µH)

Recommended Applications

CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones

Pagers, Video cameras

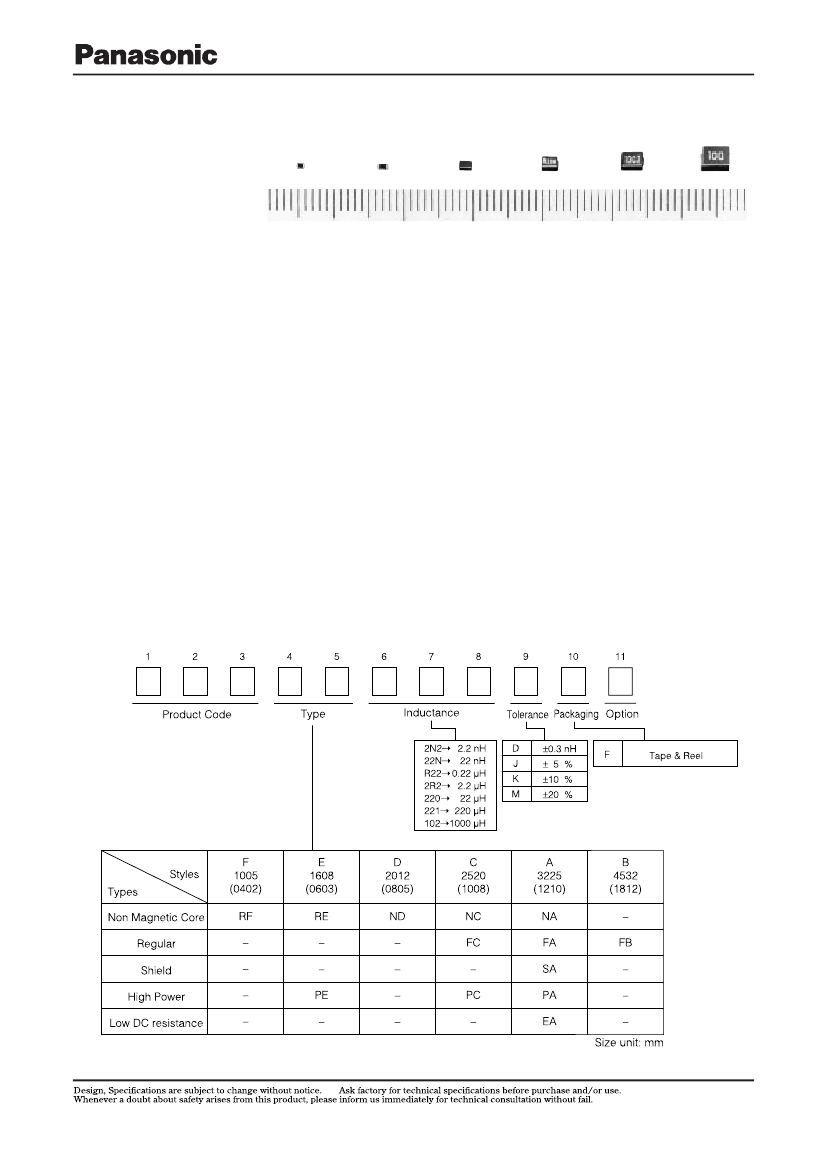

Explanation of Part Numbers
