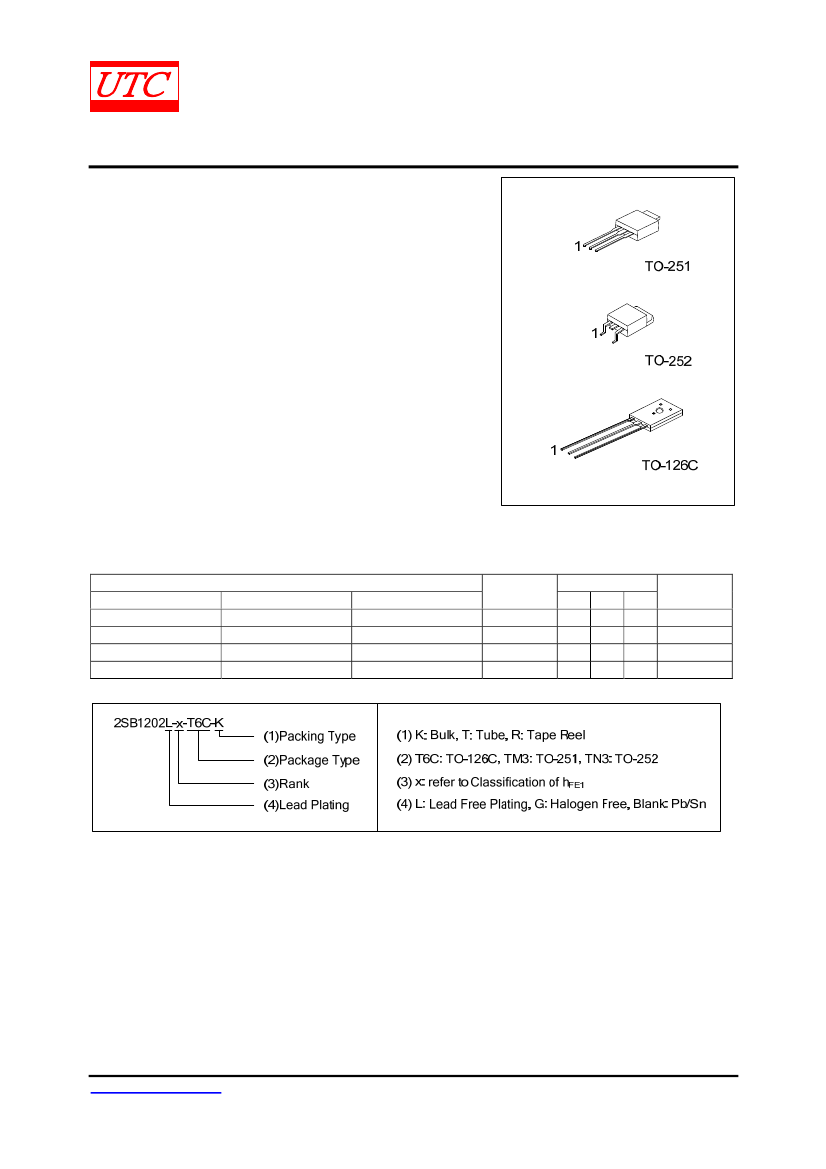

UNISONIC TECHNOLOGIES CO., LTD
2SB1202
HIGH CURRENT SWITCHING
APPLICATION
DESCRIPTION
The UTC 2SB1202 applies to voltage regulators, relay drivers,
lamp drivers, and electrical equipment.
PNP PLANAR TRANSISTOR
FEATURES
* Adoption of FBET, MBIT processes
* Large current capacity and wide ASO
* Low collector-to-emitter saturation voltage
* Fast switching speed
ORDERING INFORMATION
Normal
2SB1202-x-T6C-K
2SB1202-x-TM3-T
2SB1202-x-TN3-R
2SB1202-x-TN3-T
Order Number
Lead Free Plating
2SB1202L-x-T6C-K
2SB1202L-x-TM3-T
2SB1202L-x-TN3-R
2SB1202L-x-TN3-T
Halogen Free
2SB1202G-x-T6C-K
2SB1202G-x-TM3-T
2SB1202G-x-TN3-R
2SB1202G-x-TN3-T
Package
TO-126C
TO-251
TO-252
TO-252
Pin Assignment
1
2
3
E
C
B
B
C
E
B
C
E
B
C
E
Packing
Bulk
Tube
Tape Reel
Tube
www.unisonic.com.tw
Copyright © 2010 Unisonic Technologies Co., Ltd
1 of 5
QW-R217-005.E
2SB1202
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
SYMBOL
V
CBO
V
CEO
V
EBO
PNP PLANAR TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
(Ta=25°C, unless otherwise specified )
RATINGS
UNIT
-60
V
-50
V
-6
V
TO-126C
20
W
TO-251
Collector Power Dissipation
Tc=25°C
P
D
28
W
TO-252
28
W
DC
I
C
-3
A
Collector Current
PULSE
I
CP
-6
A
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
Junction to Case
TO-126C
TO-251
TO-252
SYMBOL
θ
JC
RATINGS
6.25
4.53
4.53
UNIT
°C/W
ELECTRICAL CHARACTERISTICS
(Ta=25°C, unless otherwise specified)
PARAMETER
C-B Breakdown Voltage
C-E Breakdown Voltage
E-B Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
C-E Saturation Voltage
B-E Saturation Voltage
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Turn-on Time
Storage Time
Fall Time
SYMBOL
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
V
CE(SAT)
V
BE(SAT)
h
FE1
h
FE2
f
T
Cob
t
ON
t
STG
t
F
TEST CONDITIONS
I
C
=-10μA, I
E
=0
I
C
=-1mA, R
BE
=∞
I
E
=-10μA, I
C
=0
V
CB
=-40V,I
E
=0
V
EB
=-4V,I
C
=0
I
C
=-2A, I
B
=-100mA
I
C
=-2A, I
B
=-100mA
V
CE
=-2V, Ic=-100mA
V
CE
=-2V, Ic=-3A
V
CE
=-10V, I
C
=-50mA
V
CB
=-10V, f=1MHz
See test circuit
See test circuit
See test circuit
MIN
-60
-50
-6
TYP
MAX
UNIT
V
V
V
μA
μA
V
V
-0.35
-0.94
100
35
150
39
70
450
35
-1
-1
-0.7
-1.2
560
MHz
pF
ns
ns
ns
CLASSIFICATION OF h
FE1
RANK
RANGE
R
100-200
S
140-280
T
200-400
U
280-560
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 5
QW-R217-005.E
2SB1202
TEST CIRCUIT
PNP PLANAR TRANSISTOR
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 5
QW-R217-005.E
2SB1202

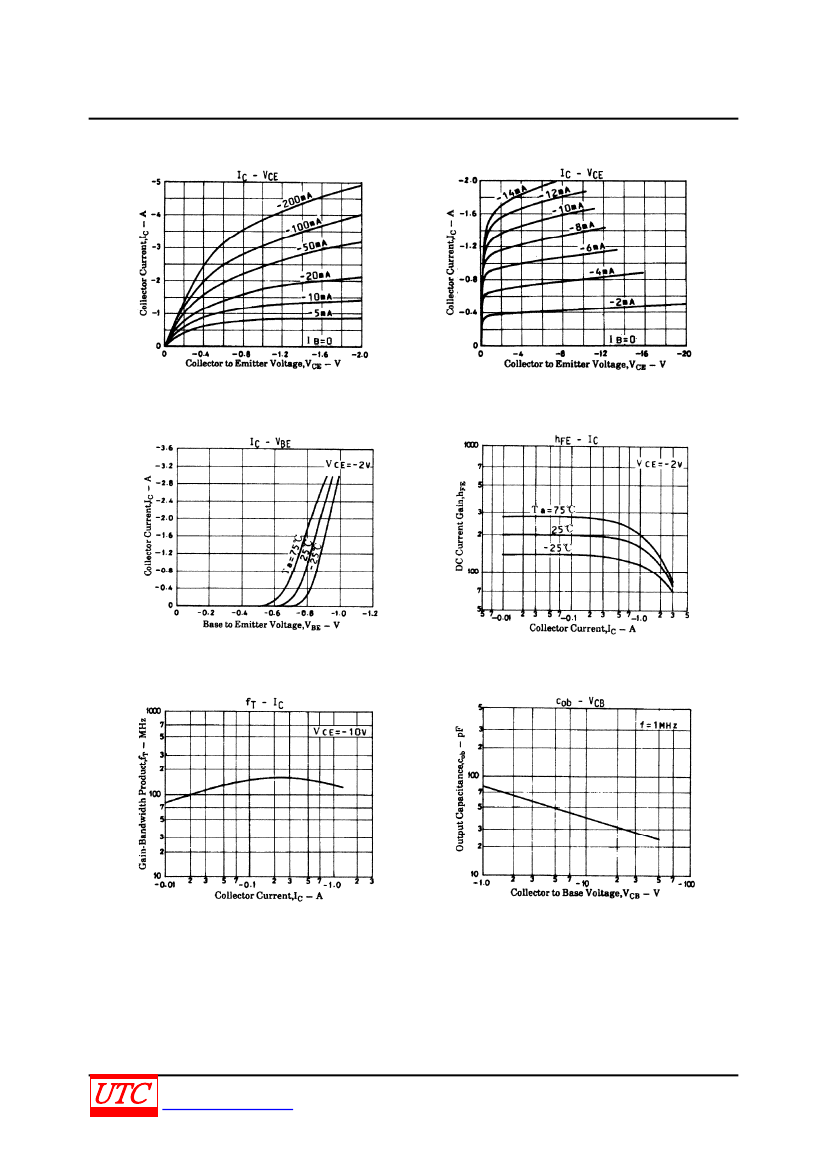

TYPICAL CHARACTERISTICS
PNP PLANAR TRANSISTOR
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 5
QW-R217-005.E
2SB1202

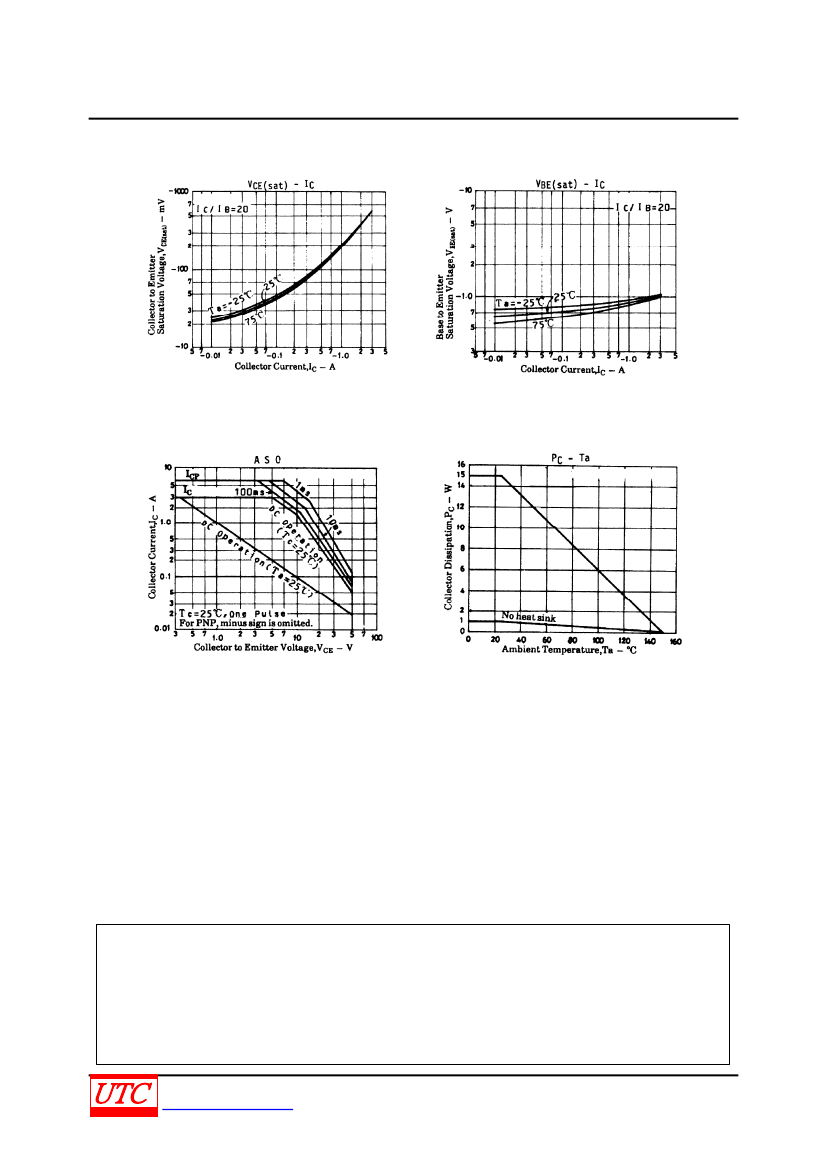

TYPICAL CHARACTERISTICS(Cont.)
PNP PLANAR TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 5
QW-R217-005.E
