8-382907-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8-382907-0

8-382907-0: DescriptionSIMM/DIMM SOCKET,80 CONTACTS,1; CategoryThe connector The connector; File Size150KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

8-382907-0 Overview

SIMM/DIMM SOCKET,80 CONTACTS,1

8-382907-0 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Board mount options	POLARIZATION POST
body width	0.534 inch
body length	4.95 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	GOLD
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	LIF N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	382907
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	40 DEG
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Plating thickness	150u inch
polarization key	RIGHT
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.085 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80

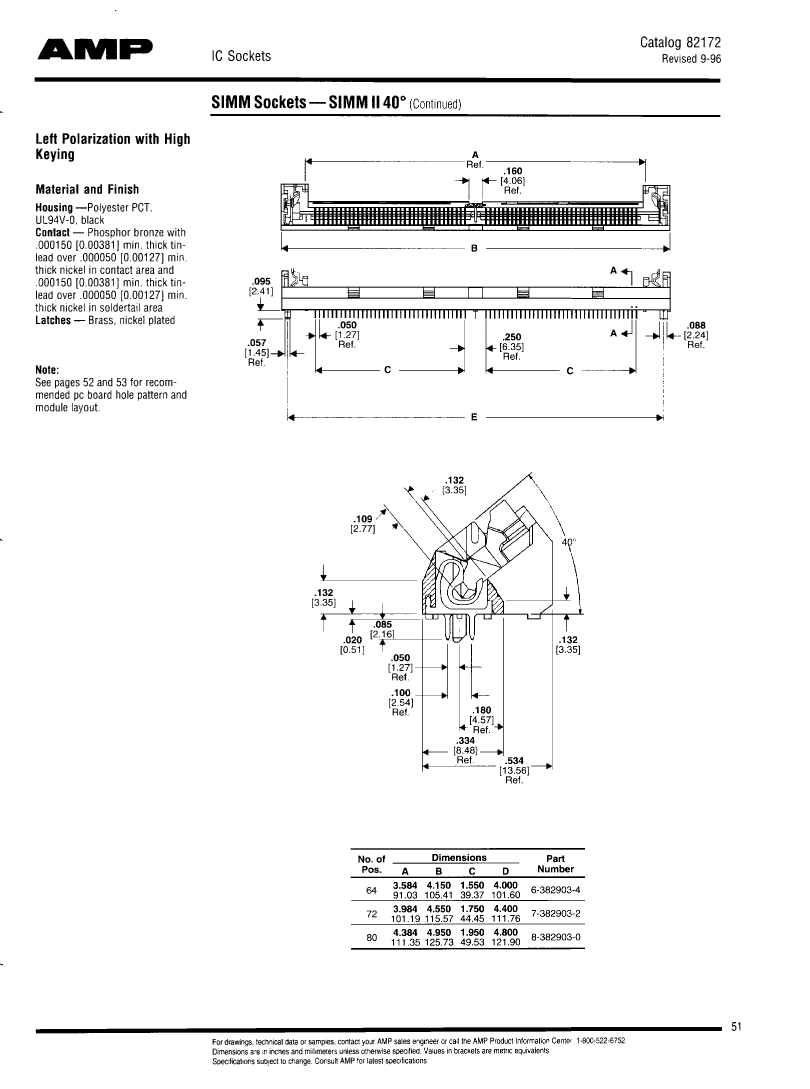

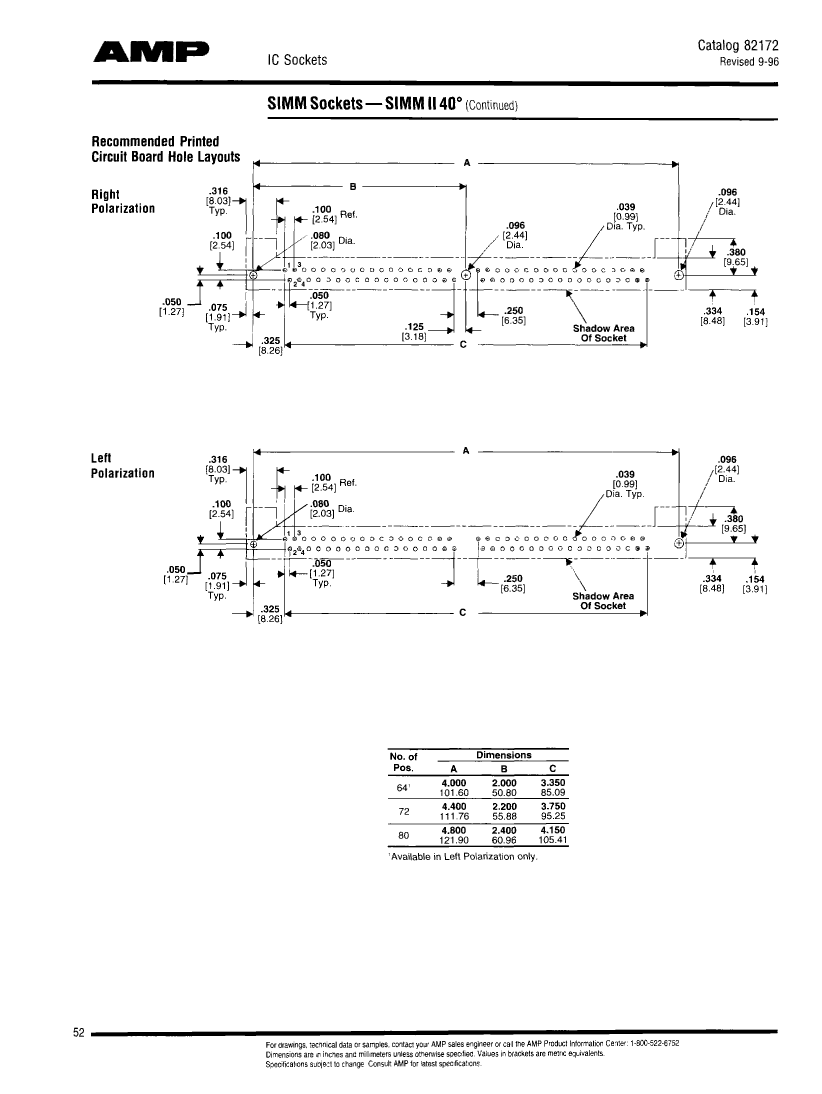

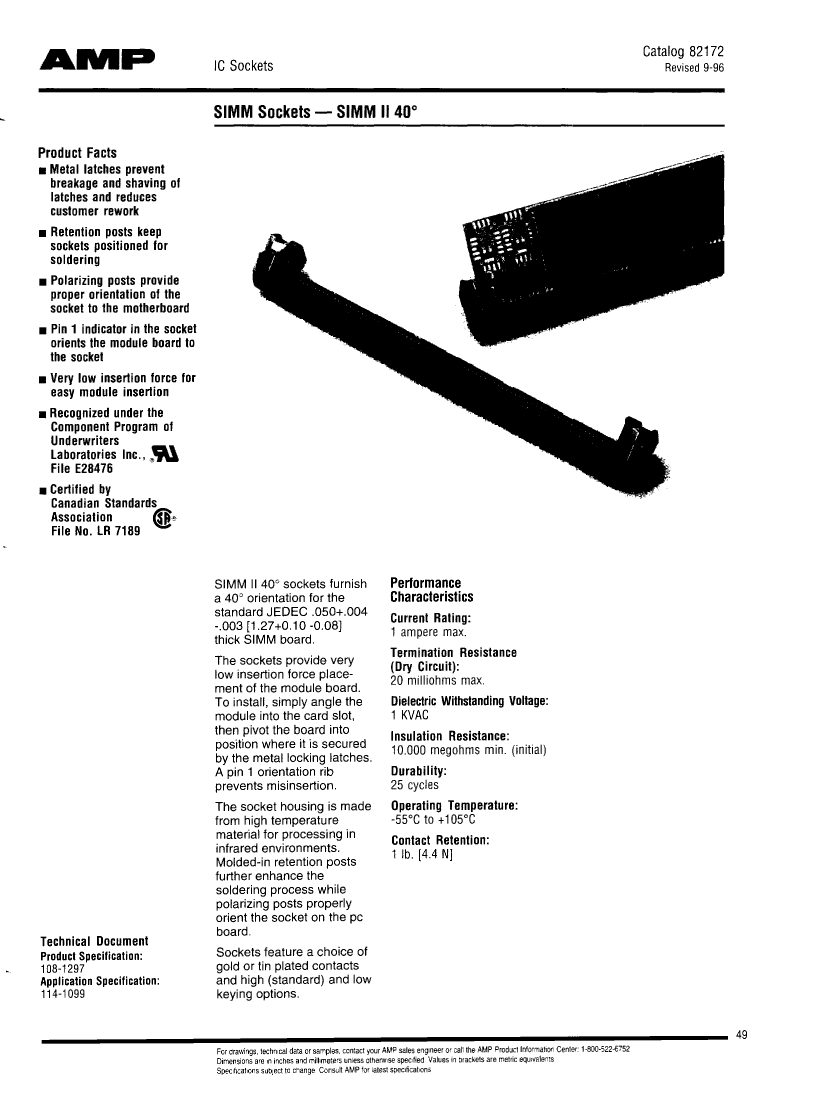

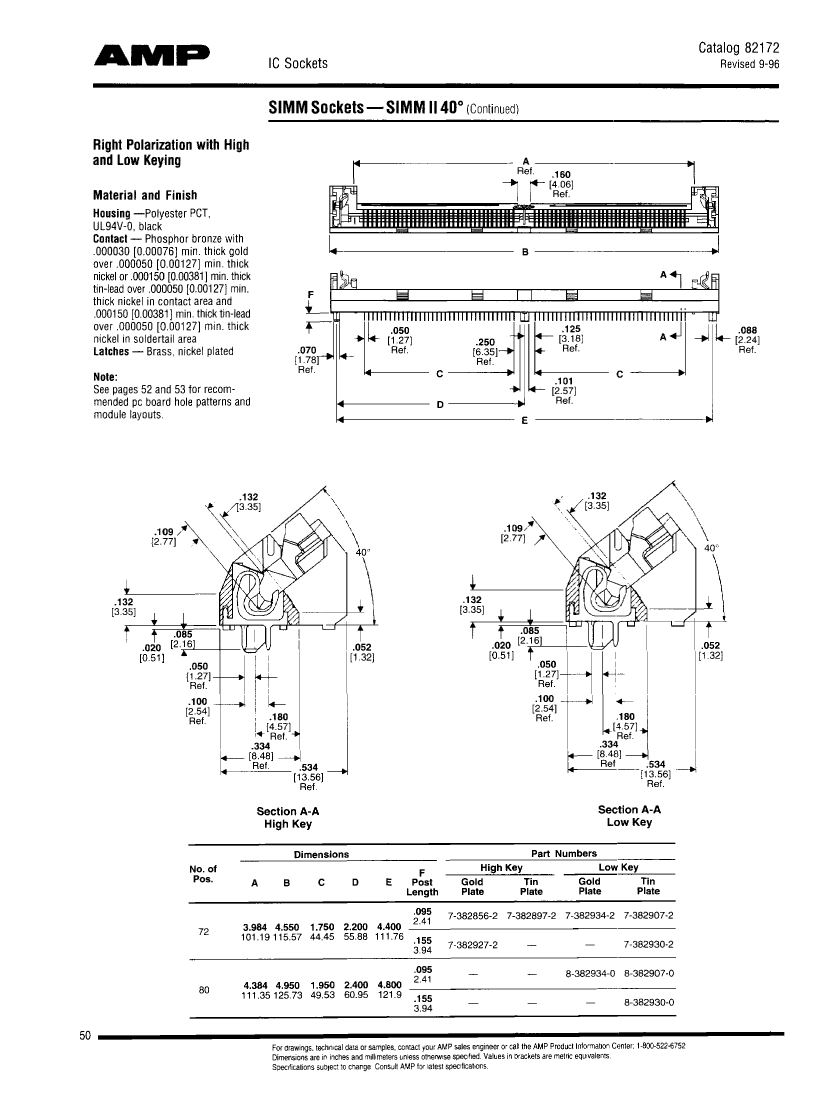

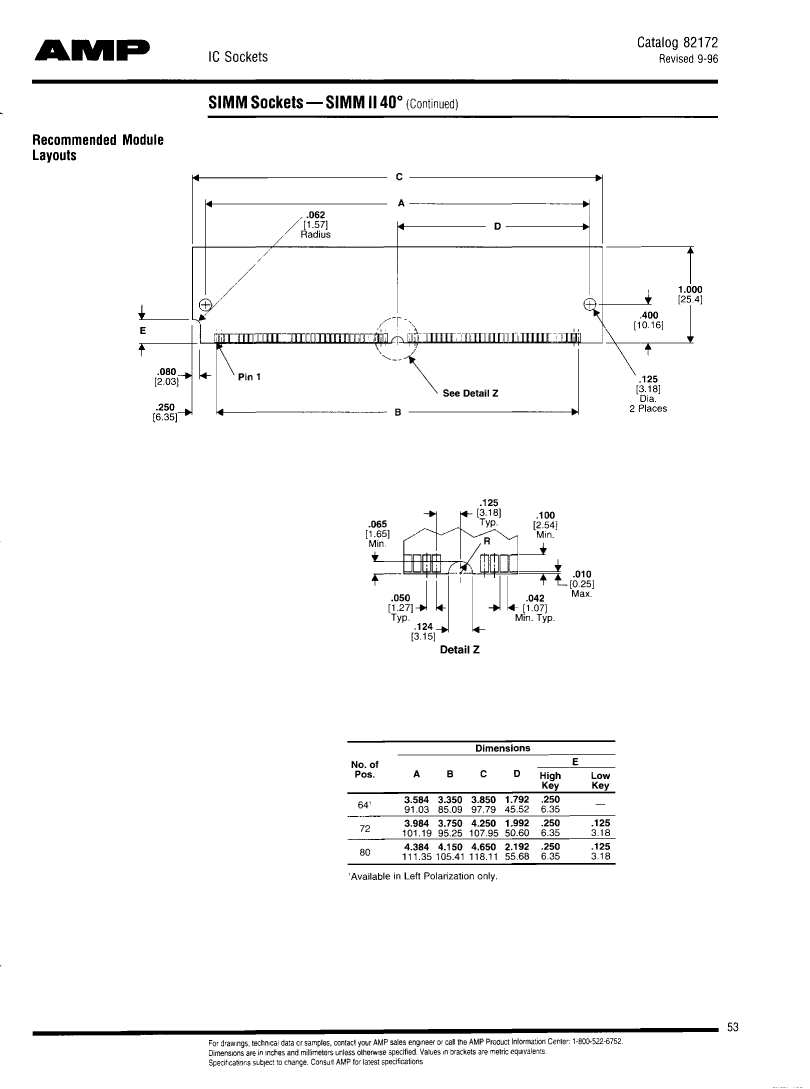

Preview

Download Datasheet

View All

8-382907-0 Related Products

	8-382907-0	CCN-7900SD-03-1582-D-B	CCN-7907SD-07-2640-B-G	7-382907-2	7-382930-2	7-382934-2	8-382930-0	8-382934-0
Description	SIMM/DIMM SOCKET,80 CONTACTS,1	Array/Network Resistor, Bussed, Tantalum Nitride/nickel Chrome, 0.1W, 15800ohm, 0.5% +/-Tol, -25,25ppm/Cel, 3535,	Array/Network Resistor, Isolated, Tantalum Nitride/nickel Chrome, 0.1W, 264ohm, 0.1% +/-Tol, -25,25ppm/Cel, 3535,	72 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	SIMM/DIMM SOCKET,72 CONTACTS,1	SIMM/DIMM SOCKET,72 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown	unknown	unknown
Board mount options	POLARIZATION POST	-	-	-	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.534 inch	-	-	-	0.534 inch	0.534 inch	0.534 inch	0.534 inch
body length	4.95 inch	-	-	-	4.55 inch	4.55 inch	4.95 inch	4.95 inch
Body/casing type	RECEPTACLE	-	-	SOCKET	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	-	-	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	SN-PB ON NI	-	-	-	SN-PB ON NI	AU ON NI	SN-PB ON NI	AU ON NI
Contact completed and terminated	GOLD	-	-	-	GOLD	GOLD	GOLD	GOLD
Contact material	PHOSPHOR BRONZE	-	-	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	-	-	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	-	-	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	-	-	-	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	25 Cycles	-	-	-	25 Cycles	25 Cycles	25 Cycles	25 Cycles
maximum insertion force	LIF N	-	-	-	LIF N	LIF N	LIF N	LIF N
Insulation resistance	10000000000 Ω	-	-	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	-	-	-	BLACK	BLACK	BLACK	BLACK
insulator material	POLYESTER	-	-	-	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Installation option 1	LATCH	-	-	-	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	-	-	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	40 DEG	-	-	STRAIGHT	40 DEG	40 DEGREE	40 DEG	40 DEG
Installation type	BOARD	-	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	-	-	ONE	ONE	ONE	ONE
PCB row number	2	-	-	-	2	2	2	2
Number of rows loaded	1	-	-	1	1	1	1	1
Maximum operating temperature	105 °C	150 °C	150 °C	-	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	-	-	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	0.1 mm	-	-	-	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Plating thickness	150u inch	-	-	-	150u inch	30u inch	150u inch	30u inch
polarization key	RIGHT	-	-	-	RIGHT	SHRD RIGHT	RIGHT	RIGHT
Rated current (signal)	1 A	-	-	-	1 A	1 A	1 A	1 A
Guideline	UL, CSA	-	-	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA
Terminal length	0.085 inch	-	-	-	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	-	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	-	-	72	72	72	80	80
Objectid	-	793169125	793270879	1420473085	302500624	302500621	-	-
