R1163x SERIES
3-MODE 150mA LDO REGULATOR with the Reverse Current Protection
NO.EA-118-100317
OUTLINE
The R1163x Series consist of CMOS-based voltage regulator ICs with high output voltage accuracy and low
supply current. These ICs perform with the chip enable function and realize a standby mode with ultra low supply
current. To prevent the destruction by over current, the current limit circuit is included. The R1163x Series have
3-mode. One is standby mode with CE or standby control pin. Other two modes are realized with ECO pin. Fast
Transient Mode (FT mode) and Low Power Mode (LP mode) are alternative with ECO pin. Consumption current
is reduced at Low Power Mode compared with Fast Transient Mode. The output voltage is maintained between
FT mode and LP mode.
Further, the reverse current protection circuit is built-in. Therefore, if a higher voltage than V
DD
pin is forced to
the output pin, the reverse current to V
DD
pin is very small (Max. 0.1μA) , so it is suitable for backup circuit.
Since the packages for these ICs are SOT-23-5, SON-6, and DFN(PLP)1616-6 packages, high density
mounting of the ICs on boards is possible.
FEATURES
•
Supply Current ..................................................... Typ. 6.0μA (Low Power Mode),
Typ. 70μA (Fast Transient Mode)
•
Standby Mode ...................................................... Typ. 0.6μA
•
Reverse Current................................................... Max. 0.1μA
•
Input Voltage Range ............................................ 2.0V to 6.0V
•
Output Voltage Range.......................................... 1.5V to 5.0V (0.1V steps)
(
For other voltages, please refer to MARK INFORMATIONS.)
•
Output Voltage Accuracy......................................
±1.5%
(±2.5% at Low Power Mode)
•
Temperature-Drift Coefficient of Output Voltage .. Typ.
±100ppm/°C
•
Dropout Voltage ................................................... Typ. 0.25V (I
OUT
=150mA,
V
OUT
=2.8V)
•
Ripple Rejection................................................... Typ. 70dB (f=1kHz, Fast Transient Mode)
•
Line Regulation .................................................... Typ. 0.02%/V (Fast Transient Mode)
•
Packages ............................................................ DFN(PLP)1616-6, SOT-23-5, SON-6
•
Built-in fold-back protection circuit ....................... Typ. 40mA (Current at short mode)
•
Performs with Ceramic Capacitors ...................... C
IN
=Ceramic
1.0μF, C
OUT
=Ceramic
0.47μF
APPLICATIONS
•
Precision Voltage References.
•
Power source for electrical appliances such as cameras, VCRs and hand-held communication equipment.
•
Power source for battery-powered equipment.
1

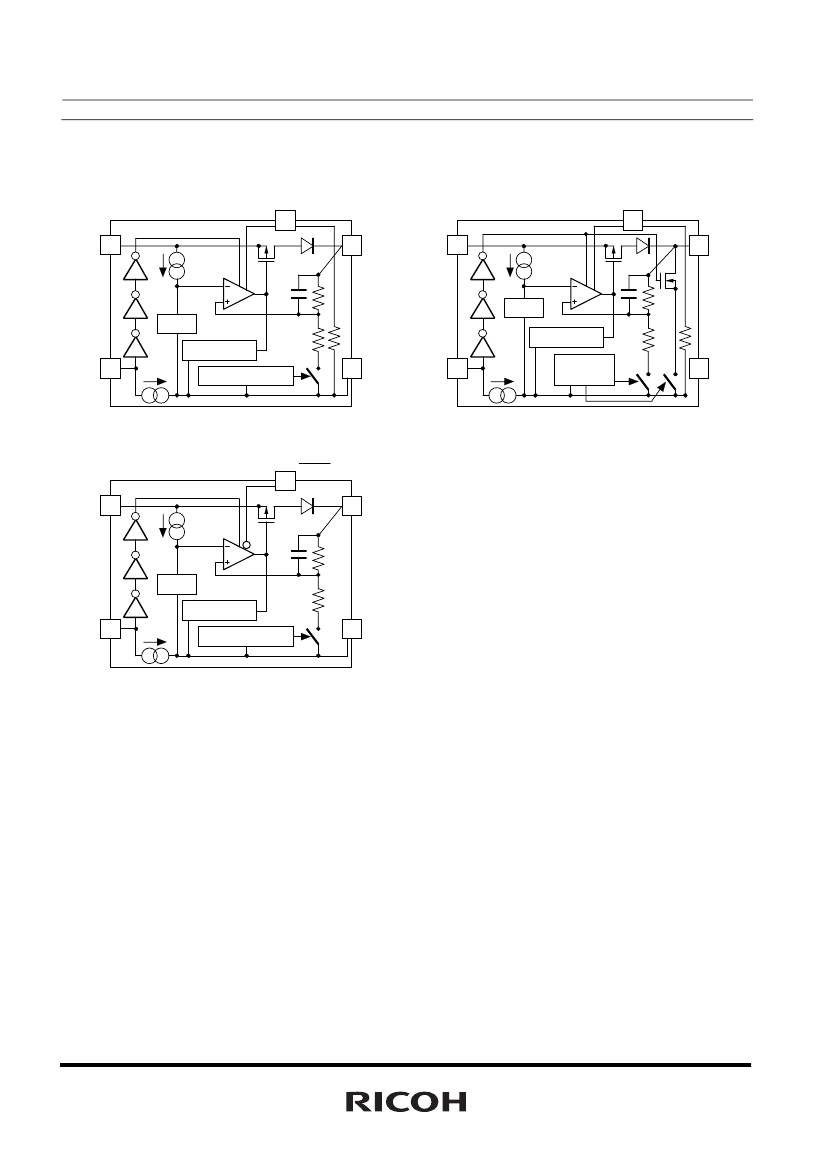

R1163x
SELECTION GUIDE
The output voltage, auto discharge function, and package, etc. for the ICs can be selected at the user’s
request.
Product Name
R1163Kxx1∗-TR
R1163Nxx1∗-TR-FE
R1163Dxx1∗-TR-FE
Package
DFN(PLP)1616-6
SOT-23-5
SON-6
Quantity per Reel
5,000 pcs
3,000 pcs
3,000 pcs
Pb Free
Yes
Yes
Yes
Halogen Free
Yes
Yes
Yes
xx : The output voltage can be designated in the range from 1.5V(15) to 5.0V(50) in 0.1V steps.
(For other voltages, please refer to MARK INFORMATIONS.)
∗
: The auto discharge function at off state are options as follows.
(B) without auto discharge function at off state
(D) with auto discharge function at off state
(E) without auto discharge function at off state, ECO logic reverse type (Low Power mode at ECO="H")
3
R1163x
PIN CONFIGURATIONS
•
DFN(PLP)1616-6
Top View
6
5
4
•
SOT-23-5
Top View
5
4
5
6
•
SON-6
Bottom View
4
5
6
6
5
4
Bottom View
4
∗
∗
(mark side)
∗
1
2
3
3
2
1
1
2
3
1
2
3
3
2
1
PIN DISCRIPTIONS
•
DFN(PLP)1616-6
Pin No
1
2
3
4
5
6
Symbol
V
OUT
GND
ECO/
ECO
CE
NC
V
DD
Output pin
Ground Pin
MODE alternative pin
Chip Enable pin ("H" Active)
No Connection
Input Pin
Pin Description
•
∗)
Tab is GND level. (They are connected to the reverse side of this IC.)
The tab is better to be connected to the GND, but leaving it open is also acceptable.
SOT-23-5
Pin No
1
2
3
4
5
Symbol
V
DD
GND
CE
ECO/
ECO
V
OUT
Input Pin
Ground Pin
Chip Enable Pin ("H" Active)
MODE alternative pin
Output pin
Pin Description
•
SON-6
Pin No
1
2
3
4
5
6
Symbol
V
DD
NC
V
OUT
ECO/
ECO
GND
CE
Input Pin
No Connection
Output pin
MODE alternative pin
Ground Pin
Chip Enable Pin ("H" Active)
Pin Description
*) Tab suspension leads are GND level. (They are connected to the reverse side of this IC.)
The tab suspension leads should be open and do not connect to other wires or land patterns.
4
R1163x
ABSOLUTE MAXIMUM RATINGS
Symbol
V
IN
V
ECO
V
CE
V
OUT
I
OUT
P
D
Input Voltage
Input Voltage (ECO/
ECO
Pin)
Input Voltage (CE Pin)
Output Voltage
Output Current
Power Dissipation (DFN(PLP)1616-6)*
Power Dissipation (SOT-23-5) *
Power Dissipation (SON-6) *
Topt
Tstg
Operating Temperature Range
Storage Temperature Range
Item
Rating
6.5
−0.3
~ 6.5
−0.3
~ 6.5
−0.3
~ 6.5
180
560
420
500
−40
~ 85
−55
~ 125
°C
°C
mW
Unit
V
V
V
V
mA
∗)
For Power Dissipation, please refer to PACKAGE INFORMATION.
ABSOLUTE MAXIMUM RATINGS
Electronic and mechanical stress momentarily exceeded absolute maximum ratings may cause the
permanent damages and may degrade the life time and safety for both device and system using the device
in the field.
The functional operation at or over these absolute maximum ratings is not assured.
RECOMMENDED OPERATING CONDITIONS (ELECTRICAL CHARACTERISTICS)
All of electronic equipment should be designed that the mounted semiconductor devices operate within the
recommended operating conditions. The semiconductor devices cannot operate normally over the
recommended operating conditions, even if when they are used over such conditions by momentary
electronic noise or surge. And the semiconductor devices may receive serious damage when they continue
to operate over the recommended operating conditions.
5
