88659-2051 datasheet, PDF - EEWORLD Datasheet

88659-2051: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

88659-2051 Overview

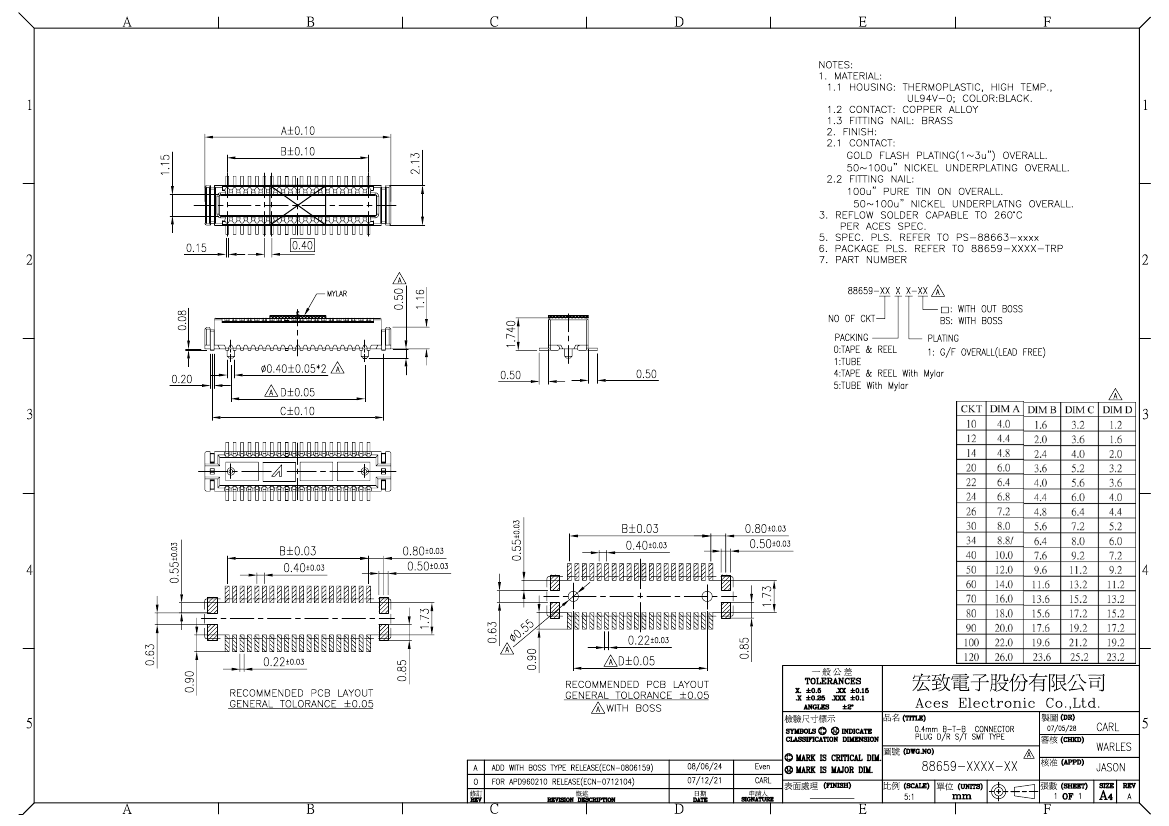

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.084 inch
subject depth	0.069 inch
body length	0.236 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88659
Plug contact pitch	0.016 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.6416 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4064 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
