TC7SET86F/FU
TOSHIBA CMOS Digital Integrated Circuit
Silicon Monolithic
TC7SET86F, TC7SET86FU
Exclusive OR Gate
Features
•
•
•
•
•
High speed
Low power dissipation
: t
pd
= 5.2 ns (typ.)
at V
CC
= 5 V, C
L
= 15pF
: I
CC
= 2μA (max) at Ta = 25°C
TC7SET86F
Compatible with TTL outputs. : V
IL
= 0.8V (max)
V
LH
= 2.0V (min)
5.5-V tolerant inputs.
Balanced propagation delays : t
pLH
≈
t
pHL
TC7SET86FU
(SMV)
Marking
Product Name
G
8
(USV)
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Supply voltage
DC input voltage
DC output voltage
Input diode current
Output diode current
DC output current
DC V
CC
/ground current
Power dissipation
Storage temperature
Lead temperature (10s)
Symbol
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OUT
I
CC
P
D
T
stg
T
L
Rating
−0.5
to 7.0
−0.5
to 7.0
−0.5
to V
CC
+0.5
−20
±20
(Note 1)
±25
±50
200
−65
to150
260
Unit
V
V
V
mA
mA
mA
mA
mW
°C
°C
Weight

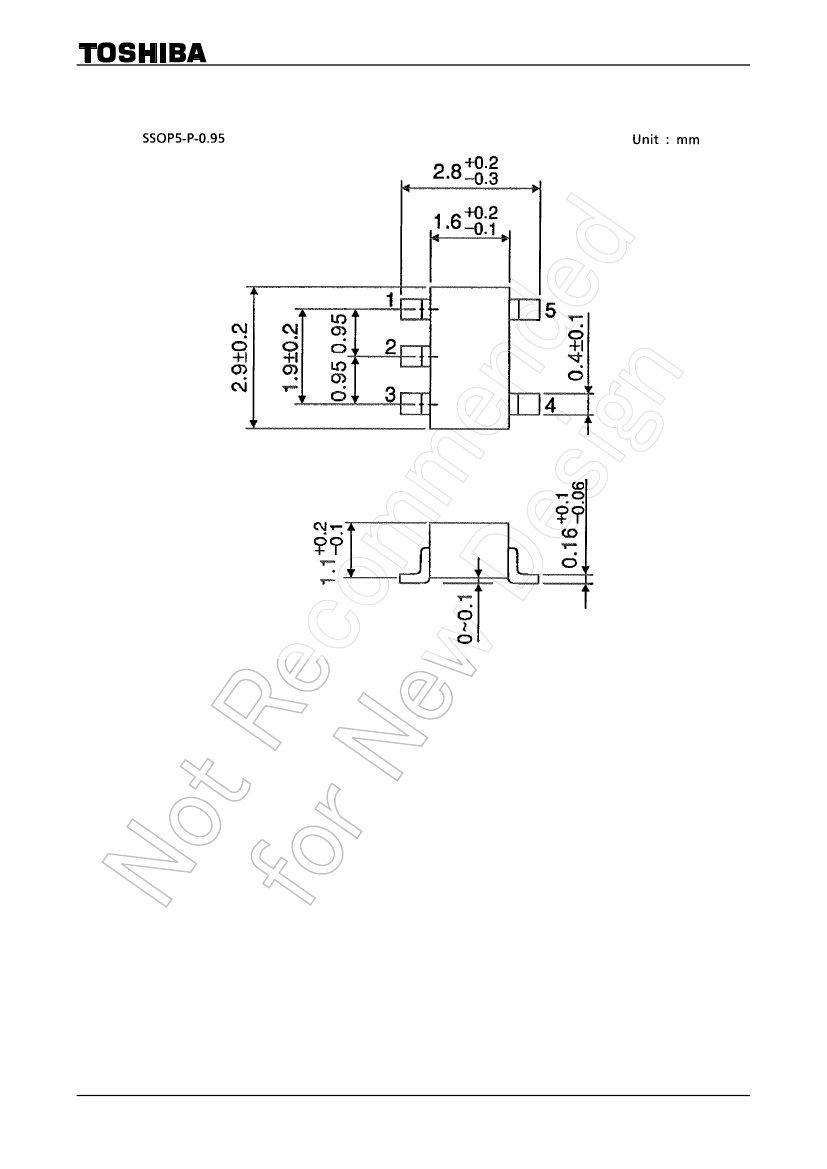

SSOP5-P-0.95

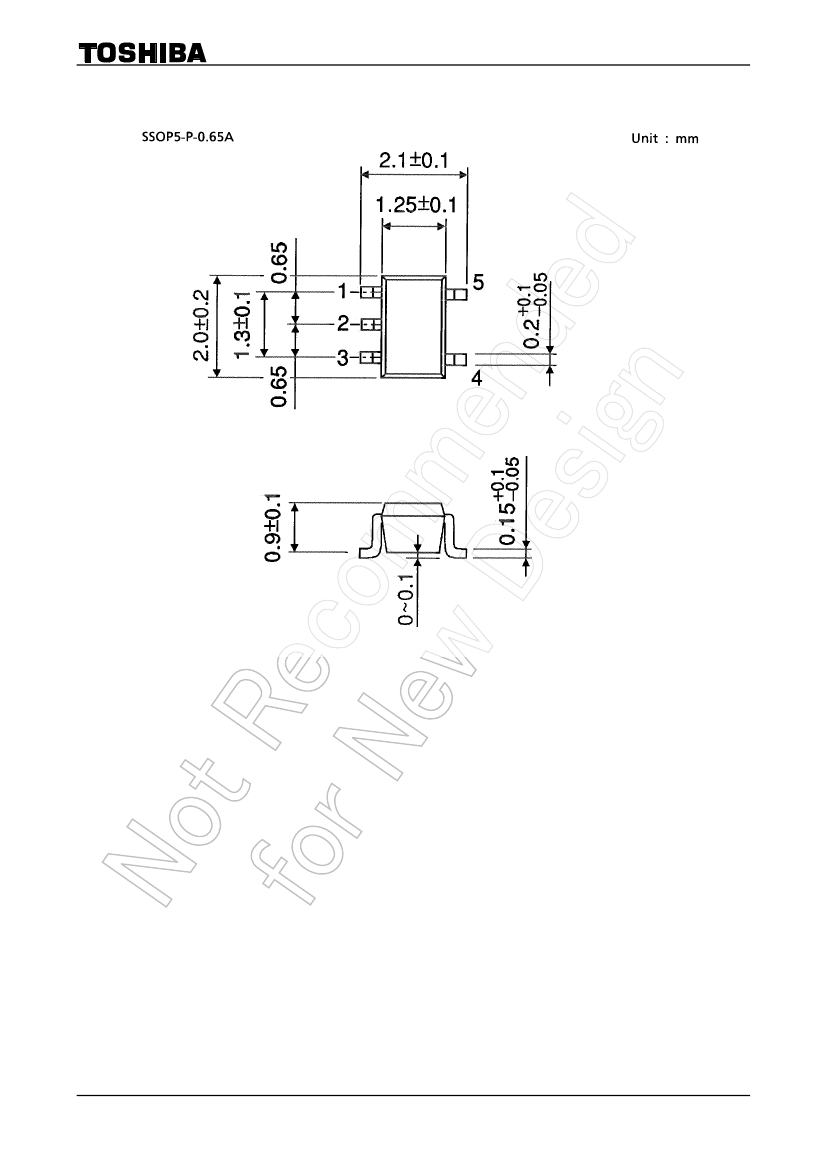

SSOP5-P-0.65A
: 0.016 g (typ.)
: 0.006 g (typ.)
Pin Assignment
(top view)
IN B
1
5
V
CC
IN A
2
GND
3
4
OUT Y
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
Note 1: V
OUT
< GND,V
OUT
> V
CC
Start of commercial production
1999-06
1
2014-03-01
TC7SET86F/FU
AC Characteristics
(Input: t
r
=
t
f
=
3 ns)
Characteristics
Symbol Test Condition
t
pLH
t
pHL
C
IN
C
PD
Ta
=
25°C
V
CC
(V)
5.0
±
0.5
⎯
(Note 2)
C
L
(pF)
15
50
Min
⎯
⎯
⎯
⎯
Typ.
5.2
7.5
4
18
Max
7.5
10.3
10
⎯
Ta
= −40
to 85°C
Min
1.0
⎯
⎯
⎯
Max
11.8
11.5
10
⎯
ns
pF
pF
Unit
Propagation delay time
Input capacitance
Power dissipation capacitance
⎯
Note 2: C
PD
is defined as the value of the internal equivalent capacitance which is calculated from the operating
current consumption without load.
Average operating current can be obtained by the equation:
I
CC (opr)
=
C
PD
½V
CC
½f
IN
+
I
CC
Input Equivalent Circuit
Input
入力
3
2014-03-01
