8mm BI-COLOR INDICATOR LAMPS
Features
UNIFORM LIGHT OUTPUT.
LOW POWER CONSUMPTION.
MILKY WHITE DIFFUSION LENS.
3 LEADS WITH ONE COMMON LEAD.
THIRD COLOR (MIXED COLOR) AVAILABLE.
SUPER BRIGHT VERSION AVAILABLE.
I.C. COMPATIBLE.
LONG LIFE - SOLID STATE RELIABILITY.
Package Dimensions
L799EGW HIGH EFFICIENCY RED / GREEN
L799SRSGW/CC SUPER BRIGHT RED / SUPER BRIGHT GREEN
L799SURKSGW HYPER RED / SUPER BRUGHT GREEN
Description
The High Efficiency Red and Orange source color devices are
made with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green and Super Bright Green source color devices are
made with Gallium Phosphide Green Light Emitting Diode.
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting Diode.
The Hyper Red (SURK) source color devices are made
with DH InGaAlP on GaAs substrate Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subjected to change without notice.
Selection Guide
Iv (mcd)
@ 20 mA
Min.
L799EGW
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT GREEN (GaP)
HYPER RED (InGaAlP)
SUPER BRIGHT GREEN (GaP)
WHITE DIFFUSED
30
20
100
30
300
30
Typ.
80
50
200
50
500
50
Viewing
Angle
2θ1/2
50°
Part No.
Dice
Lens Type
L799SRSGW/CC
WHITE DIFFUSED
50°
L799SURKSGW
WHITE DIFFUSED
50°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
SPEC NO: DSAA0299
REV NO: V.1
DATE: MAR/15/2001
PAGE: 1 OF 4

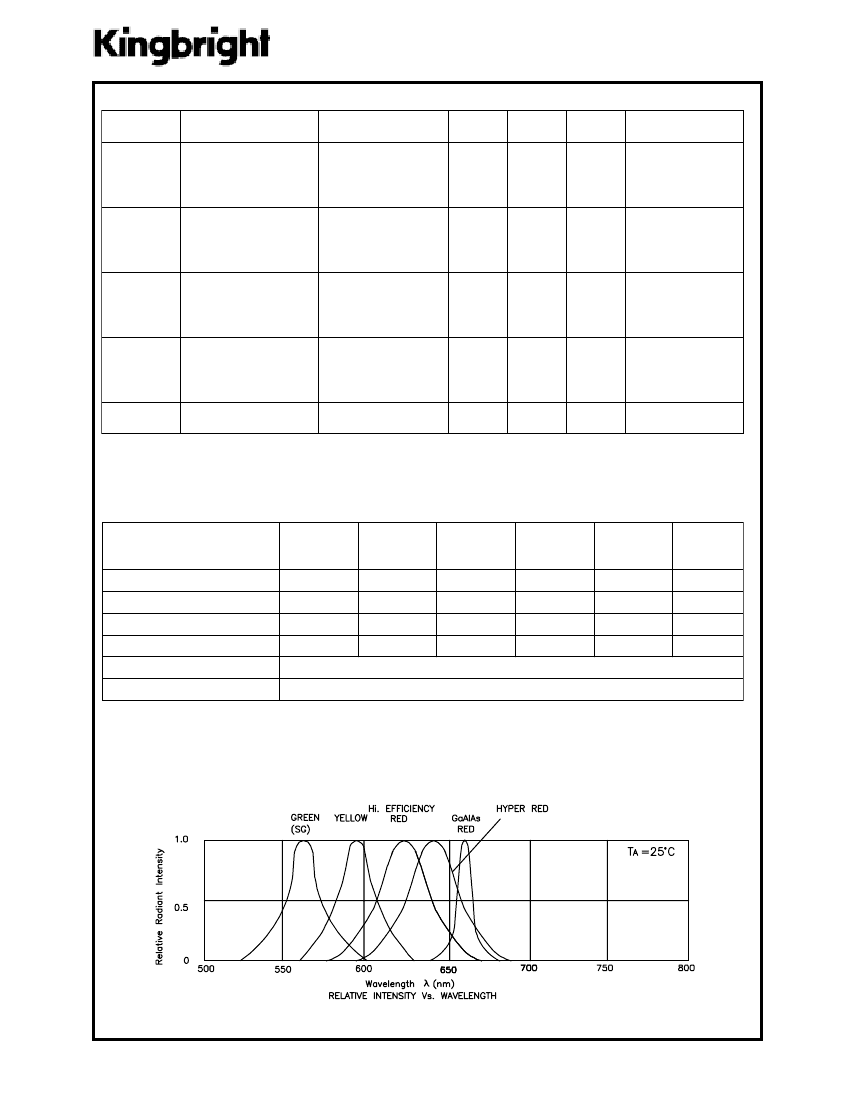

Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par ameter
Dev ic e
High Efficiency Red
Green
Super Bright Green
Super Bright Red
Hyper Red
High Efficiency Red
Green
Super Bright Green
Super Bright Red
Hyper Red
High Efficiency Red
Green
Super Bright Green
Super Bright Red
Hyper Red
High Efficiency Red
Green
Super Bright Green
Super Bright Red
Hyper Red
All
Ty p .
625
565
565
660
640
45
30
30
20
25
12
45
45
95
35
2.0
2.2
2.2
1.85
2.0
2.5
2.5
2.5
2.5
2.2
10
Max .
Un i t s
Tes t Co n d itio n s
λ
peak
Peak Wavelength
nm
IF=20mA
∆λ
1/2
Spectral Line Halfwidth
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
VR = 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par ameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Soldering Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
Hi g h
Effic ien c y
Red
105
30
150
5
Gr een
105
25
150
5
Su p er B r ih g t Su p er B r ig h t
Gr een
Red
105
25
150
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
100
30
150
5
Hy p er Red
170
50
150
5
Un i t s
mW
mA
mA
V
SPEC NO: DSAA0299
REV NO: V.1
DATE: MAR/15/2001
PAGE: 2 OF 4

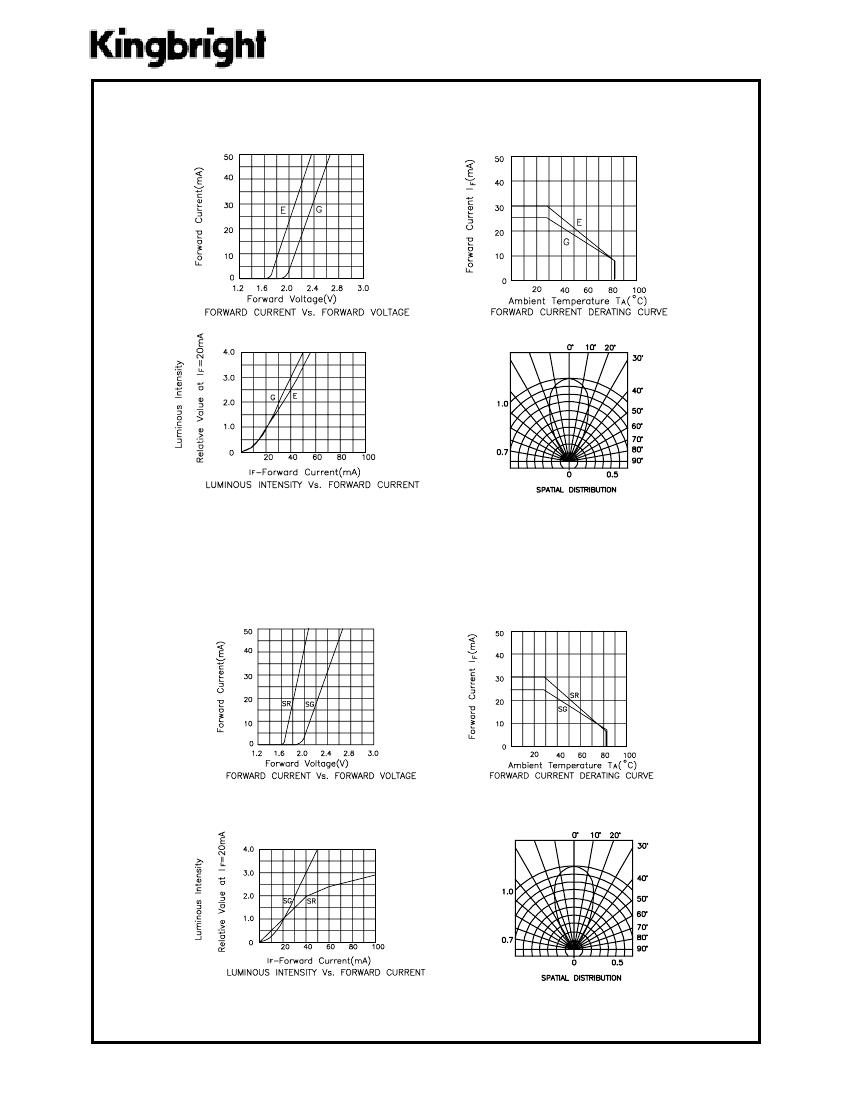

High Efficiency Red / Green L799EGW
Super Bright Red / Super Bright Green L799SRSGW/CC
SPEC NO: DSAA0299
REV NO: V.1
DATE: MAR/15/2001
PAGE: 3 OF 4

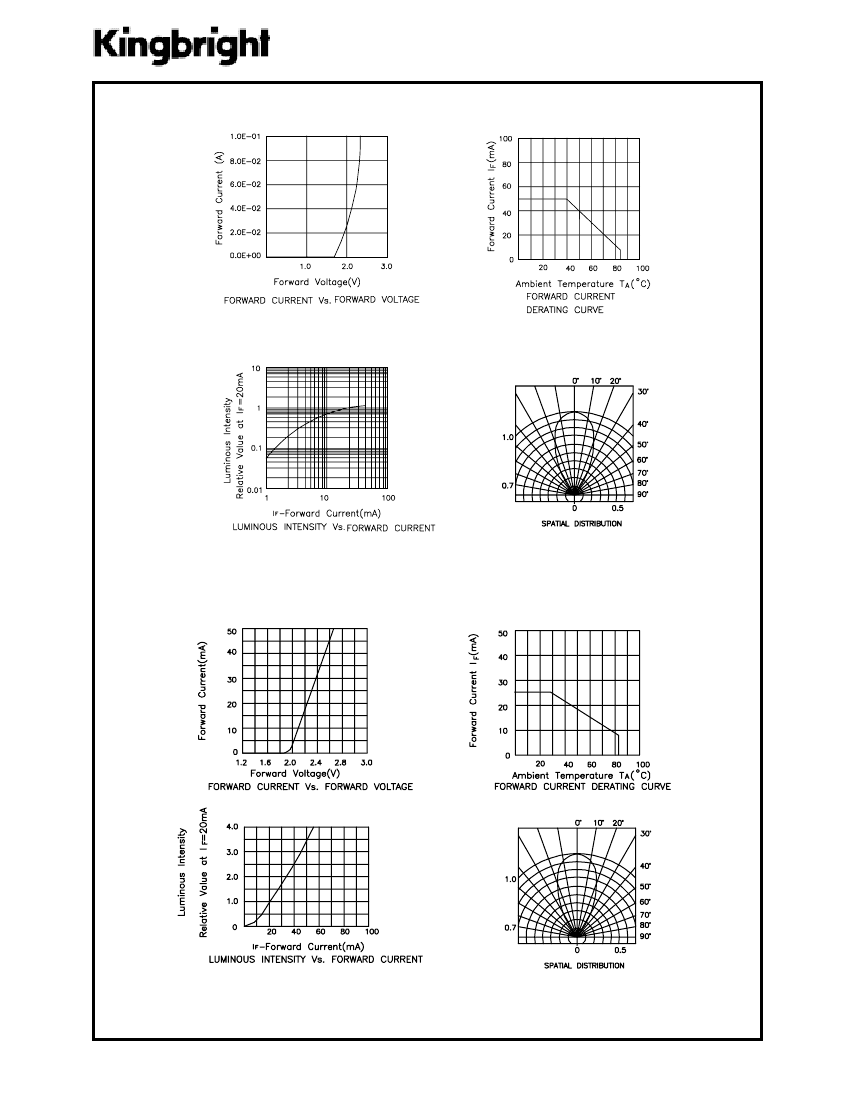

L799SURKSGW
Hyper Red
Super Bright Green
SPEC NO: DSAA0299
REV NO: V.1
DATE: MAR/15/2001
PAGE: 4 OF 4
