TC74HC4066AFN-TP1ELP datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> TC74HC4066AFN-TP1ELP

TC74HC4066AFN-TP1ELP: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.150 INCH, PLASTIC, SOIC-14, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size114KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4066AFN-TP1ELP Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.150 INCH, PLASTIC, SOIC-14, Multiplexer or Switch

TC74HC4066AFN-TP1ELP Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
length	8.65 mm
Nominal Negative Supply Voltage (Vsup)
Number of channels	1
Number of functions	4
Number of terminals	14
Nominal off-state isolation	60 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	80 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.08 mA
Nominal supply voltage (Vsup)	12 V
surface mount	YES
Maximum disconnect time	24 ns
Maximum connection time	12 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

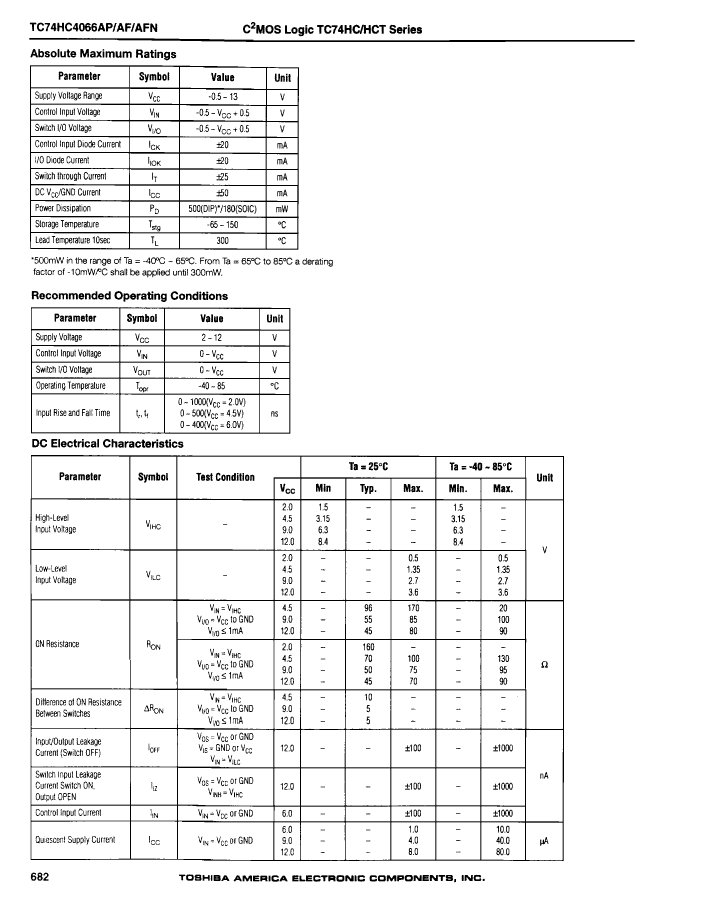

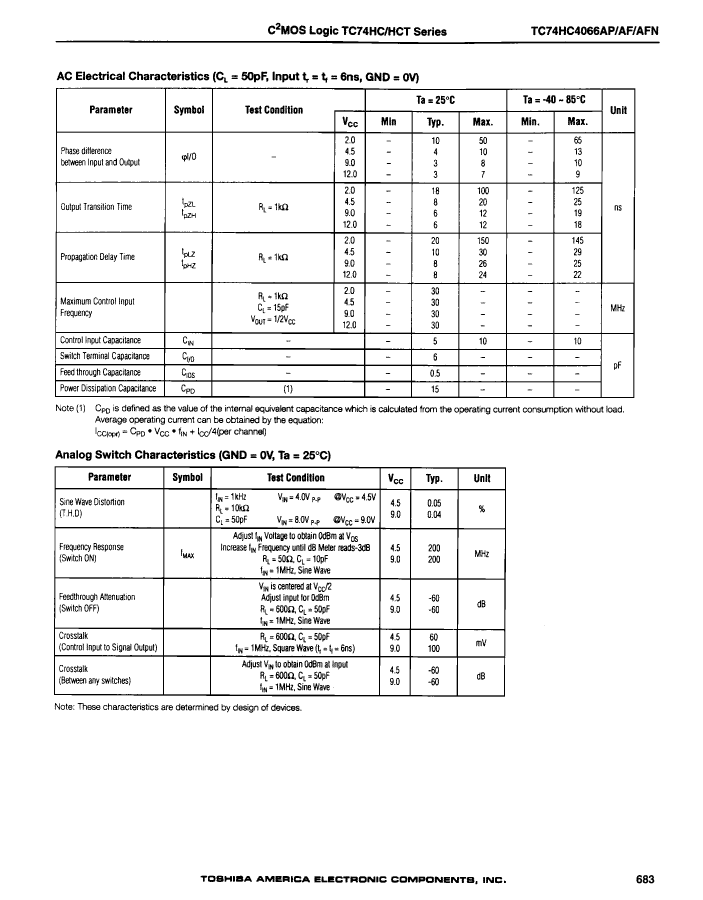

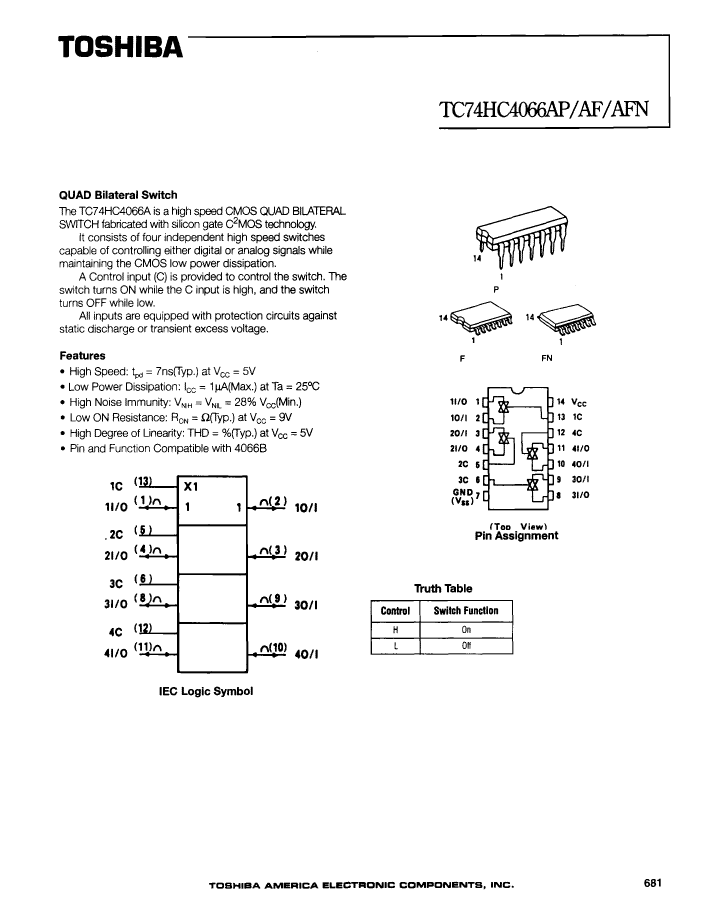

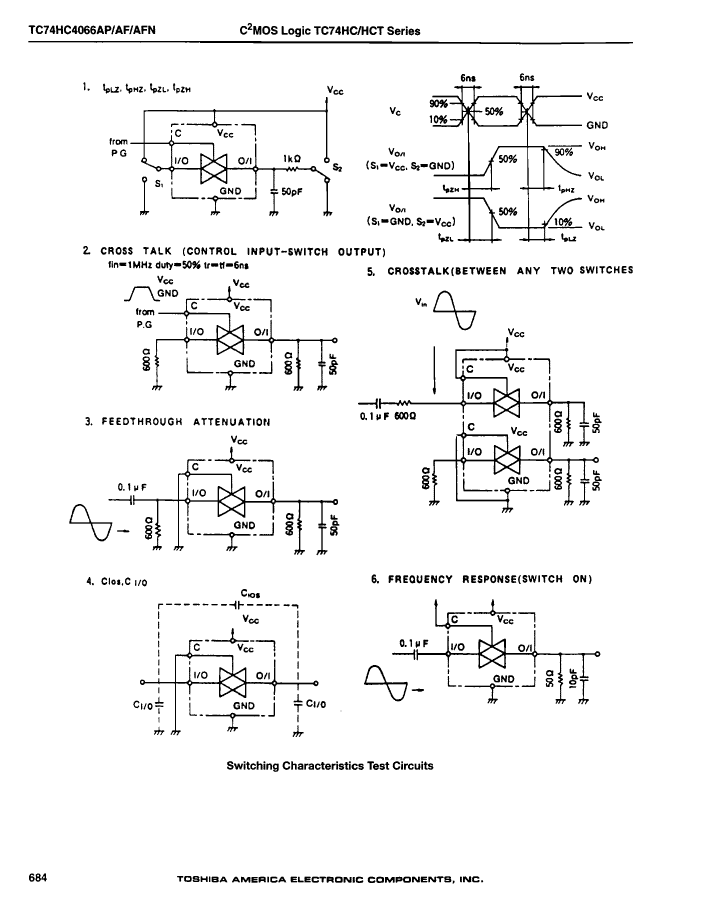

TC74HC4066AFN-TP1ELP Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC74HC4066AFN-TP1ELP Related Products

	TC74HC4066AFN-TP1ELP	TC74HC4066AF-TP1EL	TC74HC4066AF-TP2EL	TC74HC4066AFN-TP2ELP
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.150 INCH, PLASTIC, SOIC-14, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.150 INCH, PLASTIC, SOIC-14, Multiplexer or Switch
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	10.3 mm	10.3 mm	8.65 mm
Number of channels	1	1	1	1
Number of functions	4	4	4	4
Number of terminals	14	14	14	14
Nominal off-state isolation	60 dB	60 dB	60 dB	60 dB
On-state resistance matching specifications	5 Ω	5 Ω	5 Ω	5 Ω
Maximum on-state resistance (Ron)	80 Ω	80 Ω	80 Ω	80 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.9 mm	1.9 mm	1.75 mm
Maximum supply current (Isup)	0.08 mA	0.08 mA	0.08 mA	0.08 mA
Nominal supply voltage (Vsup)	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES
Maximum disconnect time	24 ns	24 ns	24 ns	24 ns
Maximum connection time	12 ns	12 ns	12 ns	12 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	5.3 mm	5.3 mm	3.9 mm
