LA00HLW Overview

Trigger Output SSR, 1-Channel, 1250V Isolation, DIP-6/22

LA00HLW Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	DIP-6/22
Reach Compliance Code	compliant
Other features	CMOS COMPATIBLE, ZERO VOLTAGE CROSSING
Configuration	COMPLEX
Maximum forward current	0.015 A
Maximum insulation voltage	1250 V
Number of components	1
Maximum on-state current	7.5 A
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRIGGER OUTPUT SSR

Preview

Download Datasheet

View All

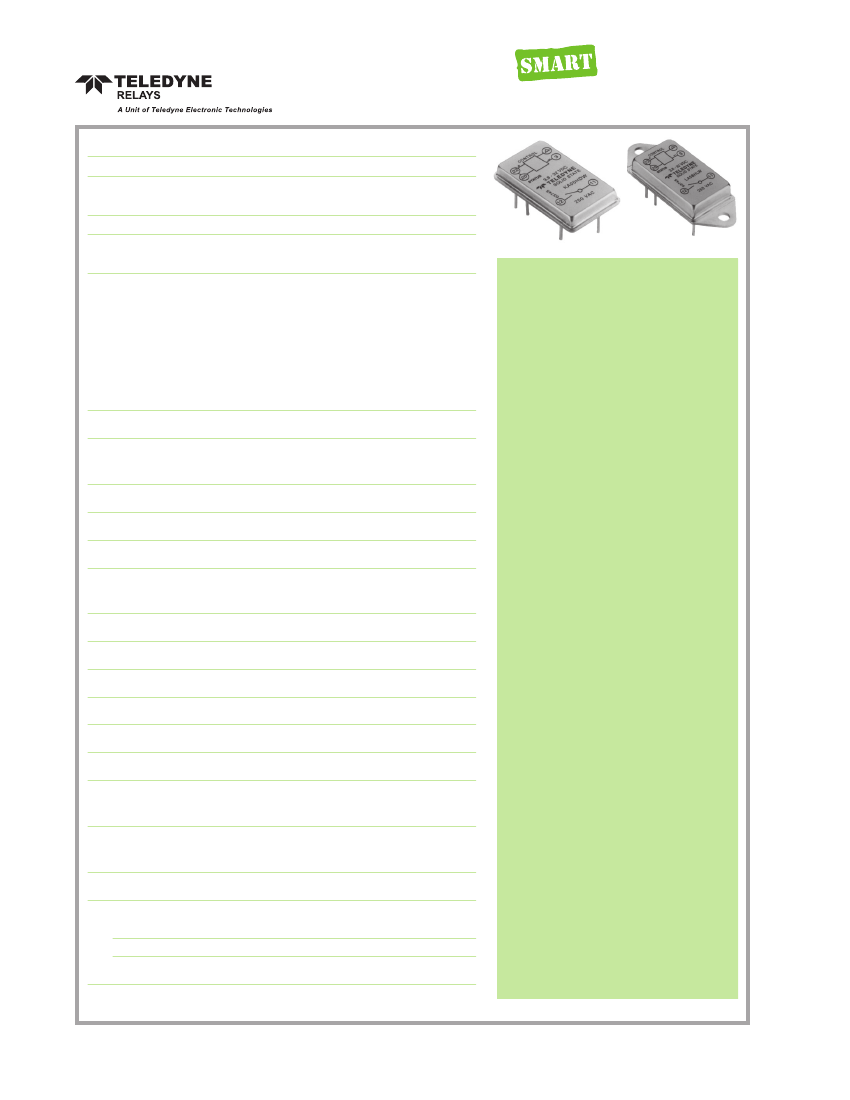

Series KA/LA

2.0 to 7.5A, 250 Vrms Optically Isolated

AC Solid-State Relay

Part Number* Relay Description

KA00HF

KA58HF

LA00HL

LA58HL

2 A, 250 Vrms, AC Solid-State Relay

2 A, 250 Vrms, AC Solid-State Relay with Thermal

Protection and Thermal TRIP Status

7.5 A, 250 Vrms, AC Solid-State Relay

7.5 A, 250 Vrms, AC Solid-State Relay with Thermal

Protection and Thermal TRIP Status

* The Y suffix denotes parameters tested to MIL-PRF-28750 test methods.

The W suffix denotes parameters tested to Teledyne specifications.

ELECTRICAL SPECIFICATIONS

(-55°C TO +110°C UNLESS OTHERWISE SPECIFIED)

INPUT (CONTROL) CHARACTERISTICS

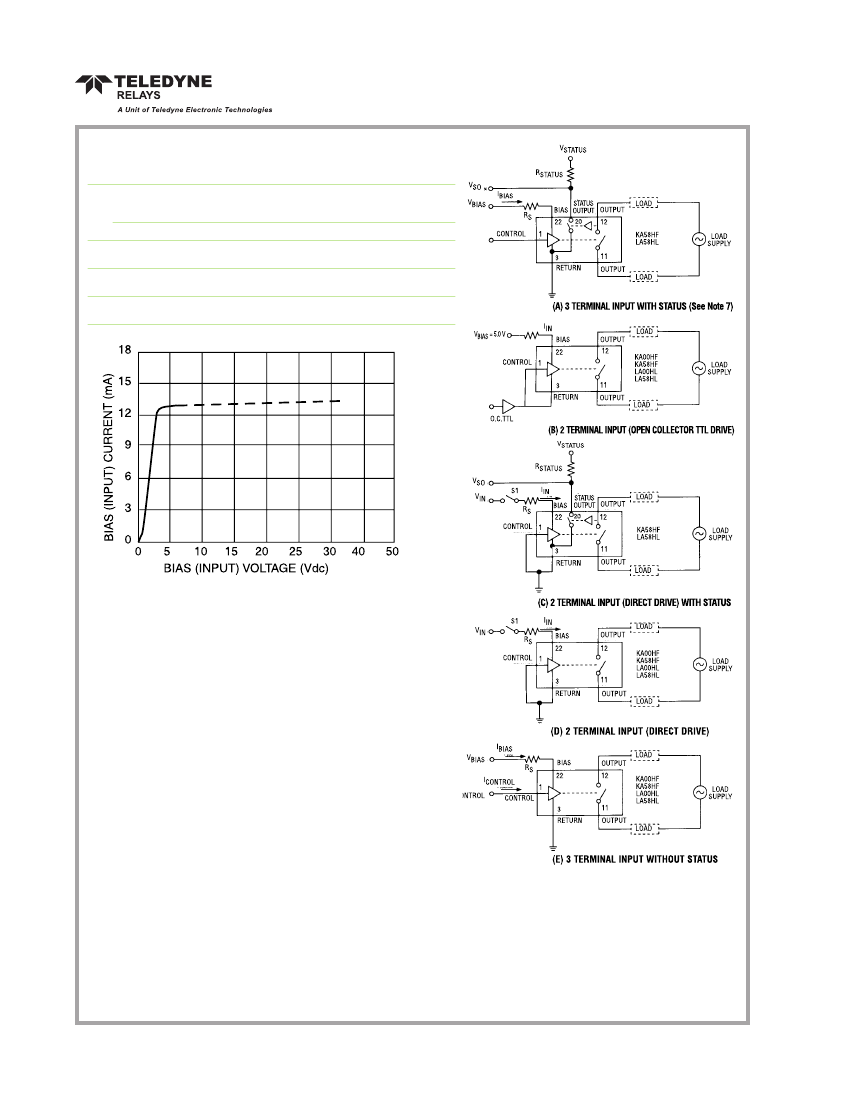

2 Terminal Configuration (See Fig. 1)

Input Voltage (See note 2)

Input Current (See Figure 1)

= 5 Vdc

Turn-Off Voltage (Guaranteed Off)

Turn-On Voltage (Guaranteed On)

Reverse Voltage Protection

Min

3.8

Max

Units

Vdc

1.5

3.8

-32

mA dc

Vdc

FEATURES/BENEFITS

• Available with thermal protection

and thermal TRIP status: Provides

self-protection from thermal

runaway conditions and indicates

protection state for system BIT.

• Optical Isolation: Isolates control

elements from load transients with

reduced EMI.

• Fully Floating Output: Eliminates

ground potential loops and allows

the output to sink or source current.

• Buffered Control: Relay can be

controlled directly from TTL or

CMOS logic circuits.

• Integral Snubber Circuit: Enhances

dV/dt capability while minimizing

EMI.

DESCRIPTION

The Series KA/LA solid-state relays

(SSRs) is designed for use in AC

power switching applications where

safety and reliability are primary

concerns. These SSRs are rated for

load voltages up to 250 Vrms from 40

to 440 Hz and are ideal for resistive

and reactive loads with power factors

as low as 0.2. Inverse parallel SCRs

are configured for zero voltage turn on.

Optical isolation to 1250 Vrms between

the control (input) and load (output)

allows the load to be safely controlled

by logic circuitry. The KA/LA series is

available with thermal protection and

thermal TRIP status. In case of a

thermal runaway condition, the SSR

will shut down the output switch and

latch off until the input is reset and the

junction temperature returns to a safe

level. When the output does latch off,

the TRIP status line will yield a logic

level output indicating the protection

state of the SSR. This feature provides

the user with failure mode indication

while enhancing the system diagnostic

capability. These SSRs are available to

the Y screening level of MIL-PRF-

28750 and are packaged in low-profile

hermetically sealed cases.

INPUT (CONTROL) CHARACTERISTICS

3 Terminal Configuration (See Fig. 1)

Bias Voltage (See note 2)

Bias Current (V

=32 Vdc)

Control Voltage Range

Control Current (at 5 Vdc)

Turn-On Control Voltage

Turn-Off Control Voltage

Min

3.8

Max

Units

Vdc

µAdc

Vdc

250

0.3

3.2

OUTPUT (LOAD) SPECIFICATIONS

Min

Max

Units

Load Voltage

Frequency Range

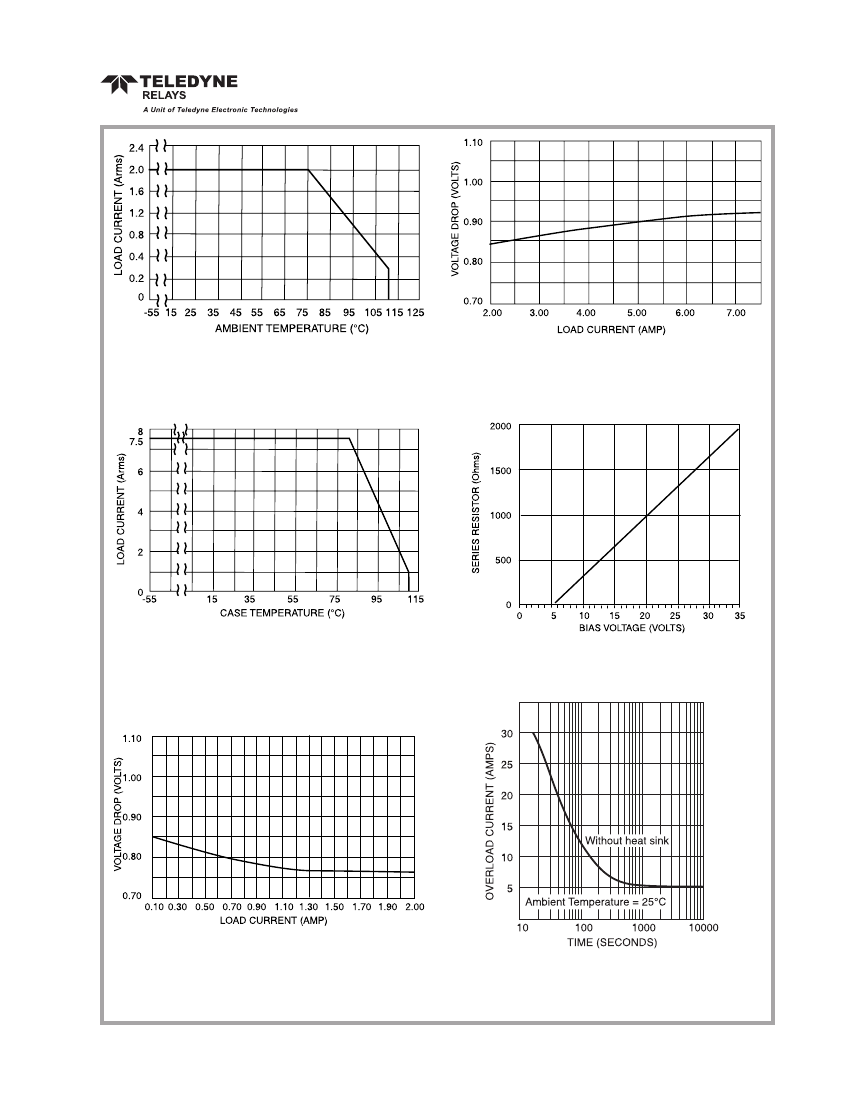

Continuous Load Current (See Figure 3)

KA and LA without Heat Sink

LA with Heat Sink

Output Voltatge Drop

250

440

2.0

7.5

1.2

Vrms

Arms

Vrms

KA/LA 78

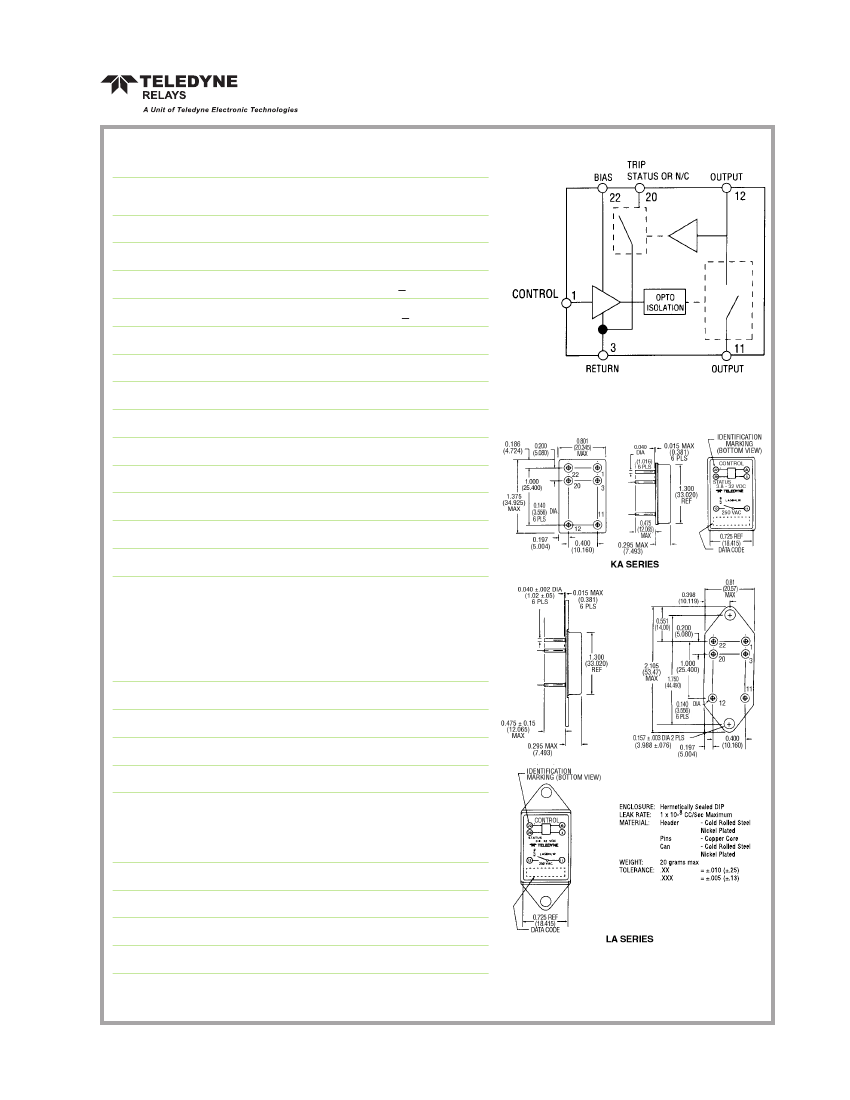

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

KA/LA\072002\Q1
