MC30-3R9K-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MC30-3R9K-RC

MC30-3R9K-RC: Description1 ELEMENT, 3.9 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size73KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance; Related ProductsFound1parts with similar functions to MC30-3R9K-RC

Download Datasheet Parametric View All

MC30-3R9K-RC Overview

1 ELEMENT, 3.9 uH, GENERAL PURPOSE INDUCTOR, SMD

MC30-3R9K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	1812
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1812
DC Resistance	0.9 Ω
Nominal inductance(L)	3.9 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.33 A
self resonant frequency	40 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	10%

Preview

Download Datasheet

View All

RoHS

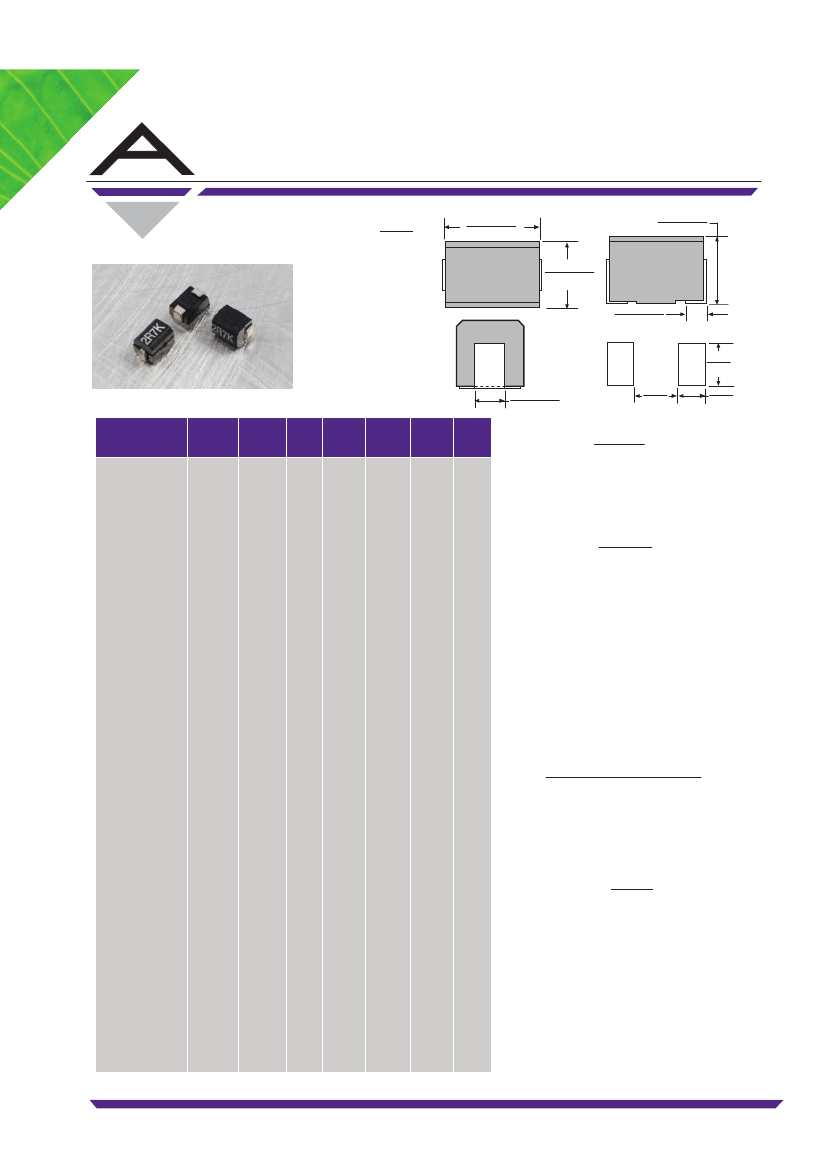

Molded Chip Inductors

Dimensions:

Inches

(mm)

0.177±0.012

(4.50±0.30)

MC30

0.125±0.012

(3.20±0.30)

0.125±0.012

(3.2±0.30)

0.035 REF

(0.90 REF)

0.110

(2.80)

0.055 REF

(1.40 REF)

0.118

(3.00)

0.059

(1.50)

Allied

Part

Number

Inductance

Tolerance

(µh)

(%)

Min.

Test

Freq.

(MHz)

SRF

Min.

(MHz)

DCR

Max.

(Ω)

IDC

(mA)

Features

• 1812 Molded Chip Inductor

• Excellent Solder Heat Resistance

• Terminals have high resistance to

pull forces

Electrical

Inductance Range:

.10µh ~ 1000µh

Tolerance:

10% over entire range

Also available in 5%

Test Frequency:

.10µh ~ .82µh measured at 25.2Mhz,

1.0µh ~ 8.2µh measured at 7.96Mhz,

10µh ~ 82µh measured at 2.52Mhz,

100µh ~ 1000µh measured at .796Mhz,

Operating Temp:

-25ºC ~ +85ºC @ 75% RH

IDC:

The current at which inductance will drop no

more then 10% of it’s orginial value.

MC30-R10K-RC

MC30-R12K-RC

MC30-R15K-RC

MC30-R18K-RC

MC30-R22K-RC

MC30-R27K-RC

MC30-R33K-RC

MC30-R39K-RC

MC30-R47K-RC

MC30-R56K-RC

MC30-R68K-RC

MC30-R82K-RC

MC30-1R0K-RC

MC30-1R2K-RC

MC30-1R5K-RC

MC30-1R8K-RC

MC30-2R2K-RC

MC30-2R7K-RC

MC30-3R3K-RC

MC30-3R9K-RC

MC30-4R7K-RC

MC30-5R6K-RC

MC30-6R8K-RC

MC30-8R2K-RC

MC30-100K-RC

MC30-120K-RC

MC30-150K-RC

MC30-180K-RC

MC30-220K-RC

MC30-270K-RC

MC30-330K-RC

MC30-390K-RC

MC30-470K-RC

MC30-560K-RC

MC30-680K-RC

MC30-820K-RC

MC30-101K-RC

MC30-121K-RC

MC30-151K-RC

MC30-181K-RC

MC30-221K-RC

MC30-271K-RC

MC30-331K-RC

MC30-391K-RC

MC30-471K-RC

MC30-561K-RC

MC30-681K-RC

MC30-821K-RC

MC30-102K-RC

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

25.2

7.96

2.52

.796

700

500

450

400

350

320

300

250

220

180

160

140

100

9.0

8.0

6.0

5.0

4.0

3.5

3.0

2.5

0.44

0.22

0.25

0.28

0.32

0.36

0.40

0.45

0.50

0.55

0.60

0.67

0.50

0.55

0.60

0.65

0.70

0.75

0.80

0.90

1.00

1.10

1.20

1.40

1.60

2.00

2.50

2.80

3.20

3.60

4.00

4.50

5.00

5.50

6.00

7.00

8.00

9.00

9.50

12.0

18.0

20.0

23.0

26.0

30.0

40.0

45.0

50.0

450

410

390

380

370

355

330

315

300

285

270

250

225

200

190

180

170

160

150

140

135

130

120

110

105

102

100

Resistance to Soldering Heat

Pre-heating: 150ºC, 1min

Solder Composition: Sn/Pb 63/37

Solder Temperature: 260 ± 5ºC

Immersion Time: 10 ± 1sec, with no damage

Physical

Packaging:

500 pieces per, 7” reel

Marking:

EIA Inductance code

Available in tighter tolerances.

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 10/20/10

www.alliedcomponents.com
