MWDM Surface Mount Right Angle Micro-D Connectors
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Series
MWDM
1
2
4
5
6
Insulator
TwistPin
Contact
Aluminum Shell
Epoxy
Potting
Plastic
Alignment
Strip

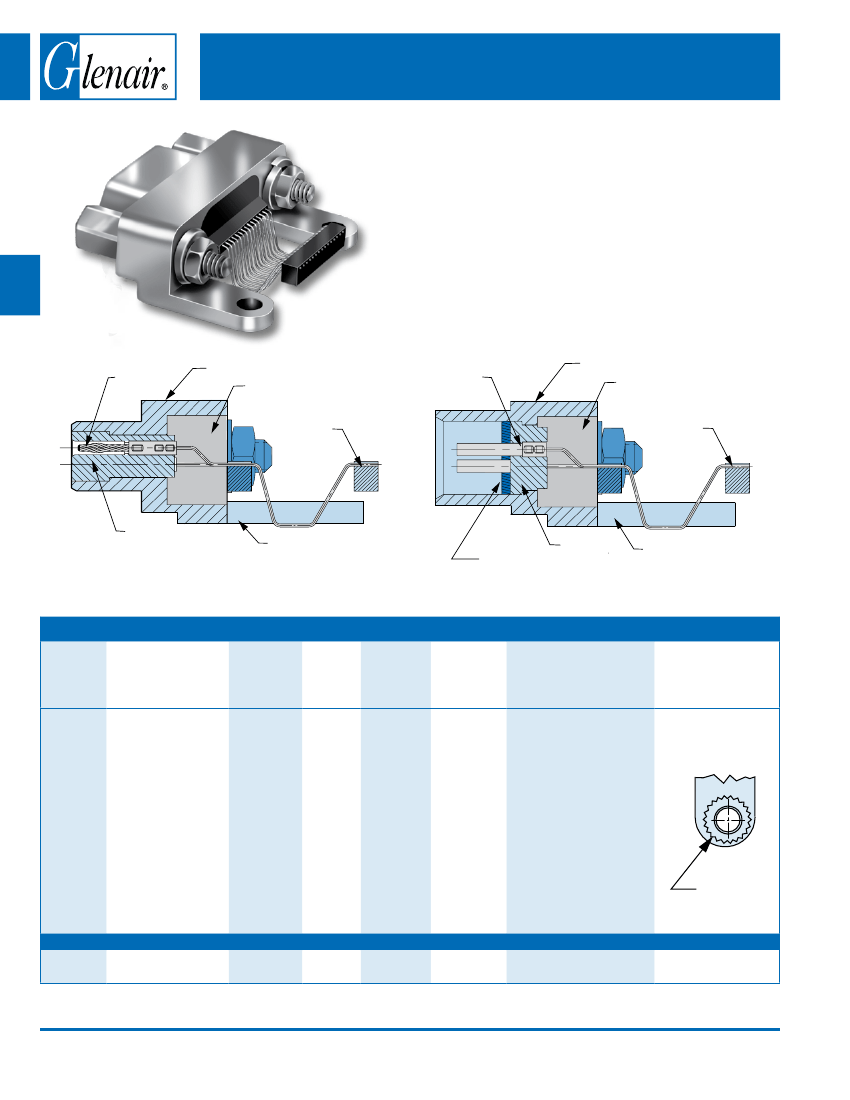

Surface Mount Micro-D
– These connectors feature .025
inch terminal spacing and an alignment strip for accurate
registration. The integral mounting legs provide a ground
path.
9 To 51 Contacts
– These compact connectors are lighter
and smaller than comparable thru-hole versions.
Mil Spec Reliability
– Suitable for mission-critical
requirements, These high performance connectors
meet the requirements of MIL-DTL-83513.
Aluminum Shell
Epoxy
Potting
Plastic
Alignment
Strip
Socket
Contact
Integral Mounting Leg
Flourosilicone
Interfacial Seal
Pin Connector
Insulator
Integral Mounting Leg
Socket Connector
HoW to oRDER SuRFACE MouNt PCB MICRo-D CoNNECtoRS
Shell Material and
Finish
– Cadmium
– Nickel
– Black Anodize
– Gold
– Chem Film
Insulator
Material
L
– LCP
30% Glass-
Filled Liquid
Crystal
Polymer
Contact
Layout
9
15
21
25
31
37
51-2
Contact
type
P
–
S
–
Pin
Socket
termination Jackpost or Jackscrew
type
option
SMR
Board Mounting
threaded Insert
option
N
– Thru-Hole
N
– Thru-Hole, No
Insert
Surface Mount
P
– Jackpost
Right Angle
M
– Jackscrew, Hex Head
t
– Threaded Inserts
t
– Threaded Insert
Jackposts for Rear Panel
Mounting
R1
R2
R3
R4
R5
– .032” Panel
– .047” Panel
– .062” Panel
– .093” Panel
– .125” Panel
#2-56 Insert
Sample Part Number
MWDM
2
L
– 51-2
P
SMR
P
N
© 2006 Glenair, Inc.
www.glenair.com
CAGE Code 06324/0CA77
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
C-36
MWDM Surface Mount Right Angle Micro-D Connectors

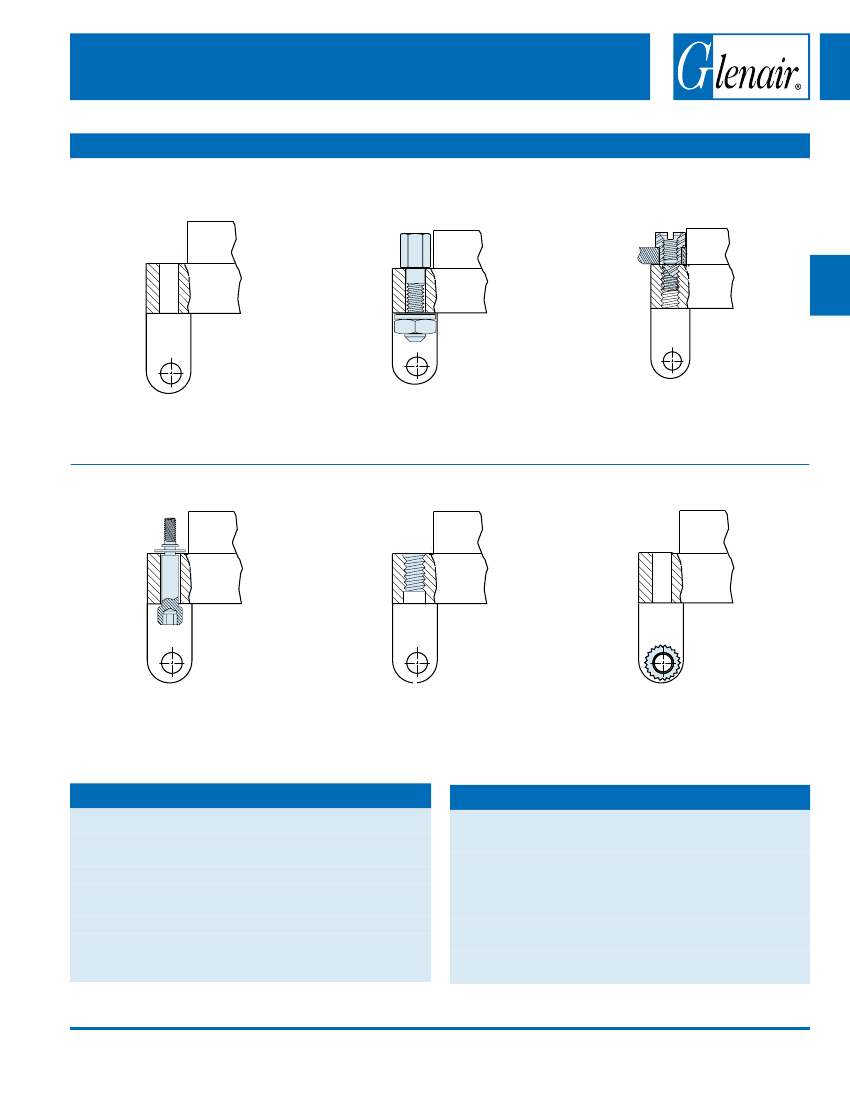

SuRFACE MouNt MICRo-D HARDWARE oPtIoNS
