MBRS16CT
16 Amp. Surface Mount Schottky Barrier Rectifiers
D
2
PAK
Voltage
40 to 150 V
For surface mounted application
Low forward voltage drop
High current capability
High reliability
High surge current capability
Current
16 A
4
2
3
1
Mechanical Data
PIN 1
PIN 3
CASE
PIN 4
Cases: D
2
PAK molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Pure tin plated, lead free.
solderable per MIL-STD-202, Method 208
guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260 °C/10 seconds at terminals
Weight: 1.70 grams
Absolute Maximum Ratings, according to IEC publication No. 134
MBRS
1640CT
MBRS
1660CT
MBRS
16100CT
MBRS
16150CT
V
RRM
V
RMS
V
DC
I
F (AV)
I
FSM
C
j
T
j
T
stg
Maximum recurrent peak reverse voltage (V)
Maximum RMS voltage (V)
Maximum DC blocking voltage (V)
Maximum average forward rectified
current See Fig.
Peak Forward Surge Current 8.3 ms. single
Half Sine-wave Superimposed on Rated
Load (Jedec Method)
Typical junction capacitance
(1MHz; -4V)
Operating junction temperature range
Storage temperature range
40
28
40
60
42
60
16 A
150 A
100
70
100
150
105
150
700 pF
65 to + 125 °C
460 pF
320 pF
65 to + 150 °C
65 to + 150 °C
Electrical Characteristics
MBRS
1640CT
MBRS
1660CT
MBRS
16100CT
MBRS
16150CT
V
F
I
R
R
thj-C
Max. instantaneous forward voltage @ 8.0 A
0.55 V
15 mA
0.70 V
10 mA
Maximum D.C. Reverse Current @ T
C
= 25 ºC
at Rated DC Blocking Voltage @ T
C
= 100 ºC
Typical Thermal Resistance (See note)
0.5 mA
0.90 V
1.00 V
0.1 mA
5.0 mA
2.0 °C/W
Note: Thermal Resistance from Junction to Case Per Leg
Apr - 08
MBRS16CT
16 Amp. Surface Mount Schottky Barrier Rectifiers

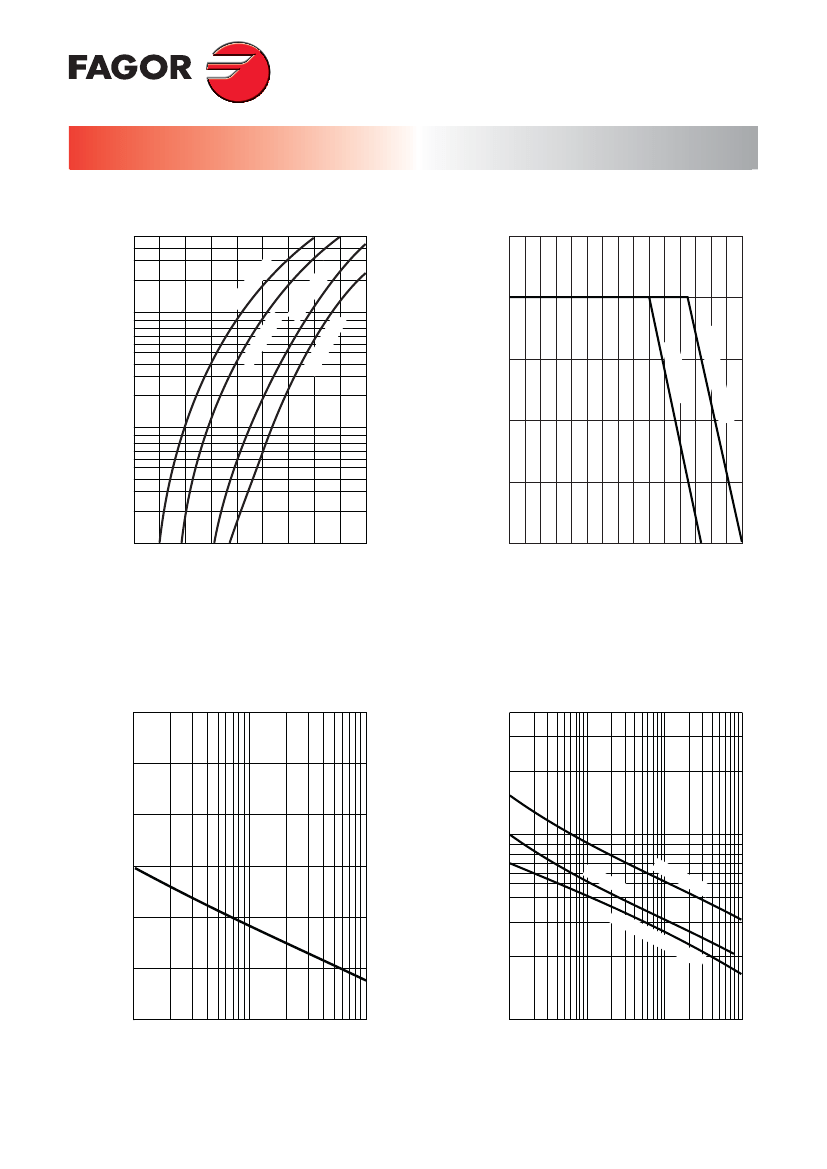

TYPICAL FORWARD CHARACTERISTIC
PER LEG
50
CT
MAXIMUN FORWARD CURRENT DERATING
CURVE
20
I
F
, instantaneous forward current (A)
RS
16
10
0C
T
S1
64
0
0C
T
66
0C
T
10
I
F(AV)
, average forward current (A)
MB
16
T
150C
CT-16
1660
MBRS
M
BR
RS
1
16
15
MBRS
RS
MB
12
MB
CT
1640
1
8
4
0.1
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1
V
F
, instantaneous forward voltage (V)
0
0
50
100
150
T
C
, case temperature (ºC)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
300
250
200
150
100
50
0
C
j
, junction capacitance (pF)
4000
TYPICAL JUNCTION CAPACITANCE
PER LEG
I
FSM
, peak forward surge current (A)
2000
1000
800
600
400
MB
RS
MB
16
60
C
MB
T
RS
16
40
C
T
RS
200
16
10
0C
T-1
6
15
0C
T
1
2
5
10
20
50 100
100
0.1
0.4
1
4
10
40
100
Number of cycles at 60 Hz.
V
R
, reverse voltage (V)
Apr - 08
MBRS16CT
16 Amp. Surface Mount Schottky Barrier Rectifiers

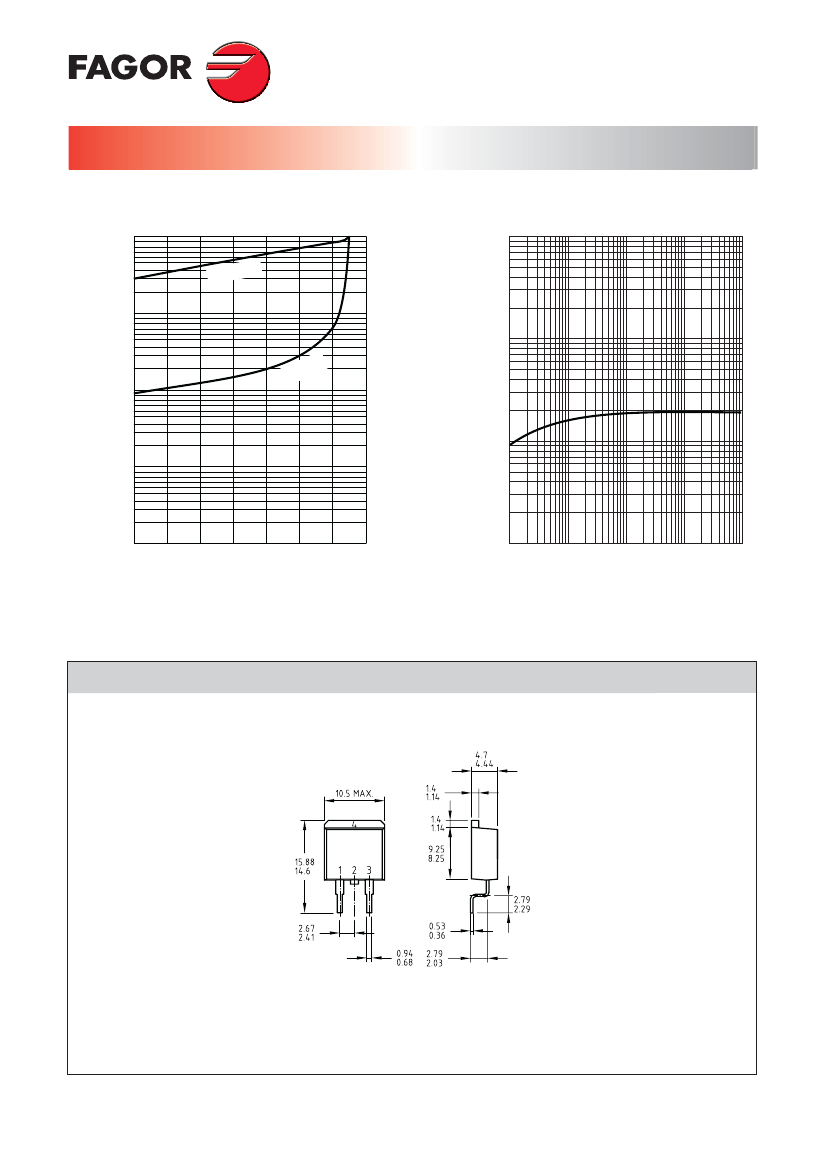

TYPICAL REVERSE CHARACTERISTICS
PER LEG
100
I
R
, instantaneous reverse current (mA)
Transient thermal impedance (°C/W)
10
T
j
= 10
0 °C
TYPICAL TRANSIENT THERMAL
CHARACTERISTIC
1
2
T
j
=
5°
C
10
0.1
1
0.01
0.001
0
20
40
60
80
100 120 140
0.1
0.01
0.1
1
10
100
Percent of rated peak reverse voltage (%)
t, Pulse duration (sec.)
PACKAGE MECHANICAL DATA
D
2
PAK
Dimensions in mm.
Apr - 08
