PCS5D18-1R0T-RC_11: Description1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components; File Size103KB，2 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet View All

PCS5D18-1R0T-RC_11 Overview

1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD

Preview

Download Datasheet

View All

RoHS

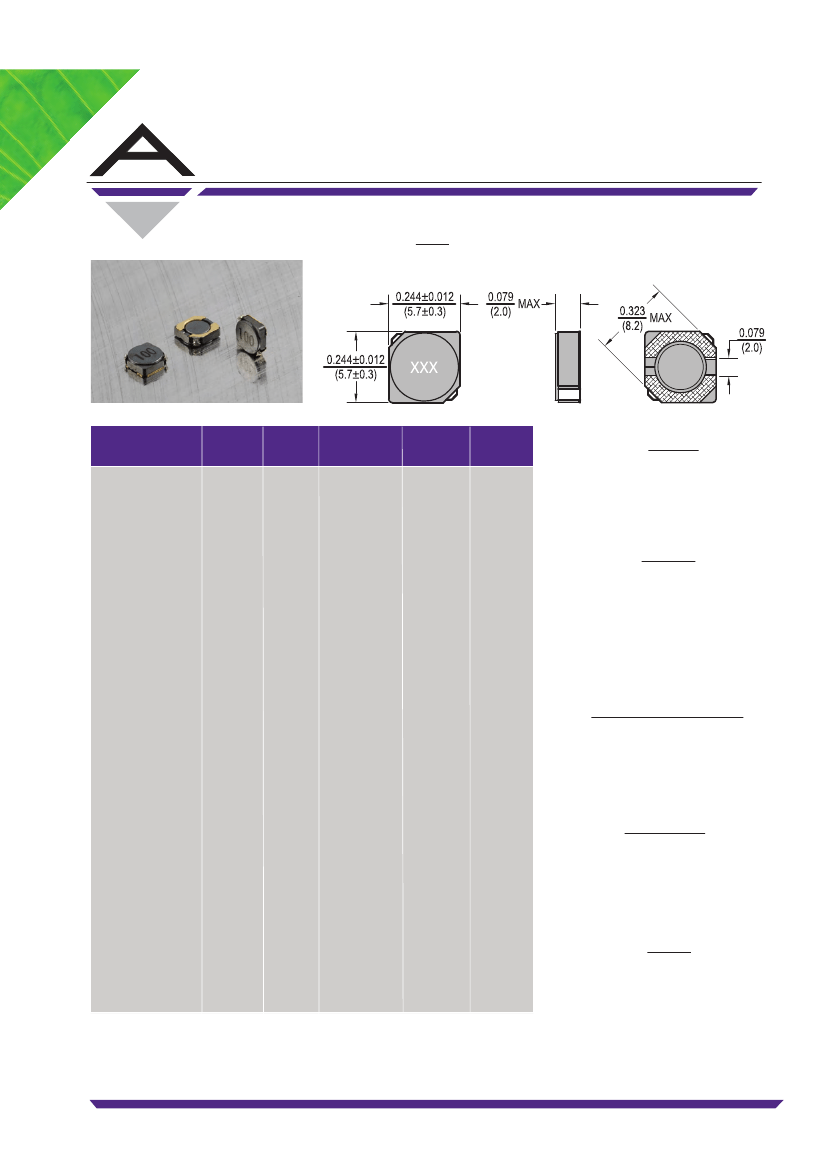

Power Chip Shielded Inductors

Dimensions:

Inches

(mm)

PCS5D18

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz, 1V

RDC

(Ω) Max.

Rated

Current

(A)

Features

• Shielded SMD Power Inductor

• Available in magnetically shielded

• Low DC resistance

• Ideal for DC-DC converter applications

PCS5D18-1R0T-RC

PCS5D18-1R5T-RC

PCS5D18-3R3T-RC

PCS5D18-4R1T-RC

PCS5D18-4R7T-RC

PCS5D18-5R4T-RC

PCS5D18-6R2T-RC

PCS5D18-6R8T-RC

PCS5D18-8R9T-RC

PCS5D18-100T-RC

PCS5D18-120T-RC

PCS5D18-150T-RC

PCS5D18-180T-RC

PCS5D18-220T-RC

PCS5D18-270T-RC

PCS5D18-330T-RC

PCS5D18-390T-RC

PCS5D18-470T-RC

PCS5D18-560T-RC

PCS5D18-680T-RC

PCS5D18-820T-RC

PCS5D18-101T-RC

1.0

1.5

3.3

4.1

4.7

5.4

6.2

6.8

8.9

10

12

15

18

22

27

33

39

47

56

68

82

100

30

10

.038

.056

.057

.076

.096

.100

.116

.124

.153

.196

.210

.290

.330

.386

.520

.595

.665

.840

.978

1.20

2.80

2.50

1.90

1.95

1.60

1.40

1.35

1.25

1.20

1.10

0.97

0.85

0.80

0.75

0.65

0.57

0.54

0.50

0.43

0.41

0.36

Electrical

Inductance Range:

1µh to 100µh

Tolerance:

30% over entire range

Also, available in tighter tolerances

Operating Temp:

-30ºC ~ +100ºC

Rated Current:

Current at which inductance

drop by 35% of intial value or

∆

T=40ºC lower,

whichever is lower

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for

10 sec. +/- 1 sec.

Test Equipment

(L):

HP4284A LF Impedance Analyzer

(RDC):

Chen Hwa 502BC

Rated Current:

HP4284+HP42841A or

Chen Hwa 1061 + Chen Hwa 301A

Physical

Packaging:

1500 pieces per 13 inch reel.

Marking:

EIA Inductance Code

All specifications subject to change wtihout notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 01/12/11

15

www.alliedcomponents.com
